Access

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

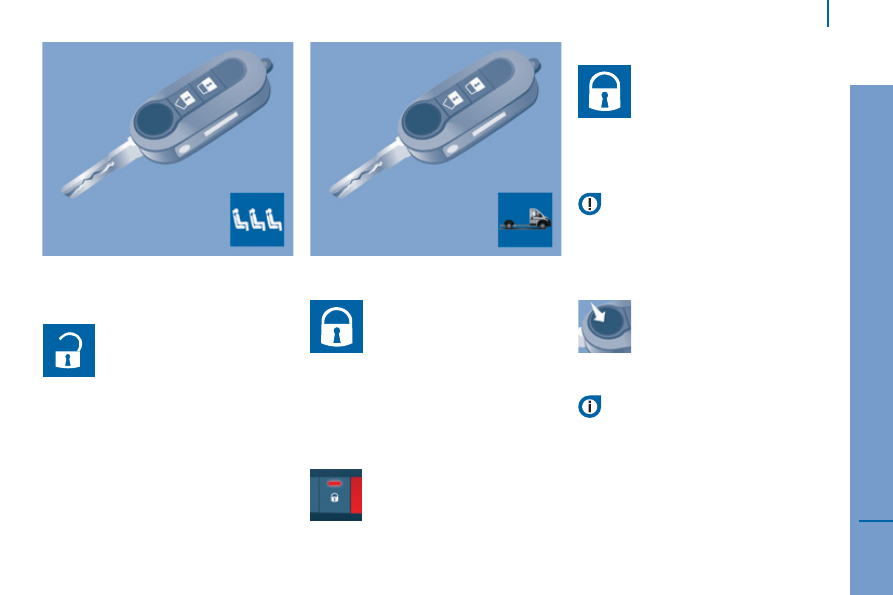

2-Button rEMotE controL

central unlocking

Pressing this button
simultaneously unlocks all of your
vehicle's doors.

the interior courtesy lamp comes

on for a moment and the direction indicators
flash twice.

If your vehicle has an alarm, pressing this
button deactivates it.

the indicator lamp in the central locking
button, located in the dashboard, goes off.

central locking

Pressing this button
simultaneously locks all of your
vehicle's doors. If one of the
doors is open or not fully closed,

the central locking does not take place.

the direction indicators flash twice.

If your vehicle has an alarm, pressing this
button sets it.

deadlocking

Pressing this button twice in
succession deadlocks the
vehicle. It is then impossible to
open the doors from the inside or

the outside.

the direction indicators flash three times.

Folding / unfolding the key

Press this button to release the
key from its housing.

to fold the key, press the button
then fold the key into the housing.

Never leave anyone inside the vehicle
when it is deadlocked.

If you do not press the button, there is
a risk of damaging the mechanism.

the indicator lamp in the central
locking button, located in the
dashboard, comes on and
flashes.

Access

boxer_en_Chap02_Pret-a-Partir_ed01-2015

KEY

this locks and unlocks the vehicle's doors,
opens and closes the fuel filler cap, as well
as starting and stopping the engine.

rEMotE controL BAttErY

Reference: CR 2032/3 volts.

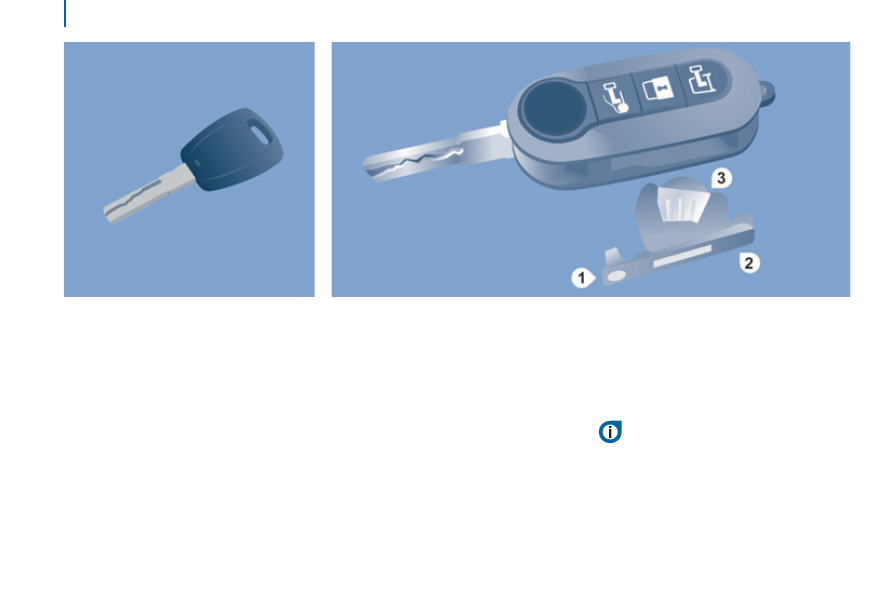

changing the battery

Press the button to eject the key.

turn the screw 1 from the closed
padlock to the open padlock using a
screwdriver with a thin lip.

use the screwdriver as a lever to extract
the battery holder housing 2.

Remove the housing and change the
battery 3 observing the polarities.

Put the battery holder housing 2 back
inside the key and secure it by turning
the screw 1.

there is a risk of damage if the
replacement battery is not of the
correct type.

Only use batteries which are identical or of
an equivalent type to those recommended
by a PeugeOt dealer. take used batteries
to an authorised collection point.

Access

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

MAIn FunctIonS oF tHE KEY

type of key

unlocking the cabin

Locking the doors

unlocking the rear doors

Mechanical key

turn anti-clockwise (driver's

side).

turn clockwise (driver's side).

Remote control

Signalling

Direction indicators

2 flashes.

1 flash.

2 flashes.

Indicator lamp in the central

locking control button on the

dashboard

Off.

On for about 3 seconds, then

flashing.

Flashing.

using the mechanical key in the drivers' door lock barrel does not activate (set) or deactivate the alarm.

Access

boxer_en_Chap02_Pret-a-Partir_ed01-2015

ELEctronIc IMMoBILISEr

All of the keys contain an electronic
immobiliser device.

this device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.

Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.

the simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.

the remote control does not operate while
the key is in the ignition, even if the ignition
is off, except for reinitialisation.

Good practice

Make a careful note of the key number. If the
keys are are lost, it will be easier for your
PeugeOt dealer to help if you can supply
this number and the confidential card.

Do not make any modifications to the
electronic immobiliser system.

this warning lamp is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.

If the key is not recognised, the engine
cannot be started. use another key and
have the faulty key checked by a PeugeOt
dealer.

After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.

conFIdEntIAL cArd

this is given to you on delivery of your
vehicle with the duplicate keys.

It contains the identification code necessary
for any work carried out by a PeugeOt
dealer on the electronic immobiliser system.
this code is hidden by a film, which should
be removed only if necessary.

Keep your card in a safe place, never inside
the vehicle.

When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.

When purchasing a second-hand vehicle:

ensure that you are given the
confidential card,

have the keys memorised by a
PeugeOt dealer to ensure that the
keys in your possession are the only
ones which can start the vehicle.

Driving with the doors locked may
make access to the passenger

compartment by the emergency services
more difficult in an emergency.

As a safety precaution (with children on
board), remove the key from the ignition
when leaving the vehicle, even for a short
time.

Access

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

remote control fault

unlock the doors by using the key in the
door lock; the alarm is triggered.

Switch on the ignition, recognition of the
key's code turns off the alarm.

Locking the doors by using the key in
the door lock does not set the alarm.

deactivation using the remote control

When this button is pressed, the
alarm is deactivated when the
vehicle is unlocked.

deactivation of the anti-tilt
protection*

Press this control to deactivate
the protection (when towing the
vehicle with the alarm on, for
example).

the protection remains active

until the doors are unlocked with the central
locking.

ALArM

If your vehicle is fitted with an anti-theft
alarm.

this provides:

exterior perimeter protection by
detectors on the openings (doors,
bonnet) and on the electrical power
supply,

anti-tilt protection*.

Activation of the alarm

First ensure that all of the doors and bonnet
are closed correctly.

* Depending on engine.

Good practice

to deactivate the siren quickly following
a false alarm:

switch on the ignition, recognition of the
key's code will switch off the alarm,

press the unlocking button (cab and key)
on the remote control.

to avoid setting the alarm, when washing
the vehicle for example, lock the vehicle
using the key.

unlocking the vehicle using the remote
control deactivates the siren automatically.

the alarm is set by pressing this
padlock, the protection is active
after a few seconds.

While the alarm is monitoring,

any intrusion triggers the siren for
approximately 30 seconds, accompanied by
illumination of the direction indicators.

the alarm then returns to
monitoring mode but the
triggering event is stored and is
indicated by illumination of the

electronic immobiliser warning lamp for about
10 seconds when the ignition is switched on.

the alarm is also triggered following an
electrical supply cut-off, when the supply is
restored.

Access

boxer_en_Chap02_Pret-a-Partir_ed01-2015

Front doorS

child lock

this prevents opening of the sliding side
door from the inside.

Press the control located on the edge of the
side door.

use the corresponding button on the remote
control or use the key in the driver's door
lock barrel to unlock.

Pull the handle towards you.

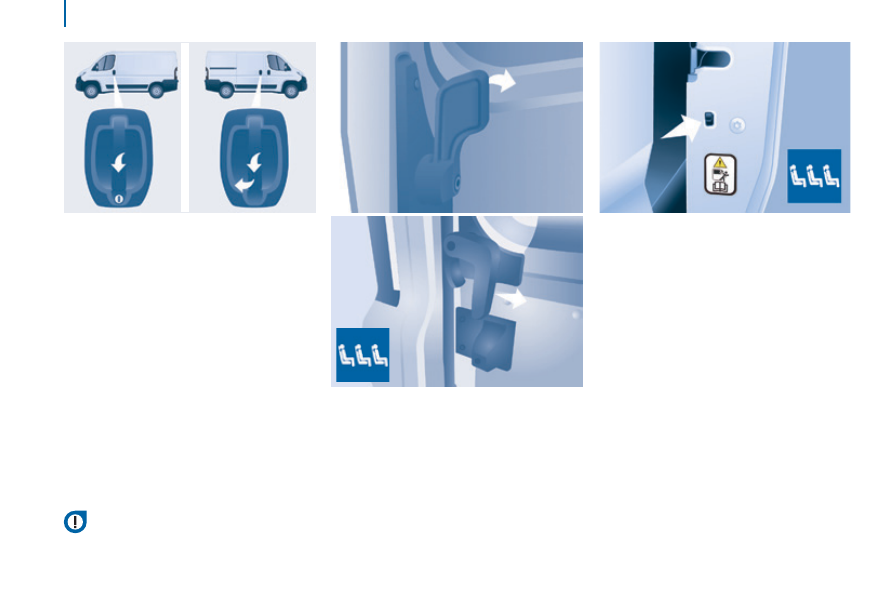

SLIdInG SIdE door

take care not to obstruct the guide space
on the floor in order for the door to slide
correctly.

From outside

Pull the handle towards you then towards
the rear.

From inside

to unlock and open, push the handle
towards the rear.

ensure that the door opens fully in order
for the latch at the bottom of the door to
engage.

to release and close, pull the handle while
sliding the door.

Do not drive with the sliding side door
open.

Access

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

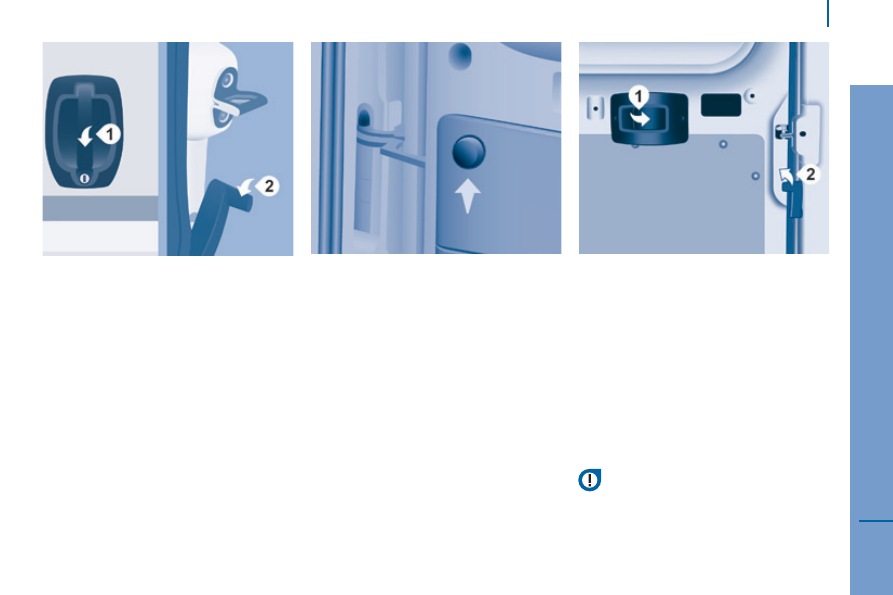

rEAr doorS

From outside

opening / closing

to open, pull the handle towards you then
pull the lever to open the left-hand door.

the two hinged doors open to 96°.

to close, start with the left-hand door then
close the right-hand door.

opening to 180°

If your vehicle is fitted with this equipment,
a retractable check strap system permits
extending of the opening from 96° to 180°.

Press the button, located on the door trim
pad, to widen the angle of the door.

the check strap will take up its normal
position again automatically on closing.

From inside

Pull the handle on the door panel towards
you, then push to open the right hand door.

Push the lever to open the left hand door.

to close, start with the left hand door, then
close the right hand door.

Do not drive with a rear door open.

Access

boxer_en_Chap02_Pret-a-Partir_ed01-2015

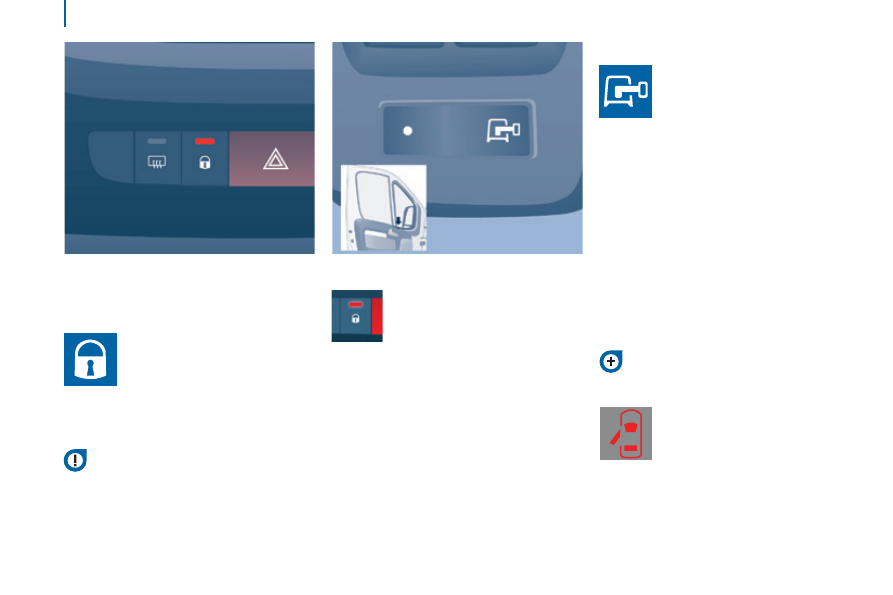

LocKInG / unLocKInG FroM InSIdE

door open warning lamp

If this warning lamp comes on,
check that all of the doors and
the bonnet are closed correctly.

reversing camera

With the vehicle stationary, opening the rear
doors activates the camera and sends the
image to the screen fitted in the cab.

cab and load space

Pressing permits electric central
locking and unlocking, when the
doors are closed.

the doors can still be opened from the
inside.

If one of the doors is open or is not
closed correctly, the central locking
does not work.

the indicator lamp in the control:

Load space

Press to lock or unlock the side
door and rear doors from the cab.
the indicator lamp remains on
when locked

Anti-intrusion security

When the vehicle is started, the system
locks the cab and load space doors
automatically when you reach approximately
12 mph (20 km/h).

If none of the doors is opened during the
journey, the locking remains active.

Activation/deactivation of the system

the system setting is made with the ModE
button: in the "Autoclose" menu, select "ON"
or "OFF".

comes on when the doors
are locked and the ignition is
switched on,

then flashes when the doors
are locked when stationary
with the engine off.

the control is not active when the vehicle
has been locked using the remote control or
the key from the outside.

Good practice

If you decide to drive with the doors locked,
be aware that this could make access to the
vehicle by the emergency services more
difficult in an emergency.

Refer to the "technology on board -
Vehicle configuration" section.

Instruments and controls

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

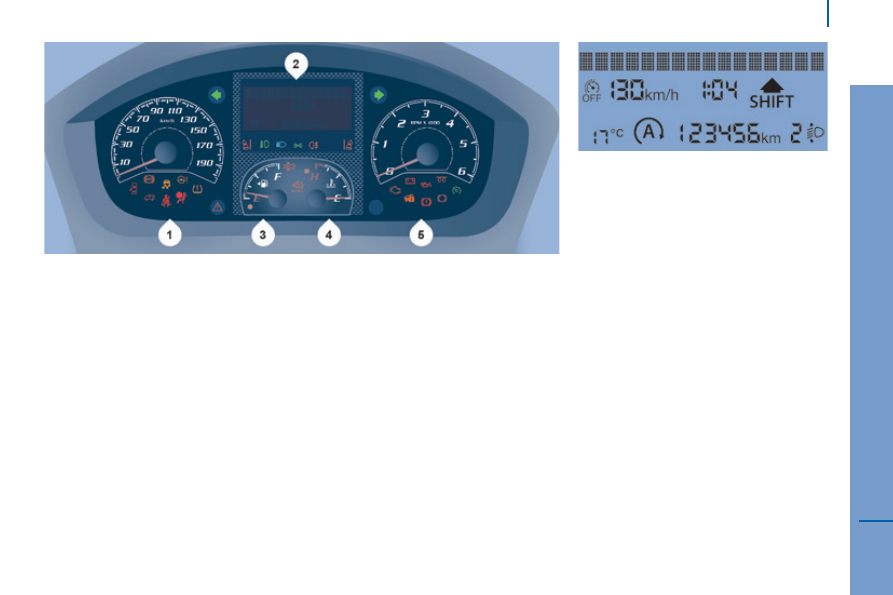

1. Distance recorder in miles / kilometres.

2. Screen.

3. Fuel gauge.

4. Coolant temperature.

5. Rev counter.

InStruMEnt PAnEL

display screen

In the lower part:

- time,

Ambient temperature,

Miles / Kilometres travelled,

trip computer (range, fuel
consumption...),

Headlamp beam height,

Programmable overspeed warning,

Cruise control or speed limiter,

gear shift indicator,

Stop & Start.

In the upper part:

- Date,

Service indicator,

Alert messages,

System status messages,

Vehicle configuration.

Instruments and controls

boxer_en_Chap02_Pret-a-Partir_ed01-2015

WArnInG/IndIcAtor LAMPS

every time the engine is started: a series of warning lamps comes on, applying a self-checking test. they go off almost immediately.

When the engine is running: a warning lamp becomes an alert if it remains on continuously or flashes. this initial warning may
be accompanied by an audible signal and a message in the screen. "Do not ignore these warnings."

Warning/indicator lamp

indicates

Solution - action

Service

on temporarily.

minor faults.

Contact a PeugeOt dealer or a qualified workshop.

continuously on,
accompanied by
a message on
the screen.

major faults.

Make a note of the warning message and contact a
PeugeOt dealer or a qualified workshop.

Parking brake -
Brake fluid level

on.

that the parking brake is applied
or has not been released correctly.

Releasing the parking brake switches off the warning
lamp.

on.

that the fluid level is too low.

top up with a fluid listed by PeugeOt.

continuously on,
even though the
level is correct.

Stop as soon as it is safe to do so. Park, switch off
the ignition and contact a PEuGEot dealer or a
qualified workshop.

electronic brake
force distribution

on.

a fault with the system.

Stop as soon as it safe to do so. Contact a PeugeOt
dealer or a qualified workshop.

Anti-lock braking
system

on.

a fault with the system.

the vehicle retains conventional braking without
assistance. However, we recommend that you stop and
contact a PeugeOt dealer or a qualified workshop.

Instruments and controls

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

Warning/indicator lamp

indicates

Solution - action

Coolant
temperature

on with the
needle in the red
zone.

an abnormal increase.

Park and switch off the ignition. Allow the system to cool
sufficiently. Visually check the level.

on H in the red
zone.

the coolant temperature is too
high.

"Checks - Levels and checks" section.

Contact a PeugeOt dealer or a qualified workshop.

engine oil
pressure

on while driving.

that the pressure is too low.

Park and switch off the ignition. Allow the lubrication
system to cool in order to check its level.

"Checks - Levels and checks" section.

continuously on,
even though the
level is correct.

a major fault.

Contact a PeugeOt dealer or a qualified workshop.

flashing, for a
few seconds,
with a message
in the screen.

a high level of deterioration of
the engine oil.

Have the engine oil changes as soon as possible. After
the second level of alert, engine performance will be
limited. Your vehicle's programmed service schedule is
not altered.

Battery charge

on.

a fault with the charging
system.

Check the battery terminals…

"Quick help - Flat battery" section.

continuously on,
fixed or flashing
in spite of the
checks.

an ignition or injection fault.

Have it checked by a PeugeOt dealer or a qualified
workshop.

Door or bonnet
open detection

on.

that a door or the bonnet is not
closed correctly.

Check that the cab doors, the rear and side doors and
the bonnet are closed.

Instruments and controls

boxer_en_Chap02_Pret-a-Partir_ed01-2015

Warning/indicator lamp

indicates

Solution - action

Seat belt not
fastened

on then flashes.

that the driver has not fastened
his seat belt.

Pull the strap then insert the tongue in the buckle.

accompanied
by an audible
signal then
remains on.

that the vehicle is moving
with the driver's seat belt
unfastened.

Check that the seat belt is fastened correctly by pulling
the strap.

"Safety - Seat belts" section.

Power steering

on,
accompanied
by an audible
signal and a
message in the
screen.

a fault with the system.

the vehicle retains conventional steering without
assistance.

Have it checked by a PeugeOt dealer or a qualified
workshop.

Front/lateral
airbag

flashing or
continuously on.

a fault with an airbag or a seat
belt pretensioner.

Have it checked by a PeugeOt dealer or a qualified
workshop.

"Safety - Airbags" section.

Pneumatic
suspension

on.

a fault with the system.

Have it checked by a PeugeOt dealer or a qualified
workshop.

Brake pads

on.

front brake pads worn.

Have the brake pads replaced by a PeugeOt dealer or
a qualified workshop.

Instruments and controls

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

Warning/indicator lamp

indicates

Solution - action

DSC/ASR

flashing.

that it is in operation.

the system optimises traction and allows improved
directional stability of the vehicle.

on,
accompanied
by an audible
signal and a
message in the
screen.

a fault with the system or the
hill start assist.

Contact a PeugeOt dealer or a qualified workshop.

"Safety - Driving safely" section.

on.

a fault with the Intelligent
traction Control.

Particle filter

on.

the regeneration of the particle
filter.

It is recommended that you leave the engine running
until the warning lamp goes off so that regeneration can
be completed.

"Checks - Levels and checks" section.

emission control
system

on.

a fault with the system.

Have the system checked by a PeugeOt dealer or a
qualified workshop without delay.

tyre under-
inflation
detection

on.

a tyre deflated or punctured.

Park and switch off the ignition. Change or repair the
wheel.

on,
accompanied
by the service
warning lamp.

a faulty sensor.

Have it checked by a PeugeOt dealer or a qualified
workshop.

Instruments and controls

boxer_en_Chap02_Pret-a-Partir_ed01-2015

Warning/indicator lamp

indicates

Solution - action

Lane departure
warning

flashing,
accompanied by
an audible signal.

unintended wander to the left.

turn the steering wheel in the other direction to return
to the correct trajectory.

unintended wander to the
right.

electronic
immobiliser

on.

the ignition key introduced
has not been recognised

Staring is not possible.

Change the key and have the faulty key checked by a
PeugeOt dealer.

"Ready to set off - Access" section.

on for 10 seconds
when switching on
the ignition.

triggering of the alarm.

Have the state of the locks checked by a PeugeOt
dealer or a qualified workshop.

Water in Diesel
fuel filter

on, accompanied
by a message in
the screen.

that there is water in the fuel
filter.

Have the filter bled by a PeugeOt dealer or a qualified
workshop.

"Checks - Levels and checks" section.

AdBlue additive

on, then flashing,
accompanied by
a message in the
screen.

reduced driving range.

Have the AdBlue topped-up without delay.

Do not wait until the remaining range is 0 miles, you will
not be able to restart the engine!

"Checks - AdBlue" section.

Low fuel level

on with the needle
in zone e.

that the fuel reserved is being
used.

Fill up with fuel without delay. the calculation of the
remaining fuel depends on the style of driving, the
profile of the road, the time elapsed and the distance
travelled since the warning lamp first came on.

flashing.

a fault with the system.

Contact a PeugeOt dealer or a qualified workshop.

Instruments and controls

READY

O SET OFF

boxer_en_Chap02_Pret-a-Partir_ed01-2015

Warning/indicator lamp

indicates

Solution - action

Diesel
pre-heater

on.

the ambient temperature
necessitates pre-heating.

Wait until the lamp goes off before operating the starter.

Dipped beam

on.

a manual selection.

turn the lighting control stalk ring to the second
position.

Main beam

that the control stalk has been
pulled towards you.

Pull the lighting control stalk again to return to dipped
beam.

Direction
indicators

flashing with
buzzer.

a change of direction using the
lighting stalk.

to the Right: press the stalk upwards.

to the Left: press the stalk downwards.

Front foglamps

on.

that the button on the MODe
control panel has been pressed.

Manual selection.

the foglamps only operate if the dipped beam
headlamps are on.

Rear foglamps

on.

that the button on the MODe
control panel has been pressed.

Manual selection.

the lamps only operate if the dipped beam headlamps
are on. When visibility is normal, please switch them off.

Cruise control

on.

that the cruise control has been
selected.

Manual selection.

"ease of use and comfort - Steering mounted controls"
section.

Instruments and controls

boxer_en_Chap02_Pret-a-Partir_ed01-2015

Screen

displays

indicates

Solution - action

temperature /
Ice

the ice warning,
the temperature
flashing
accompanied by
a message in
the screen.

weather conditions which could
result in ice on the road.

Be particularly vigilant and do not brake sharply.

"Safety - Driving safely".

Date / time

a setting: date,
time.

a configuration via the "MODe"
menu.

"technology on board - Vehicle configuration" section.

Headlamp beam
height

a headlamp
height setting.

a position from 0 to 3
depending on the load carried

Adjust using the buttons on the MODe control panel.

"ease of use and comfort - Steering mounted controls"
section.

Service spanner

a service
spanner which
remains on.

that a service will soon be due.

Refer to the list of checks in the warranty and
maintenance record, then have the service carried out.

Stop & Start

on.

engine going into StOP mode
after the the vehicle stops.

As soon as you want to move off, the warning lamp
goes off and the engine restarts automatically in StARt
mode.

flashes for a few
seconds, then
goes off.

StOP mode temporarily
unavailable or automatic
operation of StARt mode.

Special cases for StOP mode and StARt mode.

"Ready to set off - Starting and stopping" section.

Peugeot Boxer (2016 year). Manual - part 2
