Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

Internet Browser

Connectivity

Applications

Press "

Internet Browser " to display

the browser home page.

Select your country of residence.

Press "

Connectivity " to go to the

CarPlay

MirrorLink

function.

Press "

Connectivity " to go to the

Internet Browser " function.

Press "

Applications " to display the

applications home page.

Connection to the internet is via one of
the network connections provided by
the vehicle or the user.

Press

Applications to display the

primary page.

Press

Applications to display the

primary page.

Press

Applications to display the

primary page.

Press "

OK " to save and start the

browser.

12:13

18,5

21,5

23 °C

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

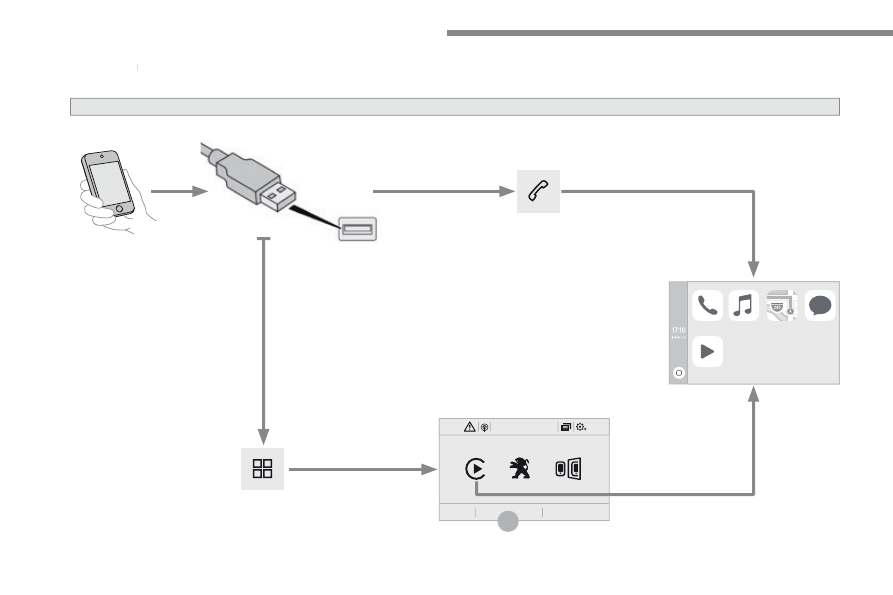

CarPlay

CarPlay smartphone connection

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the

vehicle

stationary .

stationary

The synchronisation of a smartphone
allows applications on a smartphone that
are adapted to the CarPlay

technology

to be displayed in the vehicle's screen,
having first activated the CarPlay

function in the smartphone.
As the principles and standards are
constantly changing,

it is recommended

that you keep your smartphone's

operating system updated .

For the list of eligible smartphones, go
to the Brand's internet website in your
country.

Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Connect a USB cable. The
smartphone charges when connecte
d by a USB cable.

Press "

Telephone " to display the

CarPlay

interface.

Press "

CarPlay " to display the

CarPlay

interface

On connecting the USB cable, the
CarPlay

function deactivates the

system's Bluetooth

mode.

In the system, press "

Applications "

to display the primary page.

Press "

Connectivity " to go to the

CarPlay

function.

12:13

18,5

21,5

23 °C

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

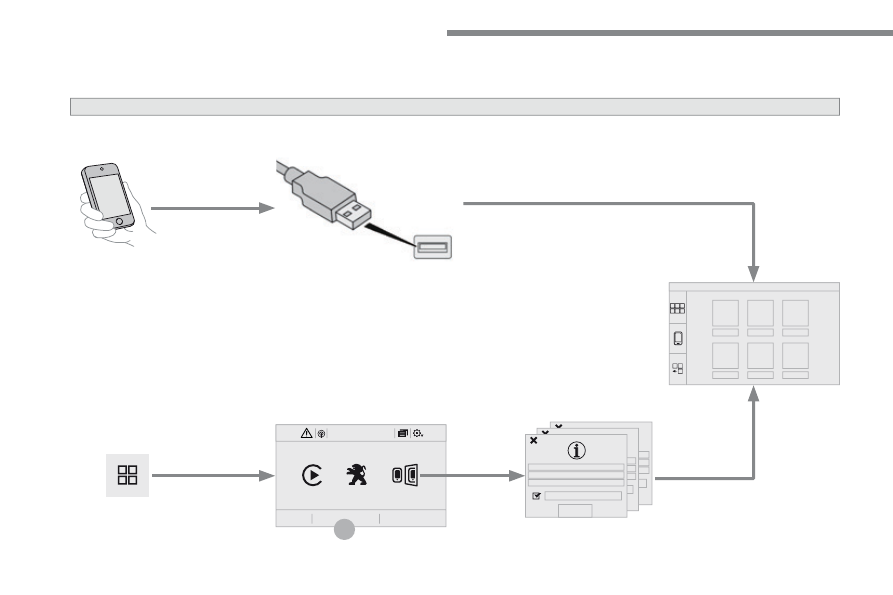

MirrorLink

smartphone connection

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

As a safety measure and because it
requires the sustained attention of
the driver, using a smartphone when
driving is prohibited.
Operation must be with the

vehicle

stationary .

stationary

The synchronisation of a smartphone
allows applications on a smartphone
that are adapted to the MirrorLink

technology to be displayed in the
vehicle's screen.
The principles and standards
are constantly evolving. For the
communication process between the
smartphone and the system to work
correctly, the smartphone must be
unlocked; update the operating system
of your smartphone as well as the date
and time in the smartphone and the
system.
For the list of eligible smartphones,
connect to the Brand's internet website
in your country.

The "

MirrorLink

" function requires

the use of a compatible smartphone
and applications.

There may be a wait for the availability
of applications, depending on the
quality of your network.

When connecting a smartphone to
the system, it is recommended that
Bluetooth

be started on the smartphone

Depending on the smartphone, it may be
necessary to activate the "

MirrorLink

function.

During the procedure, several screen
pages relating to certain functions
are displayed.
Accept to start and end the
connection.

Connect a USB cable. The
smartphone charges when
connected by a USB cable.

Press "

MirrorLink

" to start the

system's application.

Once connection is established, a page
is displayed with the applications already
downloaded to your smartphone and adapted
to MirrorLink

technology.

Access to the different audio sources remains
accessible in the margin of the MirrorLink

display, using touch buttons in the upper bar.
Access to the menus for the system is possible
at any time using the dedicated buttons

From the system, press on
"

Applications " to display the primary

page.

As a safety measure, applications
can only be viewed with the vehicle
stationary; display is interrupted once
the vehicle is moving.

Press "

Connectivity " to go to the

MirrorLink

function.

12:13

18,5

21,5

23 °C

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

Level 1

Level 2

Level 3

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

Level 1

Level 2

Level 3

Comments

Applications

MirrorLink

Go to or return to the applications already
downloaded to your smartphone and adapted to
MirrorLink

technology.

Go to a menu list depending on the application
chosen.
"Back": abandon the current operation, go up one
level.
"Home": go to or return to the "Car mode" page on
your smartphone.

Go to the primary page of the "Applications"
menu.

12:13

18,5

21,5

23 °C

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

According to equipment

Level 2

Level 3

5
6

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

Level 2

Level 3

Comments

Applications

Scented air

freshener

Select the fragrance.

Off

Switch off the scented air freshener.

Low

Adjust the intensity of diffusion of the fragrance.

Medium

High

Confirm the selection and settings.

Applications

Trip computer

Instant

System providing information about the current
journey (range, fuel consumption…).

Trip 1

Trip 2

Back to the Applications page.

Applications

i-Cockpit Amplify

Relax

Select an ambience combining each of the
equipment presets and/or save it in a user profile.

Boost

Profile management

i-Cockpit Amplify

Relax

Select an ambience combining each of the
equipment presets and/or save it in a user profile.

Boost

Profile management

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

According to equipment

Level 3

Level 4

Level 5

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

Level 3

Level 4

Level 5

Comments

Applications

i-Cockpit Amplify

Relax

Boost

i-Cockpit Amplify

Relax

Boost

Settings

Lighting

Adjust the intensity of the ambience lighting.

Ambience

Adjust the sound ambience.

Dynamic

Set the driving mode.

Fragrance

Select a fragrance.

Driver massage

Select and configure the driver massage.

Passenger Massage

Select and configure the passenger massage.

Save settings

Save the settings.

Reset the mode

Reset the parameters of the ambience.

Confirm the selections and settings.

Deactivate

Deactivate the "i-Cockpit Amplify" function.

Profile management

Profile 1

Configure the profiles.

Profile 2

Profile 3

Common profile

Save the settings.

Confirm the selections and settings.

12:13

18,5

21,5

23 °C

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

Level 1

Level 2

Level 3

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

Level 2

Level 3

Comments

Applications

OPTIONS

Bluetooth

connection

All

Display all telephones detected and saved.

Connected

Display all telephones connected.

Search

Start the search for a device to be connected.

Applications

OPTIONS

Wi-Fi network

connection

Secured

Display the secured Wi-Fi networks.

Not secured

Display the not secured Wi-Fi networks.

Stored

Display the stored Wi-Fi networks.

Applications

OPTIONS

Manage connection

Display the status of the subscription to the
connected services, the status of the network
connection and the connection mode.

Applications

OPTIONS

Share Wi-Fi

connection

Activation

Activate or deactivate the Wi-Fi connection
sharing.

Settings

Select a Wi-Fi network found by the system and
connect.

Save the settings.

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

connection

Procedure from the system

Connection sharing

Press on "

Connect-App " to display

the primary page.

Press on "

Bluetooth connection ".

Select "

Search ".

The list of detected telephones is
displayed.

If the pairing procedure fails, it is recommended
that you deactivate and then reactivate the
"Bluetooth" function in your telephone.

The "

Mobile internet data " profile

must be activated for connected
navigation (where the vehicle does not
have "Emergency and assistance call"
services), having first activated sharing
of this connection on your smartphone.

The system offers to connect the
telephone with 3 profiles:
-

Telephone " (hands-free kit, telephone

only),

Streaming " (wireless play of audio files

on the telephone),

Mobile internet data ".

Select the name of the chosen
telephone in the list.

Press "

OK " to confirm.

Select one or more profiles.

Press the "

OPTIONS " button to go to

the secondary page.

As a safety measure and because it
requires sustained attention by the
driver, the pairing of a Bluetooth mobile
telephone with the Bluetooth hands-
free system of your audio system must
be done with the

vehicle stationary

and the ignition on.

Procedure from the telephone

Select the name of the system in the
list of devices detected.

In the system, accept the connection request
from the telephone.

Activate the Bluetooth function on the
telephone and ensure that it is "visible
to all" (telephone configuration).

To complete the pairing, whichever
procedure used (from the telephone or
from the system), ensure that the code
is the same in the system and in the
telephone.

Depending on the type of telephone, you
may be asked to accept or not the transfer
of your contacts and messages.

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

Wi-Fi connection

Sharing the Wi-Fi connection Managing connections

To protect from any piracy and provide
maximum security for your systems,
it is recommended that you use a
security code or a complex password.

The Wi-Fi connection and the sharing
of the Wi-Fi connection are exclusive.

Press "

OK " to confirm.

Press "

OK " to start the connection.

Press "

Connect-App " to display the

primary page.

Network connection by the smartphone Wi-Fi.

Creation of a local Wi-Fi network by the
system.

Press

Connect-App to display the

primary page.

Press

Connect-App to display the

primary page.

Press the "

OPTIONS " button to go to

the secondary page.

Press the "

OPTIONS " button to go to

the secondary page.

Press the "

OPTIONS " button to go to

the secondary page.

Select "

Wi-Fi network connection ".

Select "

Share Wi-Fi connection ".

Select "

Manage connection ".

And / Or

Select the "

Secured ", " Not secured "

or "

Stored " tab.

Select the "

Activation " tab to

activate or deactivate sharing of the
Wi-Fi connection.

Select the "

Settings " to change the

name of the system network and the
password.

With this function you can view the access
to connected services, the availability of
connected services and modify the connection
mode.

Using the virtual keypad, enter the
"

Key " for the Wi-Fi network and the

Password ".

Select a network.

FM/87.5 MHz

87.5MHz

12:13

18,5

21,5

23 °C

FM/87.5 MHz

87.5MHz

12:13

18,5

21,5

23 °C

AM/531 kHz

kHz

12:13

18,5

21,5

23 °C

Audio and Telematics

Transversal-Peugeot_en_Chap01_NAC-2-2-0_ed01-2016

Radio Media

Level 1

Level 2

Content .. 24 25 26 27 ..
