Peugeot 607 (2007.5). Manual - part 9

PRACTICAL INFORMATION

110

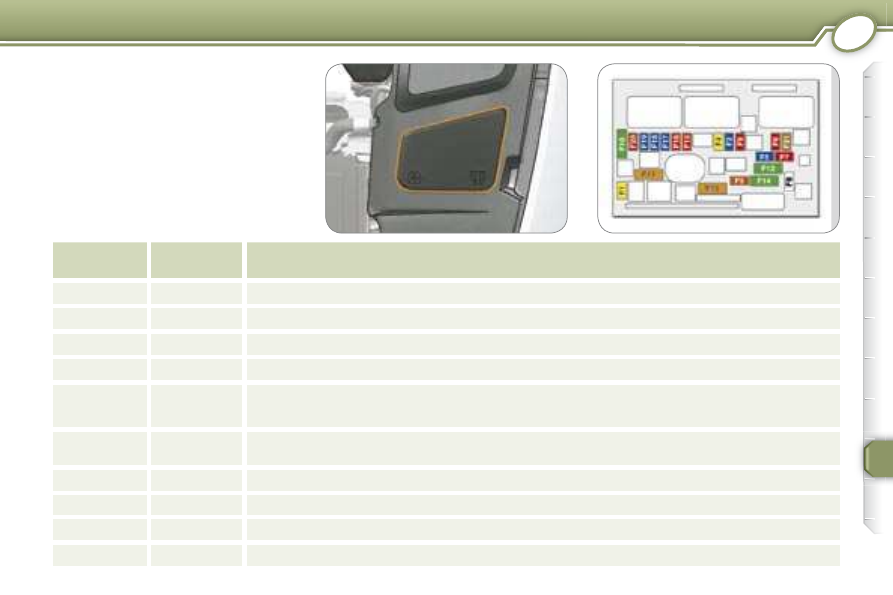

Fuse N°

Rating

Functions

15 A

Front wash-wipe pump and wash-wipe l uid level sensor.

30 A

Locking and deadlocking earth.

5 A

Air bags.

10 A

Clutch switch, brake dual-function switch, diagnostic connector, ESP sensor,

electrochromatic mirror.

30 A

Front electric windows and sunroof supply.

30 A

Rear electric windows supply.

5 A

Glove box switch, courtesy lights, map reading lights, courtesy mirror.

20 A

Multifunction display supply, steering wheel control, alarm siren, trailer fusebox supply, audio

RD4, RT4 GPS audio/telephone, electric mirror and front and rear electric window controls.

30 A

Front and rear lighters (100 W max.).

F10

15 A

Additive reservoir control unit supply.

F11

15 A

Automatic gearbox control unit, automatic gearbox positions selection switch, ignition switch.

F12

15 A

Trailer fusebox supply, hands-free kit, seats relay, seat memory unit, rain and brightness

sensor.

F13

5 A

Engine fusebox supply.

F14

15 A

Parking assistance control unit supply, instrument panel, air conditioning, air bags and pre-

tensioners unit.

F15

30 A

Locking and deadlocking supply.

F17

40 A

Hi-Fi amplii er, heated mirrors.

PRACTICAL INFORMATION

111

Engine compartment fuses

To access the fuses located in the en-

gine compartment, remove the cover

and unclip the fuse box lid.

When you have i nished, close the lid

carefully to guarantee the sealing of

the fuse box and rei t the cover.

Fuse N°

Rating

Functions

20 A

Engine management control unit.

15 A

Horn.

10 A

Rear electric blind.

20 A

Headlamp wash.

15 A

Fuel pump (except 2 litre HDI 16V and 2.2 litre HDI 16V), diesel heater (2 litre HDI 16V), en-

gine management actuators (2.2 litre HDI 16V).

10 A

Power steering, suspension control unit, automatic gearbox, automatic headlamp adjustment

unit.

10 A

Engine air l ow sensor (2.2 litre HDI 16V), ESP control unit.

25 A

Starter coil.

10 A

Coolant level sensor, passenger compartment heating (HDI), STOP switch.

F10

30 A

Engine management actuators ( injectors , ignition coil, solenoid valves, oxygen sensors ).

PRACTICAL INFORMATION

112

The electrical system of your vehicle is designed to operate with standard or optional equipment.

Before installing other electrical equipment or accessories on your vehicle, consult a PEUGEOT dealer .

PEUGEOT will not accept responsibility for the cost incurred in repairing your vehicle or for rectifying malfunctions

resulting from the installation of accessories not supplied or recommended by PEUGEOT and not installed in accord-

ance with its instructions, in particular when the combined consumption of all of the additional equipment connected exceeds

10 milliamperes.

Fuse N°

Rating

Functions

F11

40 A

Air conditioning blower relay.

F12

30 A

Wipers relay.

F13

40 A

Built-in systems interface supply (ignition positive).

F14

30 A

Air pump.

F15

10 A

Right-hand main beam headlamp.

F16

10 A

Left-hand main beam headlamp.

F17

15 A

Left-hand dipped headlamp.

F18

15 A

Right-hand dipped headlamp.

F19

15 A

Oil vapour heater (2.2 litre 16V and 2 litre HDI 16V), inlet air heating solenoid valve (2 litre

HDI 16V), air l ow sensor (2 litre HDI 16V), injection pump (2.2 litre HDI 16V), oxygen sensor,

purge canister solenoid valve (3 litre V6 24V).

F20

10 A

Water in diesel sensor (2 litre HDI 16V and 2.2 litre HDI 16V), turbo regulation solenoid valve

(2 litre HDI 16V), timing and exhaust solenoid valves (3 litre V6 24V).

F21

10 A

Fan assembly relay control.

PRACTICAL INFORMATION

113

CHANGING A WINDSCREEN
WIPER BLADE

Placing the wiper blades in the
maintenance position


Less than one minute after switch-

ing off the ignition, press the wind-

screen wiper stalk down once to

position the blades at the top of

the windscreen (maintenance po-

sition).

ENERGY ECONOMY MODE

After the engine has stopped, certain

functions (windscreen wiper, elec-

tric windows, sunroof, electric seats,

audio equipment, telephone, dipped

headlamps, video, etc.) can only be

used for a limited combined duration,

to prevent discharging of the battery.

Once this period has elapsed, a

switching to economy mode message

appears on the multifunction display

and the active functions are put on

standby.
These functions are reactivated auto-

matically next time the vehicle is driven.

In order to exit the economy mode and

resume the use of these functions im-

mediately, the engine must be started

and left to run for a few minutes.
If the engine has been running for at

least 10 minutes, all of the functions

are active for 30 minutes.
If the engine has been running for less

than 10 minutes, this duration before re-

turning to economy mode is 5 minutes.

All of these functions are

available when the engine is

running.
If the telephone is being used

when economy mode starts, it will still

be possible to i nish the call.

LOAD REDUCTION FUNCTION

When driving, certain functions (air

conditioning, heated rear screen,

heating system for passenger com-

partment of diesel vehicles, etc.) may

be switched off temporarily, depending

on the level of battery charge.

Reactivation of these functions is au-

tomatic, once the battery charge is

sufi cient.

Note: at the risk of discharging the

battery, the functions that have been

switched off may be reactivated

manually.

Replacing a blade


Lift the arm, then unclip the blade

and remove it.



Fit the new blade and fold down

the arm.

To reposition the blades, switch on the

ignition and operate the windscreen

wiper stalk.

A l at battery prevents the en-

gine from starting.
If the doors or boot are opened

several times or if the alarm is

triggered, this may result in activation

of the energy economy mode.

PRACTICAL INFORMATION

114

BATTERY

The battery is located behind the left
boot trim.

TOWING YOUR VEHICLE

Lifting (2 wheels only on the
road)

It is preferable to raise the vehicle us-

ing professional lifting equipment.
Never use the radiator crossmember.

When towing with the engine

switched off, there is no brak-

ing or steering assistance.

Special featuresof the
automatic gearbox

Towing a vehicle with an automatic

gearbox in reverse gear is prohibited

(absence of lubrication).

Without lifting
(4 wheels on the road)

You should always use a towbar.

The towing eye is inside the spare

wheel.

When being towed with all

four wheels on the ground, it

is imperative that the following

rules are obeyed:

- selector lever in position N ,

- the vehicle must be towed at a speed

of less than 30 mph (50 km/h) over

a maximum distance of 30 miles

(50 km),

- do not add oil to the gearbox.

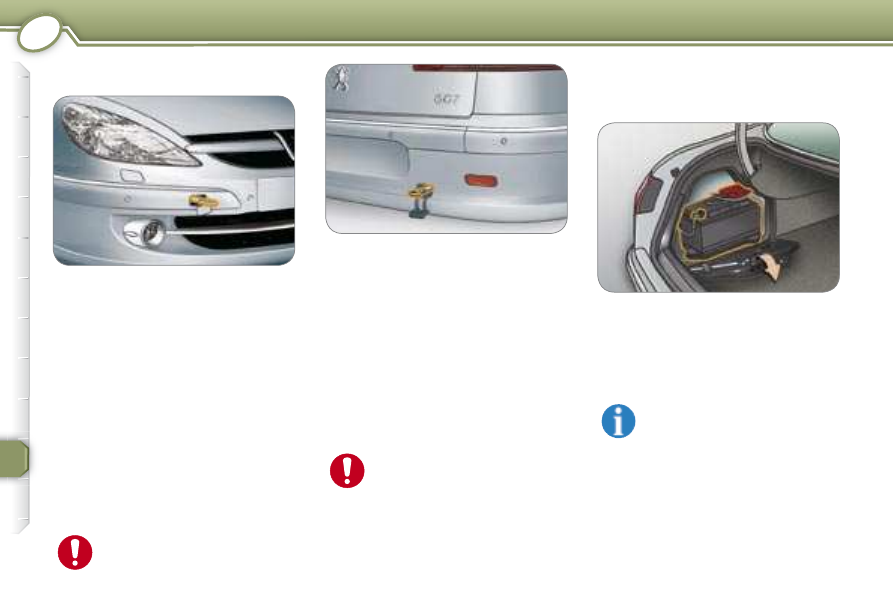

From the front:


Carefully unclip the bottom of the

cover, using a small screwdriver.



Screw in the towing eye until it

locks.

From the rear:


Carefully unclip the top of the cov-

er using a small screwdriver,



Screw in the towing eye until it

locks.

To disconnect the battery:


pull the handle downwards and

fold back the panel to gain access

to the battery,

 disconnect the green terminal (-) of

the battery.

It is advisable to disconnect

the battery if the vehicle is not

to be used for a period of more

than one month.

PRACTICAL INFORMATION

114

BATTERY

The battery is located behind the left
boot trim.

TOWING YOUR VEHICLE

Lifting (2 wheels only on the
road)

It is preferable to raise the vehicle us-

ing professional lifting equipment.
Never use the radiator crossmember.

When towing with the engine

switched off, there is no brak-

ing or steering assistance.

Special featuresof the
automatic gearbox

Towing a vehicle with an automatic

gearbox in reverse gear is prohibited

(absence of lubrication).

Without lifting
(4 wheels on the road)

You should always use a towbar.

The towing eye is inside the spare

wheel.

When being towed with all

four wheels on the ground, it

is imperative that the following

rules are obeyed:

- selector lever in position N ,

- the vehicle must be towed at a speed

of less than 30 mph (50 km/h) over

a maximum distance of 30 miles

(50 km),

- do not add oil to the gearbox.

From the front:


Carefully unclip the bottom of the

cover, using a small screwdriver.



Screw in the towing eye until it

locks.

From the rear:


Carefully unclip the top of the cov-

er using a small screwdriver,



Screw in the towing eye until it

locks.

To disconnect the battery:


pull the handle downwards and

fold back the panel to gain access

to the battery,

 disconnect the green terminal (-) of

the battery.

It is advisable to disconnect

the battery if the vehicle is not

to be used for a period of more

than one month.

PRACTICAL INFORMATION

115

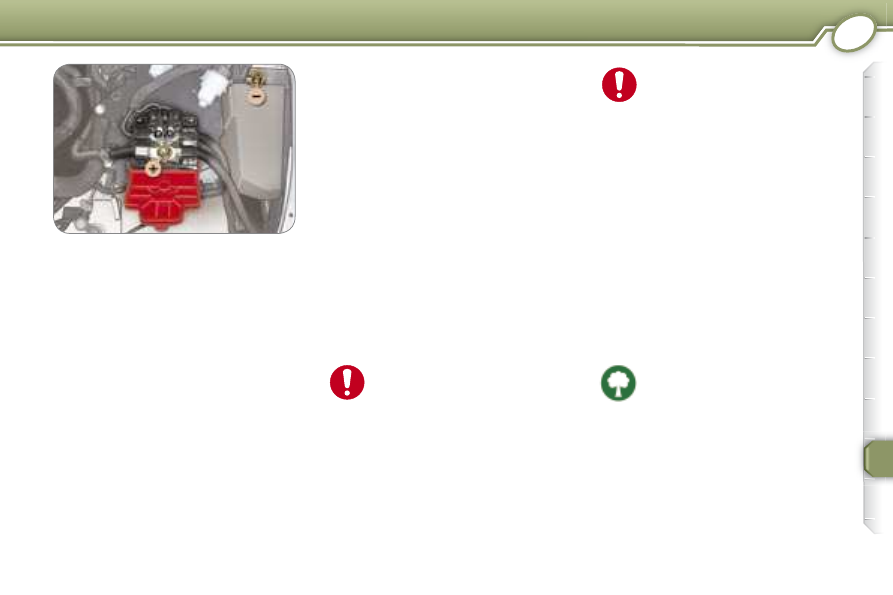

To start the vehicle from another
battery, use the front additional
terminal:


open the bonnet,



remove the left side cover,



use the two additional (+) and (-)

terminals located under the bonnet

and only these,



open the red cover of the (+) terminal,



connect the red cable between the

(+) terminal and the (+) terminal of

the slave battery,

 connect the green or black cable

between the (-) terminal and the

negative (-) terminal of the slave

battery,



start the engine and let it run,



wait for the engine to return to idle

then disconnect the cables,



close the red cover of the (+) terminal,



rei t the left side cover,

 close the bonnet.

Never disconnect a terminal

when the engine is running.

Close the windows and sun-

roof fully before disconnecting
the battery.

It is imperative that cables of professional

quality and suitable cross-section are

used; for further information, contact a

PEUGEOT dealer.

Batteries

contain

harmful

substances such as sulphu-

ric acid and lead. They must

be disposed of in accordance

with regulations and must not, in any

circumstances, be discarded with

household waste.

Take used batteries to an approved

collection point.

To charge the battery:


open the bonnet,



remove the left side cover,



use the two additional (+) and (-)

terminals located under the bonnet,



open the red cover of the (+) terminal,



follow the instructions for use pro-

vided by the manufacturer of the

charger,



close the red cover of the (+) terminal,



rei t the left side cover,

 close the bonnet.
Do not start the vehicle while the

charger is connected.

After every re-connection of

the battery, switch on the igni-

tion and wait for 1 minute be-

fore starting, to allow the elec-

tronic systems to be initialised.

However, if slight difi culties are ex-

perienced after this, please contact a

PEUGEOT dealer. If electrical work is

carried out, disconnect the battery.

When charging or replacement of the

battery is necessary, do not close the

boot as, since it is only opened elec-

trically, it would then be necessary to

use the emergency control (see cor-

responding section).
Do not connect a slave battery to
the (+) and (-) terminals located un-
der the bonnet if there is no battery
in the boot (risk of short circuit).

PRACTICAL INFORMATION

116

TOWING A TRAILER,
CARAVAN, BOAT, ETC...

We recommend the use of original

PEUGEOT towbars and their harness-

es which have been tested and ap-

proved from the design stage of your

vehicle and that you entrust the i tting

of the towbar to a PEUGEOT dealer.

If the towbar is not i tted by a PEUGEOT

dealer, it is imperative that it is i tted

using the electrical pre-equipment

installed at the rear of the vehicle, in

accordance with the manufacturer's

instructions.

Note:

in certain cases of par-

ticularly arduous use (towing

the maximum load in high

temperatures on a steep slope),

the engine automatically limits its power

and selects the appropriate automatic

gearbox gear in manual mode. In this

case, cutting off the air conditioning

allows the engine power to be recovered,

and therefore the towing capacity to be

increased.

Automatic adjustment
For vehicles with Xenon bulbs, and if

the change in load makes it necessary,

this system automatically corrects the

height of the beam after approximately

2 minutes. The driver is then assured

of having optimum lighting and not

causing a nuisance to other road users.

Driving advice

Distribution of loads: distribute the

load in the trailer so that the heavi-

est loads are as close as possible to

the axle and the nose weight is close

to the maximum authorised without,

however, exceeding it.
Cooling:

towing a trailer on a slope in-

creases the coolant temperature.

As the fan is electrically controlled, its

cooling capacity is not dependent on

the engine speed.

Lighting

Tyres:

check the tyre pressures of the

towing vehicle (label on the central

door pillar on the driver's side) and of

the trailer towed, observing the recom-

mended pressure.

Brakes:

towing increases the braking

distance. Drive at a moderate speed,

change down early and brake gradually.

Side wind:

sensitivity to side wind is

increased. Drive smoothly and at a

moderate speed.

If the coolant temperature

warning light comes on, stop

the vehicle and switch off the

engine as soon as possible.

Manual adjustment
Adjust your headlamps so as not to

dazzle other road users. Check the
electrical signalling of the trailer.

In the case of vehicles i tted with an

HDI engine, it is advisable, following

intensive use (towing on a motorway,

prolonged driving,..), to leave the en-

gine running at idle for approximately

20 seconds before switching off the ig-

nition. This limits any increase in the

temperature of the engine after it has

been switched off.

In all cases, pay attention to the cool-

ant temperature.

PRACTICAL INFORMATION

117

ACCESSORIES FOR YOUR 607

A wide range of accessories recom-

mended by PEUGEOT and original

parts are offered by the Network.

They all benei t from PEUGEOT's rec-

ommendation.
These accessories and parts, having

been tested and approved for reliabil-

ity and safety, are all adapted to your

PEUGEOT vehicle.

The product range offered by PEUGEOT

Accessories is structured around

5 categories: PROTECTION - TOURING

- IN-CAR TECHNOLOGY - STYLING -
UNIVERSAL.

The i tting of electrical equipment

or accessories which are not rec-

ommended by PEUGEOT may

result in a failure of your vehicle's

electronic system.
Please note this specii c warning. You

are advised to contact a representa-

tive of the Marque to be shown the

range of recommended equipment

and accessories.

"Protection":
parking assistance, anti-theft

alarm, stolen vehicles recov-

ery system * , engraved win-

dows, locking wheel nuts,

i rst aid kit, warning triangle,

high visibility safety jacket,

snow chains.

"Touring":
covers compatible with air

bag components, mats, boot

tray, luggage retaining net,

sill protectors.

For leisure pursuits: roof

bars, transportation accessories (bi-

cycle carrier, ski carrier), roof box,

child seats and booster cushions, rear

screen blind, audio/telephone console,

cool box.

Trailer towbar which must be i tted by

the PEUGEOT Network.

"In-Car Technology":
hands-free kits, satellite navi-

gation systems, CD changer,

DVD player, video screen.

You are advised to contact a

PEUGEOT dealer before in-
stalling accessory radiocom-

munication transmitters with external

aerial on your vehicle.

Your PEUGEOT dealer will inform you of

the characteristics (frequency band, max-

imum output power, aerial position, spe-

cii c installation conditions) of the trans-

mitters which can be i tted, in accordance

with the Motor Vehicle Electromagnetic

Compatibility Directive (2004/104/EC).

"Styling":

alloy wheels, wheel trims, spoil-

er, leather gear lever knob, styl-

ing strips, door spoilers, sport

exhaust.

"Universal":
windscreen wash l uid, interi-

or and exterior cleaning and

maintenance products.

Depending on the country in

which the vehicle is sold, it is

compulsory to have a safety

jacket, warning triangle and

spare bulbs available in the vehicle.

Wheels which are i tted with

235/45 R 18 tyres cannot be i tted

with snow chains. For further infor-
mation, contact a PEUGEOT dealer.

Note
To prevent the mat from becoming

caught under the pedals:

- ensure that the mat is positioned

and secured correctly,

- never i t one mat on top of another.

Compatible portable equipment
For the Audio RD4, the i tting of an

auxiliary socket is offered specii cally

by the Network.
The audio cable for connection to the

auxiliary socket is also offered by the

Network.

Following connection of the cable and

selection of the AUX mode, by means

of the source button, your portable

equipment is ready for use.

Set the portable equipment to half vol-

ume to avoid overloading the audio

equipment sound. Then use the audio

equipment volume button.

* According to country.

TECHNICAL DATA

118

MODELS:
Model codes 9U...

PETROL

DIESEL

XFV6 - XFVJ

XFVJ/D - XFVU/D

RHLH

RHRH

4HPH

4HTH

ENGINES

3 litre 24V V6 Injection

2 litre 16V HDI

2.2 litre 16V HDI

Capacity (cm

)

2 946

1 997

2 179

Bore x stroke (mm)

87 x 82.6

85 x 88

85 x 96

Number of valves

Max power: EU standard (KW)

155

100

120

125

Max power at engine speed (rpm)

6 000

4 000

Max torque: EU standard (Nm)

290

320

370

Max torque at engine speed (rpm)

3 750

2 000

1 500

Fuel

Unleaded

Diesel

Catalytic converter

Yes

Particulate emission i lter (PEF)

Yes

Electronic injection

Yes

GEARBOX

Automatic (6-speed)

Manual (6-speed)

CAPACITIES (in litres)

Engines (with cartridge replacement)

4.75 (1)/5.25 (2)

5.25 (1)

ENGINES AND GEARBOXES

(1) Draining by gravity - (2) Draining by suction

TECHNICAL DATA

119

CONSUMPTION

As per EC Directive 80/1268 (as amended) in MPG (litres/100 km)

Engine

Gearbox

Model

codes 9U...

Urban driving

Extra-urban

driving

Mixed driving

Emission by
mass of CO

(g/km)

3 litre 24V V6
injection

Automatic

XFV6 - XFVJ

XFVJ/D

XFVU/D

19.0 (14.9)

37.6 (7.5)

27.6 (10.2)

242

2 litre 16V HDI

Manual

RHLH

RHRH

34.9 (8.1)

56.5 (5.0)

46.3 (6.1)

162

2.2 litre 16V HDI

Manual

4HPH

4HTH

33.2 (8.5)

54.3 (5.2)

44.1 (6.4)

170

Fuel consumption values correct at time of printing. These consumption values were established in accordance with EC Di-

rective 80/1268 (as amended). They may vary depending on the style of driving, trafi c conditions, weather conditions, the

load in the vehicle, the maintenance of the vehicle and the use of the accessories.

TECHNICAL DATA

120

WEIGHTS AND TOWING LOADS (IN KG)

Engines

PETROL

DIESEL

3 litre 24V V6 injection

2 litre 16V HDI

2.2 litre 16V HDI

Gearboxes

Automatic

Manual

Model codes: 9U...

XFV6 - XFVJ

XFVJ/D - XFVU/D

RHLH

RHRH

4HPH 4HTH

• Kerb weight

1 644

1 590

1 650

• Payload

500

493

497

• Gross vehicle weight (GVW)

2 144

2 083

2 147

• Gross train weight (GTW) *

on 12 % gradient

3 644

3 583

3 747

on 8 % gradient

3 944

3 883

4 047

• Braked trailer (within GTW limit)

on 12 % gradient

1 500

1 600

on 10 % gradient

1 500

1 600

on 8 % gradient

1 800

1 900

• Braked trailer **

1 800

1 760

1 850

• Unbraked trailer

750

• Recommended nose weight

* The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
** The weight of the braked trailer may be increased, within the GTW limit, by the same amount by which the GVW of the towing

vehicle is reduced; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

The GTW values and the towing loads indicated are valid for a maximum altitude of 1 000 metres; the towing load mentioned

must be reduced by 10 % for every 1 000 additional metres.

High exterior temperatures may result in lowering of the performance of the vehicle in order to protect the engine; when the

exterior temperature is above 37 °C, limit the towed load.

TECHNICAL DATA

121

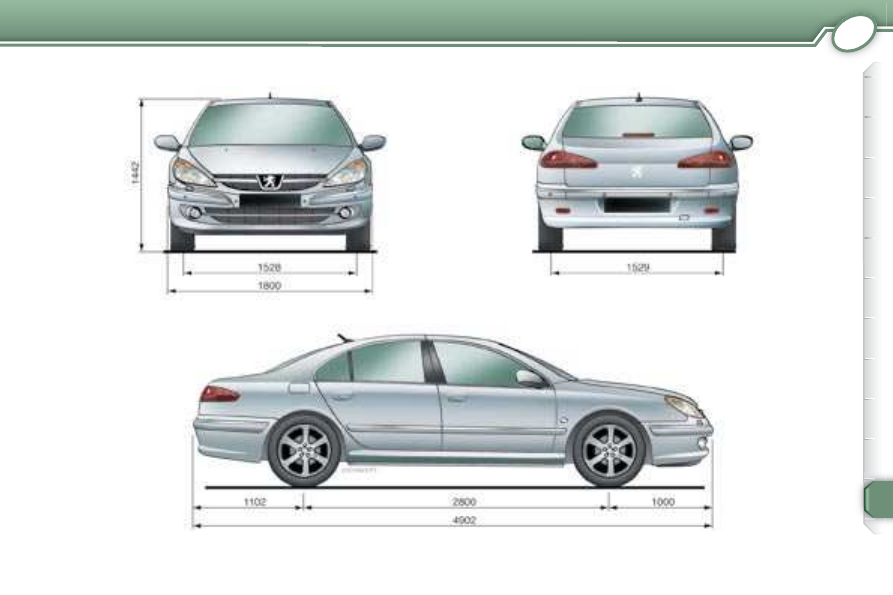

DIMENSIONS (in mm)

WARNING
Drive carefully over kerbs, speed humps, access ramps, fords and dirt tracks.

TECHNICAL DATA

122

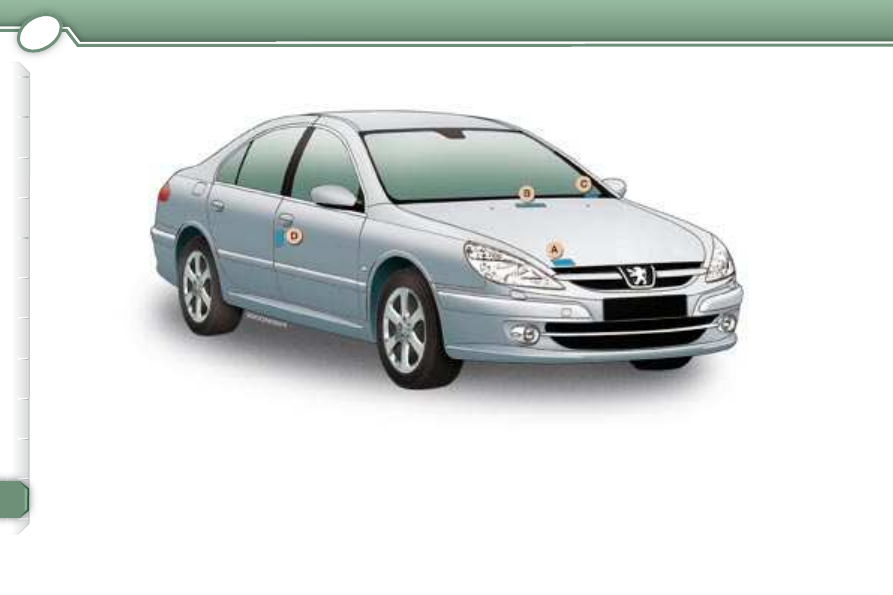

   A.   Manufacturer’s plate.
  B.   Serial number on the bodywork.
  C.   Serial number on the fascia.

D. Tyres.
Label D

on the central door pillar on

the driver’s side indicates:

- the dimensions of the rims and tyres,
-

the makes of tyre recommended

by the manufacturer,

- the tyre pressures (checking of

the tyre pressure must be car-
ried out when the tyres are cold,
at least once a month)

- the paint colour reference.

THE IDENTIFICATION FEATURES OF YOUR 607

123

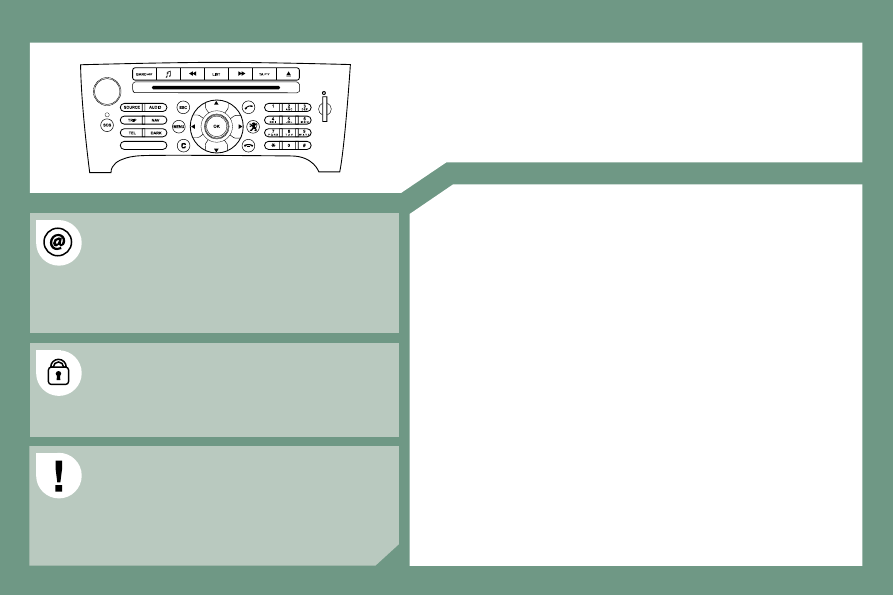

RT4

MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE

JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)

The SERVICE BOX internet site provides additional
animated information on the RT4. It can be consulted at
the following address:
http://public.servicebox.peugeot.com
Simple registration permits access and free consultation
of the handbook.

The RT4 GPS audio/telephone is coded in such a
way that it will only operate in your vehicle. If it is to be
installed in another vehicle, contact your PEUGEOT

dealer for coniguration of the system.

For safety reasons, it is imperative that the driver carries
out operations which require prolonged attention while
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the RT4 audio/telephone may
switch off after a few minutes.

CONTENTS

01 First steps

pg. 124

02 General menu

pg. 125

03 GPS

pg. 126

04 Trafic information

pg. 135

05 Audio/Video

pg. 137

06 Telephone

pg. 144

07 Control short-cuts

pg. 147

08 Coniguration

pg. 149

09 Display low charts

pg. 150

Frequently asked questions pg. 164

JBL equipment

pg. 167

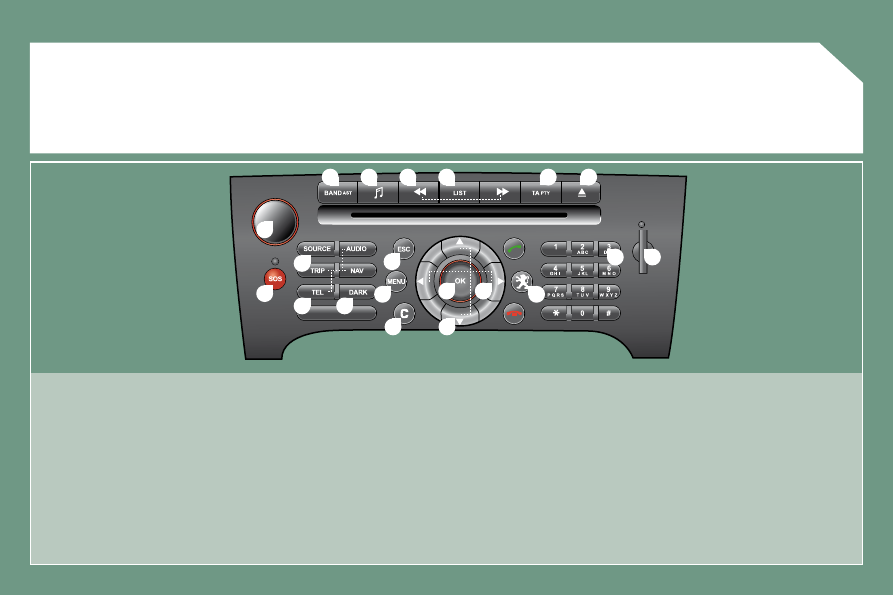

124

On/Off and Volume adjustment.

Selection of the wavebands FM1, FM2, FMast, AM.

Audio option adjustments: front/rear, left/right balance,
loudness, sound ambiences.

Automatic search for a lower/higher frequency.
Selection of the previous/next CD, MP3 or Jukebox track.

Displaying of the list of local radio stations, of the tracks on
the CD or of the MP3/Jukebox folders.
Long press: updating of the local radio stations.

TA (Trafic Announcement) function on/off.

Long press: access to the PTY (radio Programme TYpes)
mode.

Ejection of the CD.

SIM card slot.

Keypad for entering descriptions by successive presses.

10. Access to the "PEUGEOT" services menu.

11. Selection of a lower/higher frequency.

12. Selection and conirmation.

13. Selection of the previous/next CD.

Selection of the previous/next MP3/Jukebox folder.

14. Cancellation of the current operation.

Long press: return to the current application.

15. Displaying of the general menu.

16. Deletion of the last character entered or of the entire line.

17. Modiication of the screen display.

Long press: reinitialisation of the RT4 GPS audio/telephone.

18. Selection of the source: radio, Jukebox, CD, CD changer

and auxiliary (AUX, if activated on the Coniguration menu).
Long press: CD copy to hard disc.

19. Selection of the display on the screen from the modes:

TRIP, TEL, NAV and AUDIO.

20. Long press on the SOS button: emergency call.

FIRST STEPS

Content .. 7 8 9 10 ..
