Nissan NV200 Taxi (2017 year). Manual - part 7

● Pre-mix windshield-washer fluid con-

centrates with water to the manufactur-
er’s recommended levels before pour-
ing the fluid into the windshield-washer
fluid

reservoir.

not

use

the

windshield-washer fluid reservoir to
mix the windshield-washer fluid con-
centrate and water.

To defrost the rear window glass:

Start the engine and push the rear window de-
froster switch. The rear window defroster indica-
tor light on the display screen comes on. Push the
switch again to turn the defroster off.

The rear window defroster automatically turns off
after approximately 15 minutes.

CAUTION

When cleaning the inner side of the rear
window, be careful not to scratch or dam-
age the rear window defroster.

HEADLIGHT CONTROL SWITCH

Lighting

䊊

When turning the switch to the

posi-

tion, the front parking, tail, license plate and
instrument panel lights come on.

䊊

When turning the switch to the

posi-

tion, the headlights come on and all the other
lights remain on.

LIC0388

LIC2127

REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH

HEADLIGHT AND TURN SIGNAL
SWITCH

Instruments and controls

2-19

CAUTION

Use the headlights with the engine run-
ning to avoid discharging the vehicle
battery.

Headlight beam select

䊊

To select the high beam function, push the
lever forward. The high beam lights come on
and the

light illuminates.

䊊

Pull the lever back to select the low beam.

䊊

Pulling and releasing the lever flashes the
headlight high beams on and off.

Battery saver system

If the ignition switch is placed in the OFF position
while the headlight switch is in the
or

position, the headlights will turn off after

a period of time.

CAUTION

Even though the battery saver feature au-
tomatically turns off the headlights after a
period of time, you should turn the head-
light switch to the OFF position when the
engine is not running to avoid discharging
the vehicle battery.

LIC2128

2-20

Instruments and controls

INSTRUMENT BRIGHTNESS
CONTROL

The instrument brightness control operates when
the headlight control switch is in the
or

position.

Turn the control

䊊

to adjust the brightness of

instrument panel lights when driving at night.

TURN SIGNAL SWITCH

Turn signal

䊊

Move the lever up or down to signal the
turning direction. When the turn is com-
pleted, the turn signal cancels automatically.

Lane change signal

䊊

Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, to signal a lane change. Hold the lever
until the lane change is completed.
Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, and release the lever. The turn signal
will automatically flash three times.

Choose the appropriate method to signal a lane
change based on road and traffic conditions.

LIC2147

WIC1512

Instruments and controls

2-21

To sound the horn, push near the horn icon on the
steering wheel.

WARNING

Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air bag
system may result in serious personal
injury.

The vehicle should be driven with the VDC sys-
tem on for most driving conditions.

If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor. If
maximum engine power is needed to free a stuck
vehicle, turn the VDC system off.

To turn off the VDC system, push the VDC OFF
switch. The

indicator will come on.

Push the VDC OFF switch again or restart the
engine to turn on the system. For additional infor-
mation, refer to “Vehicle Dynamic Control (VDC)
system” in the “Starting and driving” section of
this manual.

LIC2163

LIC1548

HORN

VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH

2-22

Instruments and controls

The power outlets are for powering electrical
accessories such as cellular telephones. The
outlet is rated at 12 volt, 120 W (10A) maximum.

CAUTION

● The outlet and plug may be hot during

or immediately after use.

● Only certain power outlets are designed

for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. It is recommended
that you visit a NISSAN dealer for addi-
tional information.

● Do not use with accessories that exceed

a 12 volt, 120 W (10A) power draw. Do
not use double adapters or more than
one electrical accessory.

● Use power outlets with the engine run-

ning to avoid discharging the vehicle
battery.

● Avoid using power outlets when the air

conditioner, headlights or rear window
defroster is on.

● Before inserting or disconnecting a

plug, be sure the electrical accessory
being used is turned OFF.

● Push the plug in as far as it will go. If

good contact is not made, the plug may
overheat or the internal temperature
fuse may open.

● When not in use, be sure to close the

cap. Do not allow water or any other
liquid to contact the outlet.

NOTE:

The USB ports that are located on each side
of the rear power outlet are for charging
purposes only.

Front – Center Console

LIC2446

Rear – Partition Wall

LIC2583

POWER OUTLET

Instruments and controls

2-23

MAP POCKETS

UNDER-SEAT STORAGE BINS

To open the drawer, lift up slightly and pull to
open. To remove the drawer, pull to the point of
resistance and lift up and pull.

CAUTION

To avoid damaging the tray under the seat,
cargo in the trays should not exceed 4 lb
(1.8 kg).

Door Panel

LIC2472

Instrument Panel

LIC2449

LIC2450

STORAGE

2-24

Instruments and controls

GLOVE BOX

Open the glove box by pulling the handle. Use the
master key when locking or unlocking the glove
box.

WARNING

Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.

CUP HOLDERS

CAUTION

● Avoid abrupt starting and braking when

the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger.

● Use only soft cups in the cup holder.

Hard objects can injure you in an
accident.

POWER WINDOWS

WARNING

● Make sure that all passengers have

their hands, etc. inside the vehicle while
it is in motion and before closing the
windows. Use the window lock switch to
prevent unexpected use of the power
windows.

● To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadvertent
door lock activation, do not leave chil-
dren, people who require the assistance
of others or pets unattended in your
vehicle. Additionally, the temperature
inside a closed vehicle on a warm day
can quickly become high enough to
cause a significant risk of injury or
death to people and pets.

The power windows operate when the ignition
switch is placed in the ON position, or for a
period of time after the ignition switch is placed in
the OFF position. If the driver’s or passenger’s
door is opened during this period of time, the
power to the windows is canceled.

LIC3136

LIC2448

WINDOWS

Instruments and controls

2-25

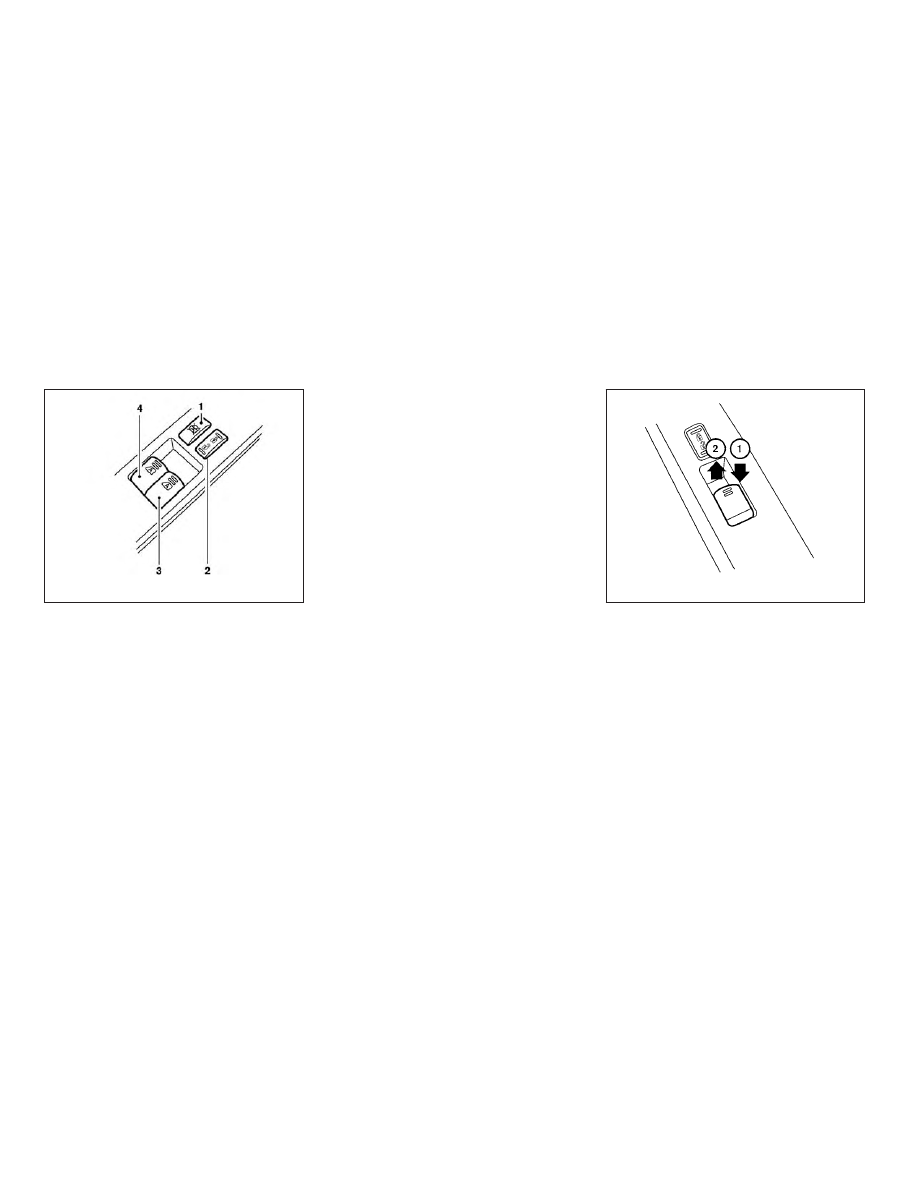

Window lock button

Power door lock switch (if so equipped)

Front passenger side automatic switch

Front driver side automatic switch

Driver’s side power window switch

The driver’s side control panel is equipped with
switches to open or close all of the windows.

To open a window, push the switch to the first
detent and continue to hold down until the de-
sired window position is reached. To close a
window, pull the switch to the first detent and
continue to hold up until the desired window
position is reached.

Locking passengers’ windows

When the window lock switch is depressed, only
the driver’s side window can be opened or
closed. Push it again to cancel the window lock
function.

Front passenger’s power window
switch

The passenger’s window switch operates only
the corresponding passenger’s window. To open
the window, push the switch to the first detent
and continue to hold it down until the desired
window position is reached

䊊

. To close the

window, pull the switch to the first detent and
continue to hold it up until the desired window
position is reached

䊊

LIC2373

WIC1129

2-26

Instruments and controls

Automatic operation

To fully open a window equipped with automatic
operation, press the window switch down to the
second detent and release it; it need not be held.
The window automatically opens all the way. To
stop the window, lift the switch up while the
window is opening.

Auto-reverse function

The auto-reverse function can be activated when
a window is closed by automatic operation.

Depending on the environment or driving
conditions, the auto-reverse function may

be activated if an impact or load similar to
something being caught in the window oc-
curs.

WARNING

There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.

If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
it is recommended that you visit a NISSAN dealer
to re-initialize the power window auto-reverse
system.

If the control unit detects something caught in a
window equipped with automatic operation as it
is closing, the window will be immediately low-
ered.

When power window switch does not
operate

If the power window automatic function (closing
only) does not operate properly, perform the fol-
lowing procedure to initialize the power window
system:

1. Place the ignition switch in the ON position.

2. Open the window more than halfway by

operating the power window switch.

3. Pull the power window switch and hold it to

close the window, and then hold the switch
more than 3 seconds after the window is
closed.

4. Release the power window switch. Operate

the window by the automatic function to
confirm the initialization is complete. The
power window automatically opens or
closes depending on if the automatic down
or up function is selected.

5. Perform steps 2 through 4 above for other

windows.

If the power window function does not operate
properly after performing the above procedure
have the system checked and repaired. It is rec-
ommended that you visit a NISSAN dealer for this
service.

LIC0410

Instruments and controls

2-27

SLIDING REAR WINDOW

The passenger’s side rear window may be slid to
two positions:

1. Squeeze and hold the latches to release the

window.

2. Slide the window to the desired position.

3. Release the latches to lock the window in

place.

PANORAMIC SUNSHADE

To open the sunshade, squeeze the handle to
release and ease the shade back into its stored
position.

To close the sunshade, pull the handle to draw
out the shade.

CAUTION

Do not pull the sunshade straight down.
This could damage the shade.

MAP LIGHT

The map light has a three-position switch and
operates regardless of ignition switch position.

When the switch is in the ON position

䊊

, the

map light illuminates, regardless of door position.
The light will go off after a period of time unless
the ignition switch is placed in the ACC or ON
position.

LIC2579

LIC0525

LIC2597

MOONROOF

INTERIOR LIGHTS

2-28

Instruments and controls

When the switch is in the DOOR position

䊊

, the

map light will stay on for a period of time when:

● The doors are unlocked by the key or the

power door lock switch while all doors are
closed and the ignition switch is placed in
the OFF position.

● The driver’s door is opened and then closed

while the key is removed from the ignition
switch.

● The key is removed from the ignition switch

while all doors are closed.

The light will turn off while the timer is activated
when:

● The driver’s door is locked by the key, or the

power door lock switch.

● The ignition switch is placed in the ON po-

sition.

When the switch is in the OFF position

䊊

, the

map light does not illuminate, regardless of door
position.

The light will turn off automatically after a period
of time while doors are open to prevent the bat-
tery from becoming discharged.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

PERSONAL LIGHTS

To turn the personal lights on or off, press the
switch

䊊

LIC2599

Instruments and controls

2-29

REAR ROOM LIGHT

The rear room light on the overhead trim has a
two-position switch. To operate, push the switch
to the desired position.

䊊

OFF: The light does not illuminate regardless
of door position or lock status.

䊊

ON: The light is illuminated.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

CARGO LIGHT

The cargo light has a two-position switch and
operates regardless of ignition switch position.

When the switch is in the ON position, the cargo
light illuminates, regardless of door position. The
light will go off after a period of time unless the
ignition switch is placed in the ACC or ON posi-
tion.

When the switch is in the OFF position, the cargo
light will not illuminate, regardless of door posi-
tion.

CAUTION

Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.

LIC2572

LIC2675

2-30

Instruments and controls

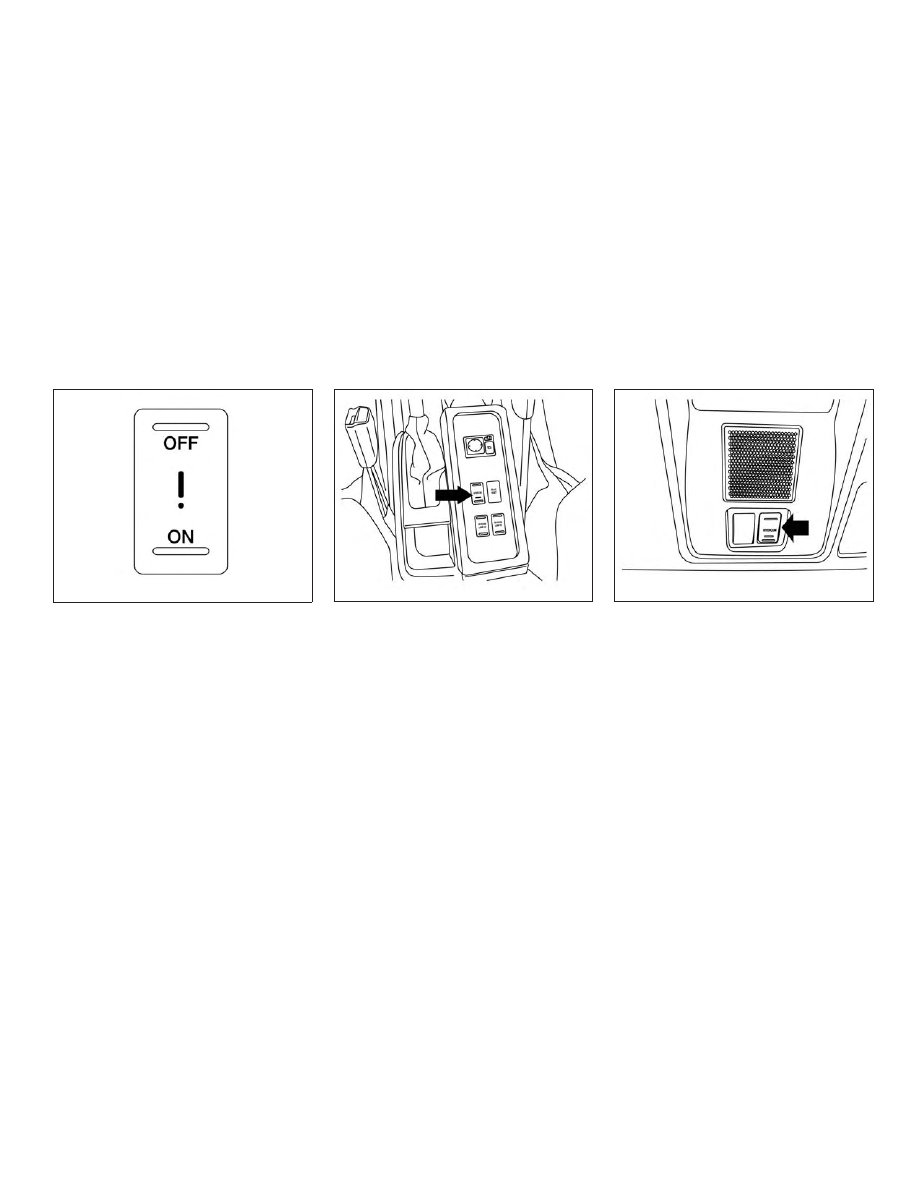

The trouble light switch is located on the instru-
ment panel.

The front intercom switch is located on the front
center console.

The rear intercom switch is located on the parti-
tion wall.

For additional information, refer to “Intercom Sys-
tem” in “Monitor, climate, audio, phone and voice
recognition systems” section of this manual.

LIC2551

Front Intercom switch

LIC2553

Rear Intercom switch

LIC2574

TROUBLE LIGHT SWITCH

INTERCOM SYSTEM SWITCH

Instruments and controls

2-31

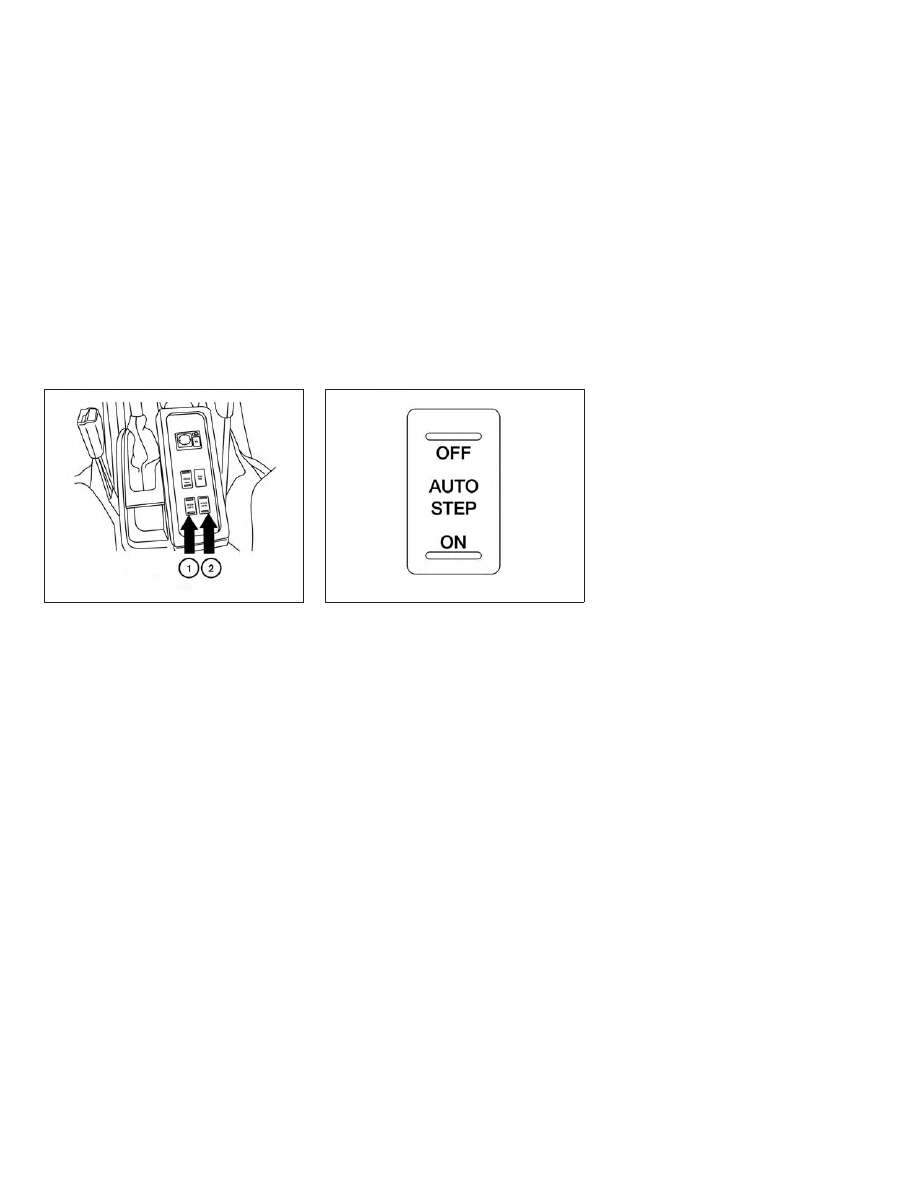

The front personal light switches are located in
the front center console.

The personal light switches operate the rear per-
sonal lights. To turn the left rear personal light on
or off, push the left switch

䊊

. To turn the right

rear personal light on or off, push the right switch

䊊

The auto step switch is located on the partition
wall.

LIC2674

LIC2552

PERSONAL LIGHT SWITCHES

AUTO STEP SWITCH

2-32

Instruments and controls

3 Pre-driving checks and adjustments

Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

NISSAN Vehicle Immobilizer System keys . . . . . . . . . 3-2

Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Remote keyless entry system (if so equipped). . . . . . . . . 3-9

How to use remote keyless entry system . . . . . . . . . 3-10

Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-13
Fuel-filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Opener operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14
Fuel-filler cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

Tilt operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16

Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Card holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Manual anti-glare rearview mirror . . . . . . . . . . . . . . . . 3-17
Outside mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18

Master key

Transponder chip

Key number plate

A key number plate is supplied with your keys.
Record the key number and keep it in a safe place
(such as your wallet), not in the vehicle. If you lose
your keys, it is recommended that you visit a
NISSAN dealer for duplicates by using the key
number. NISSAN does not record key numbers
so it is very important to keep track of your key
number plate.

A key number is only necessary when you have
lost all your keys. If you still have a key, it can be
duplicated without knowing the key number.

Integrated key fob

Key number plate

CAUTION

Do not leave the ignition key inside the
vehicle when you leave the vehicle.

NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS

You can only drive your vehicle using the keys
which are registered to the NISSAN Vehicle Im-
mobilizer System components in your vehicle.

A mechanical key can be used for all the locks.

Type A (if so equipped)

LPD2130

Type B (if so equipped)

LPD2045

KEYS

3-2

Pre-driving checks and adjustments

Content .. 5 6 7 8 ..
