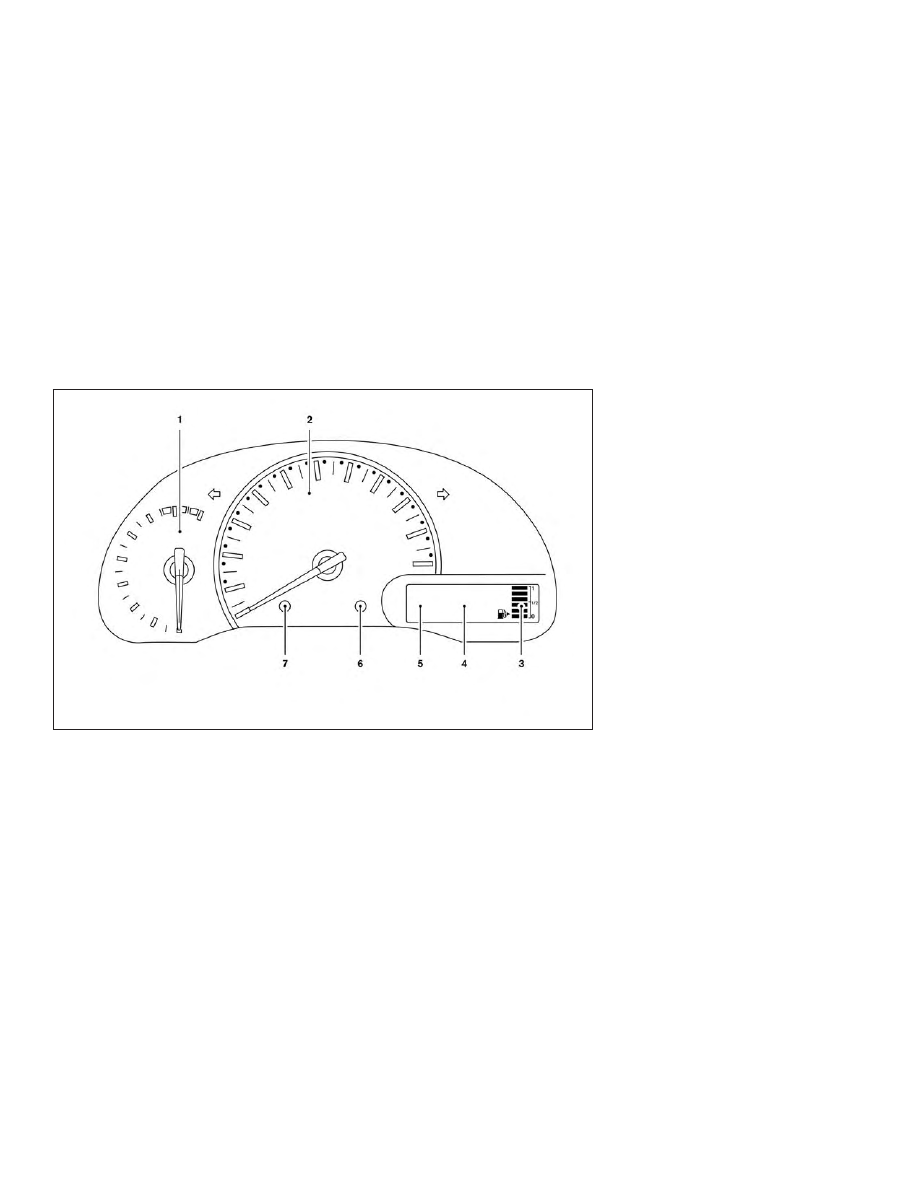

Nissan NV200 Taxi (2017 year). Manual

Tachometer

Speedometer

Fuel gauge

Odometer/twin trip odometer/trip com-
puter

Continuously Variable Transmission
(CVT) position indicator

Instrument brightness control

Change/reset button

SPEEDOMETER AND ODOMETER

This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located within the vehicle information display.

LIC3131

METERS AND GAUGES

Instruments and controls

2-3

Speedometer

The speedometer indicates the vehicle speed.

Odometer/Twin trip odometer

The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.

The odometer

䊊

records the total distance the

vehicle has been driven.

The twin trip odometer

䊊

records the distance

of individual trips.

Changing the display

Press the change/reset button

䊊

to change the

display as follows:

Odometer (ODO)

→ Trip

→

Instant fuel consumption

→ Average fuel con-

sumption

→ DTE (cruising range) → Outside air

temperature

→ Odometer (ODO)

Resetting the trip odometer
Press the change/reset button

䊊

for more than

1 second to reset the currently displayed trip
odometer to zero.

LIC2118

LIC3132

2-4

Instruments and controls

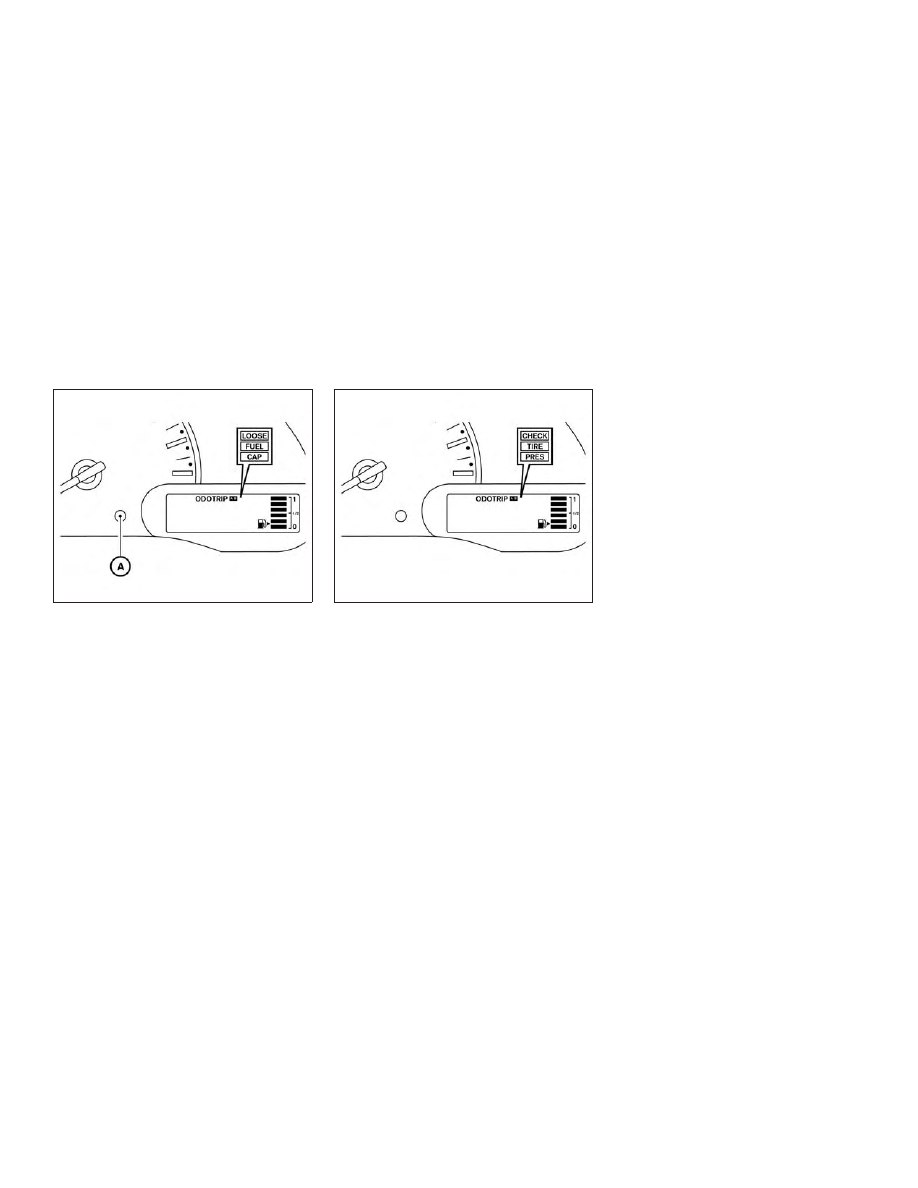

Loose fuel cap warning message

Push the change/reset button

䊊

for more than

1 second to reset the LOOSE FUEL CAP warn-
ing message after the fuel cap has been tight-
ened. For additional information, refer to “Fuel-
filler cap” in the “Pre-driving checks and
adjustments” section of this manual.

Check tire pressure warning message

The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire pressure
warning light is illuminated and low tire pressure
is detected. Check and adjust the tire pressure to
the recommended COLD tire pressure shown on
the Tire and Loading Information label. The
CHECK TIRE PRES (pressure) warning mes-
sage turns off when the low tire pressure warning
light turns off.

The low tire pressure warning light remains illu-
minated until the tires are inflated to the recom-
mended COLD tire pressure. The CHECK TIRE
PRES (pressure) warning message is displayed
each time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. For additional informa-
tion, refer to “Low tire pressure warning light” in
this section, “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving” section, and
“Wheels and tires” in the “Do-it-yourself” section
of this manual.

LIC3133

LIC3134

Instruments and controls

2-5

TACHOMETER

The tachometer indicates engine speed in revo-
lutions per minute (rpm).

Do not rev the engine into the red zone

䊊

CAUTION

When engine speed approaches the red
zone, shift to a higher gear or reduce en-
gine speed. Operating the engine in the
red zone may cause serious engine
damage.

FUEL GAUGE

The gauge indicates

䊊

the approximate fuel

level in the tank when the ignition switch is placed
in the ON position.

The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.

Type A (if so equipped): The fuel level segments
will blink when the amount of fuel in the tank is
getting low.

Type B (if so equipped): The low fuel warning
light will turn on when the amount of fuel in the
tank is getting low.

Refill the fuel tank before the gauge regis-
ters E (Empty).

The

indicates that the fuel-filler door is

located on the passenger’s side of the vehicle.

CAUTION

● If the vehicle runs out of fuel, the

check engine light may come on. Refuel
as soon as possible. After a few driving
trips, the

light should turn off. If

the light remains on after a few driving
trips, have the system checked. It is
recommended that you visit a NISSAN
dealer for this service.

● For additional information, refer to

“Malfunction Indicator Light (MIL)” in
this section.

LIC2107

LIC3135

2-6

Instruments and controls

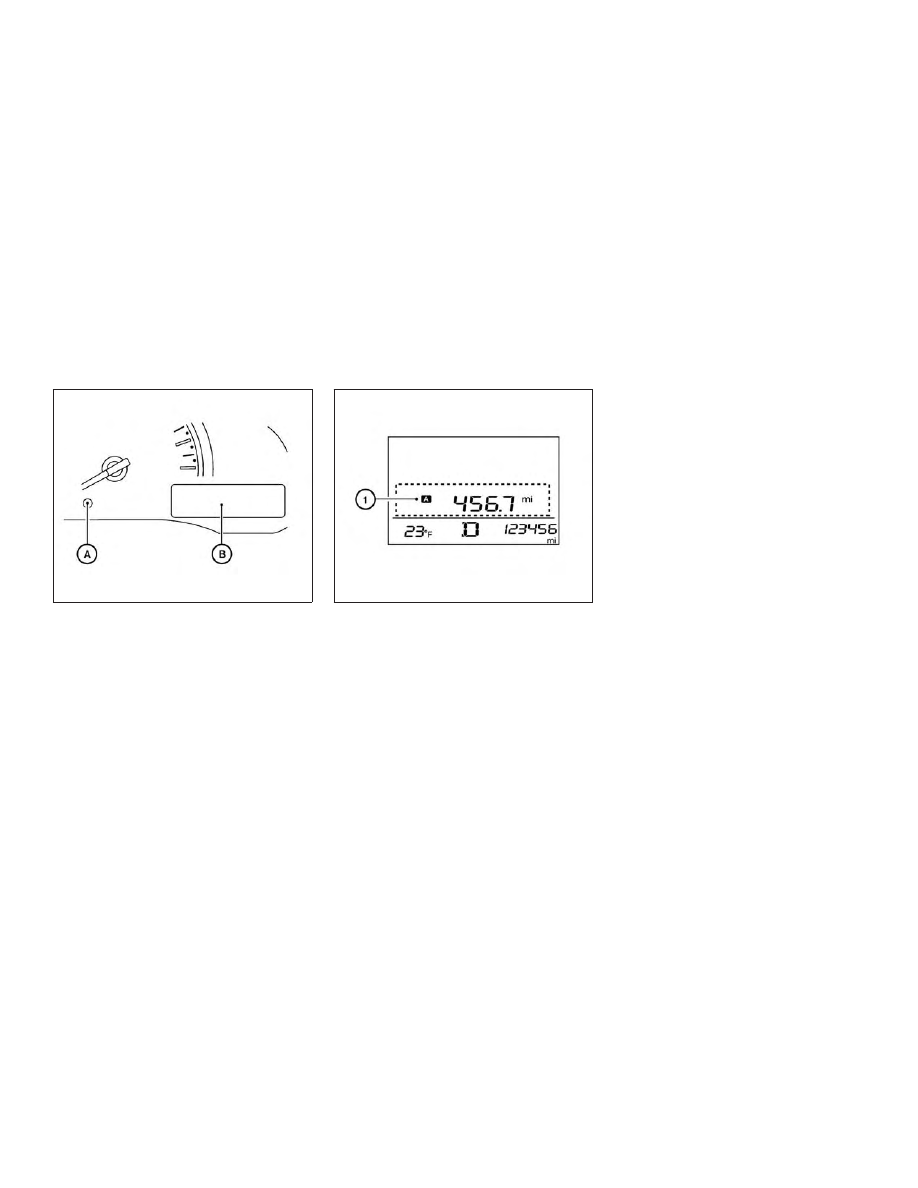

TRIP COMPUTER

When the ignition switch is placed in the ON
position, modes of the trip computer can be
selected by pressing the change/reset button

䊊

on the instrument panel located near the speed-
ometer. The following modes can be selected in
the display

䊊

● Trip A
● Trip B
● Instant fuel economy
● Average fuel consumption
● Distance to empty

Trip symbol: A or B

Trip A

Measures the distance of one specific trip

䊊

Trip B

Measures the distance of a second specific trip.

Instant fuel consumption

The instant fuel consumption mode shows the
instant fuel economy. The display updates in-
stantly when driving.

Average fuel consumption (mpg or l
(liter)/100km)

The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pressing the trip or change
button for more than approximately 1 second.
The display is updated every 30 seconds. At
about the first 1/3 mi (500 m) after a reset, the
display shows (----).

Distance to empty

The distance to empty mode provides you with an
estimation of the distance that can be driven
before refueling. The range is constantly being
calculated, based on the amount of fuel in the fuel
tank and the actual fuel consumption.

The distance to empty includes a low range
warning feature: when the fuel level is low, the
distance to empty is automatically selected and
the digits blink in order to draw the driver’s atten-
tion. Press the trip computer change/reset button
if you wish to return to the mode that was se-
lected before the warning occurred.

When the fuel level drops even lower, the dis-
tance to empty will display (----).

LIC2470

LIC3146

Instruments and controls

2-7

Anti-lock Braking System

(ABS) warning light

Low windshield-washer fluid warning light

High beam indicator light (blue)

Brake warning light

Power steering warning light

Malfunction Indicator Light (MIL)

Charge warning light

Seat belt warning light and chime

Overdrive OFF indicator light

Door open warning light

Supplemental air bag warning light

Security indicator light

Engine oil pressure warning light

Auto step indicator light

Slip indicator light

High temperature warning light (red)

Continuously Variable Transmission (CVT)
position indicator light

Turn signal/hazard indicator lights

Low fuel warning light

Cruise main switch indicator light

Vehicle Dynamic Control (VDC) OFF indicator

light

Low tire pressure warning light

Front passenger air bag status light

CHECKING LIGHTS

With all doors closed, apply the parking brake,
fasten the seat belts and place the ignition switch
in the ON position without starting the engine.
The following lights (if so equipped) will come on:

The following lights (if so equipped) will come on
briefly and then go off:

(red),

If any light does not come on or operate in a way
other than described, it may indicate a burned-
out bulb and/or a system malfunction. Have the
system checked. It is recommended that you visit
a NISSAN dealer for this service.

WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS

Instruments and controls

2-9

WARNING LIGHTS

Anti-lock Braking

System (ABS)

warning light

When the ignition switch is placed in the ON
position, the ABS warning light illuminates and
then turns off. This indicates the ABS is opera-
tional.

If the ABS warning light illuminates while the
engine is running or while driving, it may indicate
the ABS is not functioning properly. Have the
system checked. It is recommended that you visit
a NISSAN dealer for this service.

If an ABS malfunction occurs, the anti-lock func-
tion is turned off. The brake system then operates
normally but without anti-lock assistance. For
additional information, refer to “Brake system” in
the “Starting and driving” section of this manual.

Brake warning light

This light functions for both the parking brake and
the foot brake systems.

Parking brake indicator

When the ignition switch is placed in the ON
position, the light comes on when the parking
brake is applied.

Low brake fluid warning light

When the ignition switch is placed in the ON
position, the light warns of a low brake fluid level.
If the light comes on while the engine is running,
with the parking brake not applied, stop the ve-
hicle and perform the following:

1. Check the brake fluid level. Add brake fluid

as necessary. For additional information, re-
fer to “Brake fluid” in the “Do-it-yourself”
section of this manual.

2. If the brake fluid level is correct, have the

warning system checked. It is recommended
that you visit a NISSAN dealer for this ser-
vice.

WARNING

● Your brake system may not be working

properly if the warning light is on. Driv-
ing could be dangerous. If you judge it
to be safe, drive carefully to the nearest
service station for repairs. Otherwise,
have your vehicle towed because driv-
ing it could be dangerous.

● Pressing the brake pedal with the en-

gine stopped and/or a low brake fluid
level may increase your stopping dis-
tance and braking will require greater
pedal effort as well as pedal travel.

● If the brake fluid level is below the

MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked. It is
recommended that you visit a NISSAN
dealer for this service.

Anti-lock Braking System (ABS) warning
indicator

When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the ABS warning light illumi-
nate, it may indicate the ABS is not functioning
properly. Have the brake system checked and, if
necessary, repaired. It is recommended that you
visit a NISSAN dealer for this service. Avoid
high-speed driving and abrupt braking. For addi-
tional information, refer to “Anti-lock Braking Sys-
tem (ABS) warning light” in this section.

Charge warning light

If this light comes on while the engine is running,
it may indicate the charging system is not func-
tioning properly. Turn the engine off and check
the drive belt. If the belt is loose, broken, missing,
or if the light remains on, have the system
checked. It is recommended that you visit a
NISSAN dealer for this service.

2-10

Instruments and controls

CAUTION

Do not continue driving if the generator
belt is loose, broken or missing.

Door open warning light

This light comes on when any of the doors are not
closed securely while the ignition switch is
placed in the ON position.

Engine oil pressure warning
light

This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a NISSAN dealer or other
authorized repair shop.

The engine oil pressure warning light is not
designed to indicate a low oil level. Use the
dipstick to check the oil level. For additional in-
formation, refer to “Engine oil” in the “Do-it-
yourself” section of this manual.

CAUTION

Running the engine with the engine oil
pressure warning light on could cause se-
rious damage to the engine almost imme-
diately. Such damage is not covered by
the NISSAN New Vehicle Limited War-
ranty. Turn off the engine as soon as it is
safe to do so.

High temperature warning light
(red)

When the ignition switch is placed in the ON
position, the high temperature warning light illu-
minates and then turns off. This indicates that the
high temperature sensor in the engine coolant
system is operational.

CAUTION

If the high temperature warning light illu-
minates while the engine is running, it
may indicate the engine temperature is
extremely high. Stop the vehicle safely as
soon as possible. If the vehicle is over-
heated, continuing vehicle operation may
seriously damage the engine. For addi-
tional information, refer to “If your vehicle
overheats” in the “In case of emergency”
section of this manual.

Low fuel warning light

This light comes on when the fuel level in the fuel
tank is getting low. Refuel as soon as it is conve-
nient, preferably before the fuel gauge reaches 0
(Empty). There will be a small reserve of fuel
in the tank when the fuel gauge reaches 0
(Empty).

Low tire pressure warning light

Your vehicle is equipped with a TPMS that moni-
tors the tire pressure of all tires except the spare.

The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.

After the ignition switch is placed in the ON
position, this light illuminates for about 1 second
and turns off.

Low tire pressure warning

If the vehicle is being driven with low tire
pressure, the warning light will illuminate.

A CHECK TIRE PRES (pressure) warning
message is also displayed in the odometer.

When the low tire pressure warning light
illuminates, you should stop and adjust the
tire pressure of all four tires to the recom-
mended COLD tire pressure shown on the

Instruments and controls

2-11

Tire and Loading Information label located
in the driver’s door opening. The low tire
pressure warning light does not automati-
cally turn off when the tire pressure is ad-
justed. After the tire is inflated to the rec-
ommended pressure, the vehicle must be
driven at speeds above 16 mph (25 km/h) to
activate the TPMS and turn off the low tire
pressure warning light. Use a tire pressure
gauge to check the tire pressure.

The low tire pressure warning light remains illu-
minated until the tires are inflated to the recom-
mended COLD tire pressure. The CHECK TIRE
PRES warning message is displayed each time
the ignition switch is placed in the ON position as
long as the low tire pressure warning light re-
mains illuminated.

For additional information, refer to

⬙Check tire

pressure warning message

⬙ in this section and

TPMS” in the “Starting and driving” section and in
the “In case of emergency” section of this manual.

TPMS malfunction

If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
placed in the ON position. The light will remain on
after 1 minute. Have the system checked. It is
recommended that you visit a NISSAN dealer for
this service. The

⬙CHECK TIRE PRES⬙ warning

does not appear if the low tire pressure warning
light illuminates to indicate a TPMS malfunction.

For additional information, refer to “Tire Pressure
Monitoring System (TPMS)” in the “Starting and
driving” section and “Tire pressure” in the “Do-it-
yourself” section of this manual.

WARNING

● Radio waves could adversely affect

electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufac-
turer for the possible influences before
use.

● If the light does not illuminate with the

ignition switch placed in the ON posi-
tion, have the vehicle checked as soon
as possible. It is recommended that you
visit a NISSAN dealer for this service.

● If the light illuminates while driving,

avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location and
stop the vehicle as soon as possible.
Driving with under-inflated tires may
permanently damage the tires and in-
crease the likelihood of tire failure. Se-
rious vehicle damage could occur and
may lead to an accident and could result
in serious personal injury or death.
Check the tire pressure for all four tires.
Adjust the tire pressure to the recom-
mended COLD tire pressure shown on
the Tire and Loading Information label
located in the driver’s door opening to
turn the low tire pressure warning light
off. If the light still illuminates while
driving after adjusting the tire pressure,
a tire may be flat or the TPMS may be
malfunctioning. If you have a flat tire,
replace it with a spare tire as soon as
possible. If no tire is flat and all tires are
properly

inflated,

have

the

vehicle

checked. It is recommended that you
visit a NISSAN dealer for this service.

2-12

Instruments and controls

● Since the spare tire is not equipped with

TPMS, when a spare tire is mounted or a
wheel is replaced the TPMS will not
function and the low tire pressure warn-
ing light will flash for approximately
1 minute. The light will remain on after
1 minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended that you
visit a NISSAN dealer for these services.

● Replacing tires with those not originally

specified by NISSAN could affect the
proper operation of the TPMS.

CAUTION

● The TPMS is not a substitute for the

regular tire pressure check. Be sure to
check the tire pressure regularly.

● If the vehicle is being driven at speeds

of less than 16 mph (25 km/h), the
TPMS may not operate correctly.

● Be sure to install the specified size of

tires to the four wheels correctly.

Low windshield-washer fluid
warning light

This light comes on when the windshield-washer
fluid is at a low level. Add windshield-washer fluid

as necessary. For additional information, refer to
“Windshield-washer fluid” in the “Do-it-yourself”
section of this manual.

Power steering warning light

WARNING

● If the engine is not running or is turned

off while driving, the power assist for
the steering will not work. Steering will
be harder to operate.

● When the power steering warning light

illuminates with the engine running,
there will be no power assist for the
steering. You will still have control of
the vehicle, but the steering will be
harder to operate. Have the power
steering system checked. It is recom-
mended that you visit a NISSAN dealer
for this service.

When the ignition switch is placed in the ON
position, the power steering warning light illumi-
nates. After starting the engine, the power steer-
ing warning light turns off. This indicates the
power steering is operational.

If the power steering warning light illuminates
while the engine is running, it may indicate the
power steering is not functioning properly and
may need servicing. Have the power steering

checked. It is recommended that you visit a
NISSAN dealer for this service.

When the power steering warning light illumi-
nates with the engine running, there will be no
power assist for the steering, but you will still
have control of the vehicle. At this time, greater
steering effort is required to operate the steering
wheel, especially in sharp turns and at low
speeds.

For additional information, refer to “Power steer-
ing” in the “Starting and driving” section of this
manual.

Seat belt warning light and
chime

The light and chime remind you to fasten your
seat belts. The light illuminates whenever the
ignition switch is placed in the ON or START
position and remains illuminated until the driver’s
seat belt is fastened. At the same time, the chime
sounds for about 6 seconds unless the driver’s
seat belt is securely fastened.

The seat belt warning light may also illuminate if
the front passenger’s seat belt is not fastened
when the front passenger’s seat is occupied. For
7 seconds after the ignition switch is placed in
the ON position, the system does not activate the
warning light for the front passenger.

Instruments and controls

2-13

For additional information, refer to “Seat belts” in
the “Safety—Seats, seat belts and supplemental
restraint system” section of this manual.

Supplemental air bag warning
light

When the ignition switch is placed in the ON or
START position, the supplemental air bag warn-
ing light illuminates for about 7 seconds and then
turns off. This means the system is operational.

If any of the following conditions occur, the front
air bag, side air bag, curtain air bag, and preten-
sioner seat belt systems need servicing.

● The supplemental air bag warning light re-

mains on after approximately 7 seconds.

● The supplemental air bag warning light

flashes intermittently.

● The supplemental air bag warning light does

not come on at all.

It is recommended that you visit a NISSAN dealer
for these services. Unless checked and repaired,
the supplemental restraint system (air bag sys-
tem) and/or the pretensioners may not function
properly. For additional information, refer to
“Supplemental restraint system (SRS)” in the
“Safety—Seats, seat belts and supplemental re-
straint system” section of this manual.

WARNING

If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag systems
and/or pretensioner systems will not op-
erate in an accident. To help avoid injury to
yourself or others, have your vehicle
checked as soon as possible. It is recom-
mended that you visit a NISSAN dealer for
this service.

INDICATOR LIGHTS

Auto step indicator light

This light comes on when the auto step system is
on.

Continuously Variable
Transmission (CVT) position
indicator light

When the ignition key is turned to the ON posi-
tion, this indicator light shows the shift lever
position. For additional information, refer to “Driv-
ing the vehicle” in the “Starting and driving” sec-
tion of this manual.

Cruise main switch indicator
light

The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise
main switch indicator light comes on, the cruise
control system is operational. For additional infor-
mation, refer to “Cruise control” in the “Starting
and driving” section of this manual.

Front passenger air bag status
light

The front passenger air bag status light will be lit
and the passenger front air bag will be off de-
pending on how the front passenger seat is being
used.

For front passenger air bag status light operation,
refer to “Front passenger air bag and status light”
in the “Safety — Seats, seat belts and supple-
mental restraint system” section of this manual.

High beam indicator light
(blue)

This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.

The high beam indicator light also comes on
when the passing signal is activated.

2-14

Instruments and controls

Malfunction Indicator Light
(MIL)

If this indicator light comes on steady or blinks
while the engine is running, it may indicate a
potential emission control malfunction.

The

may also come on steady if the fuel-

filler cap is loose or missing, or if the vehicle runs
out of fuel. Check to make sure the fuel-filler cap
is installed and closed tightly, and that the vehicle
has at least 3 gal (11.4 L) of fuel in the fuel tank.

After a few driving trips, the

light should

turn off if no other potential emission control
system malfunction exists.
If this indicator light comes on steady for 20 sec-
onds and then blinks for 10 seconds when the
engine is not running, it indicates that the vehicle
is not ready for an emission control system
inspection/maintenance test. For additional infor-
mation,

refer

“Readiness

for

inspection/maintenance (I/M) test” in the “Tech-
nical and consumer information” section of this
manual.

Operation

The MIL will come on in one of two ways:

● MIL on steady — An emission control system

malfunction has been detected. Check the
fuel-filler cap. If the LOOSE FUEL CAP
warning message is displayed in the odom-
eter, and the fuel-filler cap is loose or miss-
ing, tighten or install the cap and continue to
drive the vehicle. The

light should turn

off after a few driving trips. If the

light

does not turn off after a few driving trips,
have the vehicle inspected. It is recom-
mended that you visit a NISSAN dealer for
this service. You do not need to have your
vehicle towed to the dealer.

● MIL blinking — An engine misfire has been

detected which may damage the emission
control system. To reduce or avoid emission
control system damage:

– do not drive at speeds above 45 mph

(72 km/h);

– avoid hard acceleration or deceleration;

– avoid steep uphill grades;

– if possible, reduce the amount of cargo

being hauled.

The MIL may stop blinking and come on steady.
Have the vehicle inspected. It is recommended

that you visit a NISSAN dealer for this service.
You do not need to have your vehicle towed to the
dealer.

CAUTION

Continued vehicle operation without hav-
ing the emission control system checked
and repaired as necessary could lead to
poor driveability, reduced fuel economy,
and possible damage to the emission con-
trol system.

Overdrive OFF indicator light

The overdrive OFF indicator light illuminates
when the overdrive OFF mode is selected.

For additional information, refer to “Continuously
Variable Transmission (CVT)” in the “Starting and
driving” section of this manual.

Security indicator light

This light blinks when the ignition switch is
placed in the OFF, LOCK or ACC position.

The blinking security indicator light indicates that
the security systems equipped on the vehicle are
operational.

For additional information, refer to “Security sys-
tems” in this section.

Instruments and controls

2-15

Slip indicator light

This indicator will blink when the Vehicle Dynamic
Control (VDC) system is operating, thus alerting
that the vehicle is nearing its traction limits. The
road surface may be slippery.

Turn signal/hazard indicator
lights

The appropriate light flashes when the turn signal
switch is activated.

Both lights flash when the hazard switch is turned
on.

Vehicle Dynamic Control
(VDC) OFF indicator light

This indicator light comes on when the VDC off
switch is pushed to OFF. This indicates the VDC
system is not operating.

Push the VDC off switch again or restart the
engine and the system will operate normally. For
additional information, refer to “Vehicle Dynamic
Control (VDC) system” in the “Starting and driv-
ing” section of this manual.

The VDC light also comes on when you place the
ignition switch in the ON position. The light will
turn off after about 2 seconds if the system is
operational. If the light stays on or comes on
along with the

indicator light while you are

driving, have the VDC system checked. It is rec-
ommended that you visit a NISSAN dealer for this
service.
While the VDC system is operating, you might
feel slight vibration or hear the system working
when starting the vehicle or accelerating, but this
is normal.

AUDIBLE REMINDERS

Brake pad wear warning

The disc brake pads have audible wear warnings.
When a disc brake pad requires replacement, it
makes a high pitched scraping sound when the
vehicle is in motion, whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.

Key reminder chime

A chime sounds if the driver’s door is opened
while the key is left in the ignition switch. Remove
the key and take it with you when leaving the
vehicle.

Light reminder chime

With the ignition switch placed in the OFF posi-
tion, a chime sounds when the driver’s door is
opened if the headlights or parking lights are on.

Turn the headlight control switch off before leav-
ing the vehicle.

Parking brake reminder chime

A chime sounds if the parking brake is set and the
vehicle is driven. The chime will stop if the parking
brake is released or the vehicle speed returns to
zero.

2-16

Instruments and controls

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of a
registered key.

If the engine fails to start using a registered key
(for example, when interference is caused by
another registered key, an automated toll road
device or automatic payment device on the key
ring), restart the engine using the following pro-
cedures:

1. Leave the ignition switch placed in the ON

position for approximately 5 seconds.

2. Place the ignition switch in the OFF or

LOCK position, and wait approximately
10 seconds.

3. Repeat Steps 1 and 2.

4. Restart the engine while holding the device

(which may have caused the interference)
separate from the registered key.

If the no start condition re-occurs, NISSAN rec-
ommends placing the registered key on a sepa-
rate key ring to avoid interference from other
devices.

FCC Notice:

For USA:

This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.

NOTE:

Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.

Security indicator light

This light blinks whenever the ignition switch is
placed in the LOCK, OFF or ACC position.

This function indicates the NISSAN Vehicle Im-
mobilizer System is operational.

If the NISSAN Vehicle Immobilizer System is mal-
functioning, the light will remain on while the
ignition switch is placed in the ON position.

LIC0474

SECURITY SYSTEMS

Instruments and controls

2-17

If the light still remains on and/or the en-
gine will not start, seek service for the
NISSAN Vehicle Immobilizer System as
soon as possible. Please bring all regis-
tered keys that you have. It is recom-
mended that you visit a NISSAN dealer for
this service.

SWITCH OPERATION

The windshield wiper and washer operates when
the ignition switch is in the ON position.

Push the lever down to operate the wiper at the
following speed:

䊊

Intermittent (INT) — intermittent operation
can be adjusted by turning the knob toward

䊊

(Slower) or

䊊

(Faster).

䊊

Low (LO) — continuous low speed operation

䊊

High (HI) — continuous high speed opera-
tion

Push the lever up

䊊

to have one sweep opera-

tion (MIST ) of the wiper.

Pull the lever toward you

䊊

to operate the

washer. The wiper will also operate several times.

WARNING

In freezing temperatures the washer solu-
tion may freeze on the windshield and
obscure your vision which may lead to an
accident. Warm the windshield with the
defroster before you wash the windshield.

CAUTION

● Do not operate the washer continuously

for more than 30 seconds.

● Do not operate the washer if the reser-

voir is empty.

● Do not fill the windshield-washer fluid

reservoir with washer fluid concen-
trates at full strength. Some methyl al-
cohol based washer fluid concentrates
may permanently stain the grille if
spilled while filling the windshield-
washer fluid reservoir.

WIC2748

WIPER AND WASHER SWITCH

2-18

Instruments and controls

Nissan NV200 Taxi (2017 year). Manual - part 6
