Under the following conditions, the ICC
(with ProPILOT Assist) system is automati-
cally canceled:

• The camera area of the windshield is

fogged up or covered with dirt, water, ice,
snow, etc.

• Strong light, such as sunlight or high

beams from oncoming vehicles, enters
the front camera

• When the wiper (HI) operates

The system will be available when the
above conditions no longer exist.

If the warning message continues to appear,
stop the vehicle in a safe location, turn the
hybrid system off and clean the windshield.

Driver Attention Alert Take a
Break? (if so equipped)

This alert appears when the system has
detected the driver may be displaying fa-
tigue or a lack of attention.

Driver Attention Alert System
Fault (if so equipped)

This warning appears when the Intelligent
Driver Alertness (I-DA) system is not func-
tioning properly.

For additional information, refer to “Intelli-
gent Driver Alertness (I-DA)” in the “Starting
and driving” section of this manual.

Unavailable High Cabin
Temperature (if so equipped)

This message appears when the camera
detects an interior temperature of more
than approximately 104°F (40°C).

For additional information, refer to “Lane
Departure Warning (LDW)” in the “Starting
and driving” section of this manual.

Not Available Parking Brake On (if
so equipped)

This message may appear when the Intel-
ligent Cruise Control (ICC) (with ProPILOT
Assist) system is engaged.

Under the following conditions, the ICC
(with ProPILOT Assist) system is automati-
cally canceled:

• The electronic parking brake is applied.

The above system cannot be used when
the electronic parking brake is activated.

Not Available Poor Road
Conditions (if so equipped)

This message may appear when the Intel-
ligent Cruise Control (ICC) (with ProPILOT
Assist) system or the ICC is engaged.

Under the following conditions, the ICC
(with ProPILOT Assist) system or the ICC
system is automatically canceled:

• When the VDC operates.

• When a wheel slips.

The above system cannot be used in some
situations (VDC operates and wheel slip.)

Currently not available (if so
equipped)

This message may appear when the Intel-
ligent Cruise Control (ICC) (with ProPILOT
Assist) system or the ICC is engaged.

Under the following conditions, the ICC
(with ProPILOT Assist) system or the ICC
system is automatically canceled:

• When the VDC operates.

• When a wheel slips.

• When the VDC system is turned off.

2-42

Instruments and controls

The above system cannot be used in some
situations (VDC operates, wheel slip, and
VDC system is off.)

Press Brake Pedal (if so equipped)

This message may appear in the following
situations:

• The driver tries to release the electronic

parking brake manually without depress-
ing the brake pedal.

• The vehicle is stopped on a steep hill; and

there is a possibility of moving backwards,
even if the electronic parking brake is
applied..

• The vehicle moves while the automatic

brake hold is activated.

For additional information, refer to “Elec-
tronic parking brake” in the “Starting and
driving” section of this manual.

Lane Departure Warning
(LDW)/Intelligent Lane
Intervention (I-LI) indicator (if so
equipped)

This indicator shows when the LDW/I-LI
systems are engaged.

For additional information, refer to ”Warn-
ing systems switch” in this section and
“Lane Departure Warning (LDW) system”
and “Intelligent Lane Intervention (I-LI) sys-
tem” in the “Starting and driving” section of
this manual.

Automatic Emergency Braking
(AEB)/Automatic Emergency
Braking (AEB) with Pedestrian
Detection indicator (if so
equipped)

This indicator shows when the AEB or AEB
with Pedestrian Detection system is en-
gaged.

For additional information, refer to “Auto-
matic Emergency Braking (AEB)” or “Auto-
matic Emergency Braking (AEB) with Pe-
destrian

Detection”

the

“Starting

and

driving” section of this manual.

Shipping Mode On Push Storage
Fuse

This warning may appear if the extended
storage switch is not pushed in. When this
warning appears, push in the extended
storage switch to turn off the warning.

For additional information, refer to “Ex-
tended storage switch” in the “Mainte-
nance and do-it-yourself ” section of this
manual.

Blind Spot Warning (BSW)/Rear
Cross Traffic Alert (RCTA) indicator
(if so equipped)

This indicator shows when the BSW and
RCTA systems are engaged.

For additional information, refer to “Blind
Spot Warning (BSW)” and “Rear Cross Traffic
Alert (RCTA)” in the “Starting and driving”
section of this manual.

Headlight System Error: See
Owner’s Manual (if so equipped)

This warning appears when the LED head-
lights are not functioning properly.

If this warning appears, have your system
checked. It is recommended that you visit a
NISSAN certified LEAF dealer for this ser-
vice.

Instruments and controls

2-43

When Parked Apply Parking Brake

This warning appears if there is a malfunc-
tion in the electric shift control system. This
warning appears when the parking brake
is not applied, even after the vehicle has
been parked. The master warning light
(red) also illuminates and the chime
sounds.

If the power switch cannot be placed in the
OFF position, apply the parking brake and
then place the power switch in the OFF
position. The warning turns off and the
chime stops.

If this warning appears, have your system
checked. It is recommended that you visit a
NISSAN certified LEAF dealer for this ser-
vice.

T/M system malfunction Visit
dealer

This warning appears if there is a malfunc-
tion in the electric shift control system but
operation of the electric shift control is still
possible. The master warning light (yellow)
also illuminates and the chime sounds.
When this occurs, check the shift position
indicator by the shift lever or in the vehicle

information display to make sure that
shifting has been performed properly. It is
recommended that you contact a NISSAN
certified LEAF dealer as soon as possible.

Check position of shift lever

This warning appears if the system cannot
detect the shift position. Make sure the ve-
hicle is placed in a position properly.

The master warning light (yellow) also illu-
minates and the chime sounds. Check the
shift position of the vehicle.

Chassis Control System Error: See
Owner’s Manual

This warning appears if the Integrated
Dynamics-control Module detects an error
in the Intelligent Trace Control, Intelligent
Engine Brake, or the Active Ride Control
systems. Have the system checked. It is
recommended that you visit a NISSAN cer-
tified LEAF dealer for this service. For addi-
tional information, refer to “Chassis control”
in the “Starting and driving” section of this
manual.

WARNING INFORMATION DISPLAYS
(MODELS WITH A NAVIGATION
SYSTEM)

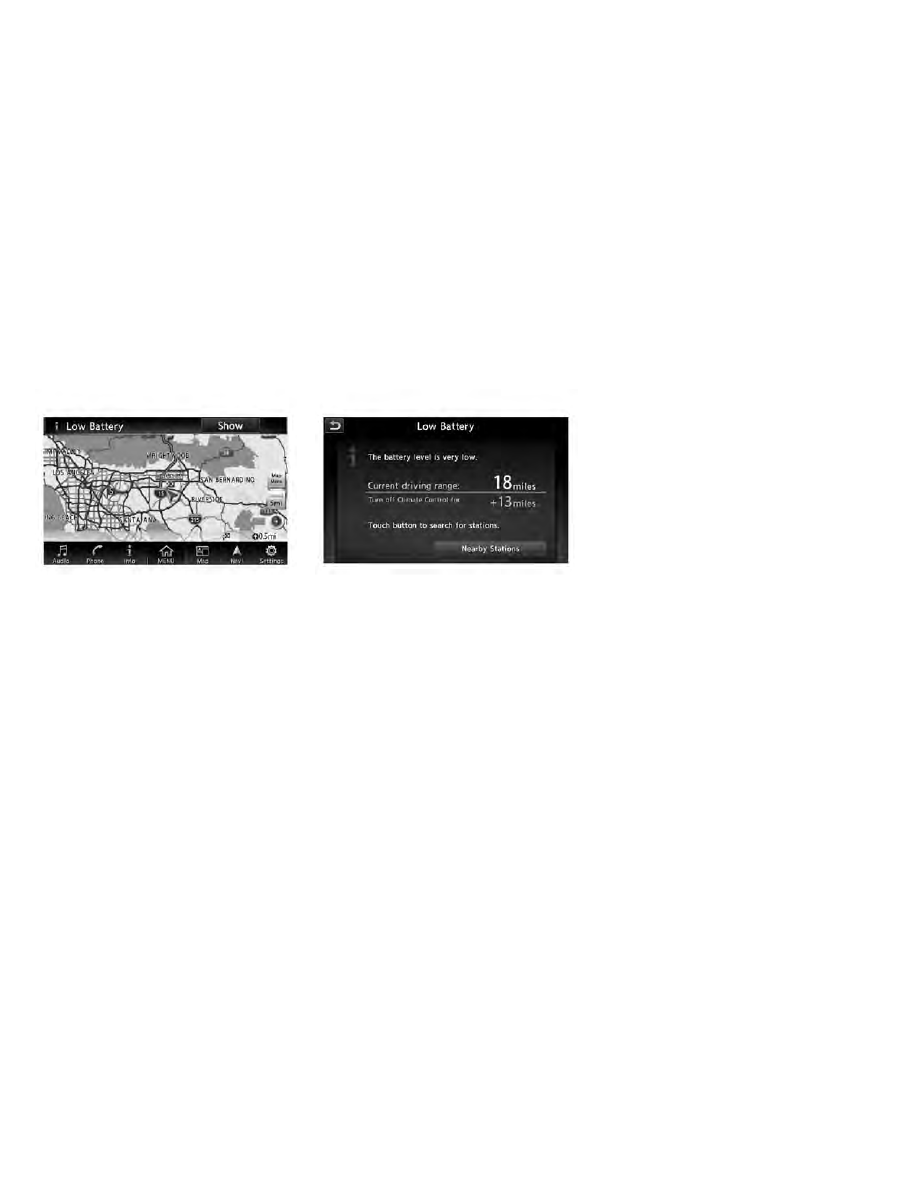

Low battery warning

When the low battery charge indicator

and the master warning light (yellow)

illuminate, the system displays a

message on the navigation system screen
that warns the driver that the Li-ion battery
power level is low.

2-44

Instruments and controls

1. The notification is displayed on the up-

per left side of the STATUS screen. Touch
[Show] to display the screen showing
detailed information.

2. The system displays a message screen

and announces the contents of the
message to warn that the Li-ion battery
power level is low. Check the message
displayed on the screen. Touch [Nearby
Stations] to search all charging stations
that are located around the current ve-
hicle position.

3. Touch [BACK] or push the MAP button to

return to the vehicle location screen.

NOTE:

• The low battery warning can be set to

off. Refer to LEAF Electric Vehicle Infor-
mation System Owner's Manual.

• When the battery power level is low, the

system automatically obtains charging
station information.

Instruments and controls

2-45

Your vehicle has two types of security sys-
tems, as follows:

• Vehicle security system

• NISSAN Vehicle Immobilizer System

The security status is shown by the secu-
rity indicator light.

VEHICLE SECURITY SYSTEM

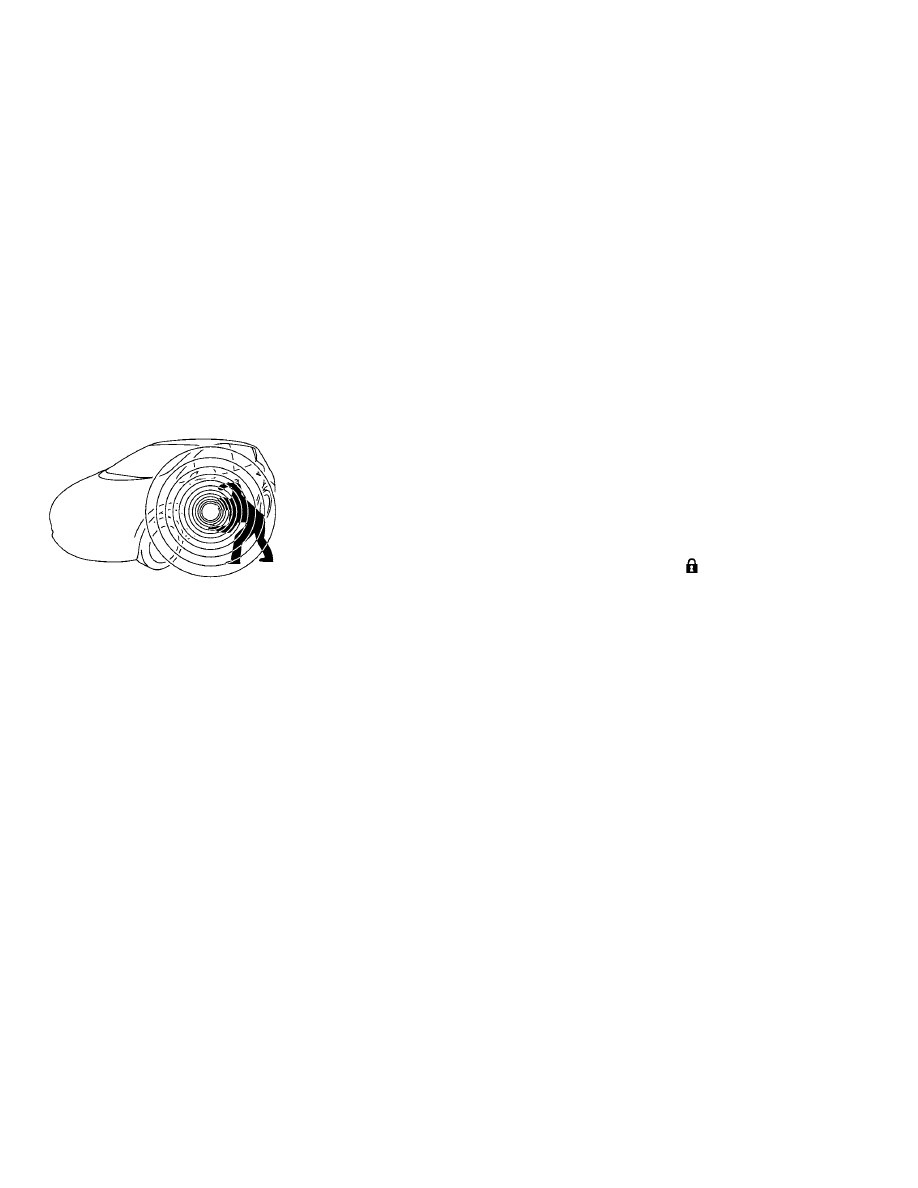

The vehicle security system provides visual
and audio alarm signals if someone opens
the doors, or rear hatch when the system is
armed. It is not, however, a motion detec-
tion type system that activates when a ve-
hicle is moved or when a vibration occurs.

The system helps deter vehicle theft but
cannot prevent it, nor can it prevent the
theft of interior or exterior vehicle compo-
nents in all situations. Always secure your
vehicle even if parking for a brief period.
Never leave your keys in the vehicle, and
always lock it when it is left unattended. Be
aware of your surroundings, and park in
secure, well-lit areas whenever possible.

Many devices offering additional protec-
tion, such as component locks, identifica-
tion markers, and tracking systems, are
available at auto supply stores and spe-
cialty shops. A NISSAN certified LEAF dealer
may also offer such equipment. Check with
your insurance company to see if you may
be eligible for discounts for various theft
protection features.

How to arm the vehicle security
system

1. Close all windows.

The system can be armed even if the
windows are open.

2. Place the power switch in the LOCK or

OFF position and remove the Intelligent
Key from the vehicle.

3. Close all doors. Lock all doors. The doors

can be locked with:

• the LOCK

button on the Intelligent

Key

• any request switch

• the power door lock switch

• the mechanical key

4. Confirm that the security indicator light

illuminates. The security indicator light
stays on for about 30 seconds. The ve-
hicle security system is now pre-armed.
After about 30 seconds the vehicle se-
curity system automatically shifts into
the armed phase. The security light be-
gins to flash once every approximately
3 seconds. If, during this 30-second pre-
arm time period, the door is unlocked, or
the power switch is placed in the ACC or
ON position, the system will not arm.

SECURITY SYSTEMS

2-46

Instruments and controls

Even when the driver and/or passengers
are in the vehicle, the system will acti-
vate with all doors locked and the power
switch in the OFF position. When placing
the power switch to the ACC or ON posi-
tion, the system will be released.

Vehicle security system activation

The vehicle security system will give the
following alarm:

• The headlights blink and the horn sounds

intermittently.

• The alarm automatically turns off after

approximately 50 seconds. However, the
alarm reactivates if the vehicle is tam-
pered with again.

The alarm is activated by:

• Unlocking the door without using the In-

telligent Key, the request switch or the key.
(Even if the door is opened by releasing
the door inside lock knob, the alarm will
activate.)

• Opening the hood.

How to stop an activated alarm

The alarm will stop when a door is un-
locked by pushing the UNLOCK

but-

ton on the Intelligent Key, door handle re-
quest switch or using the mechanical key,
or when the power switch is pushed in the
ACC or ON position.

If the system does not operate as de-
scribed above, have it checked. It is rec-
ommended that you visit a NISSAN certi-
fied LEAF dealer for this service.

NISSAN VEHICLE IMMOBILIZER
SYSTEM

The NISSAN Vehicle Immobilizer System
will not allow the power switch to be placed
in the READY to drive position without the
use of the registered key.

If the power switch fails to place the vehicle
into the READY to drive position using the
registered key, it may be due to interfer-
ence caused by another registered key, an
automated toll road device or automated
payment device on the key ring. Restart the
EV system using the following procedure:

1. Leave the power switch in the ON posi-

tion for approximately 5 seconds.

2. Place the power switch in the OFF posi-

tion and wait approximately 10 seconds.

3. Repeat step 1 and 2 again.

4. Place the power switch in the READY to

drive position while holding the device
(which may have caused the interfer-
ence) separate from the registered key.

If this procedure allows the power
switch to be placed in the READY to drive
mode, NISSAN recommends placing the
registered key on a separate key ring to
avoid interference from other devices.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference
that may cause undesired operation.

Instruments and controls

2-47

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s author-
ity to operate the equipment.

For Canada:

This

device

complies

with

Industry

Canada licence-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must ac-
cept any interference, including interfer-
ence that may cause undesired opera-
tion of the device.

Security Indicator Light

The security indicator light is located on
the meter panel. It indicates the status of
the NISSAN Vehicle Immobilizer System.

The light blinks after the power switch was
in the ACC or OFF position. This function
indicates the security systems equipped
on the vehicle are operational.

If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on
while the power switch is in the ON posi-
tion.

If the light still remains on and/or the
power switch cannot be placed in the
READY to drive position, have the system
checked. It is recommended that you
visit a NISSAN certified LEAF dealer for
this service as soon as possible. Please
bring all registered keys that you have
when visiting a NISSAN certified LEAF
dealer for service.

2-48

Instruments and controls

WARNING

In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may
lead to an accident. Warm the wind-
shield with the defroster before you
wash the windshield.

CAUTION

• Do not operate the washer continu-

ously for more than 30 seconds.

• Do not operate the washer if the

windshield-washer fluid reservoir is
empty.

• Do not fill the windshield-washer

fluid

reservoir

with

windshield-

washer fluid concentrates at full
strength.

Some

methyl

alcohol

based windshield-washer fluid con-
centrates may permanently stain
the grille if spilled while filling the
windshield-washer fluid reservoir.

• Pre-mix

windshield-washer

fluid

concentrates

with

water

the

manufacturer’s recommended lev-
els before pouring the fluid into the
windshield-washer fluid reservoir.

Do not use the windshield-washer
fluid reservoir to mix the windshield-
washer fluid concentrate and water.

NOTE:

If the windshield wiper operation is in-
terrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that
is on and around the wiper arms. In ap-
proximately 1 minute, turn the switch on
again to operate the wiper.

The windshield wiper and washer operates
when the power switch is in the ON posi-
tion.

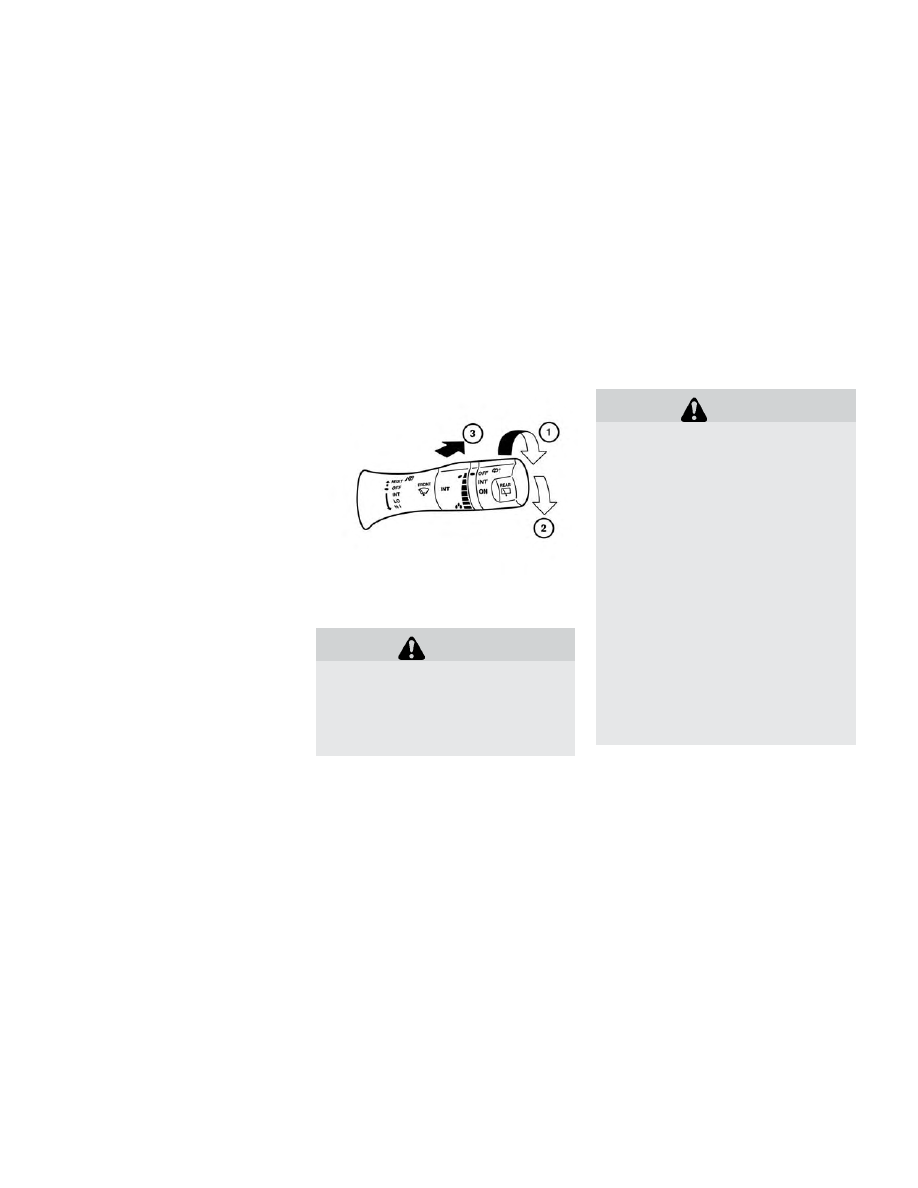

Push the lever down to operate the wiper
at the following speed:

䊊

Intermittent — intermittent operation
can be adjusted by turning the knob
toward

䊊

(Slower) or

䊊

(Faster). Also,

the intermittent operation speed var-
ies in accordance with the vehicle
speed. (For example, when the vehicle
speed is high, the intermittent opera-
tion speed will be faster.)

䊊

Low — continuous low speed opera-
tion.

䊊

High — continuous high speed opera-
tion.

䊊

MIST — one sweep operation of the
wiper .

The Speed Dependent feature may be
disabled. For additional information, re-
fer to “Vehicle information display” in
this section.

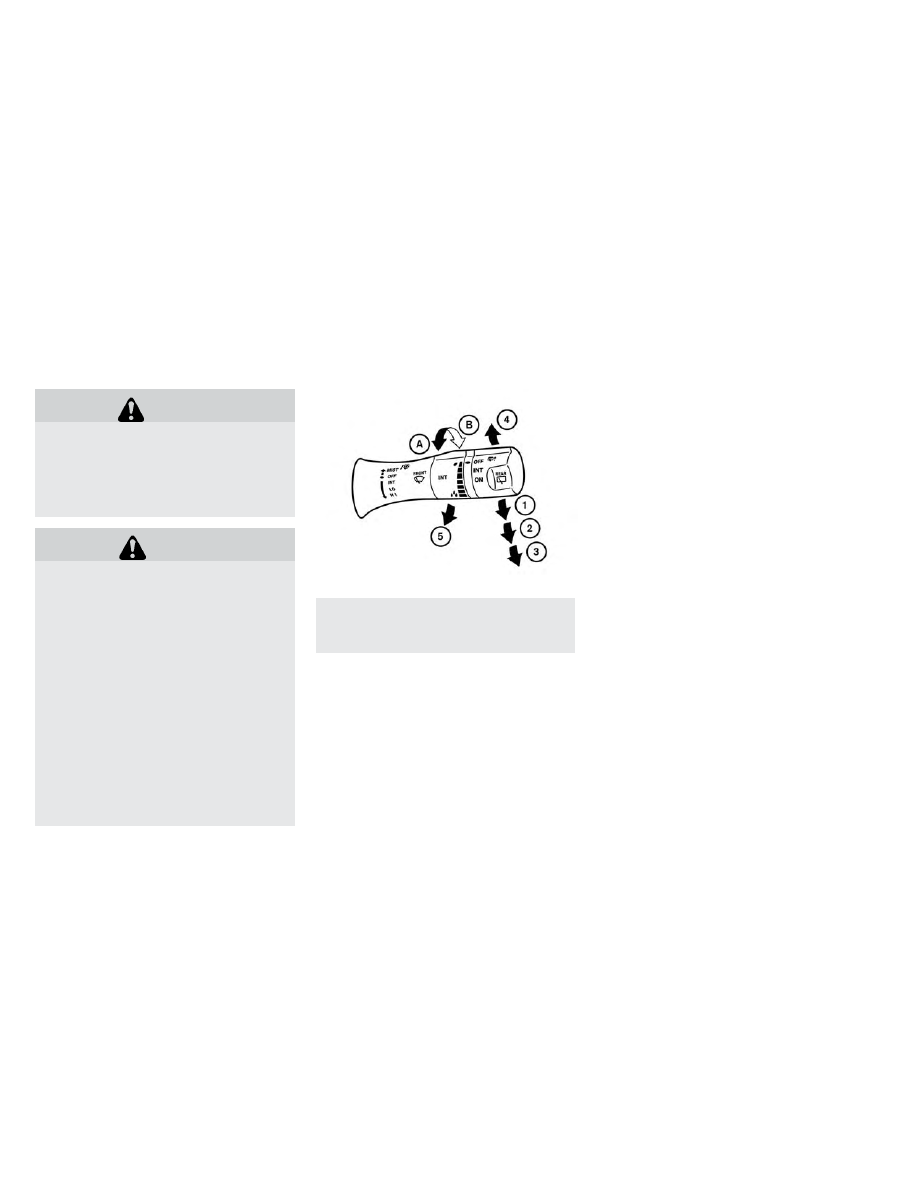

WIPER AND WASHER SWITCH

Instruments and controls

2-49

WASHER OPERATION

To operate the washer, pull the lever to-
ward the back of the vehicle

䊊

until the

desired amount of windshield-washer fluid
is spread on the windshield. The wiper will
automatically operate several times.

Drip Wipe

A brief period of time after using the
washer the wiper will perform a one sweep
operation automatically to clear any re-
maining windshield-washer fluid from the
windshield.

REAR WIPER OPERATION

WARNING

freezing

temperatures

the

windshield-washer fluid may freeze on
the rear window glass and obscure
your vision. Warm the rear window
with the defroster before you wash the
rear window.

CAUTION

• Do not operate the washer continu-

ously for more than 30 seconds.

• Do not operate the washer if the

windshield-washer fluid reservoir is
empty.

• Do not fill the windshield-washer

fluid

reservoir

with

windshield-

washer fluid concentrates at full
strength.

Some

methyl

alcohol

based windshield-washer fluid con-
centrates may permanently stain
the grille if spilled while filling the
windshield-washer fluid reservoir.

• Pre-mix

windshield-washer

fluid

concentrates

with

water

the

manufacturer’s recommended lev-
els before pouring the fluid into the
windshield-washer fluid reservoir.
Do not use the windshield-washer
fluid

reservoir

mix

the

windshield-washer

fluid

concen-

trate and water.

2-50

Instruments and controls

NOTE:

If the rear window wiper operation is in-
terrupted by snow etc., the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow etc. on
and around the wiper arms. After about
1 minute, turn the switch on again to op-
erate the wiper.

The rear window wiper and washer oper-
ate when the power switch is in the ON
position.

Turn the switch clockwise from the OFF
position to operate the wiper.

䊊

Intermittent (INT) — intermittent opera-

tion (not adjustable)

䊊

Low (ON) — continuous low speed op-

eration

Push the switch forward

䊊

to operate the

washer. Then the wiper will also operate
several times.

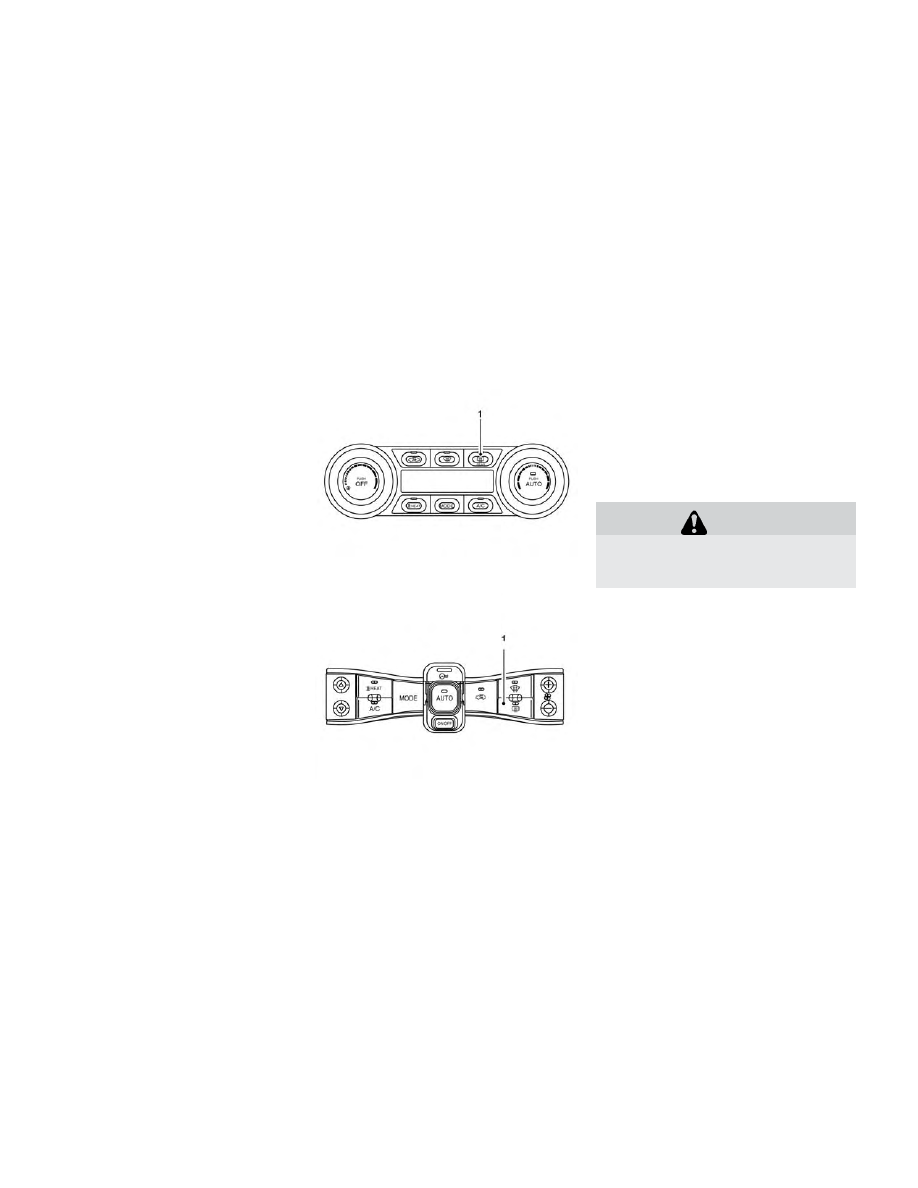

To defrost the rear window glass and out-
side mirrors, place the power switch in the
ON position and push the switch

䊊

on. The

indicator light will illuminate. Push the
switch again to turn the defroster off.

It will automatically turn off in approxi-
mately 15 minutes.

CAUTION

When cleaning the inner side of the
rear window, be careful not to scratch
or damage the rear window defroster.

Type A (if so equipped)

Type B (if so equipped)

REAR WINDOW AND OUTSIDE
MIRROR (IF SO EQUIPPED)
DEFROSTER SWITCH

Instruments and controls

2-51

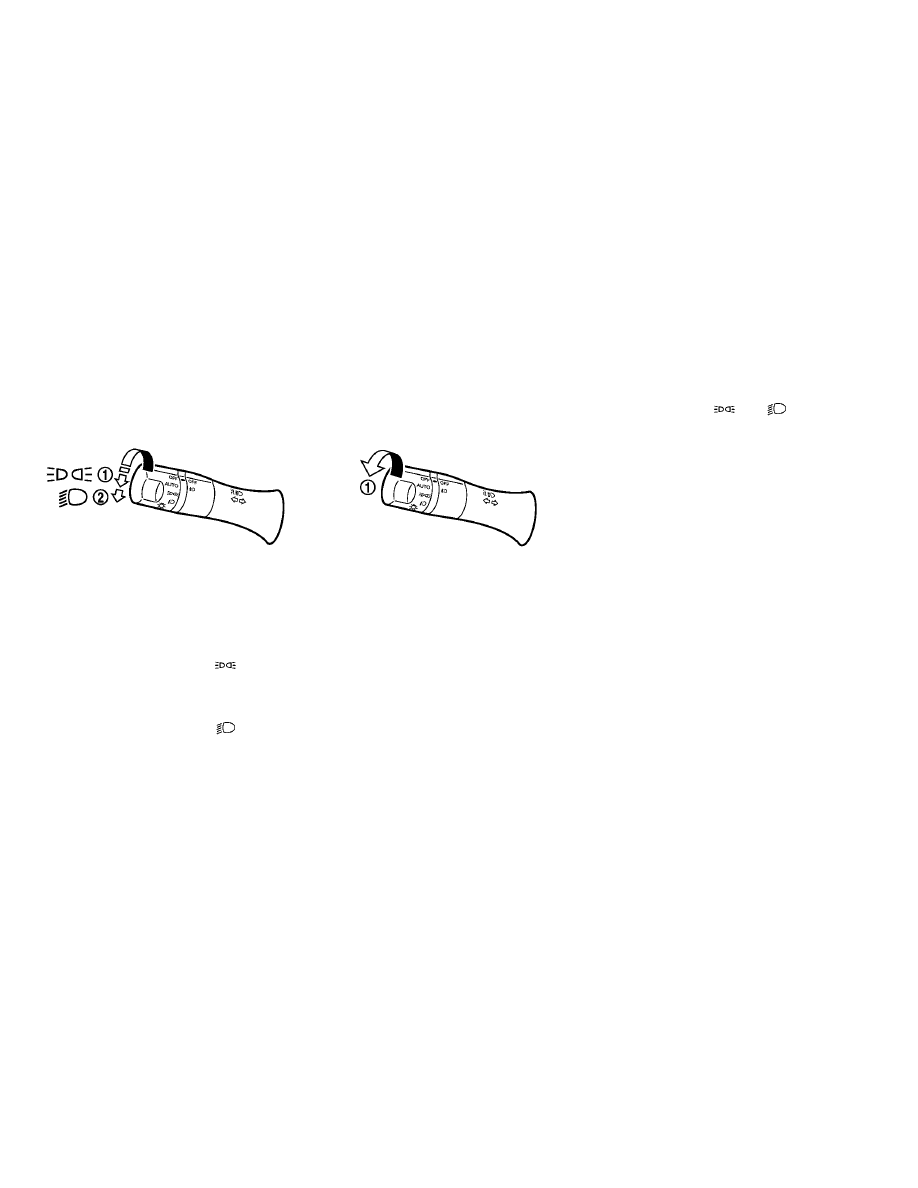

HEADLIGHT SWITCH

Lighting

䊊

Rotate the switch to the

posi-

tion, the front parking, tail, license
plate, and instrument panel lights
come on.

䊊

Rotate the switch to the

posi-

tion, the headlights come on and all
the other lights remain on.

Autolight system (if so equipped)

The autolight system allows the headlights
and tail lights to be set so they turn on and
off automatically.

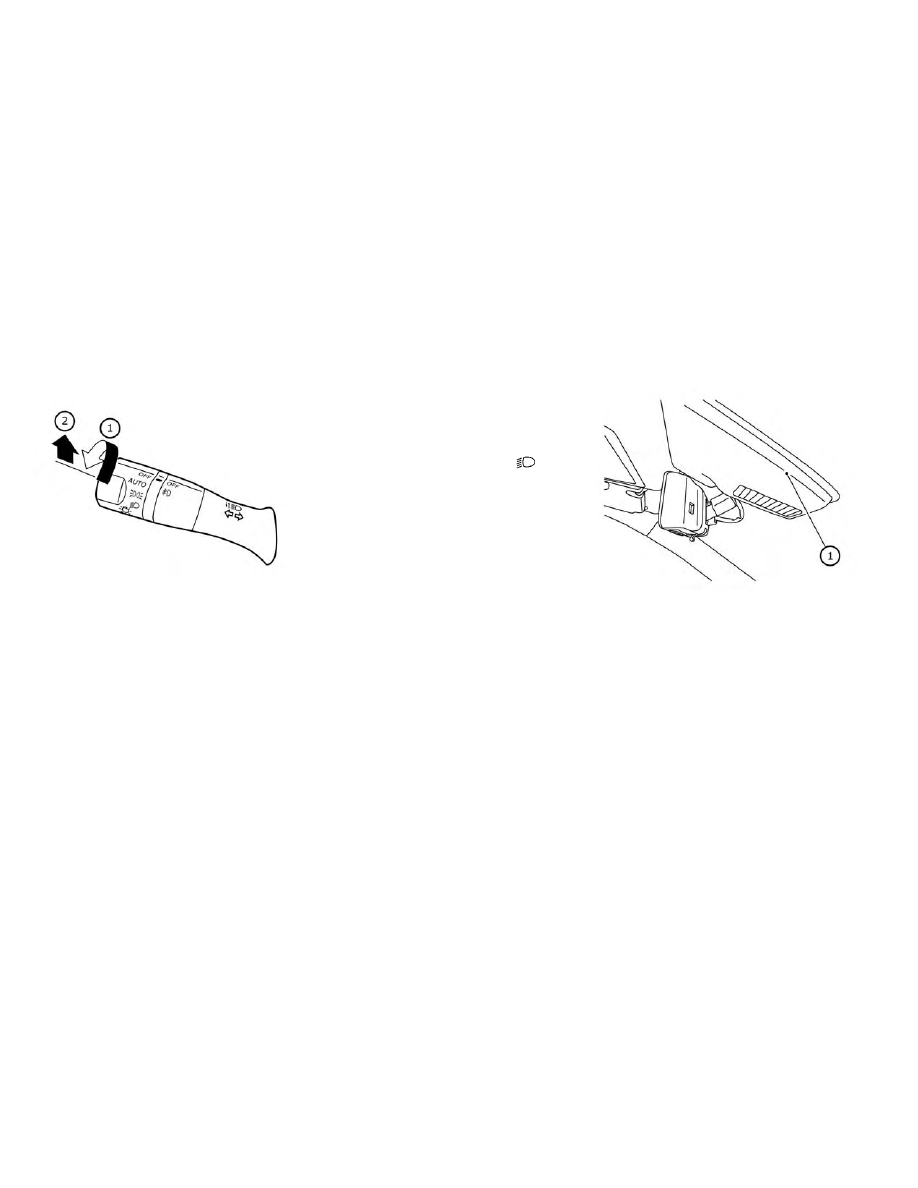

To set the autolight system:

1. Make sure the headlight switch is in the

AUTO position

䊊

2. Place the power switch in the ON

position.

3. The

autolight

system

automatically

turns the headlights and tail lights on
and off.

To turn the autolight system off, turn the
switch to the OFF,

position.

The autolight system can turn on the
headlights and tail lights automatically
when it is dark and turn off the headlights
when it is light.

For US models: The headlights and tail
lights will also be turned on automatically
at twilight or in rainy weather (when the
windshield wiper is operated continuously).

If the power switch is placed in the OFF
position and one of the doors is opened
and this condition continues, the head-
lights remain on for 45 seconds.

Automatic headlights off delay:

You can keep the headlights on for up to
180 seconds after you push the power
switch to OFF and open any door then
close all the doors.

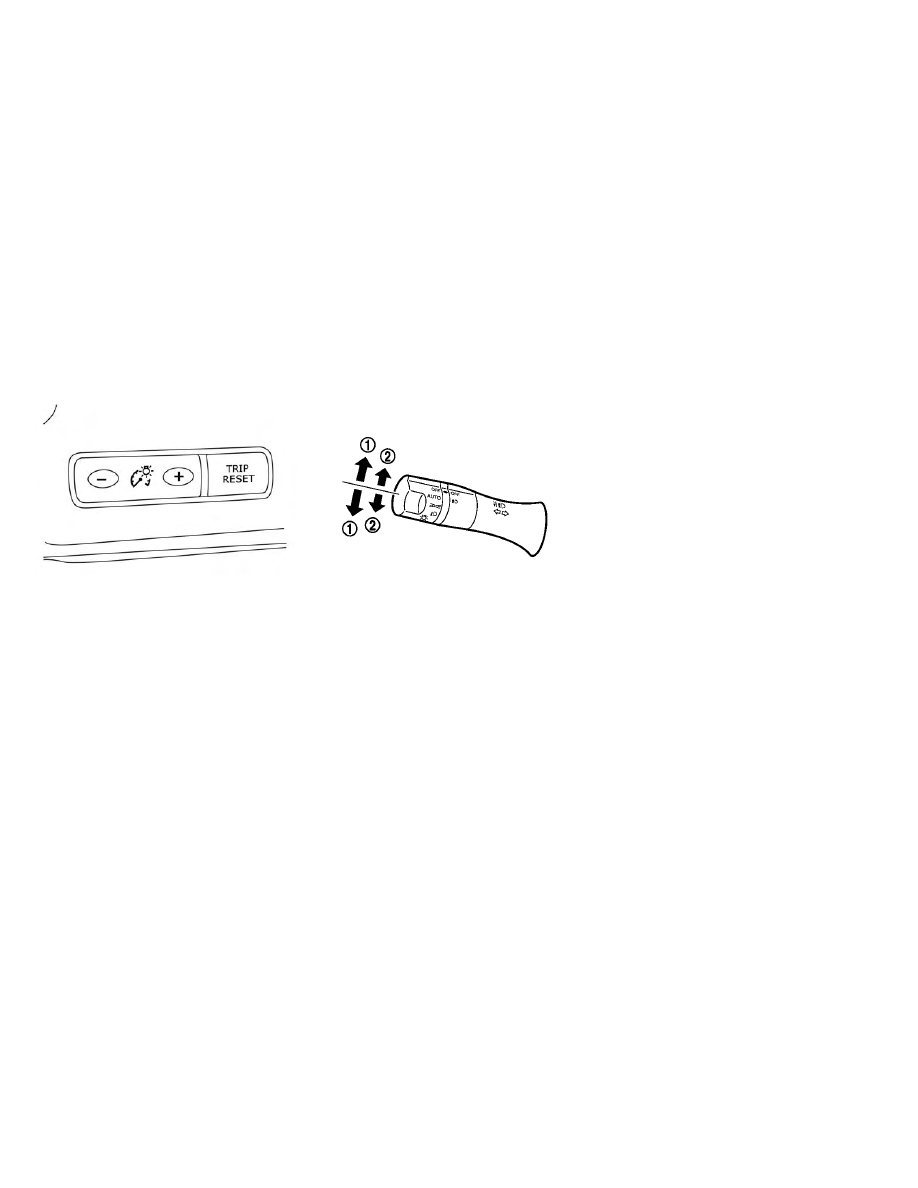

You can adjust the period of the automatic
headlights off delay from 0 seconds (OFF)
to 180 seconds. The factory default setting
is 45 seconds.

HEADLIGHT AND TURN SIGNAL
SWITCH

2-52

Instruments and controls

NOTE:
For additional information on adjust-
ing the automatic headlights off de-
lay, refer to “Vehicle information dis-
play” in this section.

Be sure not to put anything on top of the
photo sensor

䊊

located on the top of the

instrument panel. The photo sensor con-
trols the autolight; if it is covered, the
photo sensor reacts as if it is dark and
the headlights will illuminate.

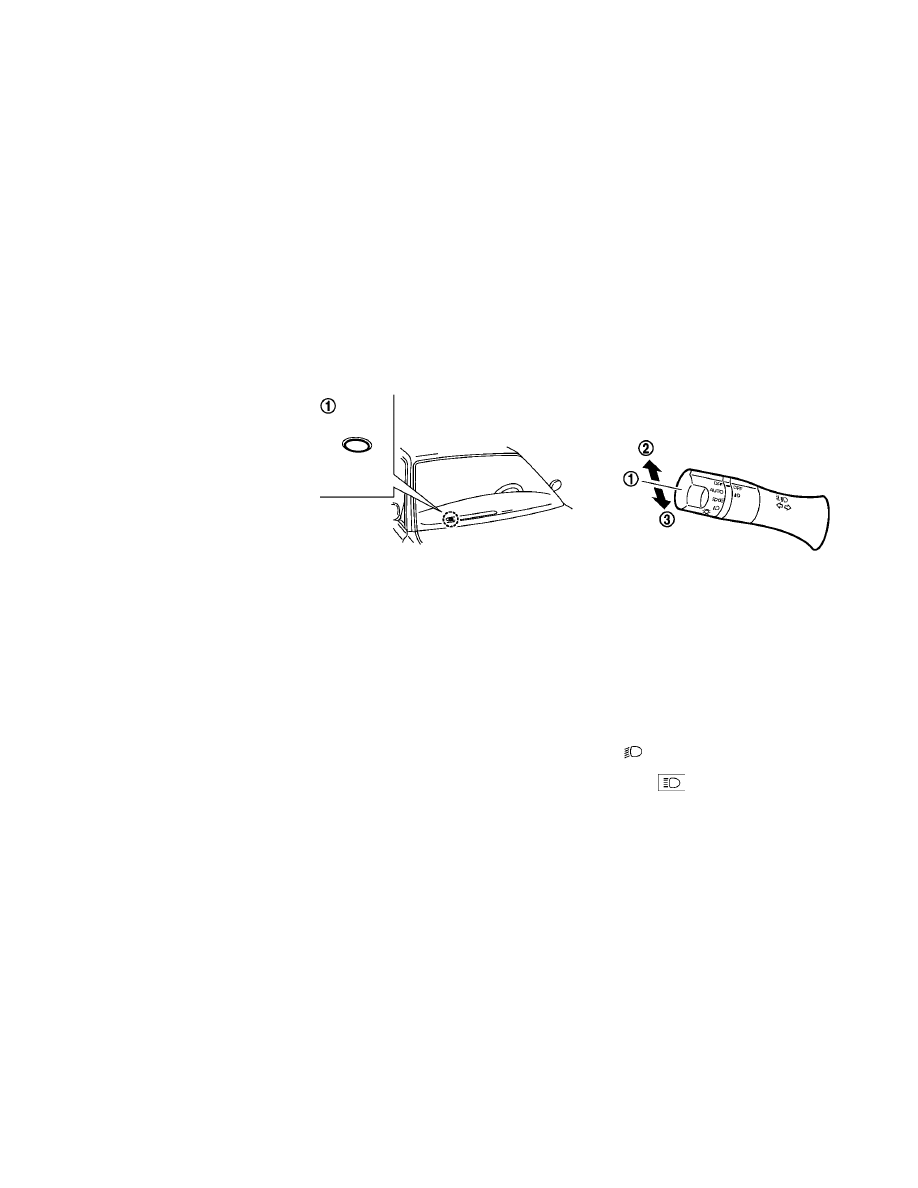

Headlight beam select

䊊

To select the low beam, have the lever
in the neutral position as shown and
rotate the switch to the desired posi-
tion. For additional information, refer
to “Headlight switch” in this section.

䊊

To select the high beam, push the le-
ver forward while the switch is in the

position. The high beams will

come on and the high beam indicator
(blue)

will illuminate. Pull it back

to return to the low beam.

Instruments and controls

2-53

䊊

Pulling the lever toward you will flash
the headlight high beam even when
the headlight switch is in the OFF po-
sition.

High Beam Assist (if so equipped)

The High Beam Assist system will operate
when the vehicle is driven at speeds of ap-
proximately 19 mph (30 km/h) and above. If
an oncoming vehicle or leading vehicle ap-
pears in front of your vehicle when the
headlight high beam is on, the headlight
will be switched to the low beam automati-
cally.

Precautions on High Beam Assist:

WARNING

• The High Beam Assist system is a

convenience but it is not a substitute
for safe driving operation. The driver
should remain alert at all times, en-
sure

safe

driving

practices

and

switch the high beams and low
beam manually when necessary.

• The high beam or low beam may not

switch automatically under the fol-
lowing conditions. Switch the high
beam and low beam manually.
– During bad weather (rain, fog,

snow, wind, etc.).

– When a light source similar to a

headlight or tail light is in the vi-
cinity of the vehicle.

– When the headlights of the on-

coming vehicle or the leading ve-
hicle are turned off, when the color
of the light is affected due to for-
eign materials on the lights, or
when the light beam is out of po-
sition.

– When there is a sudden, continu-

ous change in brightness.

– When driving on a road that

passes over rolling hills, or a road
that has level differences.

– When driving on a road with many

curves.

– When a sign or mirror-like surface

is reflecting intense light towards
the front of the vehicle.

– When the container, etc. being

towed by a leading vehicle is re-
flecting intense light.

– When a headlight on your vehicle

is damaged or dirty.

– When the vehicle is leaning at an

angle due to a punctured tire, be-
ing towed, etc.

• The timing of switching the low

beam and high beam may change
under the following situations.
– The brightness of the headlights

of the oncoming vehicle or lead-
ing vehicle.

– The movement and direction of

the oncoming vehicle and the
leading vehicle.

– When only one light on the on

coming vehicle or the leading ve-
hicle is illuminated.

– When the oncoming vehicle or the

leading vehicle is a two-wheeled
vehicle.

– Road conditions (incline, curve,

the road surface, etc.).

– The number of passengers and

the amount of luggage.

2-54

Instruments and controls

High Beam Assist operations:

To activate the High Beam Assist system,
turn the headlight switch to the AUTO po-
sition

䊊

and push the lever forward

䊊

(high beam position). The High Beam Assist
indicator light in the meter will illuminate
while the headlights are turned on.

If the High Beam Assist indicator light does
not illuminate in the above condition, it may
indicate that the system is not functioning
properly. It is recommended that you visit a
NISSAN certified LEAF dealer for this ser-
vice.

When the vehicle speed lowers to less than
approximately 12 mph (20 km/h), the head-
light remains the low beam.

To turn off the High Beam Assist system,
turn the headlight switch to the

posi-

tion or select the low beam position by
placing the lever in the neutral position.

Ambient image sensor maintenance:

The ambient image sensor for the High
Beam Assist system is located above the
inside mirror

䊊

. To keep the proper opera-

tion of the High Beam Assist system and
prevent a system malfunction, be sure to
observe the following:

• Always keep the windshield clean.

• Do not attach a sticker (including trans-

parent material) or install an accessory
near the ambient image sensor.

• Do not strike or damage the areas around

the ambient image sensor.

Instruments and controls

2-55

If the ambient image sensor is damaged
due to an accident, it is recommended that
you visit a NISSAN certified LEAF dealer for
this service.

Battery saver system

• When the headlight switch is in the

position while the power switch is

in the ON position, the lights will automati-
cally turn off 45 seconds after the power
switch has been placed in the OFF
position.

• When the headlight switch remains in the

position after the lights

automatically turn off, the lights will turn
on when the power switch is placed in the
ON position.

CAUTION

• When you turn on the headlight

switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF posi-
tion when you leave the vehicle for
extended periods of time, otherwise
the battery will be discharged.

• Never leave the light switch on when

the power switch is in the OFF, ACC or
ON position for extended periods of
time even if the headlights turn off
automatically.

LED Daytime Running Lights (DRL)
system (if so equipped)

The LED portion of the headlights auto-
matically illuminates at 100% intensity
when the power switch is in the READY to
drive position with the parking brake re-
leased. The LED DRL system operates with
the headlight switch in the OFF position.
Turn headlight switch to the

position

for full illumination when driving at night.

If the parking brake is applied before the
power switch is in the READY to drive posi-
tion, the LED DRL system does not operate.
The LED DRL system illuminates once the
parking brake is released. The LED DRL sys-
tem will remain on until the power switch is
pushed to the OFF position.

WARNING

When the LED DRL system is active, tail
lights on your vehicle are not on. It is
necessary at dusk to turn on your
headlights. Failure to do so could
cause an accident injuring yourself
and others.

2-56

Instruments and controls

INSTRUMENT BRIGHTNESS
CONTROL

Press the “+” button to increase the bright-
ness of the instrument panel lights.

Press the “-” to decrease the brightness of
the instrument panel lights.

TURN SIGNAL SWITCH

Turn signal

䊊

Move the lever up or down until it

latches to signal the turning direction.
When the turn is completed, the turn signal
cancels automatically.

Lane change signal

䊊

Move the lever up or down until the turn

signal begins to flash, but the lever does
not latch, to signal a lane change. Hold the
lever until the lane change is completed.

Move the lever up or down until the turn
signal begins to flash, but the lever does
not latch, and release the lever. The turn
signal will automatically flash three times.

Choose the appropriate method to signal
a lane change based on road and traffic
conditions.

Instruments and controls

2-57

Nissan Leaf (2019 year). Manual - part 13
