AUDIBLE REMINDERS

Brake pad wear warning

The disc brake pads have audible wear
warnings. When a brake pad requires re-
placement, it will make a high pitched
scraping sound when the vehicle is in mo-
tion. This scraping sound will first occur
only when the brake pedal is depressed.
After more wear of the brake pad, the
sound will always be heard even if the
brake pedal is not depressed. Have the
brakes checked as soon as possible if the
warning sound is heard.

Electric shift control system
reminder chime

If an improper shift operation is performed,
for safety reasons a chime will sound and
at the same time, depending on the condi-
tions, the operation will be canceled or the
shift position will switch to the N (Neutral)
position.

For additional information, refer to “Driving
the vehicle” in the “Starting and driving” sec-
tion of this manual.

Key reminder chime

A chime will sound if the driver's side door is
opened while the power switch is pushed
to the ON or ACC position.

Make sure that the power switch is pushed
to the OFF position, and take the Intelligent
Key with you when leaving the vehicle.

Light reminder chime

The light reminder chime will sound when
the driver side door is opened with the light
switch in the

position, and

the power switch is in the ACC, OFF or LOCK
position.

Turn the light switch off when you leave the
vehicle.

Parking brake reminder chime

A chime sounds if the parking brake is set
and the vehicle is driven. The chime will
stop if the parking brake is released or the
vehicle speed returns to zero.

Power switch reminder chime

The power switch reminder chime will
sound when the driver's door is opened
while the power switch is in the ON or

READY to drive position. Push the power
switch to the OFF position.

Seat belt warning chime

The seat belt warning chime will sound for
about 6 seconds unless the driver’s seat
belt is securely fastened.

12-volt battery charge warning
chime

If the 12-volt battery charge warning light
illuminates, the chime will sound when a
warning message is displayed in the ve-
hicle information display.

When the chime sounds, immediately stop
the vehicle in a safe location and push the P
(Park) position switch on the shift lever and
apply the parking brake. The 12-volt battery
charge warning light turns off and the
chime will stop when the parking brake is
applied or the vehicle is placed in the P
(Park) position. Have the system checked. It
is recommended that you visit a NISSAN
certified LEAF dealer for this service. For
additional information, refer to “12-volt bat-
tery charge warning light” in this section.

2-26

Instruments and controls

The vehicle information display is located
to the left of the speedometer. It displays
items such as

• Battery information

• Energy economy

• Average vehicle speed

• Driving distance

• Driving time

• Cruise control information

• Intelligent Key information

• Indicators and warnings

HOW TO USE THE VEHICLE
INFORMATION DISPLAY

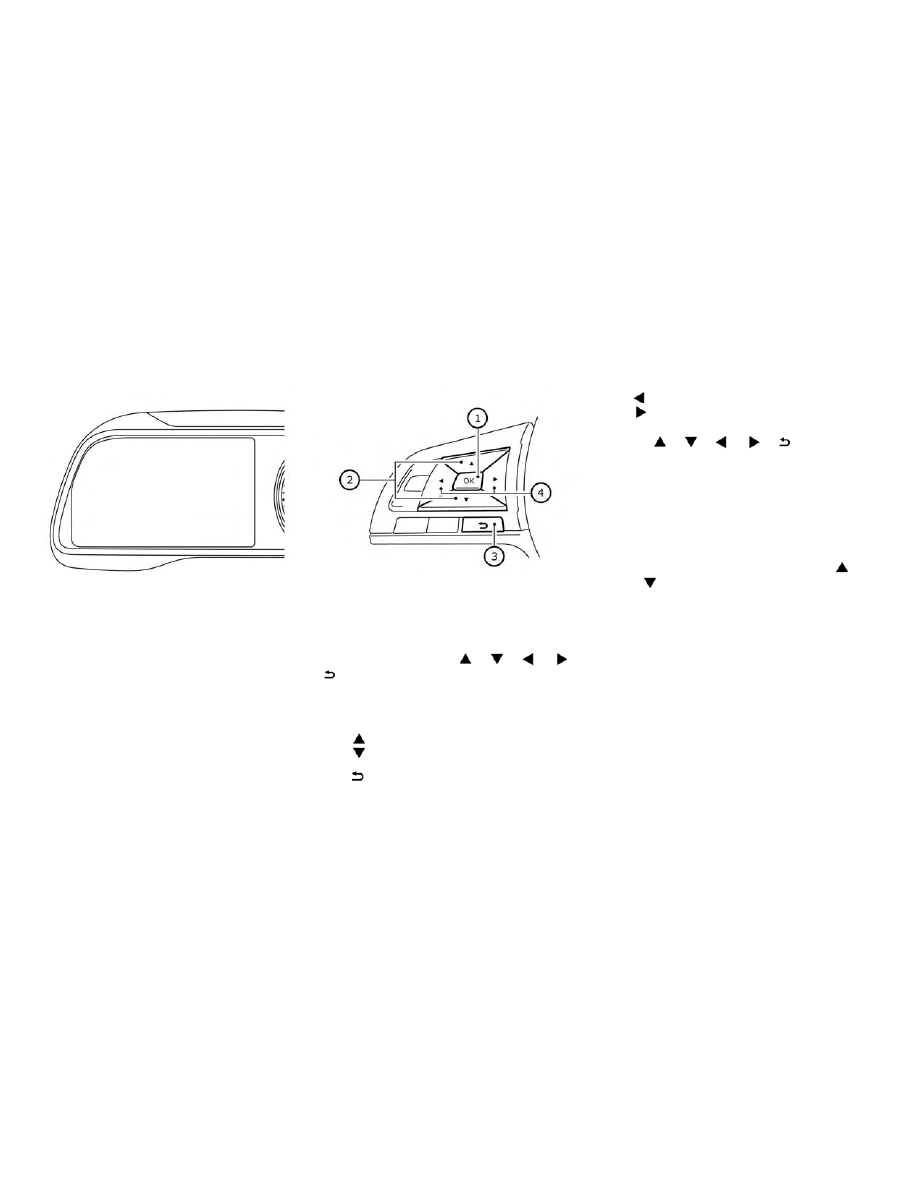

The vehicle information display can be
changed by using the

and OK switches located on the steer-

ing wheel.

䊊

Use this switch to change or
select items.

䊊

Use these switches to navigate
the vehicle information display.

䊊

Use this switch to return to the
previous menu.

䊊

Use these switches to navigate
the vehicle information display.

The OK,

switches

also control audio and control panel func-
tions in some conditions. Most screens and
menus offer instruction prompts of the
steering switches to indicate how to con-
trol the vehicle information display. White
dots appear on the left side of the vehicle
information display when there is more
than one page of menu items. The OK,
and

switches change the audio

source and the buttons also control voice
recognition manual mode. For additional
information,

refer

the

separate

NissanConnect® Manual (for Leaf).

STARTUP DISPLAY

With the vehicle in the ON position, the ve-
hicle information display may display the
following screens:

• Battery information

• Audio

• Navigation

• Energy Economy

• Safety Shield

VEHICLE INFORMATION DISPLAY

Instruments and controls

2-27

• Warnings

• Settings

Warnings will only display if there are any
present. For additional information, refer to
“Vehicle information display warnings and
indicators” in this section.

To control which items display in the ve-
hicle information display, refer to “Meter
settings” in this section.

SETTINGS

The settings mode allows you to change
the information displayed in the vehicle in-
formation display as well as enable and
disable various vehicle features and sys-
tems. The settings include:

• VDC Setting

• Driver Assistance

• Customize Display

• Vehicle Settings

• EV Settings

• TPMS Settings

• Maintenance

• Clock

• Unit/Language

• Factory Reset

VDC Setting

The VDC setting menu allows the user to
the adjust the VDC settings.

Menu Item

Result

VDC Setting

Allows user to turn the Vehicle Dynamic Control (VDC) system on or off.

2-28

Instruments and controls

Driver Assistance

The driver assistance menu allows the user
to change the settings for driving, parking,
and braking aids.

Menu Item

Result

Steering Assist (if so equipped)

Allows user to turn the steering assist feature on or off. For additional information, refer to “ProPILOT
Assist” in the “Starting and driving” section of this manual.

Lane

Displays the available lane options.

Lane Departure Warning

Allows user to turn the Lane Departure Warning on and off. For additional information, refer to “Lane De-
parture Warning (LDW)” in the “Starting and driving” section of this manual.

Lane Departure Prevention

Allows user to turn the Lane Departure Warning on and off. For additional information, refer to “Intelligent
Lane Intervention (I-LI)” in the “Starting and driving” section of this manual.

Blind Spot

Displays the available blind spot options.

Blind Spot Warning

Allows user to turn the Blind Spot Warning on and off. For additional information, refer to “Blind Spot
Warning” in the “Starting and driving” section of this manual.

Side Indicator Brightness

Allows user to set the brightness of the side indicator.

Emergency Brake

Displays the available emergency brake options.

System

Allows user to turn the emergency brake on and off. For additional information, refer to “Automatic Emer-
gency Braking (AEB)” in the “Starting and driving” section of this manual.

Parking Aids

Displays the available parking aids.

Moving Object

Allows user to turn the Moving Object Detection on and off. For additional information, refer to “Moving
Object Detection” in the “Monitor, climate, audio, phone and voice recognition systems” section of this
manual.

Cross Traffic

Allows user to turn the cross traffic alert on and off. For additional information, refer to “Rear Cross Traffic
Alert (RCTA)” in the “Starting and driving” section of this manual.

Driver Attention Alert
(if so equipped)

Allows user to turn the driver attention alert on or off. For additional information, refer to “Intelligent Driver
Alertness (I-DA)” in the “Starting and driving” section of this manual.

Timer Alert

Allows user to set or reset an alert at a specific tune interval.

Instruments and controls

2-29

Menu Item

Result

Low Temperature Alert

Allows user to turn the low temperature alert on or off.

Chassis Control (if so equipped)

Displays the available chassis controls.

Active Trace Control

Allows user to turn the driver attention alert on or off. For additional information, refer to “Intelligent Trace
Control (I-TC)” in the “Starting and driving” section of this manual.

e-Pedal

Displays the available e-Pedal options.

Retain Mode

Allows user to turn the retain mode on or off. For additional information, refer to “e-Pedal system” in the
“Starting and driving” section of this manual.

2-30

Instruments and controls

Customize Display

The customize display menu allows the
user to change the settings for the vehicle
information display.

Menu Item

Result

Main Menu Selection

Displays the available main menu selection options.

Cruise (if so equipped)

Allows user to turn the Cruise screen on or off in the vehicle information display.

Driving Aids

Allows user to turn the safety shield screen on or off in the vehicle information display.

Status

Allows user to turn the status screen on or off in the vehicle information display.

Tire Pressures

Allows user to turn the tire pressures screen on or off in the vehicle information display.

Drive Computer

Allows user to turn the drive computer screen on or off in the vehicle information display.

Chassis Control

Allows user to turn the chassis control screen on or off in the vehicle information display.

ECO Info Settings

Displays the available ECO Info Settings.

ECO Drive Report

Allows user to turn the ECO drive report on or off.

View History

Allows user to view and reset the ECO drive report history.

Navigation Settings

Displays the available navigation settings.

Alerts

Allows user to turn the navigation alerts on or off.

Cruise Screen Transition (if so equipped)

Allows user to turn the Cruise screen transition on or off.

Welcome Effect

Displays the available welcome effects.

Gauges

Allows user to turn the gauges effect on or off.

Animation

Allows user to turn the animation effect on or off.

Instruments and controls

2-31

Vehicle Settings

The vehicle settings menu allows the user
to change the settings for the lights, locks
and wipers.

Menu Item

Result

Lighting

Displays the available lighting options.

Auto Room Lamp

Allows user to turn the auto room lamp on or off

Light Sensitivity

Allows user to change when the lights illuminate based on the brightness outside the vehicle.

Light Off Delay

Allows user to change the duration of time that the automatic headlights stay on after the vehicle is
shut off.

Locking

Displays the available locking options.

Ext. Door Switch

Allows user to turn the exterior door switch on or off. When turned on, the request switch on the door is
activated.

Selective Unlock

Allows user to turn selective unlock on or off. When turned on, only the current door is unlocked after the
door unlock operation. When the door handle request switch on the driver’s or front passenger’s side
door is pushed to be unlocked, only the corresponding door is unlocked first. All the doors can be un-
locked if the door unlock operation is performed again within 5 seconds. When this item is turned off, all
the doors will be unlocked after the door unlock operation is performed once.

Wipers

Displays the available wiper settings. For additional information, refer to “Wiper and washer switch” in this
section.

Speed Dependent

Allows user to turn the speed dependent feature on or off.

2-32

Instruments and controls

EV Settings

The EV settings menu allows the user to
change the settings for charging the ve-
hicle.

Menu Item

Result

Chg. Connector Lock

Allows user to lock or unlock the charging connection.

Charge Timer1

Allows user to set charge timer 1.

Charge Timer2

Allows user to set charge timer 2.

Chg. Timer Only at HOME (if so equipped)

Allows user to set charging timer only at home.

Charge Time Screen

Allows user to select the display time screen based on charge method.

Climate Control Timer1

Allows user to set climate control timer 1.

Climate Control Timer2

Allows user to set climate control timer 2.

TPMS Settings

The TPMS settings menu allows the user to
change the tire pressure units displayed in
the vehicle information display.

Menu Item

Result

TPMS Settings

Allows user to select the tire pressure units that will display in the vehicle information display.

Instruments and controls

2-33

Maintenance

The maintenance menu allows the user to
set reminders for various vehicle mainte-
nance items.

Menu Item

Result

Maintenance

Displays available maintenance reminder options.

Tire

Allows user to set a reminder at a specific interval or reset the current one.

Other

Allows user to set a reminder at a specific interval or reset the current one.

Clock

Menu Item

Result

Clock

When selected the following message appears: “Go to the settings menu on the
center display to set clock”. For additional information, refer to the separate
NissanConnect® Manual (for Leaf).

2-34

Instruments and controls

Unit/Language

The unit/language menu allows the user to
change the units shown in the vehicle in-
formation display.

Menu Item

Result

Mileage/Energy

Allows user to select the preferred mileage/energy unit of measure to display.

Tire Pressures

Allows user to select the preferred tire pressure unit of measure to display.

Temperature

Allows user to select the preferred temperature unit of measure to display.

Language

Allows user to select the preferred language to display.

Factory Reset

The factory reset menu allows the user to
restore the vehicle information display set-
tings to factory status.

Menu Item

Result

Factory Reset

Allows user to reset the vehicle information display settings to the original fac-
tory settings. Once selected, the user can confirm or deny the reset.

Instruments and controls

2-35

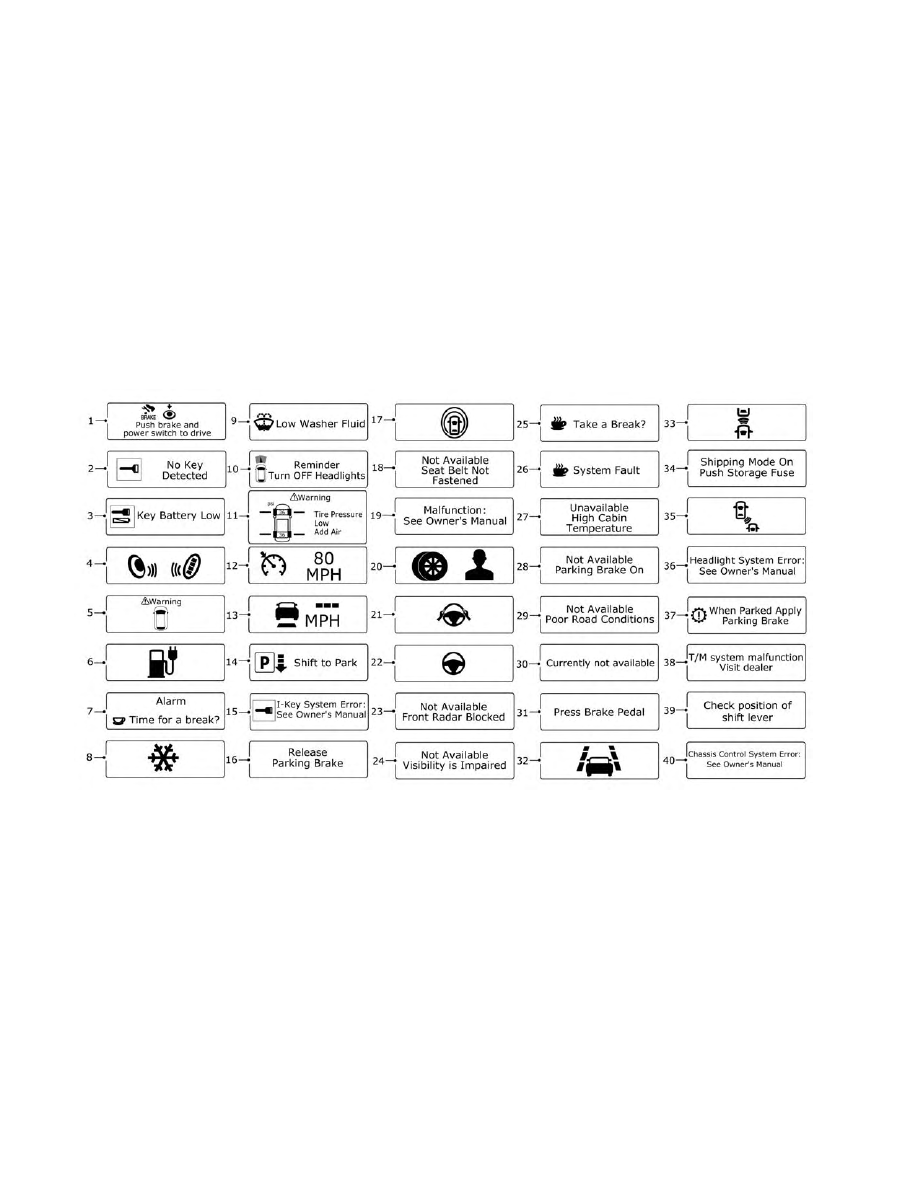

1. Push brake and power switch to drive

2. No Key Detected

3. Key Battery Low

4. EV system operation for discharged

Intelligent Key system indicator

5. Door open

6. Low battery charge indicator

7. Driver alert

8. Low outside air temperature

9. Low Washer Fluid (if so equipped)

10. Reminder Turn OFF Headlights

11. Tire Pressure Low — Add Air

12. Cruise control indicator (if so equipped)

13. Intelligent Cruise Control (ICC) indica-

tors (if so equipped)

14. Shift to Park

15. Key System Error: See Owner’s Manual

16. Release Parking Brake

17. ProPILOT Assist indicator (if so equipped)

18. Not Available Seat Belt Not Fastened

(if so equipped)

19. Malfunction: See Owner’s Manual

20. Indicators for maintenance

21. Steering

Assist

indicator

(if

equipped)

22. Steering Assist warning (if so equipped)

23. Not Available Front Radar Blocked (if so

equipped)

24. Not Available Visibility is impaired (if so

equipped)

25. Driver Attention Alert Take a Break? (if

so equipped)

26. Driver Attention Alert System Fault (if so

equipped)

27. Unavailable High Cabin Temperature (if

so equipped)

28. Not Available Parking Brake On (if so

equipped)

29. Not Available Poor Road Conditions (if

so equipped)

30. Currently not available (if so equipped)

31. Press Brake Pedal (if so equipped)

32. Lane

Departure

Warning

(LDW)/

Intelligent Lane Intervention (I-LI) indi-
cator (if so equipped)

33. Automatic Emergency Braking (AEB)/

Automatic Emergency Braking (AEB)
with Pedestrian Detection indicator (if
so equipped)

34. Shipping Mode On Push Storage Fuse

35. Blind Spot Warning (BSW)/Rear Cross

Traffic Alert (RCTA) indicator (if so
equipped)

36. Headlight System Error: See Owner’s

Manual (if so equipped)

37. When Parked Apply Parking Brake

38. T/M system malfunction Visit dealer

39. Check position of shift lever

40. Chassis control system error: See

Owner’s Manual

Instruments and controls

2-37

Push brake and power switch to
drive

This indicator appears while the vehicle is
in the P (Park) position. This indicator
means that the EV system will start when
the power switch is pressed with the brake
pedal depressed.

No Key Detected

This warning appears in either of the fol-
lowing conditions:

No key inside the vehicle:

This warning appears when the door is
closed with the Intelligent Key left outside
the vehicle and the power switch in the
ACC or ON position. Make sure that the
Intelligent Key is inside the vehicle.

Unregistered Intelligent Key:

This warning appears when the power
switch is placed in the ON, ACC or READY to
drive position and the Intelligent Key can-
not be recognized by the system. You can-
not place the power switch in the READY to
drive position with an unregistered key. Use
an Intelligent Key that has been registered.

For additional information, refer to “NISSAN
Intelligent Key® system” in the “Pre-driving
checks and adjustments” section of this
manual.

Key Battery Low

This indicator appears when the Intelligent
Key battery is running out of power.

If this indicator appears, replace the bat-
tery with a new one. For additional infor-
mation, refer to “NISSAN Intelligent Key®
battery replacement” in the “Maintenance
and do-it-yourself ” section of this manual.

EV system operation for
discharged Intelligent Key system
indicator

This indicator appears when the Intelligent
Key battery is running out of power and
when the Intelligent Key system and ve-
hicle are not communicating normally.

If this indicator appears, touch the power
switch with the Intelligent Key while de-
pressing the brake pedal. For additional in-
formation, refer to “NISSAN Intelligent Key®
battery discharge” in the “Starting and driv-
ing” section of this manual.

Door open

This warning appears if any of the doors
and/or the rear hatch are open or not
closed securely. The vehicle icon indicates
which door or the rear hatch is open on the
display. Make sure that all of the doors and
the rear hatch are closed.

This warning also appears alternating with
the Shift to Park warning while the driver's
door is opened with the shift position in
any position other than the P (Park) posi-
tion. For additional information, refer to
“Shift to Park” in this section.

Low Battery Charge indicator

This light illuminates when the available Li-
ion battery charge is getting low. Charge as
soon as it is possible, preferably before the
Li-ion battery available charge gauge
reaches 0%.

2-38

Instruments and controls

NOTE:
The low battery charge indicator turns
off immediately before the Li-ion bat-
tery is completely discharged and the
vehicle will stop. If the Li-ion battery
becomes completely discharged, the
vehicle must be charged in order to be
driven.

Driver alert

This warning appears when the previously
set time for a break is reached. You can set
the time for up to 6 hours in the setting
menu. For additional information, refer to
“Vehicle information display” in this section.

Low outside air temperature

The outside air temperature is displayed in
°F or °C in the range of −20°F to 140°F (−30°C
to 60°C).

The outside air temperature mode in-
cludes a low temperature warning feature.
If the outside air temperature is below 37°F
(3°C), the warning is displayed on the
screen.

The outside temperature sensor is located
in front side of the vehicle. The sensor may

be affected by road, wind directions and
other driving conditions. The display may
differ from the actual outside temperature
or the temperature displayed on various
signs or billboards.

Low Washer Fluid (if so equipped)

This warning appears when the washer
tank fluid is at a low level. Add washer fluid
as necessary. For additional information,
refer to “Windshield washer fluid” in the
“Maintenance and do-it-yourself ” section.

Reminder Turn OFF Headlights

This warning appears when the power
switch is turned to the OFF position but the
headlight switch is still on. Turn off the
headlight switch.

Tire Pressure Low - Add Air

This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected. The
warning appears each time the power
switch is placed in the ON position as long
as the low tire pressure warning light re-
mains illuminated.

If this warning appears, stop the vehicle
and adjust the tire pressure to the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label. For ad-
ditional information, refer to “Low tire pres-
sure warning light” in this section and “Tire
Pressure Monitoring System (TPMS)” in
the “Starting and driving” section of this
manual.

Cruise control indicator (if so
equipped)

This indicator shows the cruise control sys-
tem status.

When cruise control is activated, a green
circle will illuminate to indicate it is set. The
vehicle information display will also display
the speed the cruise control was set at. If
you accelerate past the set speed, the
speed will blink until you either cancel
cruise control or go back to the set speed. If
cruise control is on and canceled, the
speed will be displayed to show the speed
the vehicle will return to if the resume but-
ton is activated.

Instruments and controls

2-39

For additional information, refer to “Cruise
control” in the “Starting and driving” section
of this manual.

Intelligent Cruise Control (ICC)
indicators (if so equipped)

This indicator shows the Intelligent Cruise
Control (ICC) system status. The status is
shown by the color. For additional informa-
tion, refer to “Intelligent Cruise Control (ICC)”
in the “Starting and driving” section of this
manual.

Shift to Park

This warning appears alternately with
door/rear hatch open warning when the
driver's door is opened with the shift posi-
tion in any position other than the P (Park)
position. If this warning appears, push the P
(Park) position switch and place in the P
(Park) position.

For additional information, refer to “Door
open” in this section.

Key System Error: See Owner’s
Manual

After the power switch is pushed to the ON
position, this light comes on for about
2 seconds and then turns off.

The Key System Error message warns of a
malfunction with the Intelligent Key sys-
tem. If the light comes on while the motor is
stopped, it may be impossible to start the
motor.

If the light comes on while the motor is
running, you can drive the vehicle. However,
have it repaired as soon as possible. It is
recommended that you visit a NISSAN cer-
tified LEAF dealer for this service.

Release Parking Brake

This warning appears when the vehicle
speed is above 4 mph (7 km/h) and the
parking brake is applied.

ProPILOT Assist indicator (if so
equipped)

This indicator appears when the ProPILOT
Assist system is engaged. For additional
information, refer to “ProPILOT Assist” in the

“Starting

and

driving”

section

this

manual.

Not Available Seat Belt Not
Fastened

This indicator appears when the ProPILOT
Assist system will not engage because the
driver’s seat belt is not fastened. For addi-
tional information, refer to “ProPILOT Assist”
in the “Starting and driving” section of this
manual.

Malfunction: See Owner’s Manual

This warning appears when one or more of
the following systems (if so equipped) is
not functioning properly:

• Lane Departure Warning (LDW)

• Intelligent Lane Intervention (I-LI)

• Blind Spot Warning (BSW)

• Rear Cross Traffic Alert (RCTA)

• ProPILOT Assist

If one or more of these warning appears,
have the system checked. It is recom-
mended that you visit a NISSAN certified
LEAF dealer for this service.

2-40

Instruments and controls

Indicators for maintenance

These indicators appear when the cus-
tomer set distance comes for replacing
tires or other maintenance items. You can
set or reset the distance for replacing tires
and other maintenance items.

WARNING

The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. For addi-
tional information, refer to “Changing
wheels and tires” in the “Maintenance
and do-it-yourself ” section of this
manual. Many factors including tire in-
flation, alignment, driving habits and
road conditions affect tire wear and
when tires should be replaced. Setting
the tire replacement indicator for a
certain

driving

distance

does

not

mean your tires will last that long. Use
the tire replacement indicator as a
guide only and always perform regular
tire checks. Failure to perform regular
tire checks, including tire pressure
checks could result in tire failure. Seri-
ous vehicle damage could occur and
may lead to a collision, which could re-
sult in serious personal injury or death.

For scheduled maintenance items and in-
tervals, refer to the NISSAN Service and
Maintenance Guide.

Steering Assist indicator (if so
equipped)

This indicator appears when the Steering
Assist system is engaged. For additional
information, refer to “ProPilot Assist” in the
“Starting

and

driving”

section

this

manual.

Steering Assist warning (if so
equipped)

This message may appear when the Steer-
ing Assist system is engaged.

It will be displayed under the following con-
dition:

• When not holding the steering wheel or

when

there

steering

wheel

operation.

Please hold the steering wheel immedi-
ately. When the steering operation is de-
tected, the warning turns off and the steer-
ing

assist

function

automatically

restored.

Not Available Front Radar Blocked
(if so equipped)

This message appears when one or more of
the following systems become unavailable
due to an obstruction of the front radar.

• Intelligent Cruise Control (ICC)

• Automatic Emergency Braking (AEB)

• Automatic Emergency Braking (AEB) with

Pedestrian Detection

For additional information, refer to “Intelli-
gent

Cruise

Control

(ICC)”,

“Automatic

Emergency Braking (AEB)”, or “Automatic
Emergency Braking (AEB) with Pedestrian
Detection” in the “Starting and driving” sec-
tion of this manual.

Not Available Visibility is impaired
(if so equipped)

This message may appear when the Intel-
ligent Cruise Control (ICC) (with ProPILOT
Assist) system is engaged.

Instruments and controls

2-41

Nissan Leaf (2019 year). Manual - part 12
