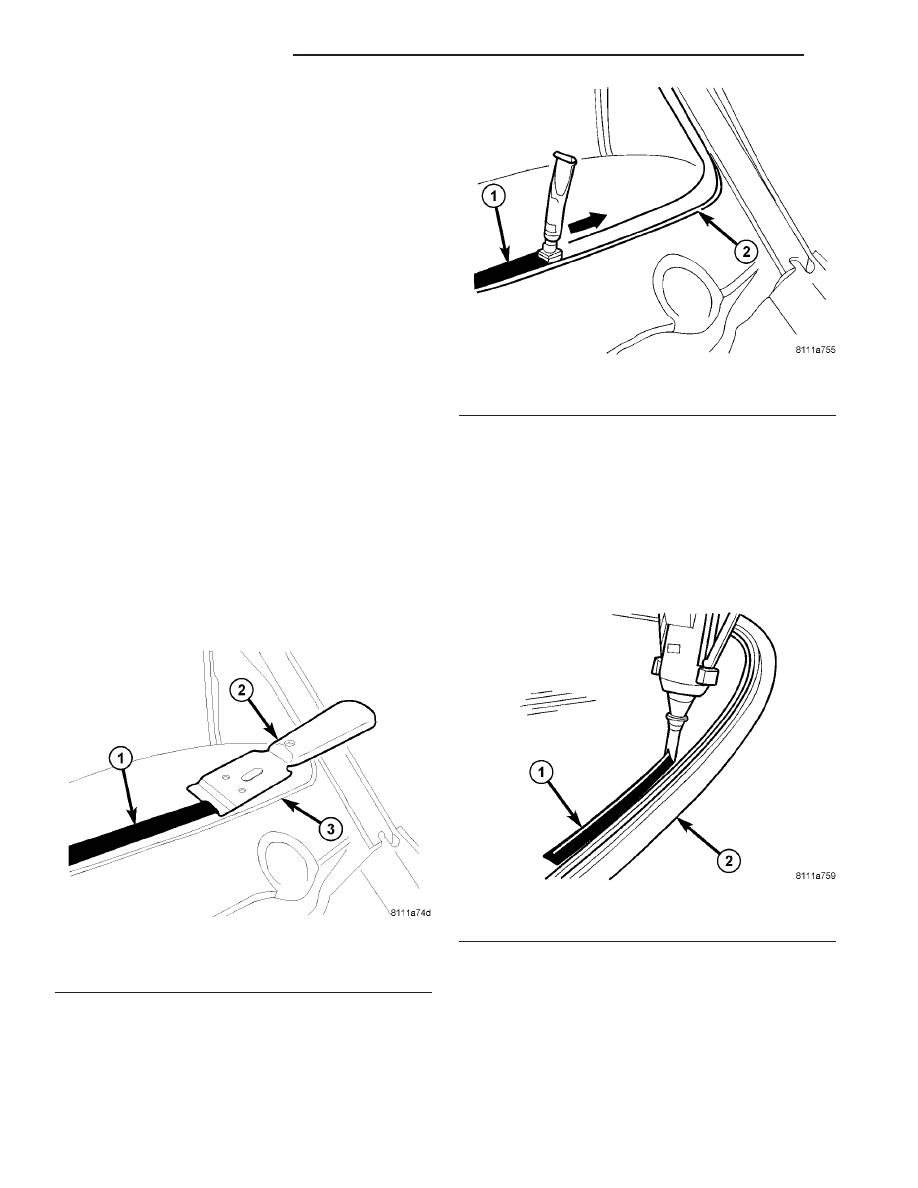

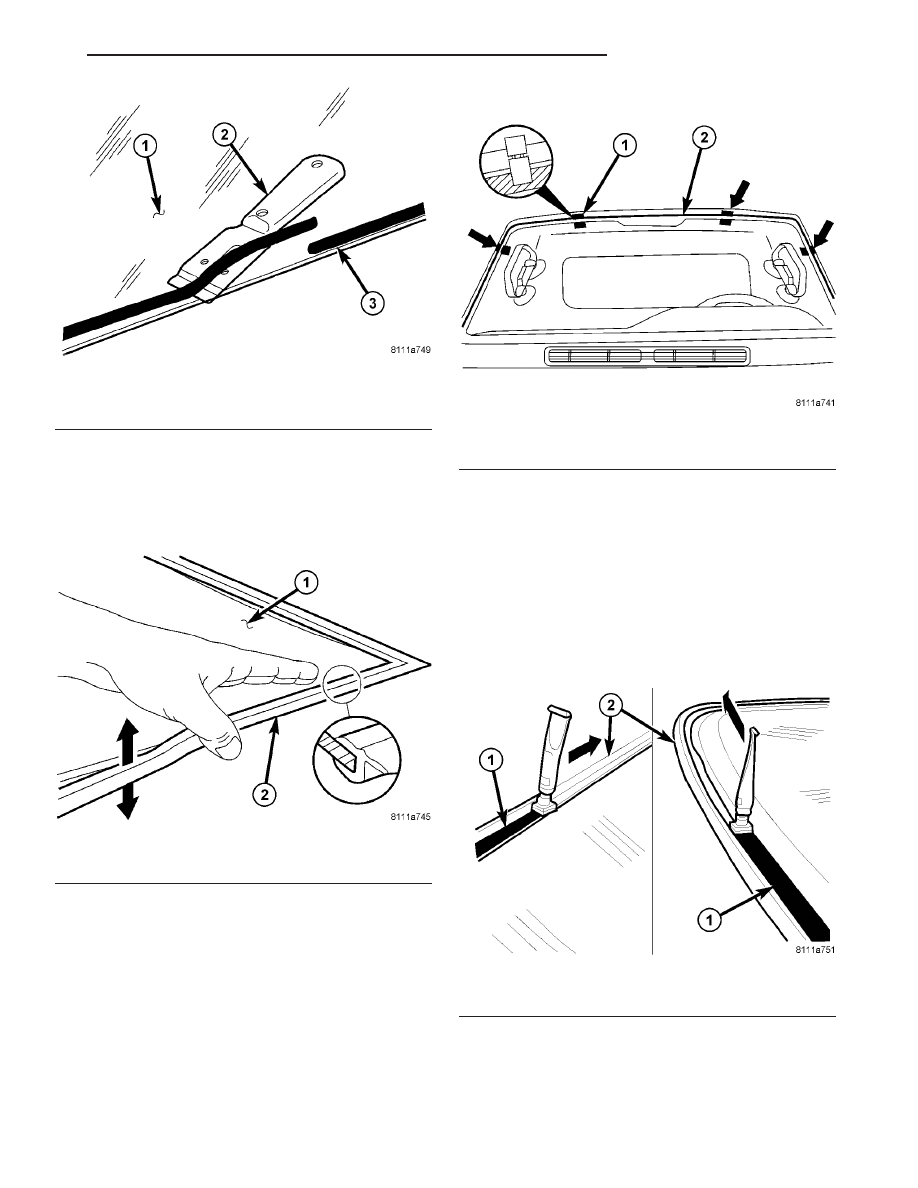

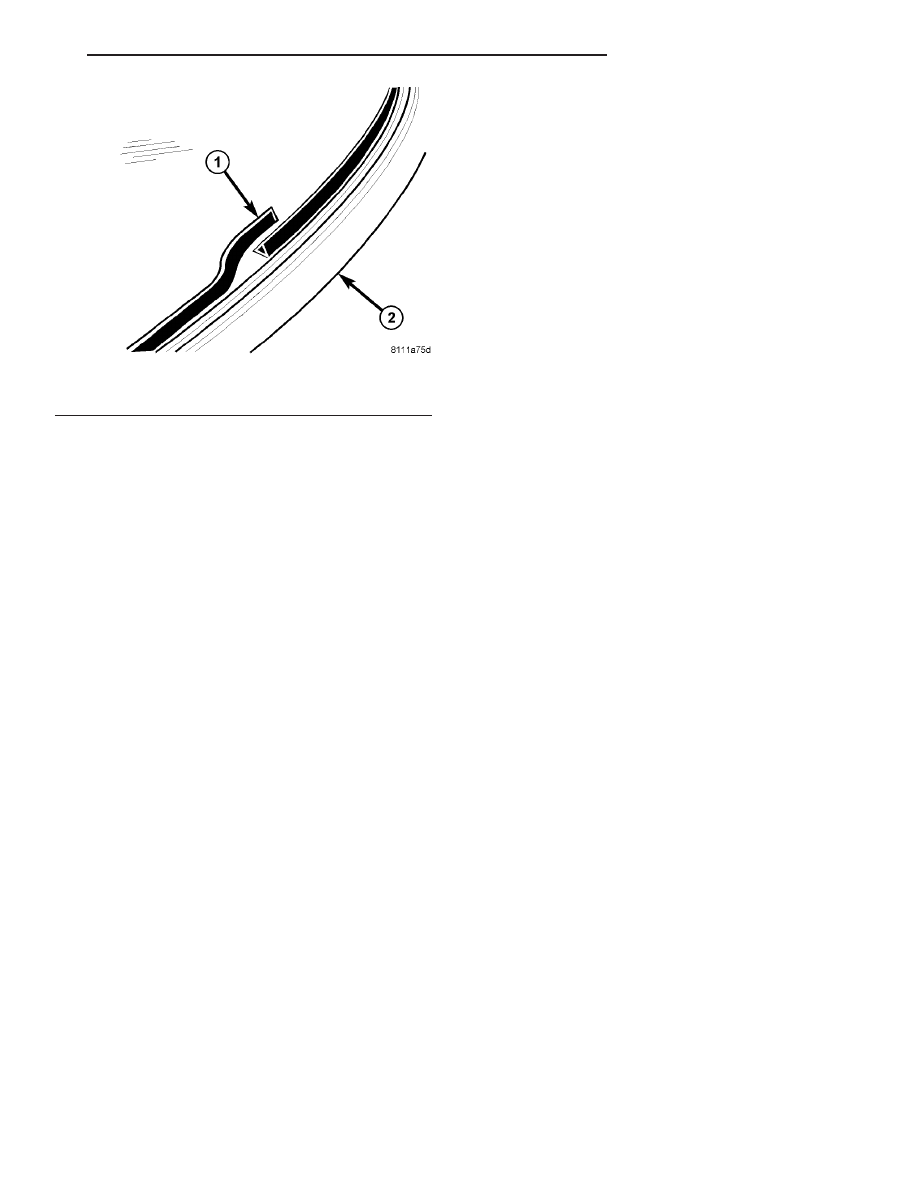

(2) Position windshield seal onto windshield start- ing at one corner and quickly moving up and down. CAUTION: Never moisten windshield seal with lubri- (3) Position windshield in center of windshield opening. (4) Apply adhesive tape to the locations shown to aid with final installation. (Fig. 8) (5) Verify windshield gap is parallel to with wind- shield. (6) Cut tape with a sharp knife and remove wind- shield. (7) Clean and dry area of glass to be re-glued with a suitable glass preparation solvent and rag. (8) Using a flash light, verify that glass primer is without damage. (9) Re-prime any damaged area. If old adhesive has been exposed for more than 12 hours, entire (10) Allow primer to air dry for at least 10 min- utes. (11) Using a flash light, verify that glass primer is without damage. Fig. 6 WINDSHIELD ADHESIVE PREPARATION 1 - WINDSHIELD Fig. 7 WINDSHIELD SEAL INSTALLATION 1 - WINDSHIELD Fig. 8 WINDSHIELD POSITIONING 1 - TAPE Fig. 9 WINDSHIELD PRIMER 1 - PRIMER VA STATIONARY GLASS 23 - 87 |
