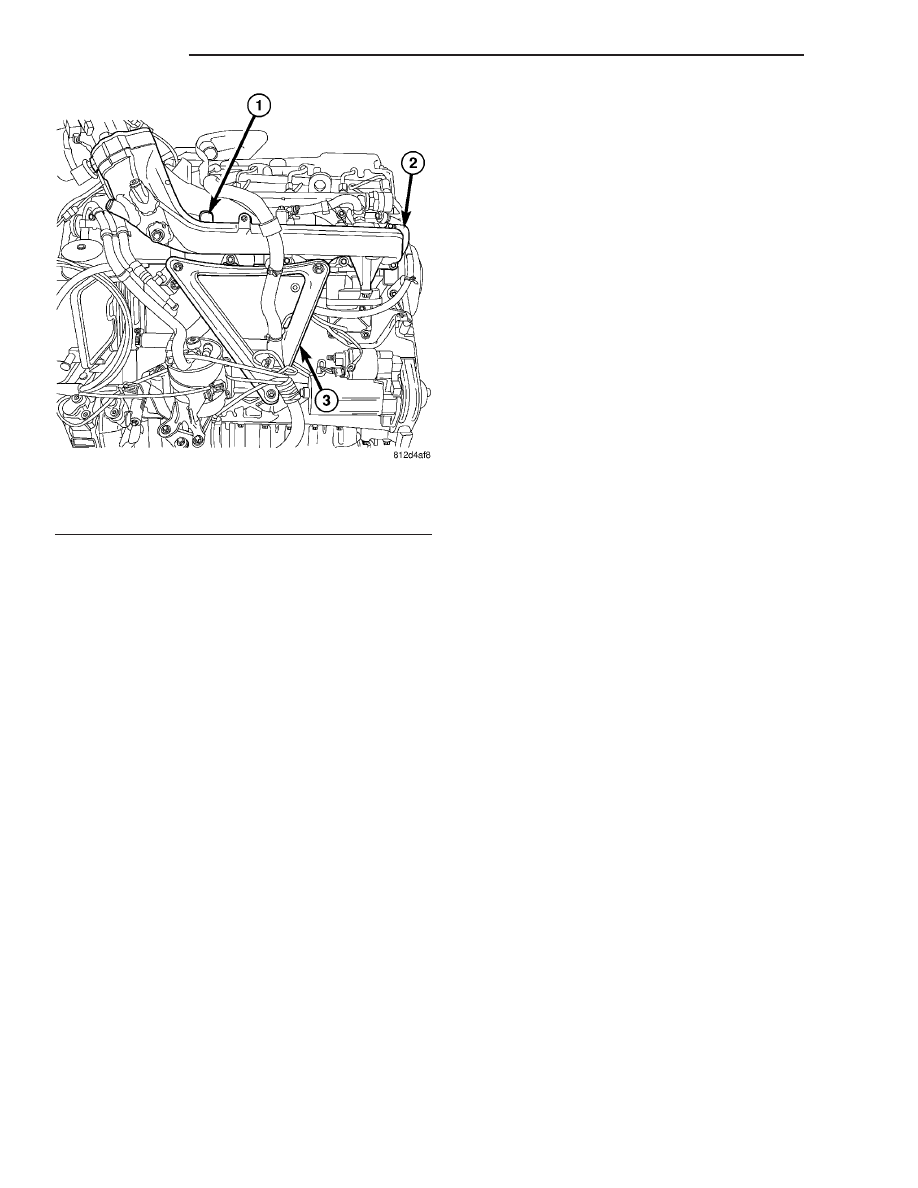

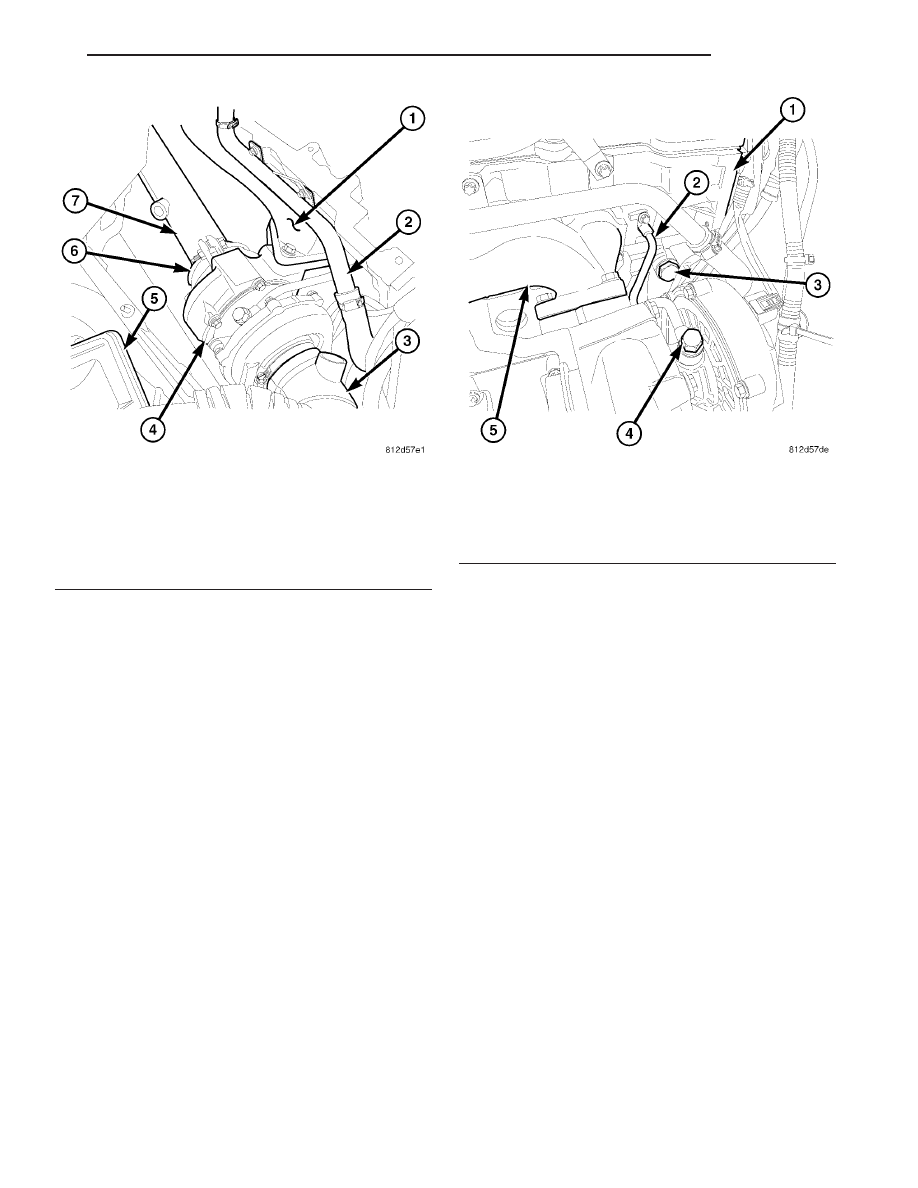

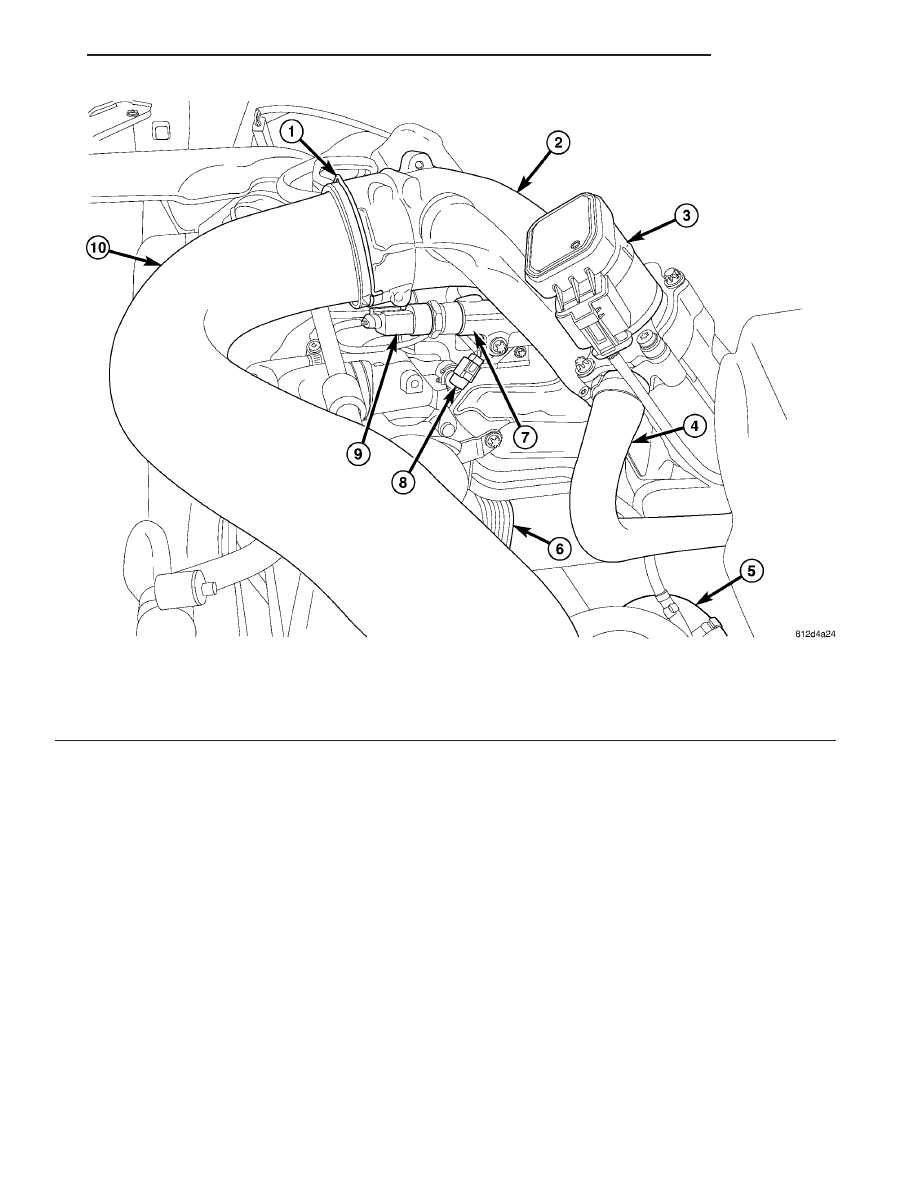

(8) Disconnect the EGR wiring harness connector (Fig. 69). (9) Remove the bolt retaining the engine wiring harness to the intake manifold. (10) Disconnect the coolant hose at the EGR valve. NOTE: Collect and store any fluid spillage when (11) Disconnect both fuel lines at the fuel filter (Fig. 69). (12) Remove the lower intake manifold support bracket (Fig. 70). (13) Raise and support the vehicle. bolts while accessible from below. (15) Lower the vehicle. Fig. 69 INTAKE MANIFOLD 1 - CLIP 6 - ENGINE OIL COOLER 2 - INTAKE MANIFOLD 7 - HIGH PRESSURE FUEL RAIL 3 - EGR VALVE 8 - COOLANT TEMPERATURE SENSOR 4 - EGR VALVE COOLANT HOSE 9 - FUEL RAIL PRESSURE SENSOR 5 - FUEL FILTER 10 - CHARGE AIR HOSE VA ENGINE 9 - 67 |
