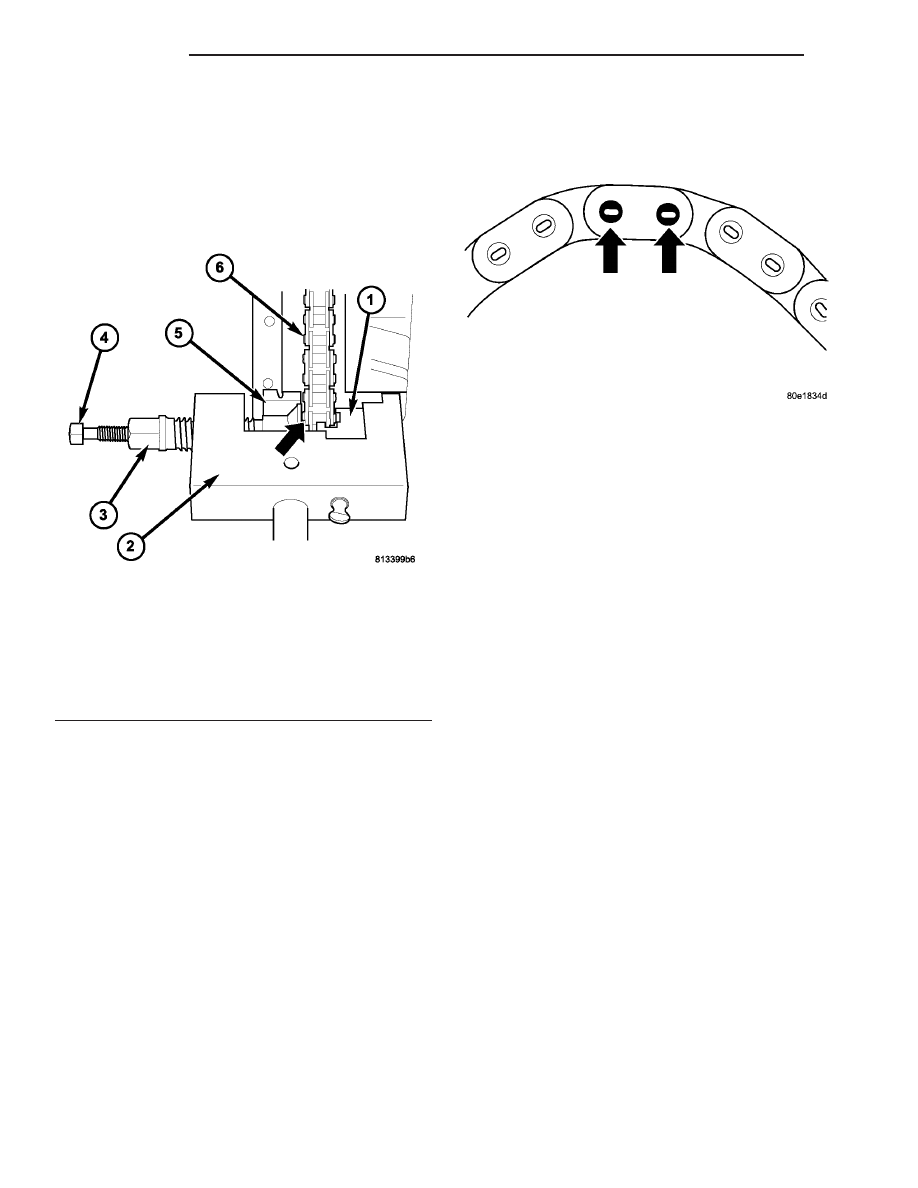

CAUTION: Insert new riveted link from the rear. (4) Connect ends of new oil pump chain with new riveted link (Fig. 63). NOTE: When assembling riveting tool, one piece is NOTE: The outer plate will be held in place by a (5) Place new outer plate into tool insert. NOTE: Ensure that the riveted link and riveting tool (6) Position riveting tool over new link and press in new rivet as far as the tool stop. (7) Remove riveting tool to change inserts. screw. (9) Install insert on riveting tool (Fig. 64). NOTE: The outer plate is held in place magnetically (10) Insert new outer plate into the moving assem- bly insert. (11) Position riveting tool so that spacer webs of the guide are side by side. (12) Ensure that riveted link and outer plate are aligned. NOTE: When turning spindle of riveting tool, be (13) Screw in spindle of riveting tool until firm resistance is felt. Fig. 62 REMOVING OIL PUMP CHAIN TEMPORARY LINK 1 - NEW OIL PUMP CHAIN Fig. 63 INSTALLING NEW RIVETED LINK 1 - NEW RIVETED LINK Fig. 64 INSTALLING RIVETING INSERTS INTO RIVETING TOOL 1 - SPECIAL TOOL #9312-1 VA ENGINE 9 - 63 |
