Mercedes-Benz ML320. Service manual - part 826





 Rear axle shock absorber

 Wheel location

REMOVAL & INSTALLATION

INSTALLING PINCH NUT ON REAR STABILIZER BAR CONNECTING ROD BOLT - SM32.35-P-0001A

MODEL 163.154 #A as of 000001 up to 014254

 Vehicles within the Effective Serial Number Range, must have the following work performed during next

scheduled maintenance or service. Install pinch nut to ensure proper tightening torque of rear stabilizer bar
mounting.

 Damage code for warranty/goodwill claim: 32 920 07

Fig. 26: Identifying Rear Stabilizer Bar And Pinch Nut

BA32.20-P-1001-04F

Nut, link rod to torsion
bar

Nm 28

Number

Designation

Model Series 163

BA32.25-P-1001-03D

Self-locking nut, shock
absorber to lower
wishbone

NM 85

BA32.25-P-1002-03D

Self-locking nut, shock
absorber to frame side
member

NM 20

Number

Designation

Model Series 163

BA35.20-P-1003-07A

Self-locking nut of lower
wishbone to rear axle
carrier

NM 135

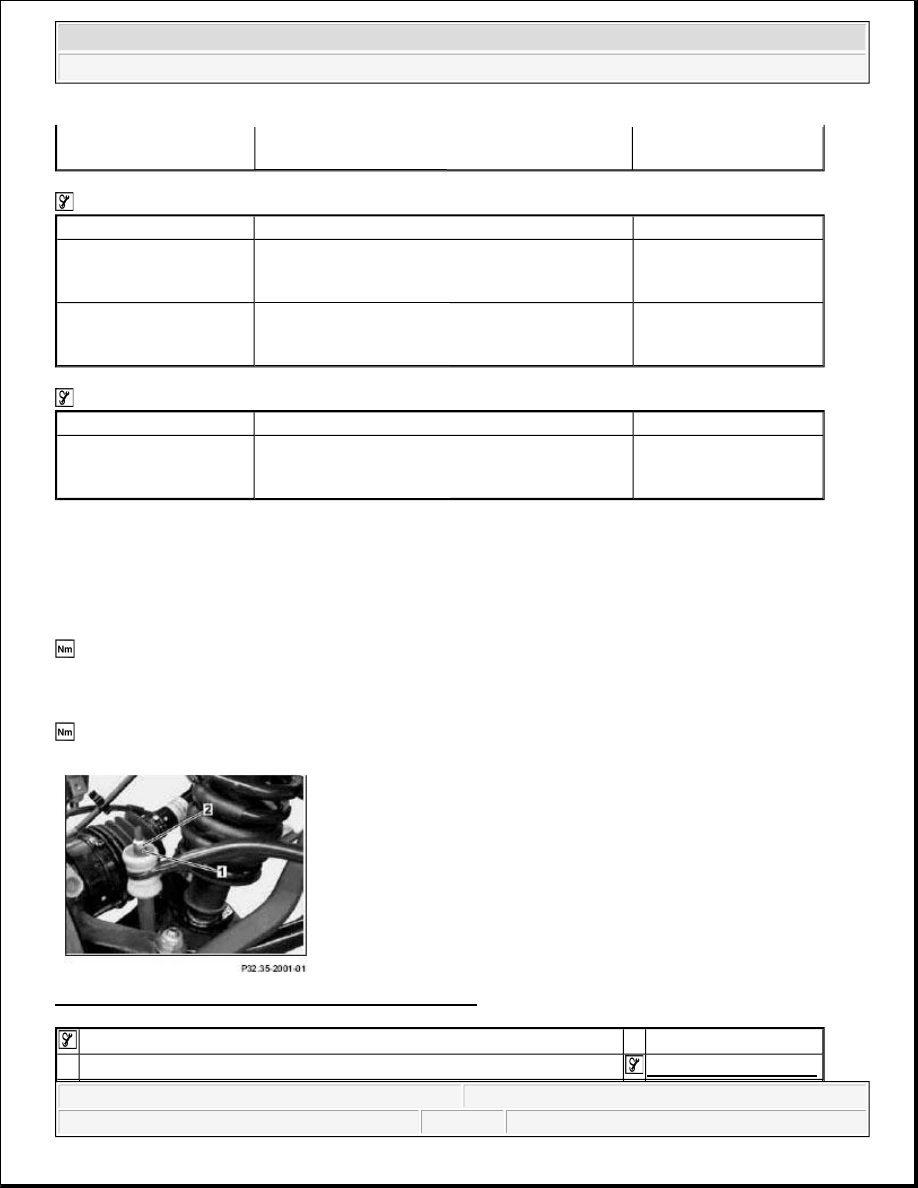

 Installation





1 Retorque nut (1) on rear stabilizer bar connecting rod bolt

*BA32.20-P-1001-04F



2001 Mercedes-Benz ML320

1998-2005 SUSPENSION Suspension - 163 Chassis



me



 Rear axle torsion bar

Parts ordering notes

2 Install pinch nut (2) on top of previously torqued connecting rod bolt nut





3 Counterhold connecting rod bolt nut (1) while torquing pinch nut (2)

*BA32.20-P-1003-04F

4 Repeat for opposite side





Number

Designation

Model 163

BA32.20-P-1001-04F

Nut, connecting rod to
torsion bar

NM 28

BA32.20-P-1003-04F

Pinch nut, connecting rod
to torsion bar

NM 28

Part no.

Designation

Quantity

N910123 008001

Pinch Nut

1 per side



2001 Mercedes-Benz ML320

1998-2005 SUSPENSION Suspension - 163 Chassis



me



GF77.20-P-3002GH

Synchronizing sliding /pop-up roof, function

19.2.97

MODEL

163 with CODE (414a) Electric glass sliding/pop-up roof

Synchronization is necessary to match the counter status of the
position counter with the actual position of the sliding /pop-up roof in
the evaluation electronic module for the sliding /pop-up roof (M12).
Synchronization is required when the sliding /pop-up roof (M12)
has been disconnected from the power supply or a malfunction has
occurred during position measurement resulting in
desynchronization
.
In the desynchronized state the evaluation electronic module in the
sliding /pop-up roof (M12) cannot recognize the position of the roof.
-----------------------------------------------------------------------------------------

In this case control is possible only to a limited extent; it is only
possible to open the pop-up roof for synchronization.

Synchronizing
When the sliding /pop-up roof (M12) is moved to the mechanical
end position "pop-up roof open" in the desynchronized state, the
evaluation electronic module recognizes that the motor is locked up
and then performs synchronization; the position counter is set to "0"
and the sliding /pop-up roof can then be operated again without
limitations.

-----------------------------------------------------------------------------------------

Closing sliding /pop-up roof, function

GF77.20-P-2002GH



Desynchronizing sliding /pop-up roof, function

GF77.20-P-3003GH

Sliding/pop-up roof, location/purpose/
design/function

GF77.20-P-4100GH



Sliding /pop-up roof lock-up recognition,
function

GF77.20-P-3000GH

Sliding / pop-up roof position measurement,
function

GF77.20-P-3001GH

Copyright DaimlerChrysler AG  04.08.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

BT27.51-P-0001-01A

Thickness of friction and steel disks K3
changed

TRANSMISSION

722.6

Production breakpoint data/changes/new features

Transmission/

Steering gear

Transmission ident.

end no. as of

Type of and reason for modification

722.6

Phased in

The thickness of the friction disks has been increased by 0.5 mm and
the thickness of the steel disks reduced by 0.7mm.
This improves heat dissipation and prevents shift judder
The clearance adjustment has not changed.

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
