Mercedes-Benz ML320. Service manual - part 824





 By workshop: ?



Disposing of shock
absorber

Model 129, 140, 170, 202,
208, 210

OS32.25-P-0121-01A





Models 163, 164, 251

OS32.25-P-0121-01GH





Model 168, 203, 209,
414.700

OS32.25-P-0121-01GC





Model 211

OS32.25-P-0121-01TX





Model 230







 Disposal by scrap

dealer: ?







Notes on scrapping gas-
filled hydraulic
components

OS00.00-P-1000-01A

2.1

Check damper for
external oil leaks

 Only if the old shock

absorber is to be installed
again

A thin film of oil on the

shock absorber is
permissible.

 Dispose of shock

absorber if necessary.

 By workshop: ?





Disposing of shock
absorber

Model 129, 140, 170, 202,
208, 210

OS32.25-P-0121-01A





Models 163, 164, 251

OS32.25-P-0121-01GH





Model 168, 203, 209,
414.700

OS32.25-P-0121-01GC





Model 211

OS32.25-P-0121-01TX





Model 230

 Disposal by scrap

dealer: ?







Notes on scrapping gas-
filled hydraulic
components

OS00.00-P-1000-01A

3.1

Check shock absorber for
internal leakage

 Only if the old shock

absorber is to be installed
again.

This test is not possible

on models 140, 163, 164,
168, 203, 209, 251,
414.700.

 The volume of oil in

the shock absorber is
determined by means of





2001 Mercedes-Benz ML320

1998-2005 SUSPENSION Suspension - 163 Chassis



me



Test values for shock absorber

the projection length (a) of
the piston rod.

 Push in piston rod as

far as it will go. Then hold
vertically so that piston
rod points down, and
measure projection length
(a) of piston rod.
Shock absorber in new
condition:





Shock absorber in used
condition:







Model 129, 170, 202, 208,
210, 211, 230

*BE32.25-P-1002-02A





Model 129, 170, 202, 208,
210, 211, 230
If shock absorber exceeds
specified value, dispose of
it:

 By workshop: ?

*BE32.25-P-1001-02A



Disposing of shock
absorber

Model 129, 170, 202, 208,
210

OS32.25-P-0121-01A





Model 211

OS32.25-P-0121-01TX





Model 230

 Disposal by scrap

dealer: ?







Notes on scrapping gas-
filled hydraulic
components

OS00.00-P-1000-01A

4.1

Check rubber mount in
housing eye, replace if
necessary

 Only on shock

absorbers with rubber
mount in housing eye and
only if the shock absorber
is not replaced.

 The rubber mounts

must be seated securely in
the body eye and must not
be cracked or damaged.
If fitted, damaged rubber
mounts can cause
knocking noises.



Number

Designation

Model 129

Model 170

Model 202

BE32.25-P-1001- Oil reserve check

mm 0+2

0+2

0+2



2001 Mercedes-Benz ML320

1998-2005 SUSPENSION Suspension - 163 Chassis



me



Test values for shock absorber

Test values for shock absorber

REMOVE/INSTALL SHOCK ABSORBER ON SPRING STRUT - AR32.25-P-0200-07GH

Use only approved tensioning devices; additionally shield off hazardous area if necessary.

Check special tools for damage and correct operation, (visual inspection). Wear protective gloves.

 Rear axle shock absorber

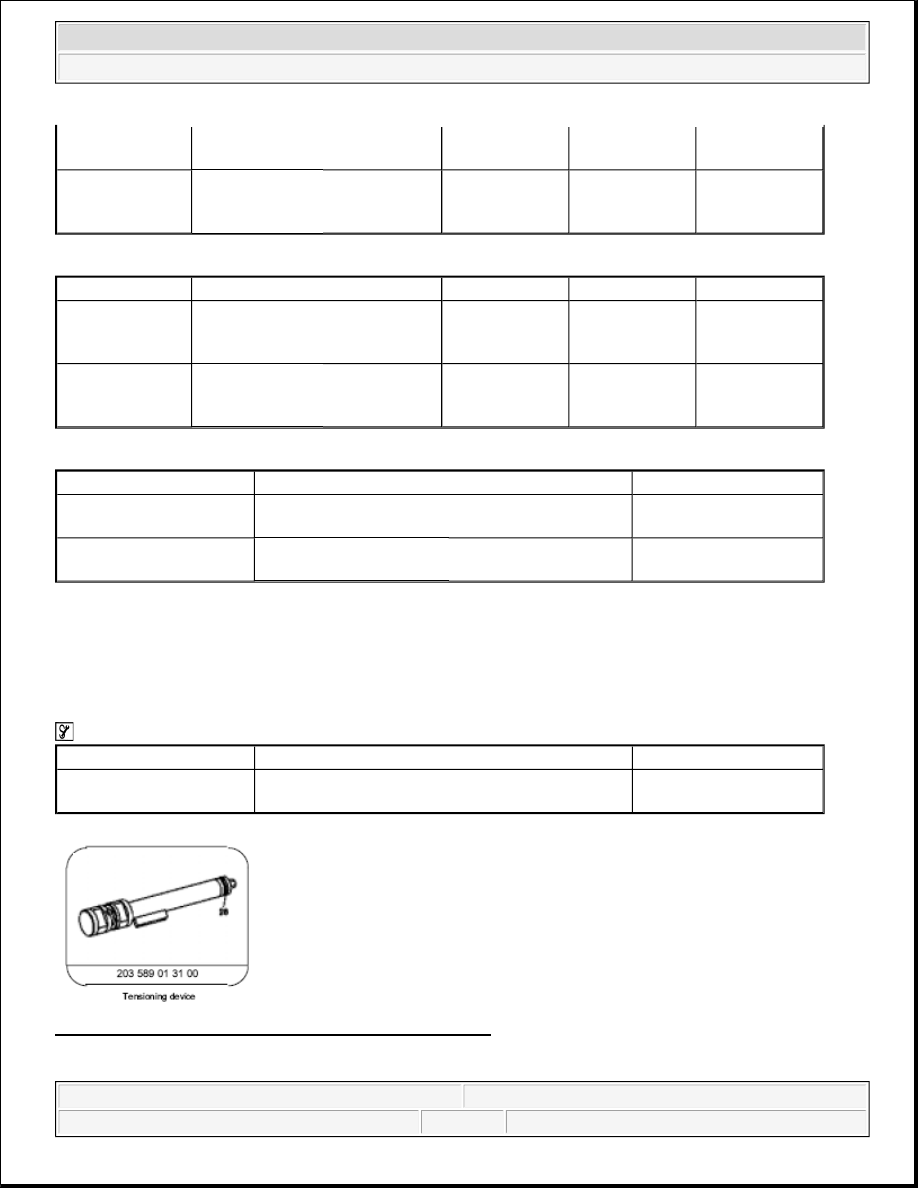

Fig. 19: Identifying Tensioning Device (203 589 01 31 00)

02A

(shock absorber
when new)

BE32.25-P-1002-
02A

Oil reserve check
(shock absorber
when used)

mm < or =20

< or =20

< or =20

Number

Designation

Model 208

Model 210

Model 211

BE32.25-P-1001-
02A

Oil reserve check
(shock absorber
when new)

mm 0+2

0+2

0+2

BE32.25-P-1002-
02A

Oil reserve check
(shock absorber
when used)

mm < or =20

< or =20

< or =20

Number

Designation

Model 230

BE32.25-P-1001-02A

Oil reserve check (shock
absorber when new)

mm 0+2

BE32.25-P-1002-02A

Oil reserve check (shock
absorber when used)

mm < or =20

Number

Designation

Model Series 163

BA32.25-P-1003-03D

Self-locking nut, shock
absorber to rear spring

NM 30



2001 Mercedes-Benz ML320

1998-2005 SUSPENSION Suspension - 163 Chassis



me



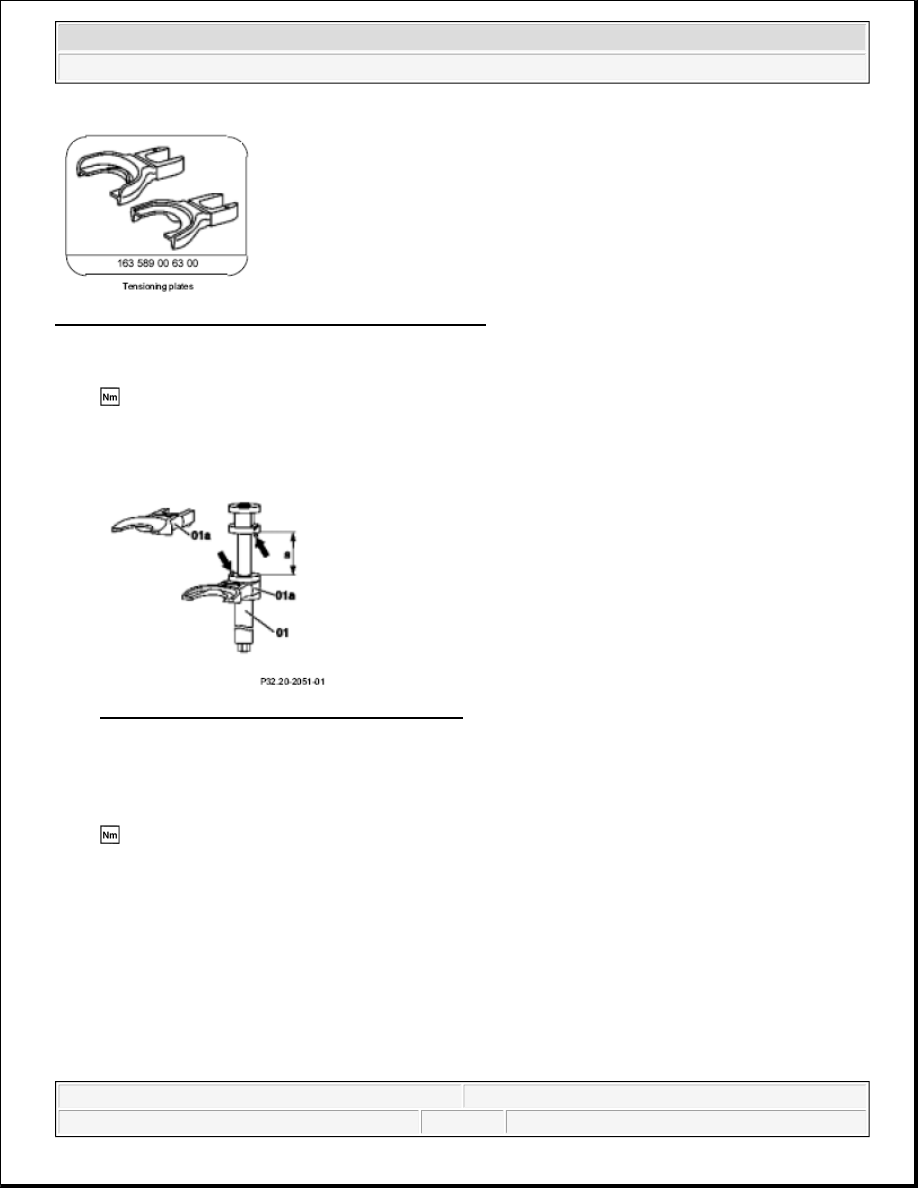

Fig. 20: Identifying Tensioning Plates (163 589 00 63 00)

1. Pre-equip tensioning device.

 Insert tensioning plates (01a) into tensioner (01) until they engage. Press pins (arrows) to remove the

clamping plates.

2. Pre-adjust tensioning device to approx. 130 mm (a). This makes it easier to insert the rear spring

Fig. 21: Identifying Tensioning Plates And Pins

3. Clamp tensioning device (01) horizontal in vise.

4. Insert rear spring (73) in the clamping plates (01) so that the end of the winding of the rear spring is

roughly parallel with the upper edge of the clamping plates (arrows).

 Insert rear spring from the 5th to the 11th rear spring winding (counted from the side with the larger

winding diameter in the clamping plates (6 to 7 windings must be clamped).



2001 Mercedes-Benz ML320

1998-2005 SUSPENSION Suspension - 163 Chassis



me
