Mercedes-Benz ML320. Service manual - part 825





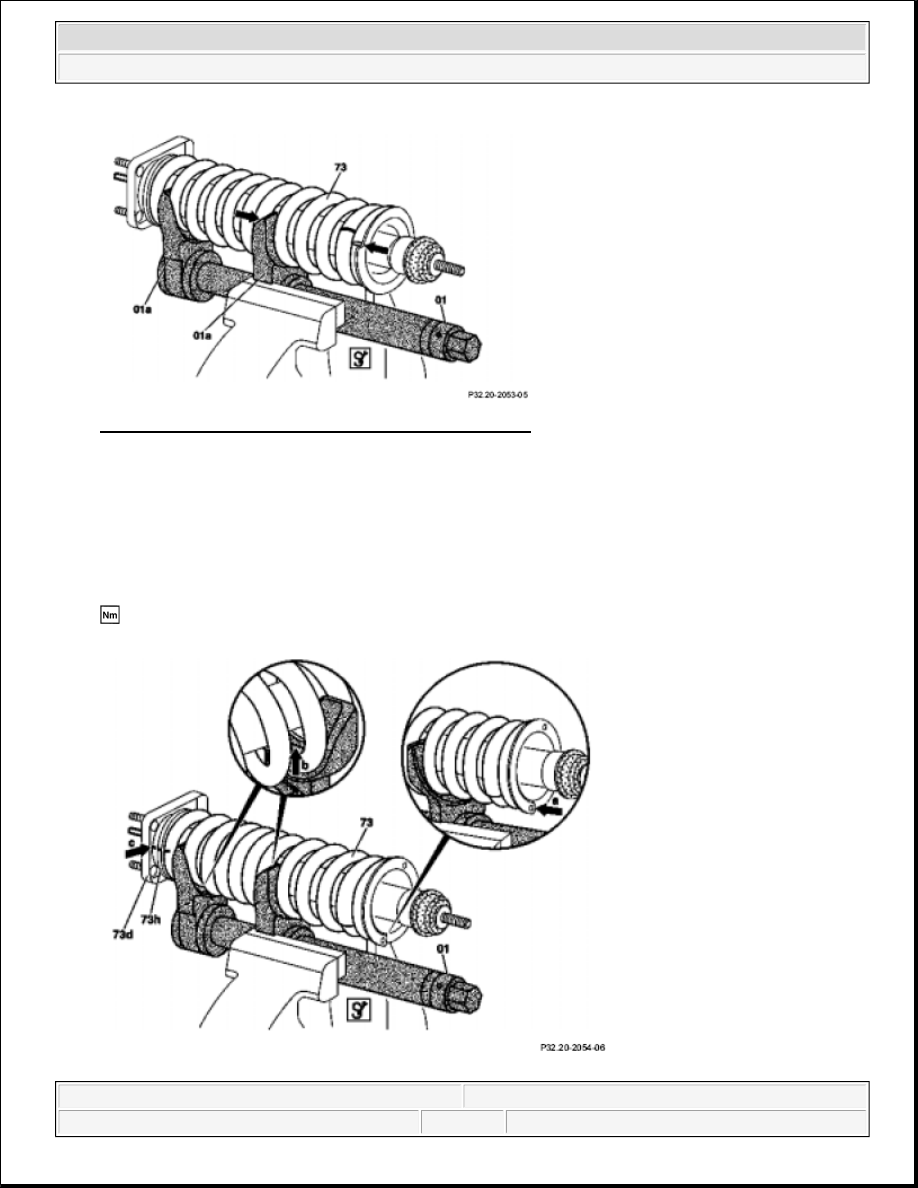

Fig. 22: Clamping Tensioning Device Horizontal In Vise

5. 73Rotate rear spring (73)by approx. a quarter of a revolution (counterclockwise) so that the end of the

rear spring winding is located approximately in the center of the clamping plate (arrow a).

6. Check whether the lugs of the clamping plates are located above the rear spring windings (arrow b), if

necessary correct the position of the rear spring.

7. Mark the position of the rear spring (73) relative to the support bearing (73d) and rear spring guide (73h)

(arrow c).

 Installation: When the rear spring is relieved of load the markings applied must align.

Fig. 23: Identifying Tensioning Device Horizontal In Vise



2001 Mercedes-Benz ML320

1998-2005 SUSPENSION Suspension - 163 Chassis



me



 When replacing the rear spring, support bearing or rear spring guide, the markings from the old

components must be taken over.

8. Compress rear spring.

9.

 Unscrew nut (73a) of the upper shock absorber mounting, counterholding the piston rod in the process.

10. Remove plate (73b), upper rubber mount (73c), support bearing (73d) and spring guide (73h)

 Installation: Pay attention to correct position of components.

11. Pull out shock absorber and remove lower rubber mount (75c), sleeve (75y), plate (75g) and protective

sleeve (75f).

 Installation: Pay attention to correct position of components.

12. Install in reverse sequence.

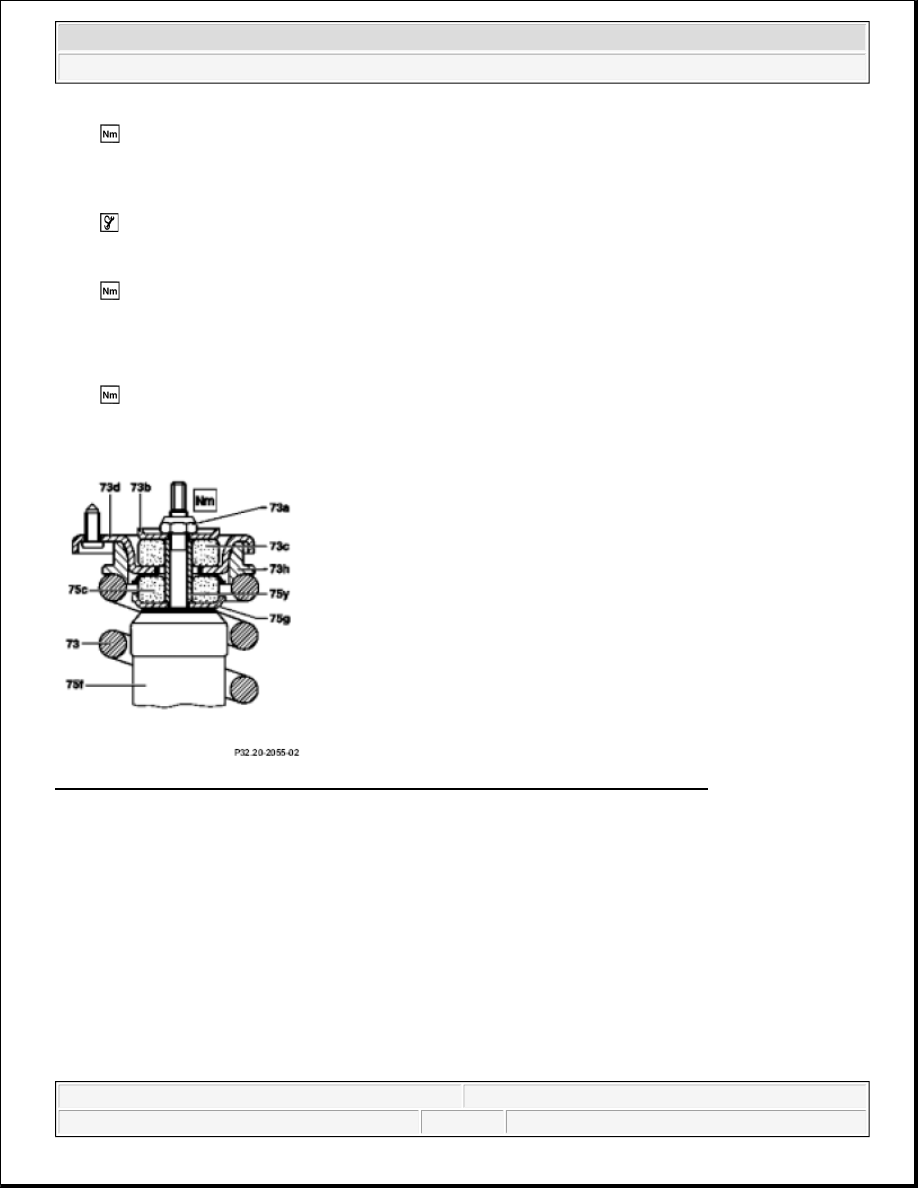

Fig. 24: Identifying Plate, Upper Rubber Mount, Support Bearing And Spring Guide

REMOVE/INSTALL REAR SPRING STRUT - AR32.25-P-1016GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175



2001 Mercedes-Benz ML320

1998-2005 SUSPENSION Suspension - 163 Chassis



me



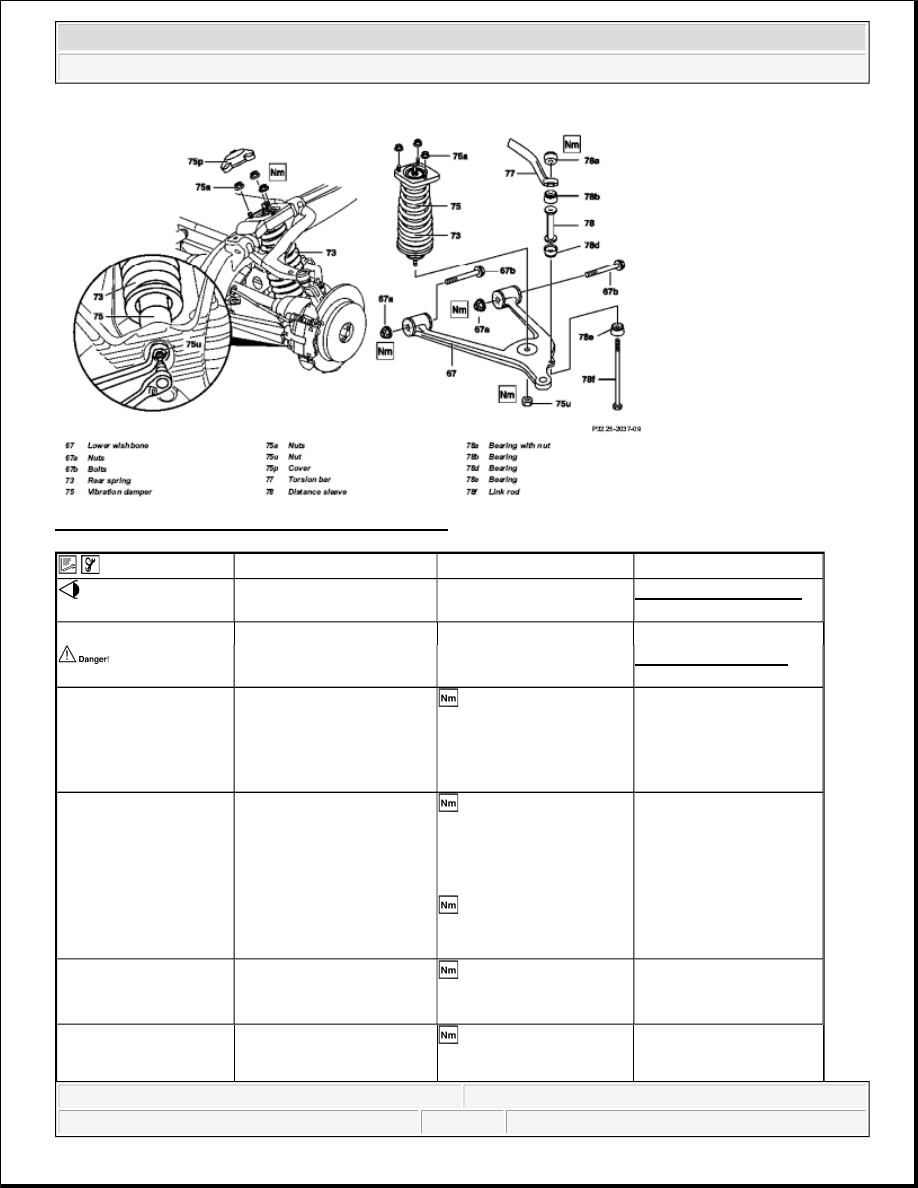

Fig. 25: Identifying Rear Spring Strut Components





Remove/Install







Notes on self-locking nuts
and bolts

All models

AH00.00-N-0001-01A

1

Remove rear wheels







Remove/install wheels,
rotate if necessary



AP40.10-P-4050GH

2.1

Remove spare wheel

 Except with spare

wheel holder/spare wheel,
code 849 and model
163.174 (vehicle with
auxiliary fuel tank).



3.1

Remove spare wheel
holder

 Except with spare

wheel holder/spare wheel,
code 849 and model
163.174 (vehicle with
auxiliary fuel tank).

 Pull out locking pin.

Remove spare wheel
bracket from side rail.



4.1

Remove wheel housing
lining

 On model 163.174

(vehicle with auxiliary
fuel tank).



5

Pull off cover (75p)

 Installation: Pay

attention to correct





2001 Mercedes-Benz ML320

1998-2005 SUSPENSION Suspension - 163 Chassis



me



 Rear axle torsion strut

seating.

6

Remove nuts (75a) from
top spring strut mounting
on frame side member



*BA32.25-P-1002-03D

7

Detach nut (75u) from
lower suspension strut
mounting to lower
transverse control arm (67)

 Counterhold threaded

rod.





*BA32.25-P-1001-03D



Lethal injuries are
possible if vehicle slips off
of lifting platform

Align vehicle between the
columns of the lifting
platform and position the
four support plates at the
lifting platform support
points specified by the
vehicle manufacturer.

AS00.00-Z-0010-01A

8

Support lower transverse
control arm (67)

9

Remove link rod (78f)
between lower transverse
control arm (67) and
torsion bar (77)



*BA32.20-P-1001-04F

10

Detach lower transverse
control arm (67) from rear
axle carrier

 Installation: The rear

axle shaft must be
horizontal when
tightening the bolts (67b).





*BA35.20-P-1003-07A

11

Lower the lower transverse
control arm (67) carefully,
pull out of guide and swing
downwards





12

Press the suspension strut
upwards out of the
transverse control arm (67)
and remove

 In the event of

stiffness, if necessary
hammer the shock
absorber (75) carefully out
of the lower transverse
control arm (67) using a
plastic-headed mallet.



13

Install in the reverse order





Inspect





14

Check and correct
headlamp adjustment







Check and correct
headlamp adjustment



AP82.10-P-8260GH

Number

Designation

Model Series 163



2001 Mercedes-Benz ML320

1998-2005 SUSPENSION Suspension - 163 Chassis



me
