Mercedes-Benz ML320. Service manual - part 804

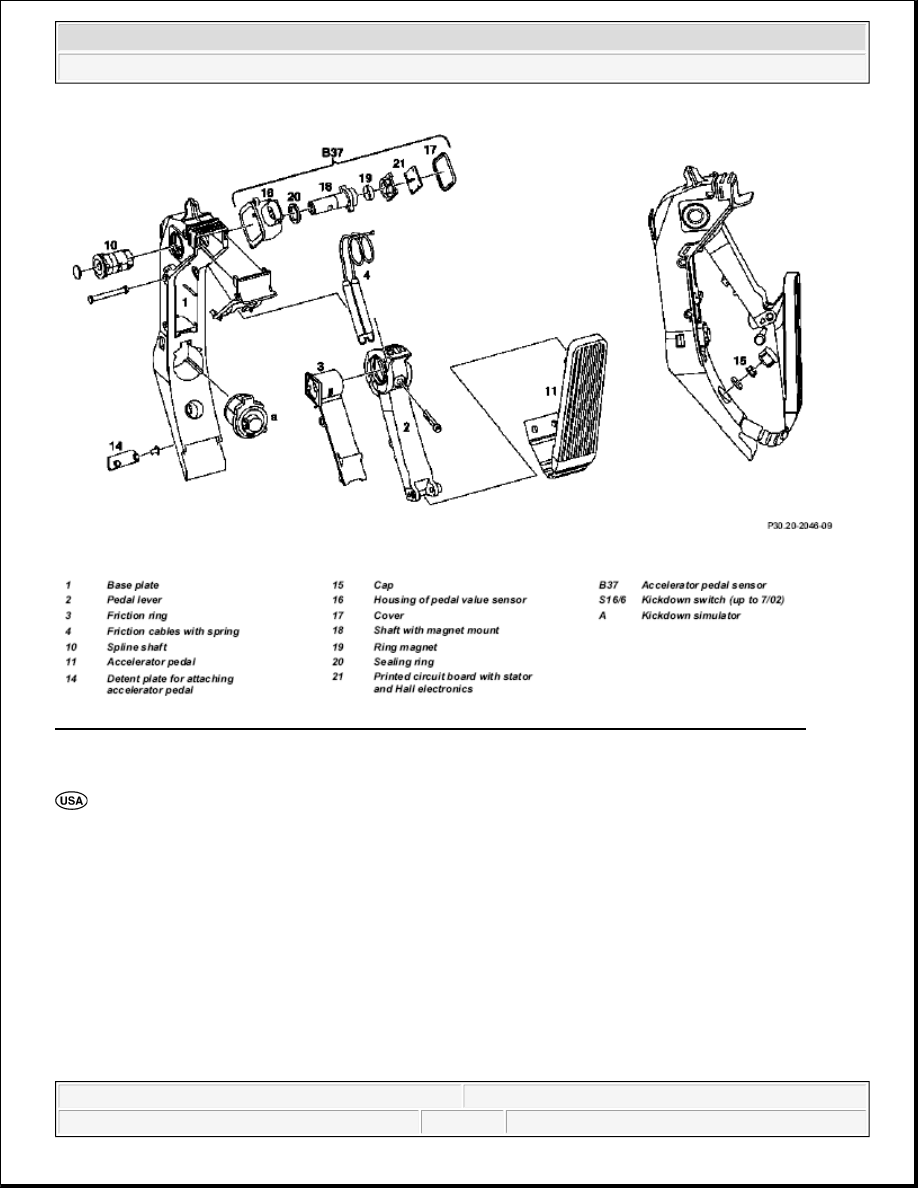

Fig. 6: Identifying Accelerator Pedal Module With Kickdown Simulator (From 7/02) Components

Illustration shows accelerator pedal module with kickdown simulator (a).

 Replace accelerator pedal module always complete!

Illustration shows internal circuitry of pedal value sensor B37 (Hall principle)



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis



me

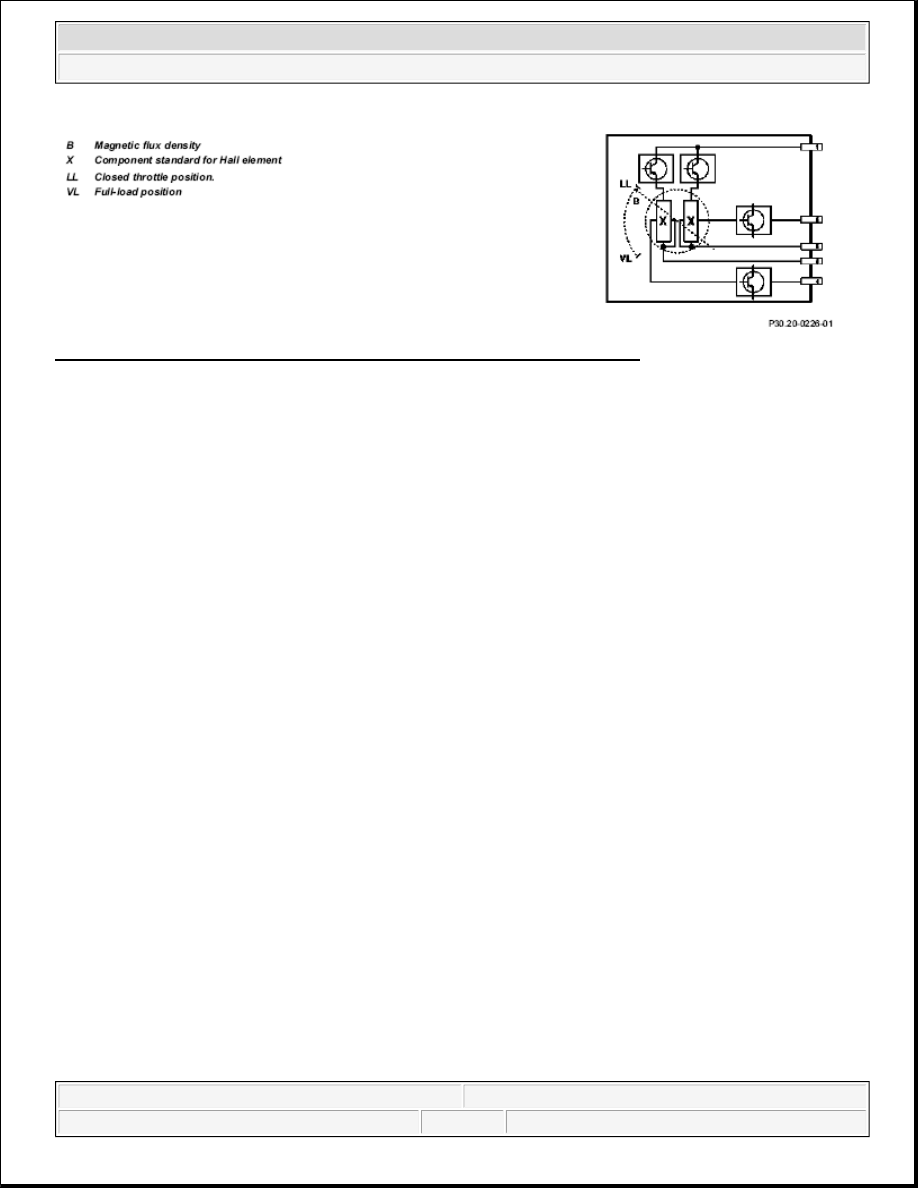

Fig. 7: Identifying Internal Circuitry Of Pedal Value Sensor (Hall Principle)

The sensor on the accelerator pedal which works according to the Hall principle is integrated into the pedal
lever axis. It consists of a shaft with ring magnet. This rotates in a printed circuit board with stator in the fixed
Hall elements. This produces a change in the voltage.

The accelerator pedal sensor is supplied by the engine control unit with 5 V. The information regarding the
accelerator pedal position is passed on to the engine control unit by means of two voltages (pin 4: approx. 0 to
2.25 V and pin 5: approx. 0 to 4.5V).

The kick-down switch (S16/6) was no longer used from 7/02. Full load recognition takes place now over the
signal from the accelerator pedal sensor. The pressure point on the accelerator pedal is simulated before
achieving the full load position.

PEDAL VALUE SENSOR, LOCATION/TASK/DESIGN/FUNCTION - GF30.20-P-4011L

ENGINE 104.941 /943 /944 /991 /994 as of 1.8.96

ENGINE 104.995

with CODE (494a) USA-Ausfuhrung

with CODE (807) Model year 1997

with CODE (808) Model year 1998

with CODE (498) as of Model Year 97 Japan-Ausfuhrung

ENGINE 111.921 /942 as of 1.9.98,

111.946 as of 1.6.98,

111.944/975 as of 1.8.96,

111.943 /947 /951 /952 /955 /956 /957 /958 /973 /974 /982 /983



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis



me



ENGINE 111.945

in MODEL 202.020 /080 as of 1.9.98,

208.335/435 as of 1.6.98

with CODE (494a) USA-Ausfuhrung

with CODE (807) Model year 1997

with CODE (808) Model year 1998

ENGINE
112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /95

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969

ENGINE 119.980 /981 /982 /985

ENGINE 120.982 /983

ENGINE 137.970

ENGINE 166.940 /960 /990 /995

ENGINE 604.910/915 as of 1.2.98

ENGINE 604.912/917 as of 1.4.98

ENGINE 611.961/960/962

ENGINE 612.961/962/963

ENGINE 613.960/961

ENGINE 628.960 /963

ENGINE 668.940 /941 /942

ENGINE 612.967 in MODEL 209.316

Shown on model 203, 215, 220



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis



me



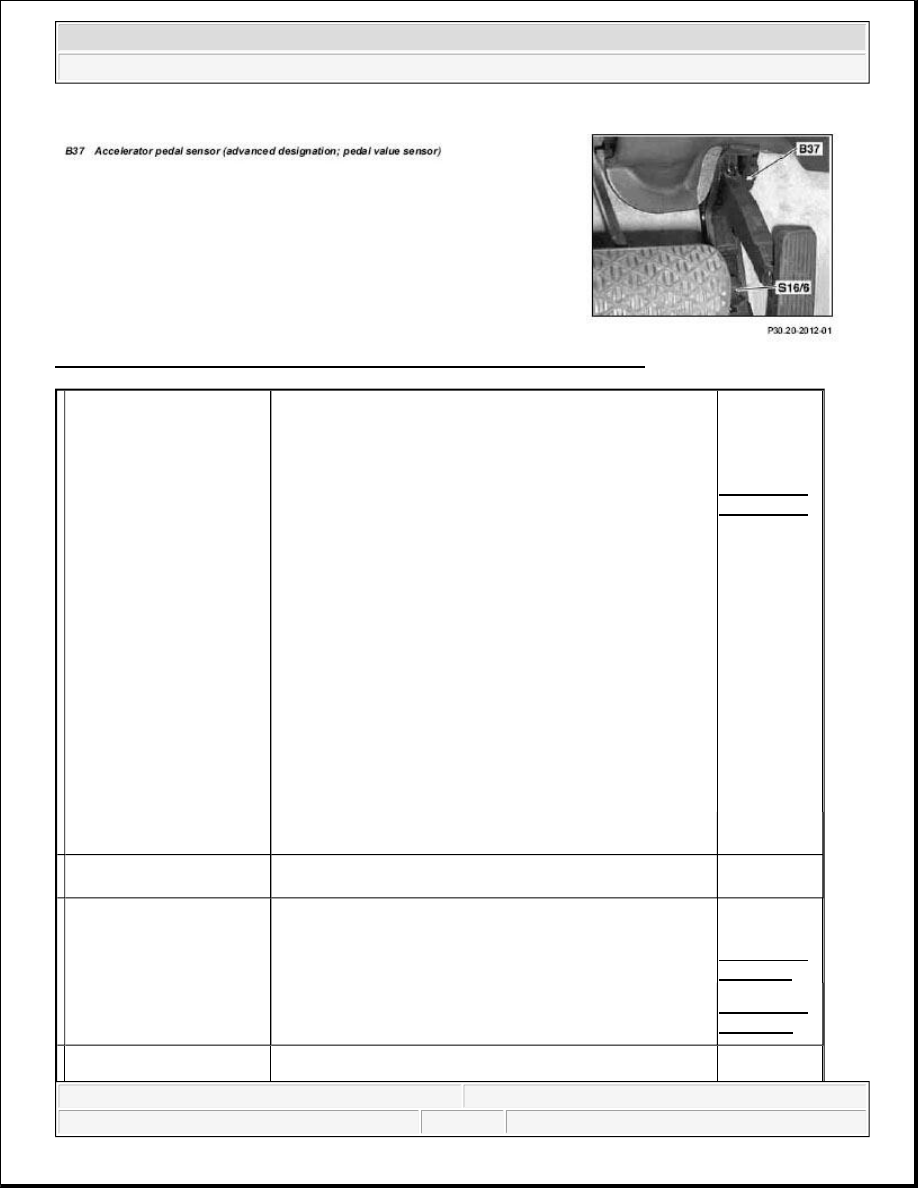

Fig. 8: Identifying Accelerator Pedal Sensor - Shown On Model 203, 215, 220

  Pedal value sensor position

Model 129

GF30.20-P-
4011-01D

Model 140

GF30.20-P-
4011-01A

Model 163

GF30.20-P-
4011-01GH

Model 168

GF30.20-P-
4011-01GC

Model 170

GF30.20-P-
4011-01G

Model 202, 208

GF30.20-P-
4011-01E

Model 203, 209

GF30.20-P-
4011-01P

Model 210

GF30.20-P-
4011-01F

Model 211

GF30.20-P-
4011-01T

Model 215, 220

GF30.20-P-
4011-01M

Model 230

GF30.20-P-
4011-01R

  Pedal value sensor task

Detects the accelerator pedal position and passes on the
information to the engine control unit



  Pedal value sensor design

Located in engine compartment with two rotary
potentiometers

GF30.20-P-
4011-02A

Located in engine compartment with two Hall elements

GF30.20-P-
4011-02B

Model 203, 209, 211, 215, 220, 230 and
Model 170 with Engine 111 EVO and 112: Location at
accelerator pedal module

GF30.20-P-
4011-02C

The accelerator pedal sensor (B37) converts the mechanical
