Mercedes-Benz ML320. Service manual - part 802





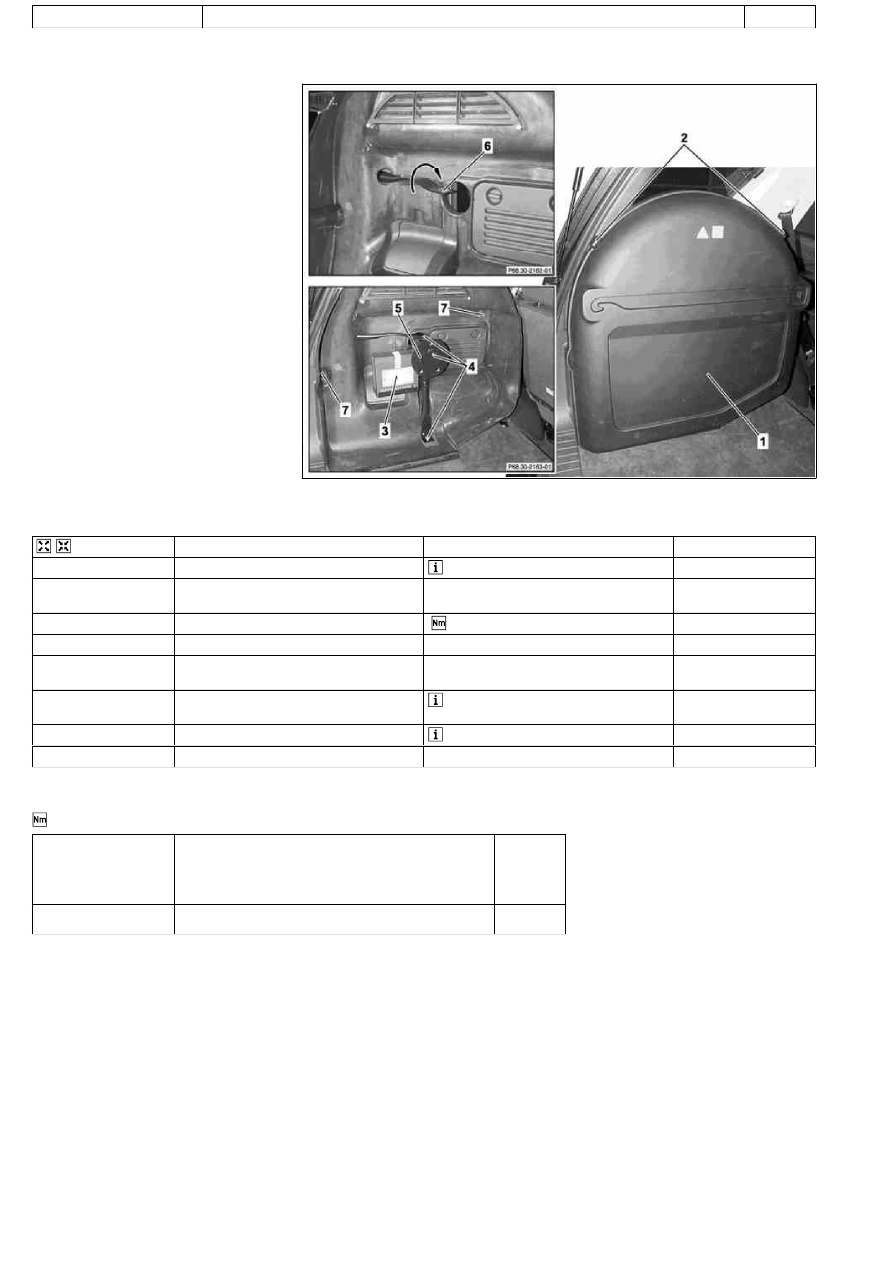

AR68.30-P-4610GH

Removing and installing spare wheel cover

28.4.99

MODEL

163.174

P68.30-2161-06

1

Spare wheel cover front section

2

Retaining straps

3

Electric air pump

4

Screws

5

Spare wheel mount

6

Bracket

7

Screws



Removal, installation

1

Remove cargo space cover

 See Owner's Manual.

2

Loosen retaining straps (2) and remove spare
wheel cover front section (1)

3

Remove spare wheel



*BA40.10-P-1002-01A

4

Remove electric air pump (3)

5

Unscrew screws (4) and remove spare wheel
mount (5)



6

Remove bracket (6)

 Turn in clockwise direction until bracket

(6) releases at D-pillar.

7

Remove rear wall on spare wheel cover

 2 screws.

8

Install in opposite order



Wheels

Number

Designation

Model
163.174

BA40.10-P-1002-01A

Bolt for spare wheel on inside of spare wheel mount

Nm

50

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR68.30-P-4610GH

Removing and installing spare wheel cover

28.4.99

MODEL

163.174

P68.30-2161-06

1

Spare wheel cover front section

2

Retaining straps

3

Electric air pump

4

Screws

5

Spare wheel mount

6

Bracket

7

Screws



Removal, installation

1

Remove cargo space cover

 See Owner's Manual.

2

Loosen retaining straps (2) and remove spare
wheel cover front section (1)

3

Remove spare wheel



*BA40.10-P-1002-01A

4

Remove electric air pump (3)

5

Unscrew screws (4) and remove spare wheel
mount (5)



6

Remove bracket (6)

 Turn in clockwise direction until bracket

(6) releases at D-pillar.

7

Remove rear wall on spare wheel cover

 2 screws.

8

Install in opposite order



Wheels

Number

Designation

Model
163.174

BA40.10-P-1002-01A

Bolt for spare wheel on inside of spare wheel mount

Nm

50

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

1998-2005 ACCESSORIES & BODY CAB

Throttle Control, Speed Control Systems - 163 Chassis

BASIC KNOWLEDGE

ELECTRONIC ACCELERATOR, LOCATION/DESIGN/FUNCTION - GF30.20-P-3010E

ENGINE 104.941 /943 /944 /991 /994 as of 1/8/96

ENGINE 104.995

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

with CODE (498) as of Model year 97 Japanese version

ENGINE 111.943 /947 /951 /952 /955 /956 /957 /958 /973 /982 /983,

111.944/975 as of 1.8.96,

111.946 as of 1.6.98,

111.921/942 as of 1.9.98

ENGINE 111.945

in MODEL 208.335 /435 as of 1.6.98,

202.020/080 as of 1.9.98

ENGINE 111.974

with CODE (494a) USA version

with CODE (807) Model year 1997

with CODE (808) Model year 1998

ENGINE
112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /95

ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis



me



me



ENGINE 119.980 /981 /982 /985

ENGINE 137.970

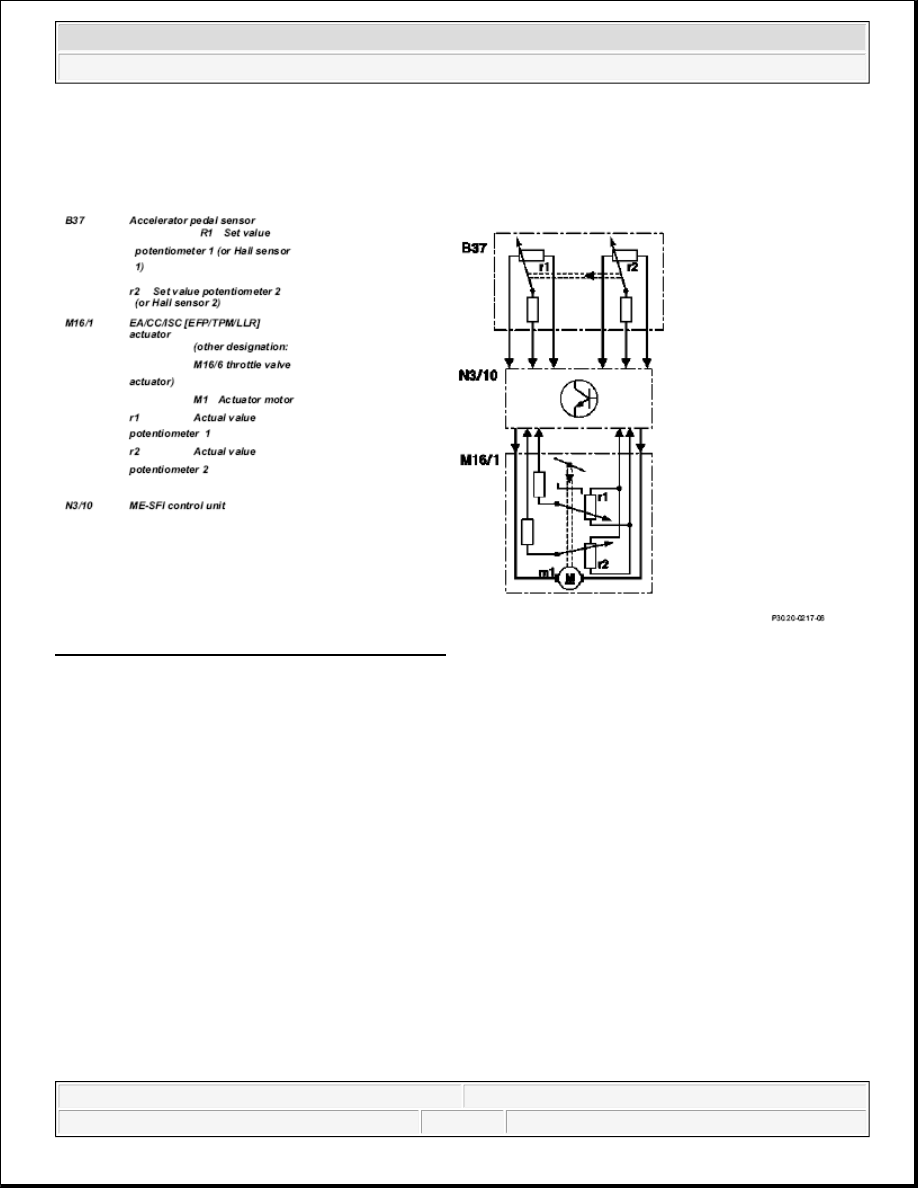

Fig. 1: Identifying Electronic Accelerator Function

The function of the electronic accelerator pedal EFP in the ME control unit determines the opening angle of the
throttle valve over the actuator EFP/TPM/LLR (other designation: throttle valve actuator).

Further functions are:

Idle speed control [ISC]

Cruise control mode

Variable speed limiter

30 km/hour limit

Reduce/increase the engine torque for ASR/ESP operation

short performance limitation, for example for a higher coolant temperature

Emergency electronic accelerator pedal

Safety concept

Actuate indicator lamp EPC (up to 5/96)

Storing faults

Data exchanger via CAN



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY CAB Throttle Control, Speed Control Systems - 163 Chassis



me
