Mercedes-Benz ML320. Service manual - part 799

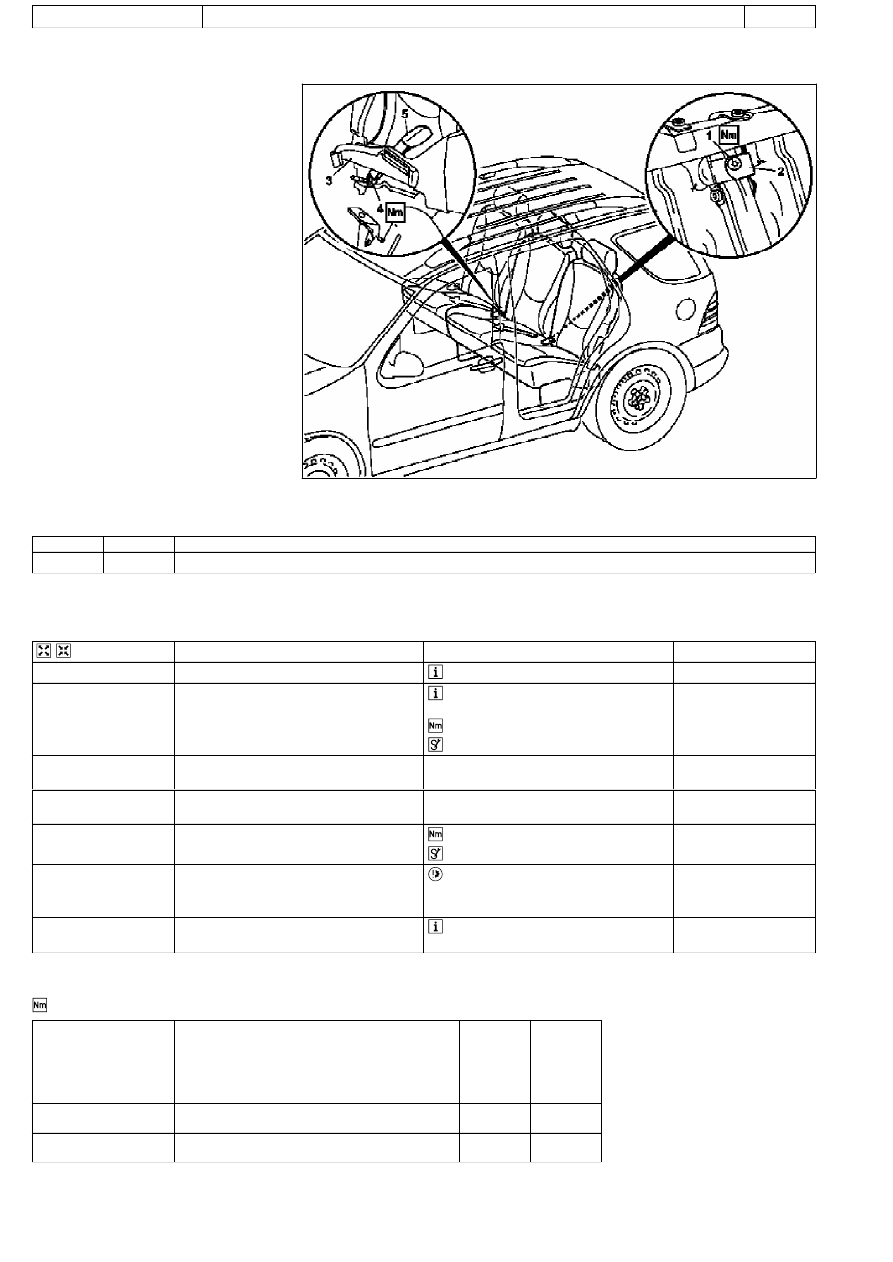

AR91.40-P-0683GH

Removing and installing rear center seat belt

10.3.97

MODEL

163.136 /154 /172 up to 31.8.99

P91.40-0373-06

1

Torx socket bolt

2

Lap belt end fitting

3

Rear seat cover

4

Torx socket bolt

5

Seat belt buckle

Operation no. of operation texts or standard texts and flat rates

Sector

Op. no.

Operation text

P

911107

REPLACING SEAT BELT FOR MIDDLE REAR SEAT



Removing, installing

1

Fold rear seat backrest forward

 See Owner's Manual

2

Unscrew screw (1) for seat belt end fitting on
rear seat

 Inner Torx screw for seat belt is fastened

to rear bench seat frame.



*BA91.40-P-1001-01D

 Torx bit set

*000589011000

3

Pull lap belt end fitting (2) down and out on
rear seat

4

Pull clip channel for rear seat cover (3) off of
right side of seat frame

5

Remove screw (4) on belt buckle



*BA91.40-P-1006-01D

 Torx bit set

*000589011000

6

Pull belt buckle (5) down and out



Check seat belt and belt buckle for

damage.

7

Install in the reverse order



Installation: Ensure they are installed

free of stress. Do not install seat belt twisted.



Seat belts/emergency tensioning retractors

Number

Designation

Model
163 up to
08/99

Model
163 as of
09/99

BA91.40-P-1001-01D

Screw on seat belt end fittings

Nm

35

35

BA91.40-P-1006-01D

Bolt of seat belt buckle to rear seat

Nm

35

45

Copyright DaimlerChrysler AG  14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

Torx bit set

000 589 01 10 00

Copyright DaimlerChrysler AG  14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

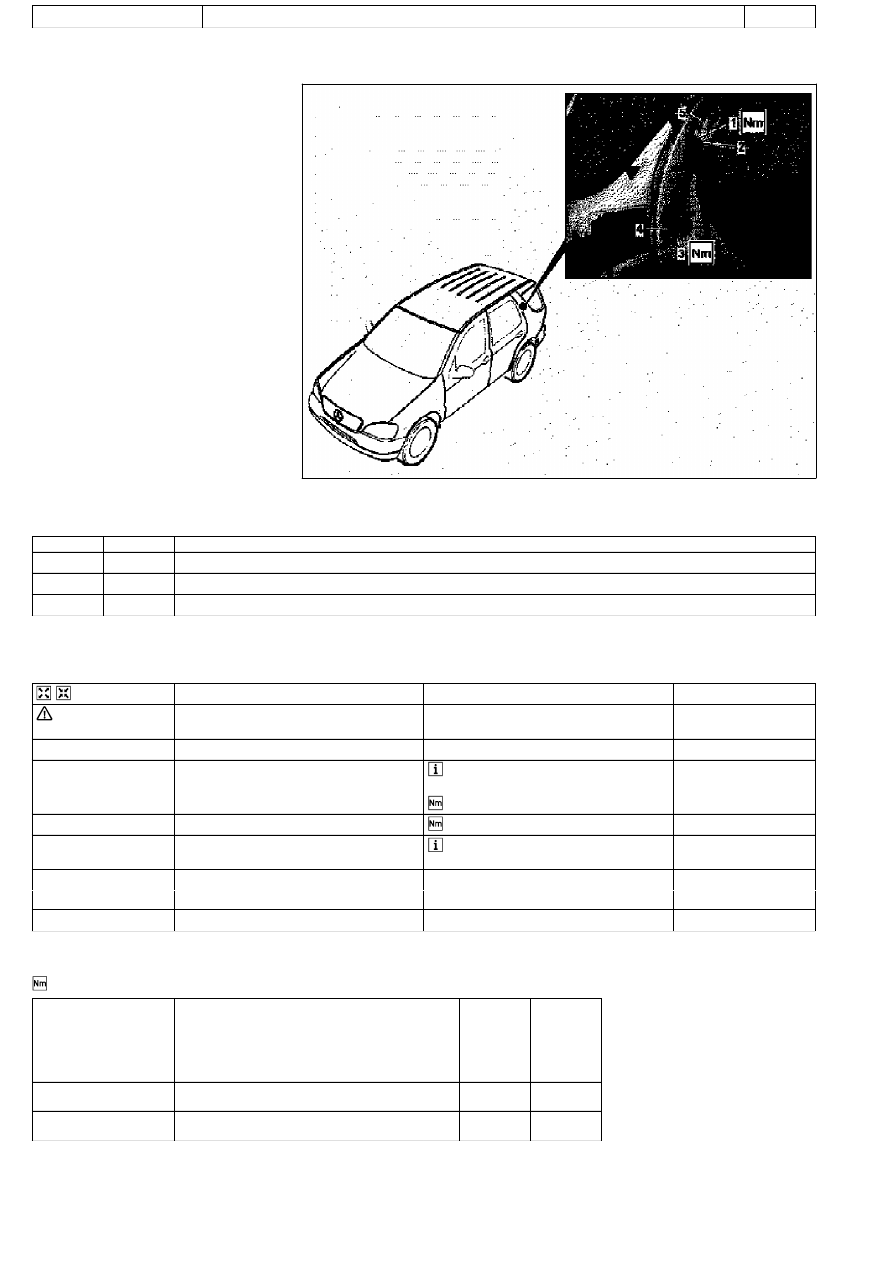

AR91.40-P-0681GH

Removing and installing rear seat belts

13.3.97

MODELS  163.136 /154 /172 up to 31.8.99

P91.40-0360-06

1

Bolt

2

Seat belt guide bracket

3

Bolt

4

Automatic belt retractor

5

Belt height adjuster

Operation no. of operation texts or standard texts and flat rates

Sector

Op. no.

Operation text

P

911087

REPLACING SEAT BELT FOR LEFT REAR SEAT

P

911097

REPLACING SEAT BELT FOR RIGHT REAR SEAT

P

911112

REPLACING SEAT BELTS (BOTH) FOR REAR SEAT



Removing, installing



Danger!

Risk of injury through expansion of
automatic belt retractor spring

Never dismantle automatic belt retractor.

AS91.00-Z-0002-01A

1

Remove paneling on C-pillar

AR68.30-P-4490GH

2

Remove bolt (1) on seat belt guide bracket (2)



If necessary remove belt height adjuster

(5) .

*BA91.40-P-1002-01D

3

Remove bolt (3) on automatic belt retractor (4)



*BA91.40-P-1003-01D

4

Remove automatic belt retractor (4)



During installation: Note catch of

automatic belt retractor.

5

Check seat belts for damage

e



AP91.40-P-9150GH

6

Install in the reverse order



Seatbelts/emergency tensioning retractors

Number

Designation

Model
163 up to
08/99

Model
163 as of
09/99

BA91.40-P-1002-01D

Screw in rear upper belt guide fitting

Nm

30

30

BA91.40-P-1003-01D

Screw, on rear automatic belt retractor

Nm

30

30

Copyright DaimlerChrysler AG  14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

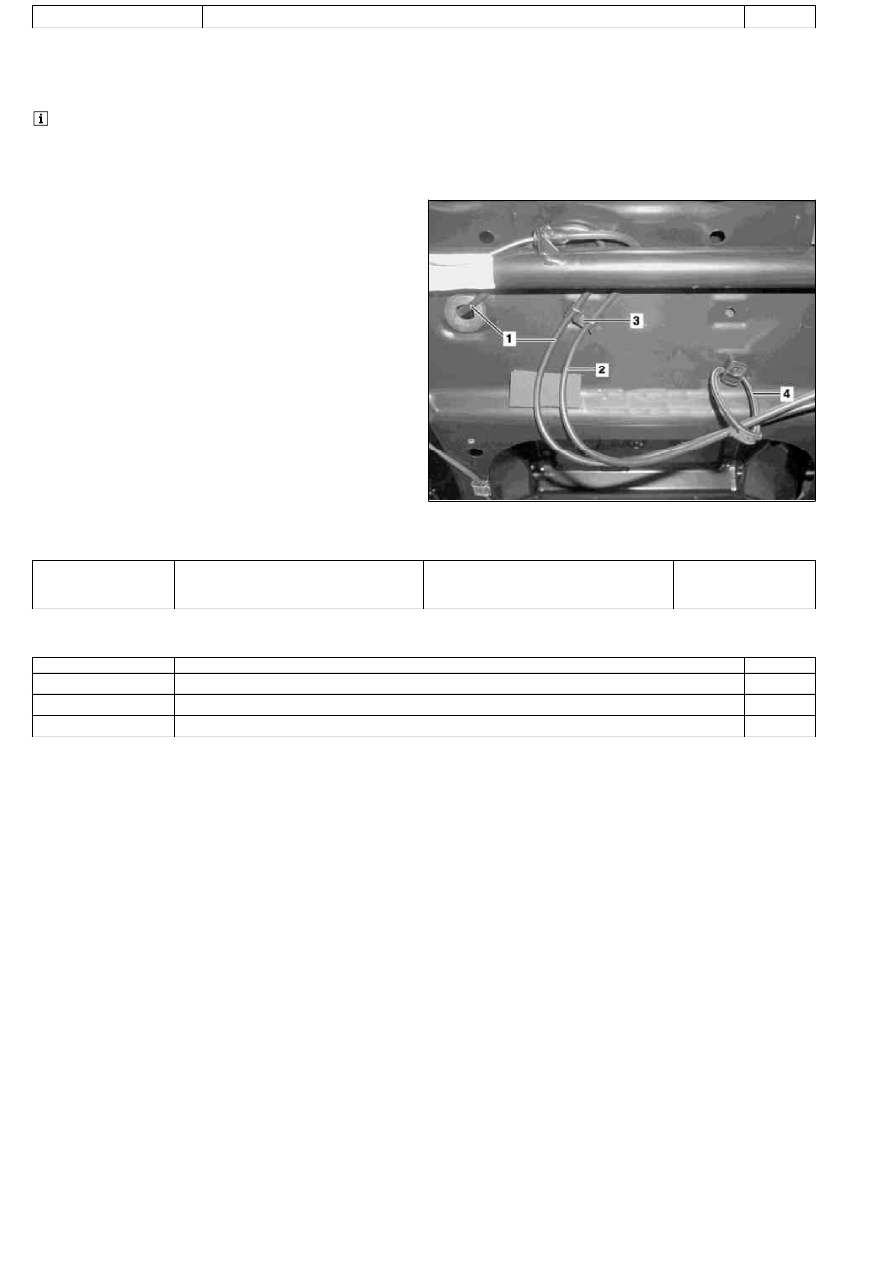

SI91.12-P-0001GH

Service Information: Bowden cables for rear seat

30.5.03

MODELS  163.136 /154 /172 as of 1.9.99,
163.113 /128 /157 /174 /175
40 % rear seat

 The Bowden cables for vertical and horizontal adjustment at the

40 % rear seat now can be individually replaced. The new routing
assignment must be observed when replacing the Bowden cables.
The connection at the release handle and at the rear seat support
remain the same.

P91.12-2598-11

1

Cable, vertical adjustment

2

Cable, horizontal adjustment

3

Clip

4

Rubber straps

f



Remove and install cables for rear seat
adjustment

Models 163.136 /154 /172 as of 1.9.99,
163.113 /128 /157 /174 /175
40 % rear seat

AR91.12-P-1130GH

Parts ordering notes

Part no.

Designation

Quantity

163 920 04 64 38

Cable, horizontal adjustment

1

163 920 12 80

Cable, vertical adjustment

1

000 995 18 14

Clip

1
