Mercedes-Benz ML320. Service manual - part 798





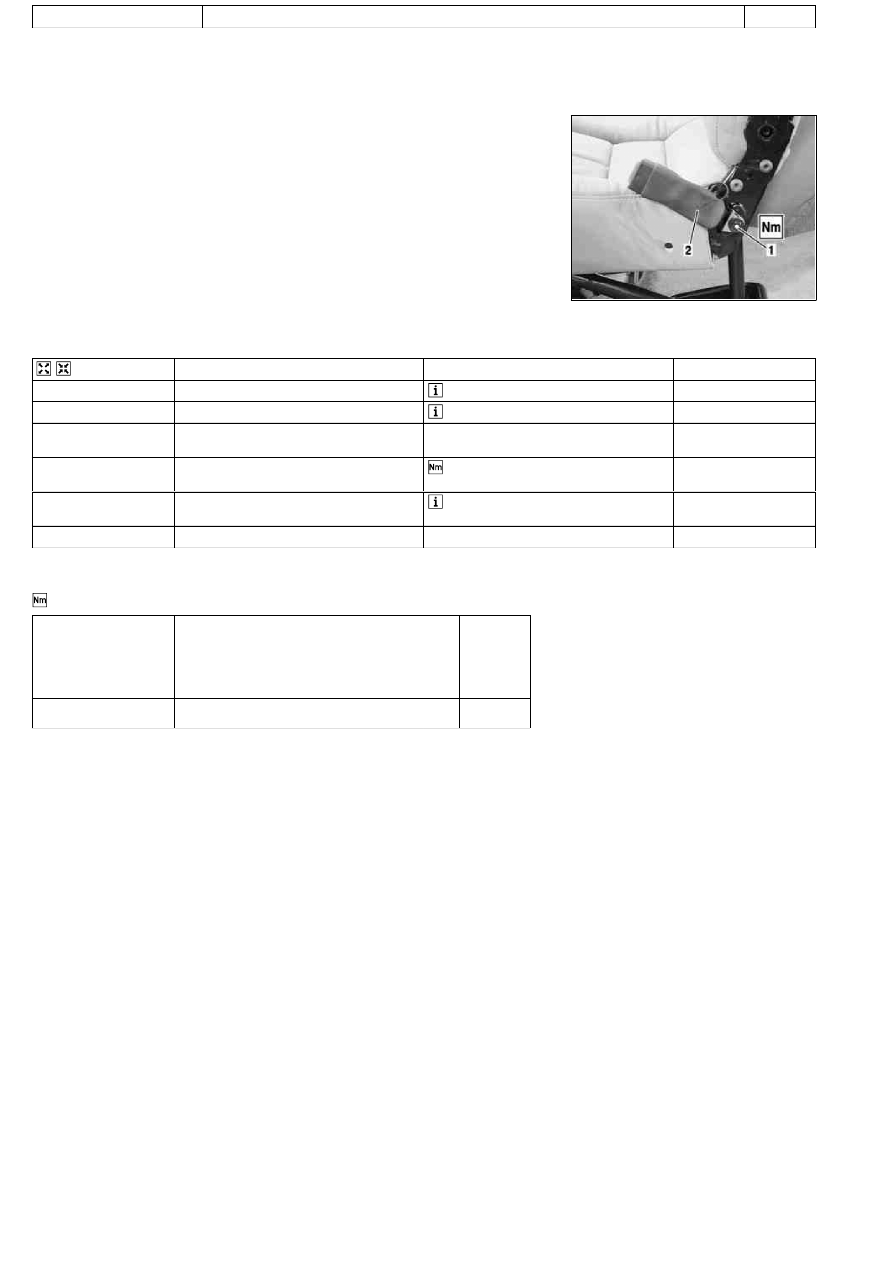

AR91.40-P-1516GH

Remove/install rear seat belt buckle

12.1.00

MODEL

163.136 /154 /172 as of 1.9.99,

163.113 /128 /157 /175 except CODE (293) Left and right rear side bag
40% rear seat

P91.40-2172-01

1

Bolt

2

Rear seat seat belt buckle



Remove/install

1

Fold down 60% rear seat

 See Operating Instructions

2

Fold backrest of 40% rear seat forwards

 See Operating Instructions

3

Remove side covers on rear seat seat belt
buckle

4

Unscrew bolt (1) from rear seat seat belt
buckle (2)



*BA91.40-P-1006-01D

5

Remove rear seat seat belt buckle (2)



Installation: Check rear seat seat belt

buckle for damage.

6

Install in the reverse order



Seat belts/emergency tensioning retractors

Number

Designation

Model
163 as of
09/99

BA91.40-P-1006-01D

Bolt, belt buckle to rear seat

Nm

45

Copyright DaimlerChrysler AG  14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

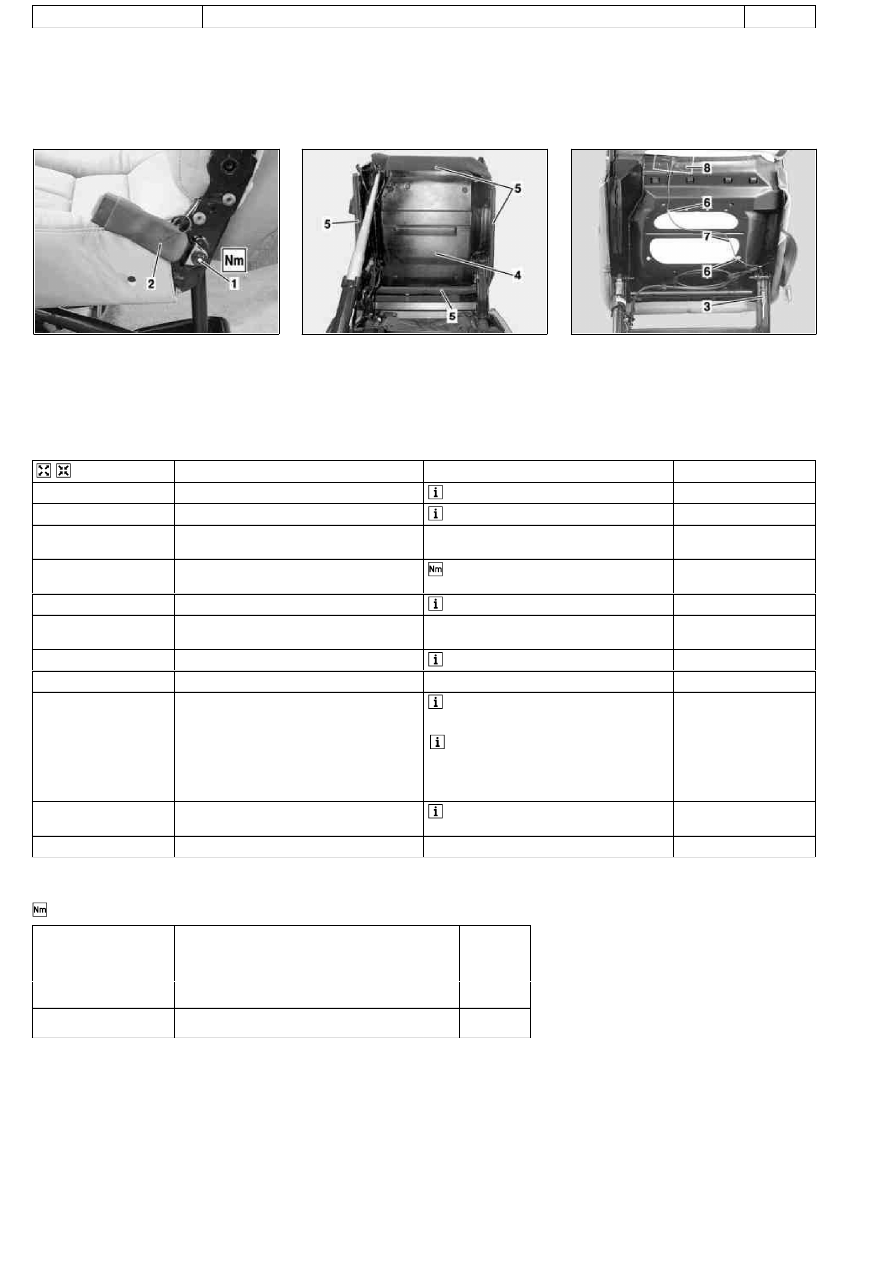

AR91.40-P-1516GK

Remove/install rear seat belt buckle

26.9.02

MODEL

163.136 /154 /172 as of 1.9.99,

163.113 /128 /157 /175 with CODE (293) Left and right rear side airbag
40% rear seat
MODEL

163.174
40% Rear seat

P91.40-2172-01

P91.18-2030-01

P91.40-2173-01

1

Bolt

2

Rear seat seat belt buckle

3

Connector

Adhesive tape

4

Lower cover

6

Retaining straps

7

Electrical line for rear seat seat belt
buckle



Remove/install

1

Fold down 60% rear seat

 See Operating Instructions

2

Fold backrest of 40% rear seat forwards

 See Operating Instructions

3

Remove side covers on rear seat seat belt
buckle

4

Unscrew bolt (1) from rear seat seat belt
buckle (2)



*BA91.40-P-1006-01D

5

Turn ignition key to "0" position

 To avoid fault codes.

6

Disconnect connector (3) from electrical line
of rear seat seat belt buckle

7.1

Remove lower cover (4)

 Only with 3rd seat row, code 847.

8

Remove retaining straps (6)

9

Unhook rear seat cover on reverse side and
pull out electrical line for rear seat seat belt
buckle (7) on rear seat cushion

 Loosen adhesive tape (8).



Installation: Route electrical line for rear

seat seat belt buckle (7) correctly and fasten
to rear seat cushion frame using new
adhesive tape (8).

10

Remove rear seat seat belt buckle (2)



Installation: Check rear seat seat belt

buckle for damage.

11

Install in the reverse order



Seat belts/emergency tensioning retractors

Number

Designation

Model
163 as of
09/99

BA91.40-P-1006-01D

Bolt, belt buckle to rear seat

Nm

45

Copyright DaimlerChrysler AG  14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

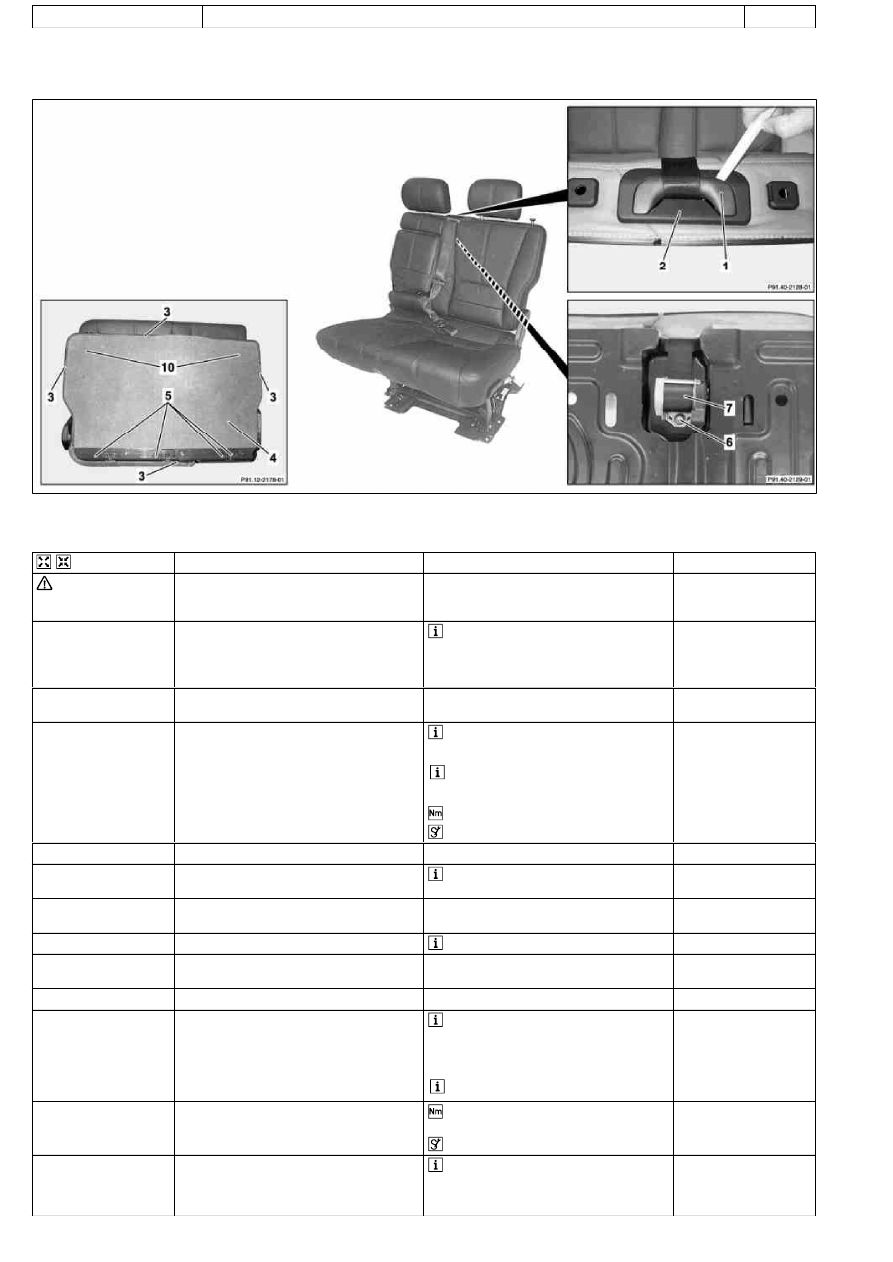

AR91.40-P-0683GI

Remove, replace and install rear center seat belt

4.5.99

MODELS  163.136 /154 /172 as of 1.9.99,
163.113 /128 /157 /174 /175

P91.40-2170-09



Remove/Install

 Danger!

The spring in the inertia reel can pose an
injury hazard
when the tension is released
and it uncoils.

Never disassemble inertia reels

AS91.00-Z-0002-01A

1.1

Disconnect connector from electrical line of
seat belt buckle of the outer rear seat

 Only with side airbag in the rear (left and

right), code 293.

Turn ignition key into position "0" in order to
avoid fault codes.

2

Unhook rear seat cover on the back of the
rear seat cushion

3

Carefully lift up rear seat cover and unscrew
bolt from belt end fitting

 Do not damage rear seat cover.



Installation: Align rear seat cushion and

rear seat cover correctly.



*BA91.40-P-1001-01D

 Torx bit set

*000589011000

4

Remove belt end fitting from rear seat

5

Detach paneling (1) of belt guide (2) from rear
backrest

 Lift up front paneling and remove

6

Unscrew mounting screws of belt guide and
remove belt guide (2)

7

Fold rear backrest forwards

 See Operating Instructions

8

Unhook rear backrest cover (3) on the back of
the rear backrest

9

Unscrew bolts (5) of rear wall paneling (4)

10

Remove rear wall covering (4)

 Pull at the upper corners of the rear wall

paneling in order to remove
body-bound rivets (10).



Installation: Replace body-bound rivets.

11

Unscrew bolt (6) from automatic belt retractor
(7)



*BA91.40-P-1005-01D

 Torx bit set

*000589011000

12

Detach automatic belt retractor (7) and guide
seat belt through the rear backrest cover of
the rear backrest



Installation: Pay attention to catch and

correct installation position of the automatic
belt retractor. Make sure seat belt is not
twisted when installed.

Copyright DaimlerChrysler AG  14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

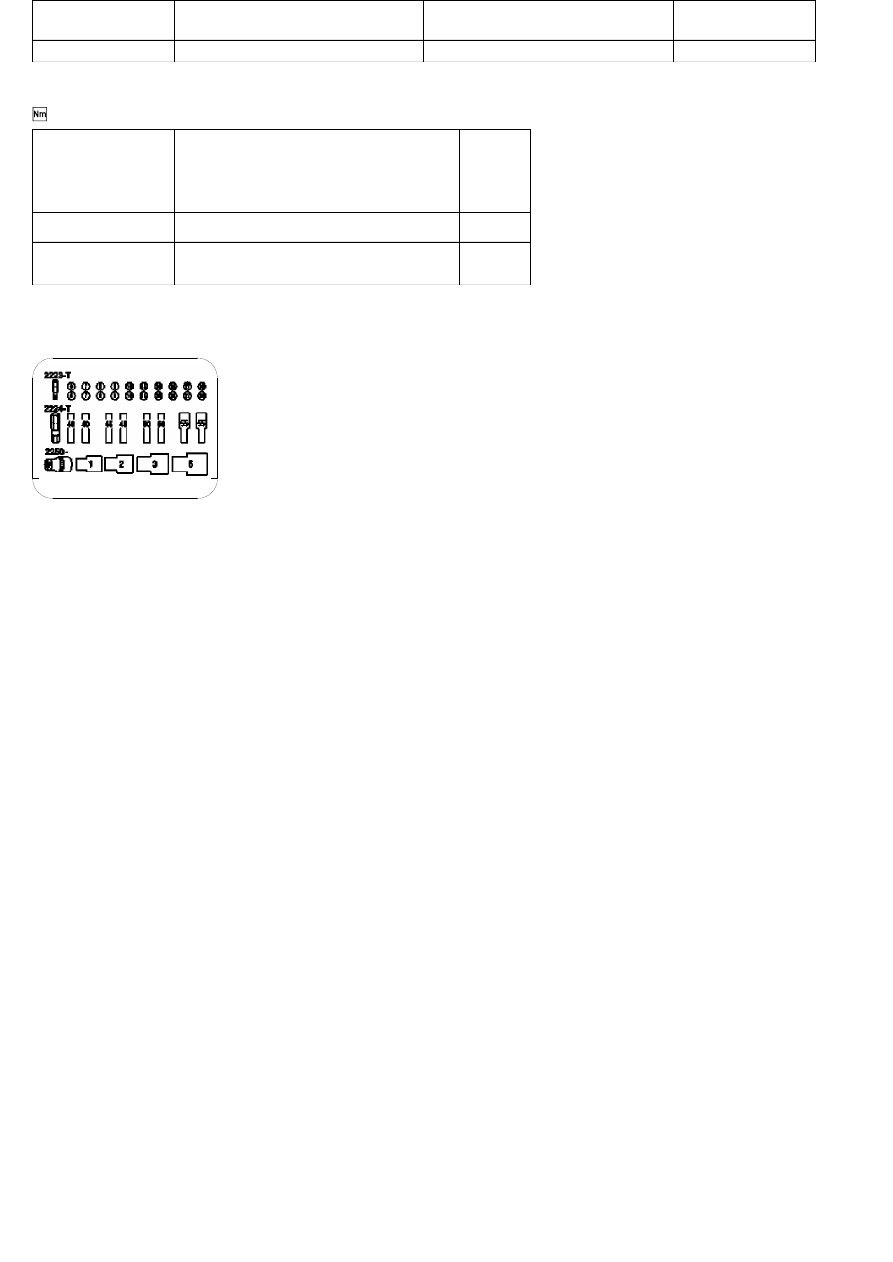

13

Check seat belt for signs of damage

e



Check seat belts for damage

AP91.40-P-9150GH

14

Install in the reverse order



Seat belts/emergency tensioning retractors

Number

Designation

Model
163 as of
09/99

BA91.40-P-1001-01D

Screw on belt end fitting

Nm

35

BA91.40-P-1005-01D

Screw rear seat belt retractor to 2/3 seat
bench

Nm

40

Torx bit set

000 589 01 10 00

Copyright DaimlerChrysler AG  14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2
