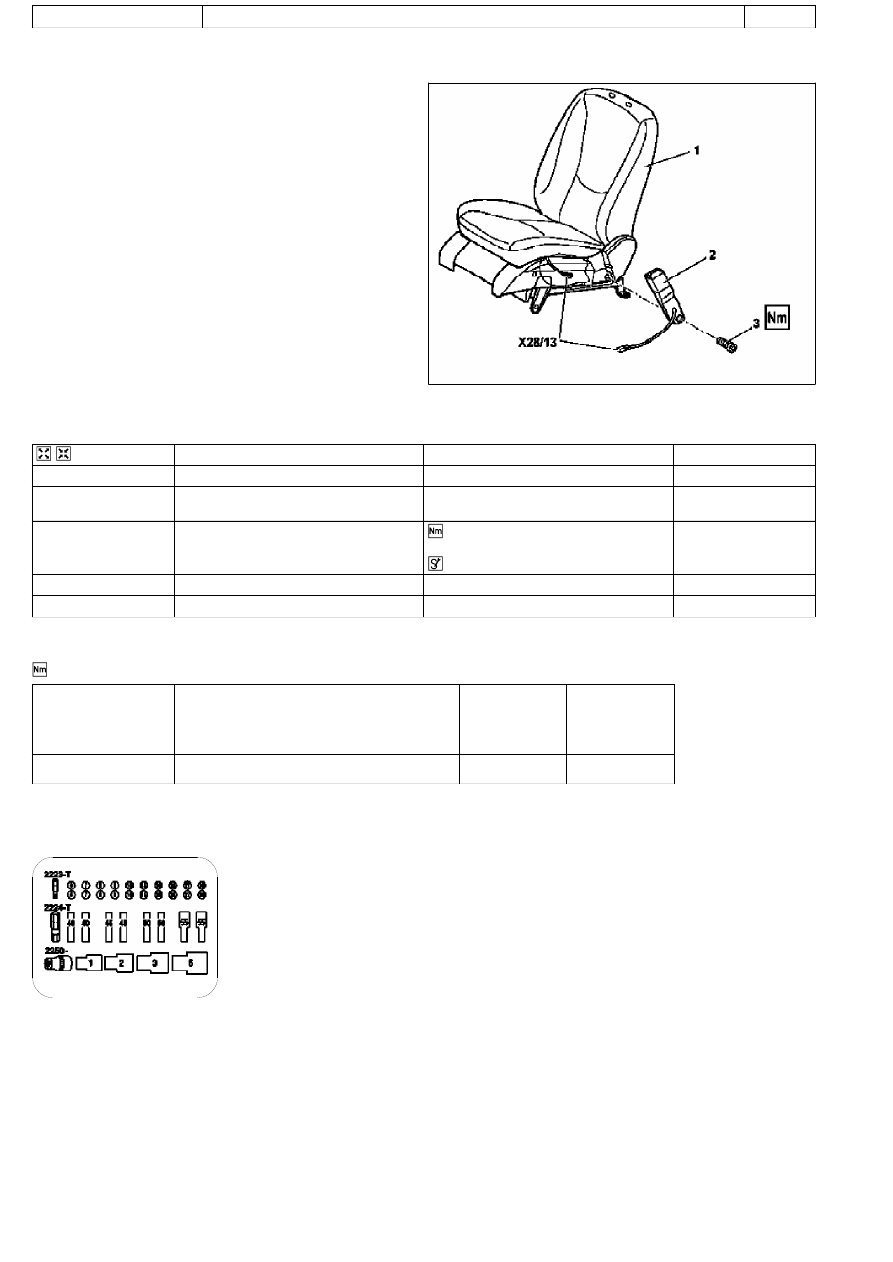

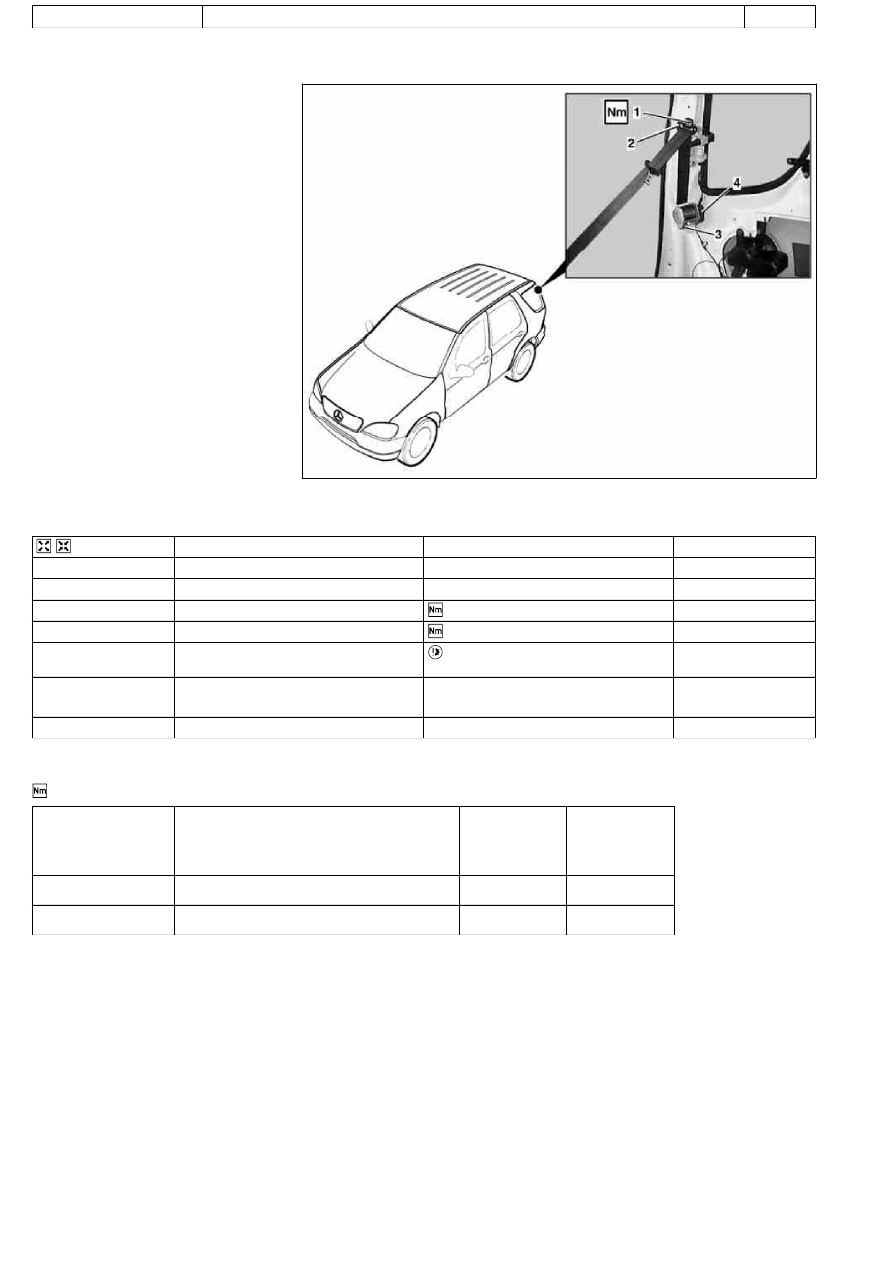

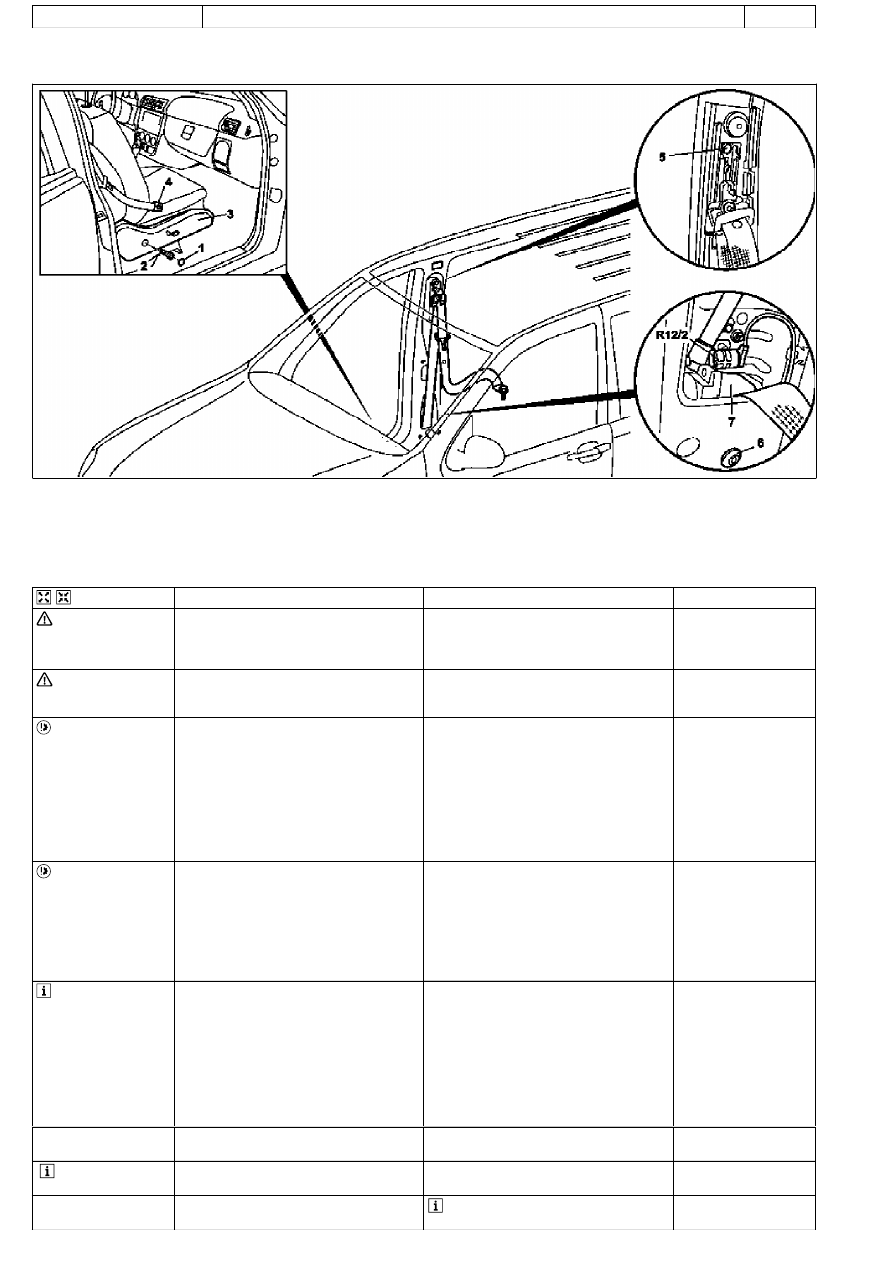

AR91.40-P-2000GH Remove/install seat belts for third row of seats 12.3.97 MODEL 163.113 /128 /136 /154 /157 /172 /175 with CODE (847) 3rd seat row P91.40-0361-06 1 Screw 2 Seat belt guide bracket 3 Screw 4 Automatic belt retractor
Remove, Install 1 Remove rear roof frame paneling AR68.30-P-4470GH 2 Remove paneling on C-pillar AR68.30-P-4490GH 3 Unscrew bolt (1) at seat belt guide bracket (2)
*BA91.40-P-1002-01D 4 Unscrew bolt (3) at automatic belt retractor (4)
*BA91.40-P-1003-01D 5 Remove automatic belt retractor (4) Installation: Pay attention to the automatic belt retractor lock. 6 Check seat belts for damage e
AP91.40-P-9150GH 7 Install in the reverse order
Seat belts/belt tensioners Number Designation Model 163 up to Model 163 as of BA91.40-P-1002-01D Screw on rear upper belt guide fitting Nm 30 30 BA91.40-P-1003-01D Screw to rear inertia reel Nm 30 30 Copyright DaimlerChrysler AG 14.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services. Page 1 |
