Mercedes-Benz ML320. Service manual - part 771





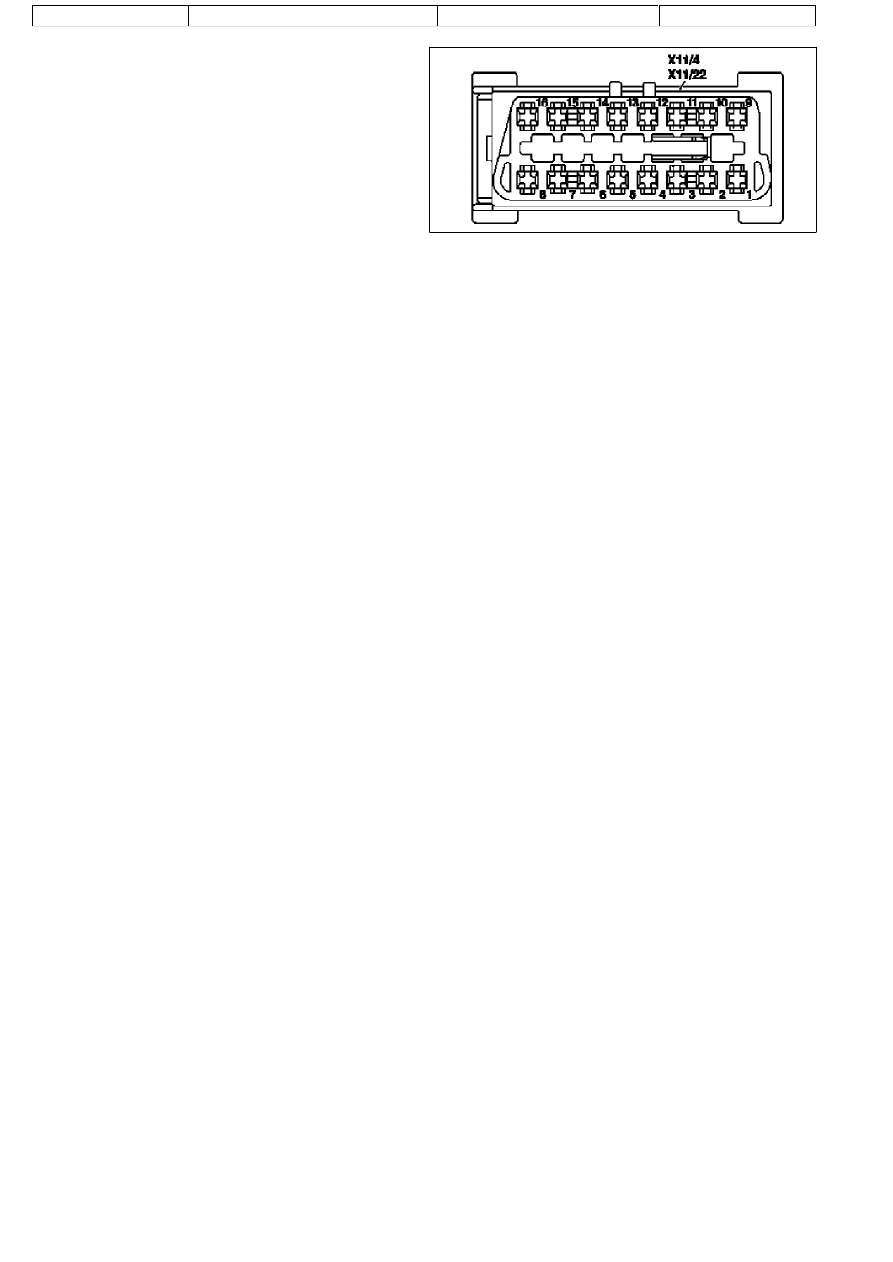

AD00.00-P-2000-02C

Assignment of data link connector

P07.00-0323-10

X11/22

Data link connector

1

Electronic ignition/starter switch control module (model
168)

2

-

3

TNA signal (gasoline)

3

TD signal (diesel)

4

Circuit 31 (ground)

5

Circuit 31 (electronics ground)

6

CAN interior bus (H)

7

ME

Motor electronics (ME-SFI)

8

Circuit 87 voltage

9

ABS Anti-lock brake system (model 168)

9

ETS Electronic traction system (model 163)

9

ASR Acceleration slip regulation (model 168)

9

ESP Electronic Stability Program

10

-

11

ETC Electronic transmission control

11

FTC Front transmission control (model 168)

11

Automatic clutch (model 168)

12

AAM All activity module

12

RD

Radio Audio 10, Audio 30, and Audio 30 APS with D2B

(model 168)

13

AB

Airbag/emergency tensioning retractor

14

CAN interior bus (L)

15

IC

Instrument cluster

16

Circuit 30 voltage 30

Copyright DaimlerChrysler AG  05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

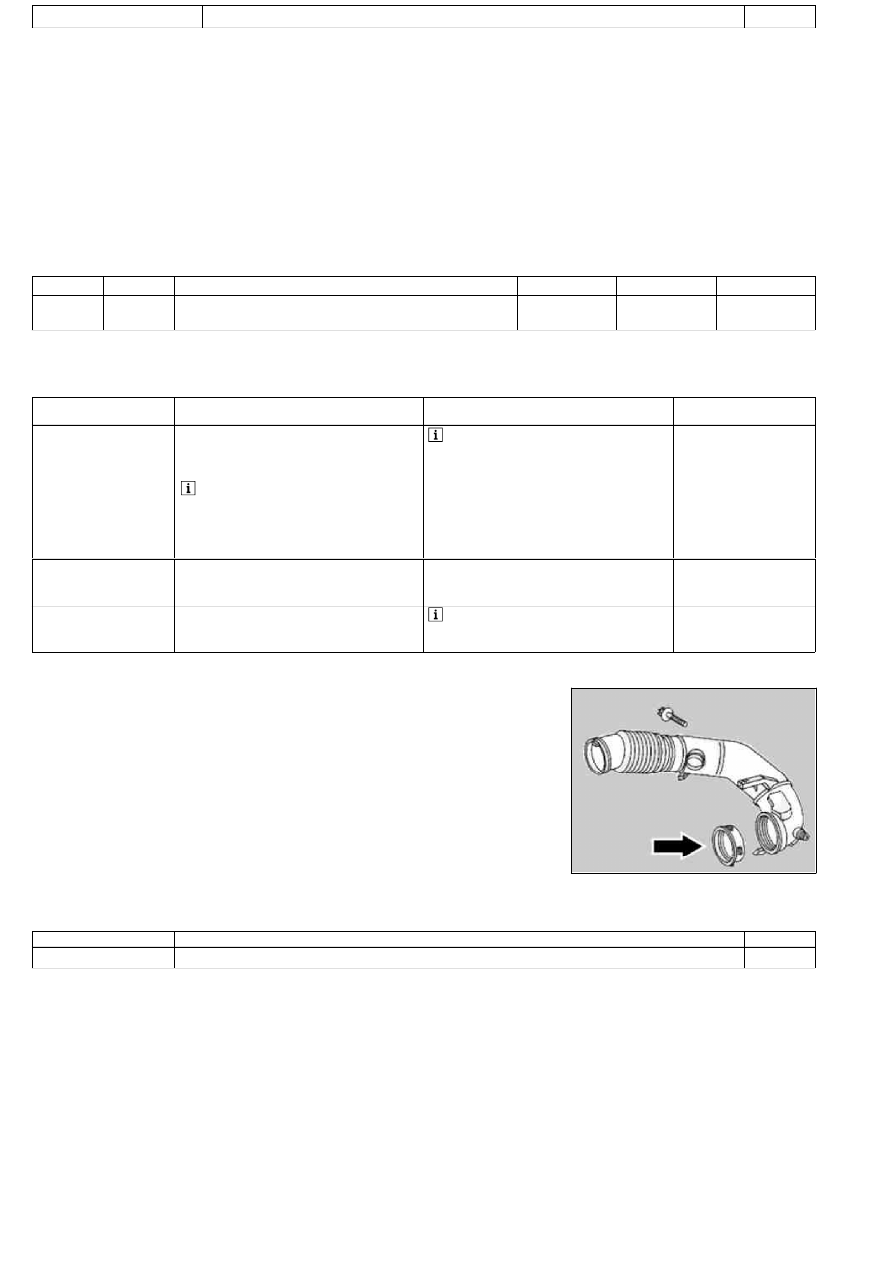

AF07.07-P-2700A

Oil consumption too high

28.1.03

ENGINE

112, 113 in MODEL 163.1## ## up to 357786

ENGINE

112 in MODEL 202.02

ENGINE

112 in MODEL 202.08

ENGINE

112 in MODEL 210.06

ENGINE

113 in MODEL 210.07

ENGINE

112 in MODEL 210.663

ENGINE

112 in MODEL 210.26# ## up to 276396

ENGINE

113 in MODEL 210.27# ## up to 276396

ENGINE

112, 113 in MODEL 210.08# ## up to 084039

ENGINE

112, 113 in MODEL 210.28# ## up to 084039

Operation no. of operation texts or standard texts and flat rates

Category

Op. no.

Operation text

Time

Acc. no.

Code

P

023813

Remove/install/replace gasket between intake pipe and throttle
valve

006 WU/0.5 h

---

---

Damage code

Cause

Remedy

14 034 04

Gasket (B) between intake pipe (A) and
throttle valve defective.

 High oil consumption of more than 0.8

liters per 1000 km.

 In order to avoid erroneous removal the

following documents must be processed
before starting the work:

#

High oil consumption

AF18.00-P-8044D

Measure oil consumption

AR18.00-P-0025AV

1

Remove,/install/replace gasket (B)
between intake pipe (A) and throttle
valve.

AR07.07-P-1454A

 Use new gasket according to parts

ordering notes Old gasket with part number
112 141 01 80 should no longer be used.

P07.07-2038-01

A

Intake pipe

B

Gasket

Parts ordering notes

Part no.

Designation

Quantity

A 112 141 18 80

Gasket

1

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

BT27.20-P-0001-01A

Oil drain plug on torque converter deleted

Transmission 722.6

k

TRANSMISSION 722.6## /6## ## as of 1772285 as of 22.9.99

For reasons of cost, the oil drain plug on the torque converter has
been deleted for all transmission variants.

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

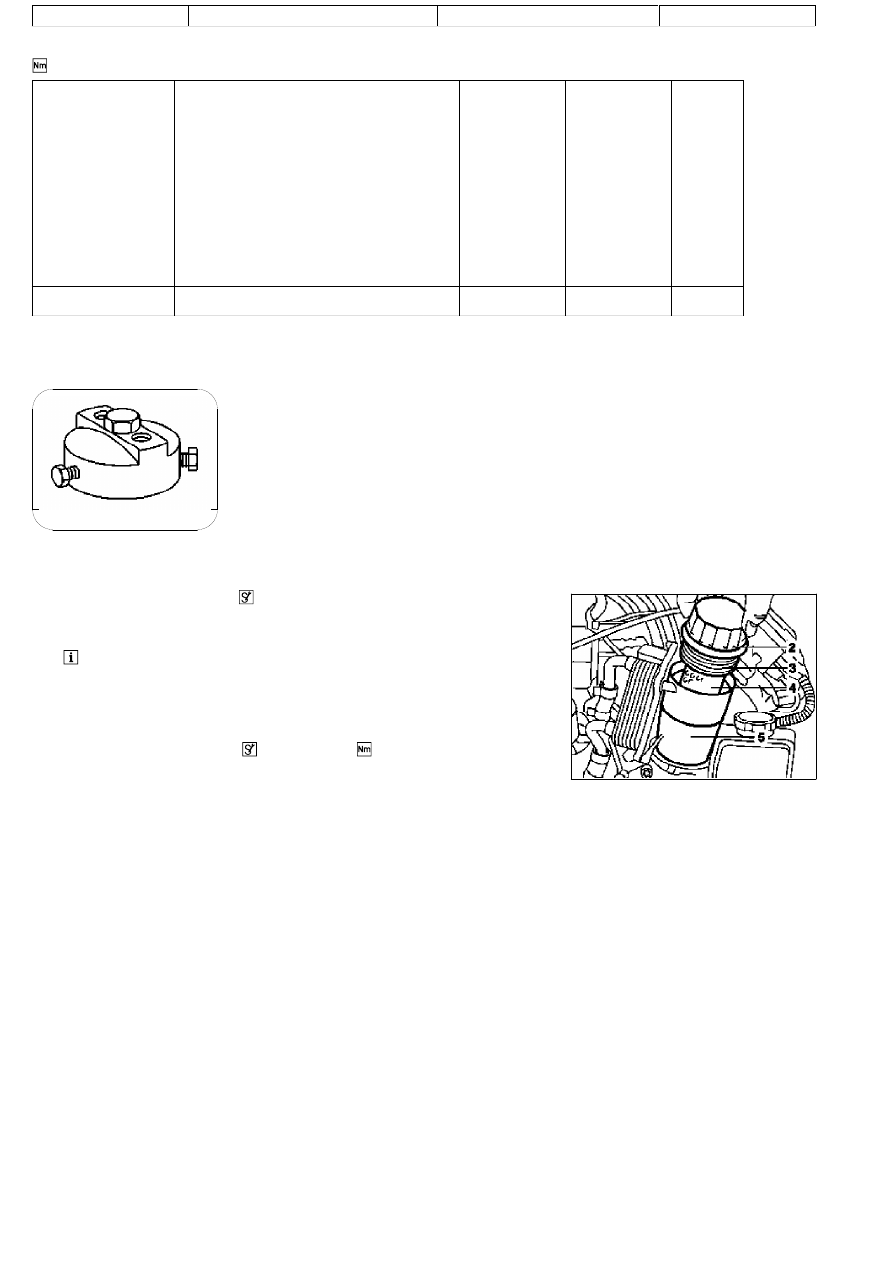

AP18.00-P-0101-06GH

Replacing oil filter element, draining oil filter



Oil filter

Number

Designation

Engines
112.910/911/
912/913/914/
915/916/917/
920/921/922/
923/940/941/
942/943/944/
945/946/947/
949/951/953/
954/955/960/
961/970/972/
973/975

Engines
113.940/941/
942/943/944/
945/946/948/
960/961/962/
963/965/966/
967/968/969/
980/981/982/
984/986

Engines
113.990/
991/993

BA18.20-P-1001-01D

Screw cap on oil filter

Nm

25

25

25

103 589 02 09 00

Socket wrench bit

1

Unscrew screw cap (2) using the

 socket wrench bit and remove together with the oil

filter element (4).

2

Release oil filter element (4) by shortly turning up the middle rod from the screw cap (2).

 Use a suitable container for this operation.

3

Replace seal (3).

4

Insert new oil filter element (4) into oil filter housing (5).

5

Screw on screw cap (2) using the

 socket wrench bit

.

P18.00-0308-01

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
