Mercedes-Benz ML320. Service manual - part 770





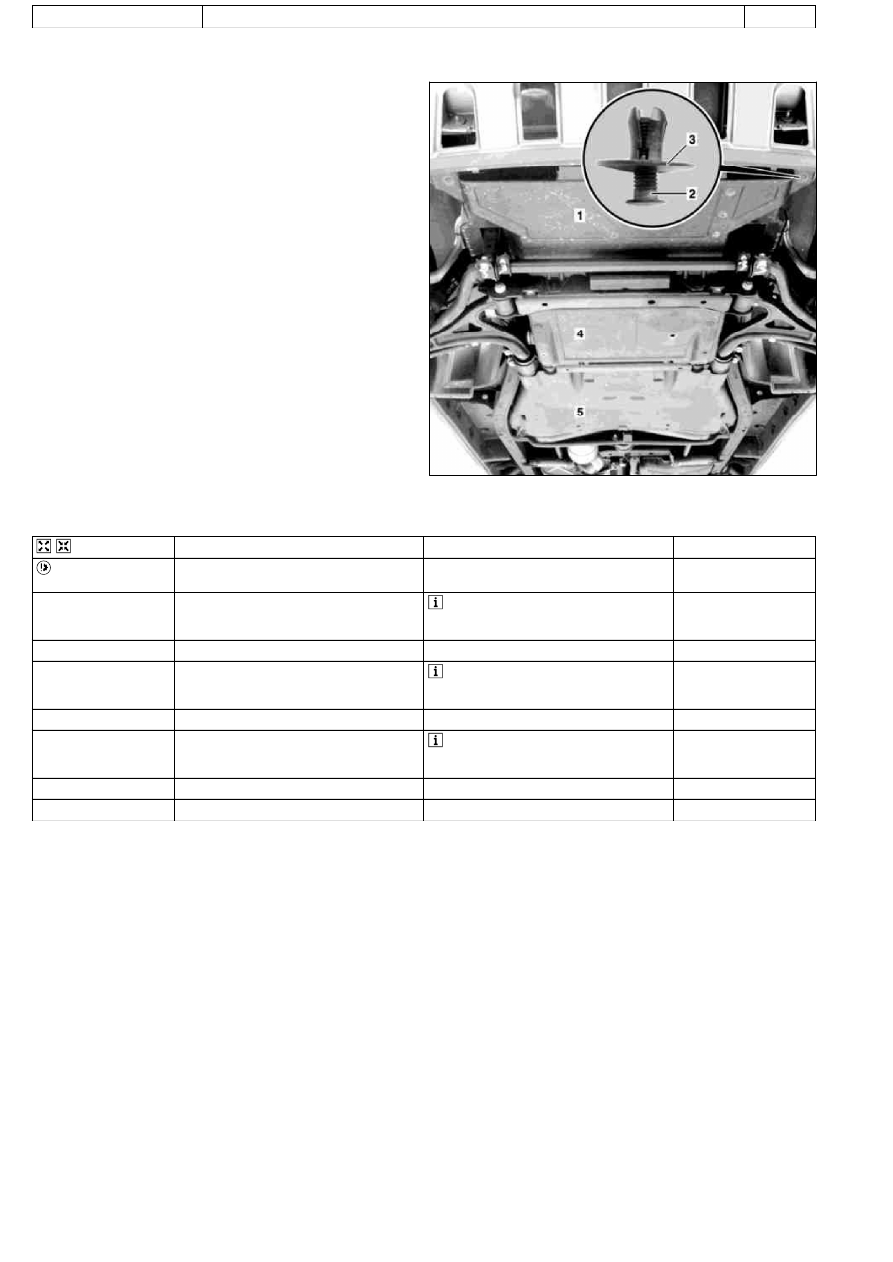

AR94.30-P-5400GH

Remove/install noise encapsulation

16.8.01

MODEL

163.113 /128

P94.30-2011-12

1

Noise encapsulation, front section

2

Headless setscrew

3

Plastic clip

4

Noise encapsulation, center section

5

Noise encapsulation, rear section



Remove, install



Installation

Inspect headless setscrews and plastic clips,
replace if necessary.

1

Remove headless setscrews (2) and plastic
clips (3) from noise encapsulation front
section (4)

 6 headless setscrews and plastic clips.

2

Remove noise encapsulation front section (1)

3

Remove headless setscrews (2) and plastic
clips (3) from noise encapsulation center
section (4)

 4 headless setscrews and plastic clips.

4

Remove (4) noise encapsulation center section

5

Remove headless setscrews (2) and plastic
clips (3) from noise encapsulation rear section
(5)

 8 headless setscrews and plastic clips.

6

Remove noise encapsulation rear section (5)

7

Install in reverse order

Copyright DaimlerChrysler AG  12.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

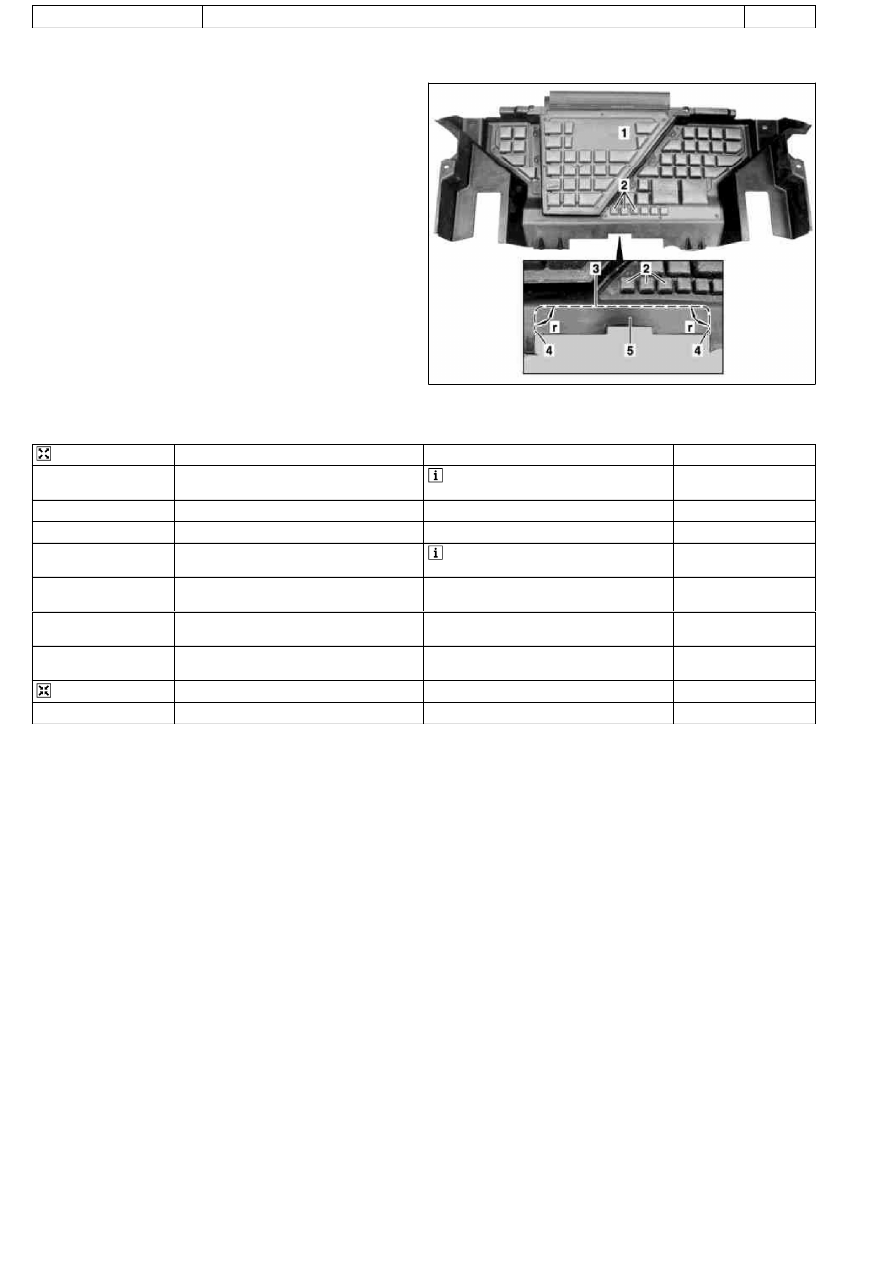

AR94.30-P-5500GH

Modify noise encapsulation

12.9.01

MODEL

163.113

P94.30-2012-11

1

Noise encapsulation, front section

2

Insulation cubes

3

Scribe line, horizontal

4

Scribe line, vertical

5

Area to be removed

r

10 mm



Remove

1

Remove noise encapsulation front section (1)

 Do NOT remove other encapsulation

sections.

AR94.30-P-5400GH

Modify

2

Flatten insulation cubes (2)

3

Scribe two 38 mm vertical lines (4) forward
from rear edge of encapsulation

 Vertical scribe lines should be flush with

outside edges of rear cutout in encapsulation.

4

Scribe a straight, horizontal line (3) between
vertical lines

5

Radius forward corners of scribe lines to 10
mm (r)

6

Remove area (5) of encapsulation bordered
by scribe lines



Install

7

Reinstall noise encapslation front section (1)

AR94.30-P-5400GH

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR94.30-P-5400GH

Remove/install noise encapsulation

16.8.01

MODEL

163.113 /128

P94.30-2011-12

1

Noise encapsulation, front section

2

Headless setscrew

3

Plastic clip

4

Noise encapsulation, center section

5

Noise encapsulation, rear section



Remove, install



Installation

Inspect headless setscrews and plastic clips,
replace if necessary.

1

Remove headless setscrews (2) and plastic
clips (3) from noise encapsulation front
section (4)

 6 headless setscrews and plastic clips.

2

Remove noise encapsulation front section (1)

3

Remove headless setscrews (2) and plastic
clips (3) from noise encapsulation center
section (4)

 4 headless setscrews and plastic clips.

4

Remove (4) noise encapsulation center section

5

Remove headless setscrews (2) and plastic
clips (3) from noise encapsulation rear section
(5)

 8 headless setscrews and plastic clips.

6

Remove noise encapsulation rear section (5)

7

Install in reverse order

Copyright DaimlerChrysler AG  17.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AH00.00-N-0001-01A

Notes on self-locking nuts and bolts

All models



Important repair information



Bolts with locking splines, micro-encapsulated bolts and self-

locking nuts must always be replaced after being used once.

There is an increased risk of injury when unscrewing micro-
encapsulated bolts due to the sudden breakaway torque.

Before new micro-encapsulated bolts are screwed in, the mating
thread must be re-cut in order to remove all the residue of the old bolt
locking compound.

Copyright DaimlerChrysler AG  06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
