Mercedes-Benz ML320. Service manual - part 740

MODEL 163.136 /154 /172 #A as of 145273, 163.136 /154 /172 #X as of 708319, 163.113 /128 /157 /174 /175

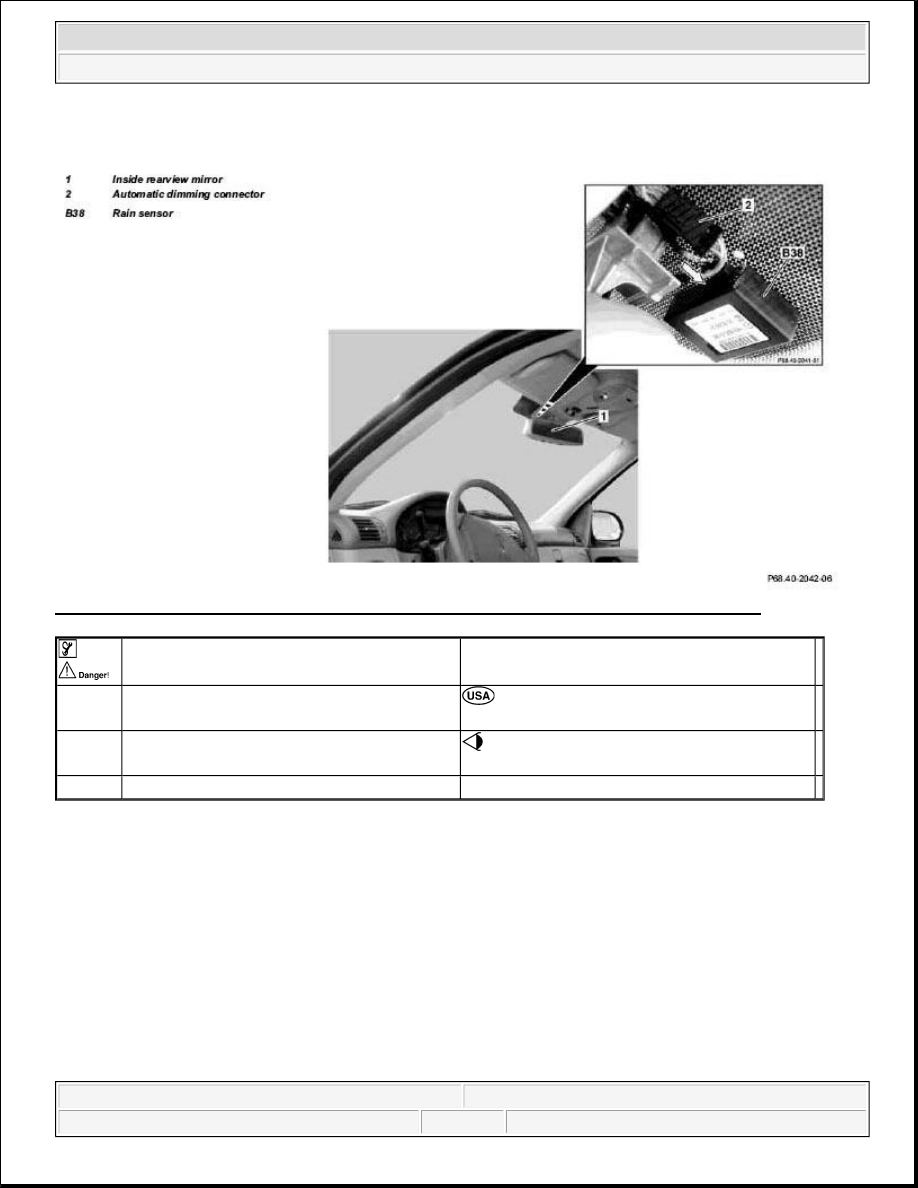

Fig. 74: Identifying Inside Rearview Mirror, Automatic Dimming Connector & Rain Sensor

REMOVING AND INSTALLING SUN VISOR - AR68.60-P-5480GH

MODEL 163





Remove/install





1

Turn inside rearview mirror (1) 90 and press
against mirror housing at side.

 Danger of breaking windshield. Do not

damage rain sensor (B38), if present.



2.1

Disconnect automatic dimming connector (2).

 Only with automatically dimming inside

rearview mirror, code 249a.



3

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



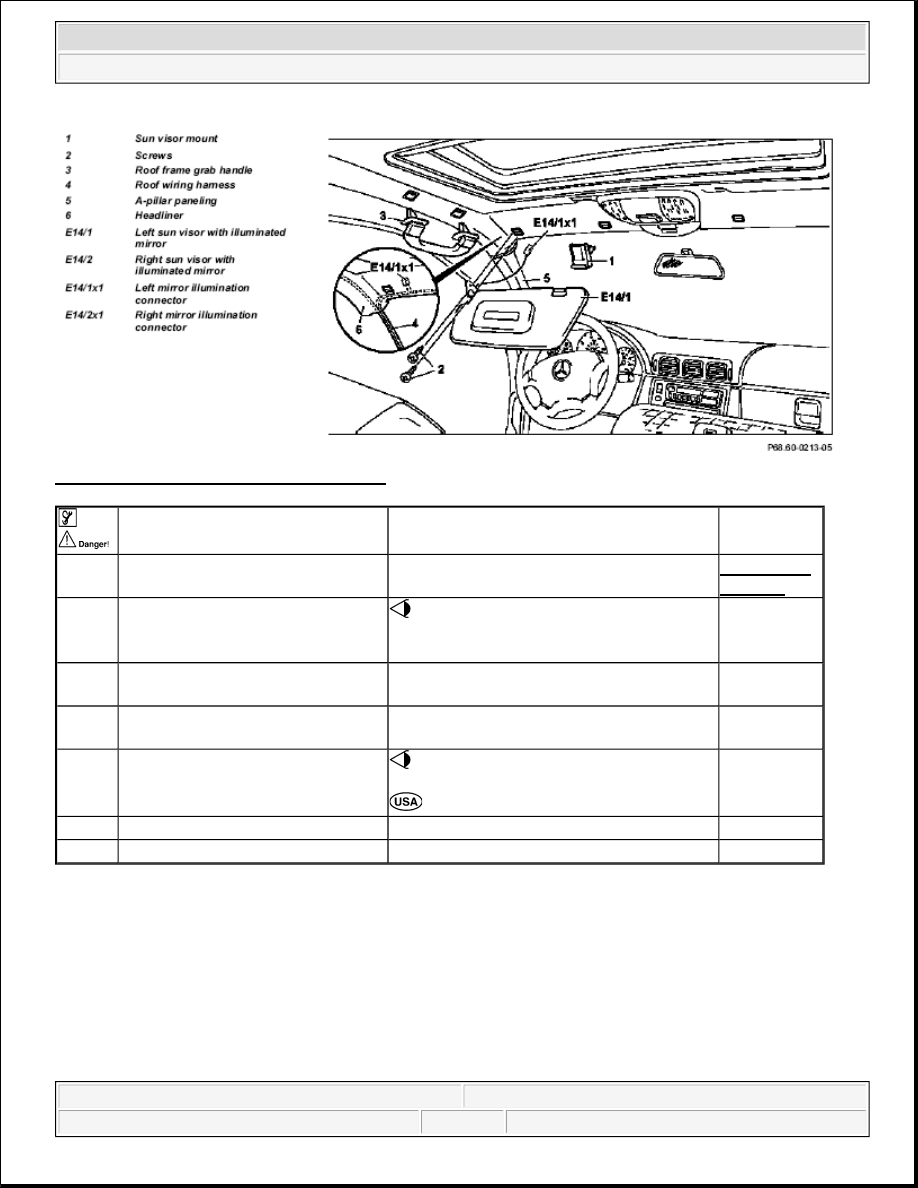

Fig. 75: Identifying Sun Visor Components

MAINTENANCE

CLEAN DOME (PREFABRICATED HEADLINER) FROM TEXTILE MATERIAL, FLOOR COVERINGS, REAR SHELF,
AND OTHER TEXTILES - AP68.00-P-1000-01A

all

Work procedure:

Remove dry contamination such as dust, ashes, etc. with dust extractor.* If this is not possible, e.g. deep-seated





Removal, installation





1

Remove paneling on A-pillar (5)



AR68.30-P-
4050GH

2

Remove roof frame grab handles (3)

 Open cover for grab handles, press both

clips together and push grab handles upward.
Pull out grab handles.



3

Unclip sun visor mount (1) on roof
frame





4

Unscrew screws (2) from sun visor
hinge on roof frame





5

Disconnect connector (E14/1x1,
E14/2x1) of sun visor from roof
wiring harness (4)

 Pull headliner down approx. 10 cm at

corner next to A-pillar.

 Do not kink headliner.



6

Remove sun visor (E14/1, E14/2)





7

Install in opposite order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



dry contamination, brush seat with nylon or natural hair brush (not metal brush) and vacuum.

Clean severe spots and soil first with MB car shampoo. Soak up MB car shampoo with absorbent rags or paper
towel and dry (with air drier if required). If this is not successful, clean again with MB spot remover after
drying.

For this purpose, use a rag saturated with MB spot remover.

Generally soak up dissolved spot substances with absorbent rag or paper towel and dry.



Spots cannot always be removed without leaving a ring. In such cases, uniformly clean the individual column,
the entire part or the entire surface.

Carpeting can also be cleaned using the spray vacuum process with carpet cleaning machines

(e.g. Puzzi machine from Karcher company, etc.).

Repair materials

CLEAN SYNTHETIC LEATHER HEADLINER (STRETCH HEADLINER) - AP68.00-P-1000-02A

all

Work procedure

Apply uniformly and thinly with lent-free rag to prevent fluid from penetrating through the fine perforations.



Do not use solvent (naphtha or similar) Damages the surface of the synthetic leather.

Repair materials

CLEANING THE VEHICLE INTERIOR - AP68.00-P-1000ZZ

Number

Designation

Order number

BR00.45-Z-1004-04A

Stain removal solution

A 001 986 28 71

BR00.45-Z-1003-04A

Textile cleaner

A 001 986 25 71

BR00.45-Z-1002-04A

Car shampoo

A 001 986 41 71

Number

Designation

Order number

BR00.45-Z-1005-04A

Cleaner

A 000 986 51 71

BR00.45-Z-1003-04A

Textile cleaner

A 001 986 25 71

BR00.45-Z-1002-04A

Car shampoo

A 001 986 41 71



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



MODEL all

CLEAN INSTRUMENT CLUSTER, STEERING WHEEL AND GEARSHIFT LEVER (STANDARD VERSION) - AP68.10-P-
1000-01A

all

Work procedure

Wipe off with moist, lent-free rag.



Do not use scouring agent to prevent scratching surfaces.

Do not bring Plexiglas cover on instrument cluster and Mercedes Star in steering wheel into contact with
solvent or cleaning agents containing solvents (danger of tension cracking).

Do not apply liquids to Plexiglas cover on instrument cluster.

Repair materials



Cleaning vehicle headliners of textile material (prefabricated headliners), floor
coverings, rear shelf coverings, and other textiles



AP68.00-P-
1000-01A

 Cleaning synthetic leather vehicle headliners (tensioned headliners)



AP68.00-P-
1000-02A

 Cleaning seat belts



AP91.40-P-
1000-01A

 Cleaning instrument cluster, steering wheel and gearshift lever (standard version)



AP68.10-P-
1000-01A

 Cleaning leather upholstery, leather steering wheel, and leather gearshift lever



AP91.18-P-
1000-01A

 Cleaning plastic covering parts



AP68.30-P-
1000-01A

 Cleaning MB Tex upholstery



AP91.18-P-
1000-02A

 Cleaning fabric upholstery



AP91.18-P-
1000-03A

 Cleaning velours upholstery



AP91.18-P-
1000-04A

 Cleaning amaretta upholstery



AP91.18-P-
1000-05A

Number

Designation

Order number

BR00.45-Z-1002-04A

Car shampoo

A 001 986 41 71
