5

Remove roof frame handles at
rear

on each side, simultaneously press handle upward
and pull out

 As of 01.09.01: With integrated coat hook. Open

cover and unscrew screws.



6.1

Remove roof frame handles in
load compartment

 Only with 3rd row of seats, Code 847 Up to

31.08.01: Open covers for handles, press clip for
handle down on each side, simultaneously press
handle upward and pull out.
As of 01.09.01: Open cover and unscrew screws.

 Installation: only up to 31.8.01 and only with

3rd row of seats, Code 847:







Prepare headliner for installing handles

AR68.30-P-
4300-01GH



Fabricate template for
installing handles in headliner



WF58.50-P-
6830-02GH

7.1

Remove rear dome lamp

 As of 01.09.01: Open plastic cover, then

unscrew screws



8

Disconnect connectors from
dome lamps in rear





9.1

Remove coat hanger hook (3)
in roof frame

 Up to 31.08.01: Open covers of coat hooks,

press both clips together and press coat hooks
upward, simultaneously pull out coat hooks.



10

Remove cover for mounting
points of cargo net (4)

Up to 31.08.01: open cover and remove screws.
As of 01.09.01: unclip covers at sides



11

Remove mount (5) on roof
frame for mounting third seat
row

 Open covers for screws and unscrew both

screws. Press clips together, simultaneously press
mount upward and pull out.



12.1

Remove shock absorber (12)

 Only from 01.09.99 to 31.08.01



13

Clip in rear interior lamp
(E15/3)



AR82.20-P-
0113GH

14

Remove sun visors with
illuminated mirror (E14/1 on
left and E14/2 right)



AR68.60-P-
5480GH

15

Remove paneling on B-pillar

AR68.30-P-
4700GH

16

Remove rear roof frame
paneling



AR68.30-P-
4470GH

17

Remove paneling on C-pillar

AR68.30-P-
4490GH

18

Remove rubber door seals





19.1

Pull off edge guard on
headliner in sliding / pop-up
roof cutout (6)

 Only with electric glass sliding/tilting roof, Code

414a.



Pull plastic clip (7) out of



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



REMOVE/INSTALL REAR ROOF FRAME PANELING - AR68.30-P-4470GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

Fig. 67: Identifying Rear Roof Frame Paneling Components

20

headliner (11)





21

Unfasten headliner (11) from
Velcro strips (8)

 Installation: Only with electric sliding/ tilting

roof in glass version, Code (414a): align headliner at
sliding/tilting roof frame.



22

Remove wiring harness (9)
from headliner (11)





23

Unclip screw frame for
headliner / overhead control
panel (10) from headliner





24

Remove headliner (11)
through tailgate





25

Install in the reverse order









Remove, Install





1.1

Remove belt end fitting at bottom of
3rd seat row(1)

Only with 3rd seat row, code 847.









*BA91.40-P-



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



 Seat belts/belt tensioners

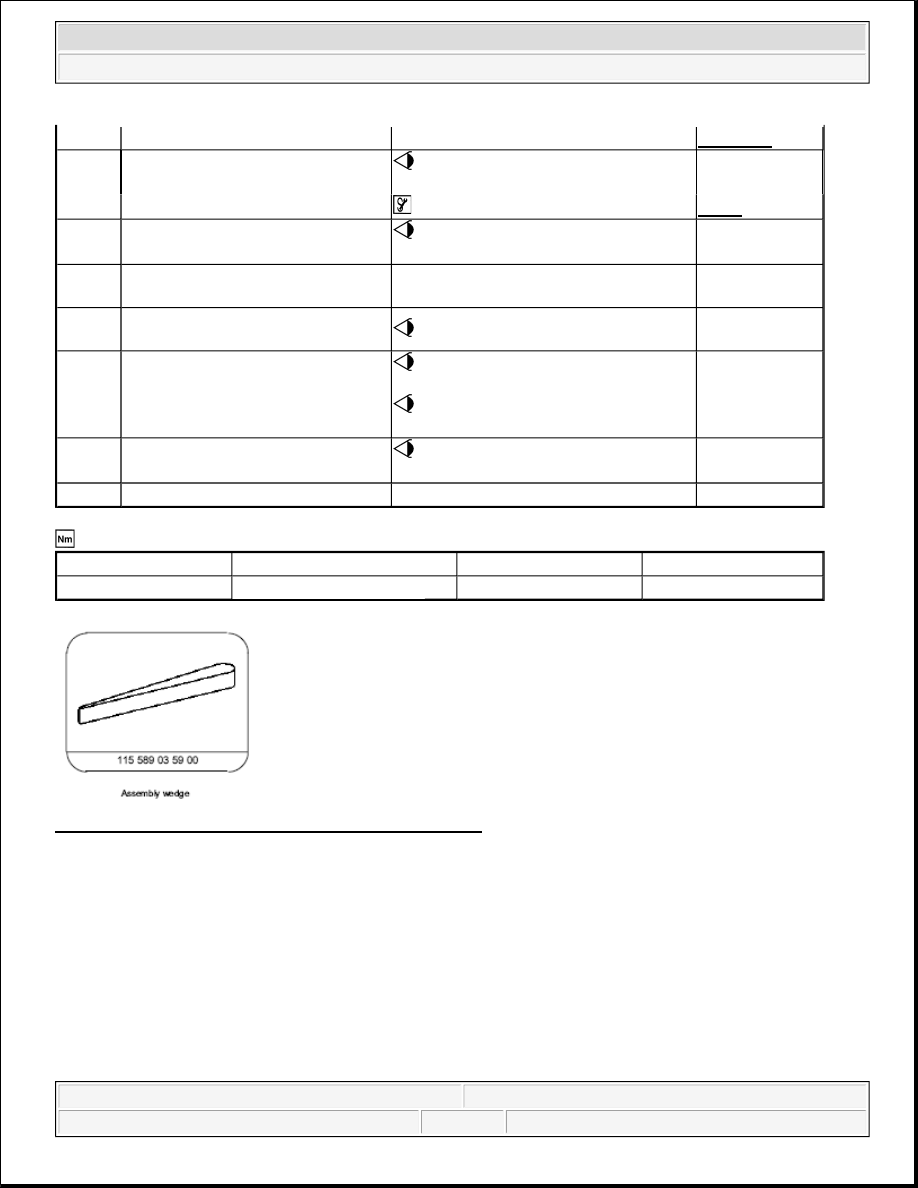

Fig. 68: Identifying Assembly Wedge (115 589 03 59 00)

REMOVE/INSTALL PANELING ON C-PILLAR - AR68.30-P-4490GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

1001-01D

2

Unclip center roof frame covering
(2)

 Installation: Install paneling in door

rubber seal.







 Long wedge

Fig. 6

3.1

Remove expanding anchor (4) from
side roof frame covering (3)

 up to 31.08.01

Installation: Replace expanding anchor.



3.2

Remove screw (5) from side roof
frame paneling (3)





4.1

Unclip side roof frame paneling in
upper outer corner

 As of 01.09.01



4.2

Remove side roof frame paneling (3)
upward

 Only on 3rd seat row, code 847:

remove seatbelt and remove paneling

 Installation: Install paneling in door

rubber seal.



5.1

Disconnect connector from
loudspeaker

 As of 01.09.01 and with sound

system, code 810.



6

Install in the reverse order





Number

Designation

Model 163 up to 08/99 Model 163 as of 09/99

BA91.40-P-1001-01D Screw on belt end fitting

Nm 35

35



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



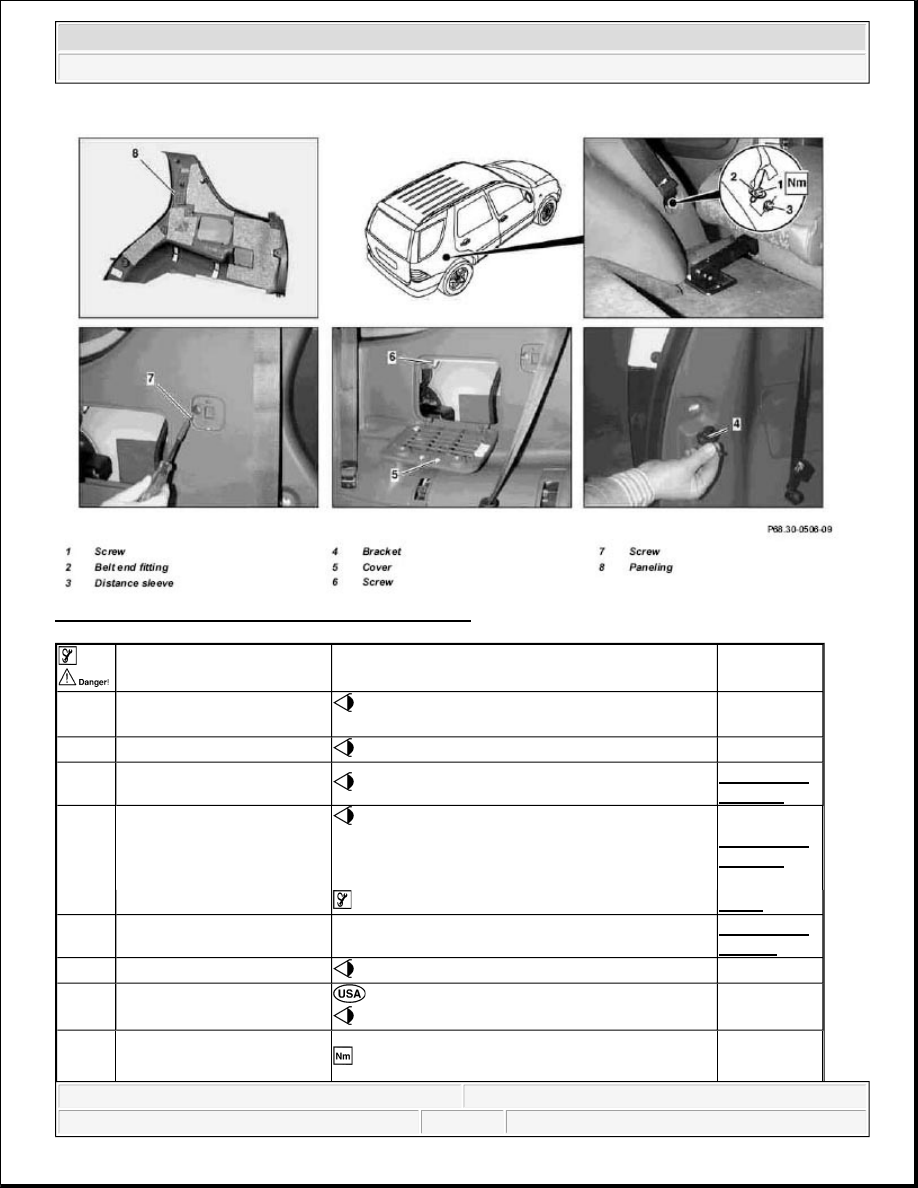

Fig. 69: Identifying Paneling On C-Pillar Components





Remove, Install





1.1

Remove third seat row

 Only with 3rd seat row, code 847. See operating

instructions.



2

Remove safety net

 See Operating Instructions



3.1

Remove spare wheel cover

 Only model 163.174.

AR68.30-P-
4610GH

4

Remove rear roof frame
paneling

 Do not unscrew screw for belt end fitting if

present on 23rd seat row (omit step 1), if present.
Loosen D-pillar paneling from C-pillar and guide to
bottom along seat belt.

AR68.30-P-
4470GH





 Long wedge

Fig. 6

5

Remove door sill molding in
load compartment



AR68.30-P-
4100GI

6

Fold rear seat forward

 See Operating Instructions



7.1

Remove SRS label and
unscrew screw behind

 Risk of fracturing!

 Only as of VIN A145273, X708319.



8

Remove screw (1) and
spacer sleeve (3) from belt



*BA91.40-P-



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me
