Mercedes-Benz ML320. Service manual - part 737





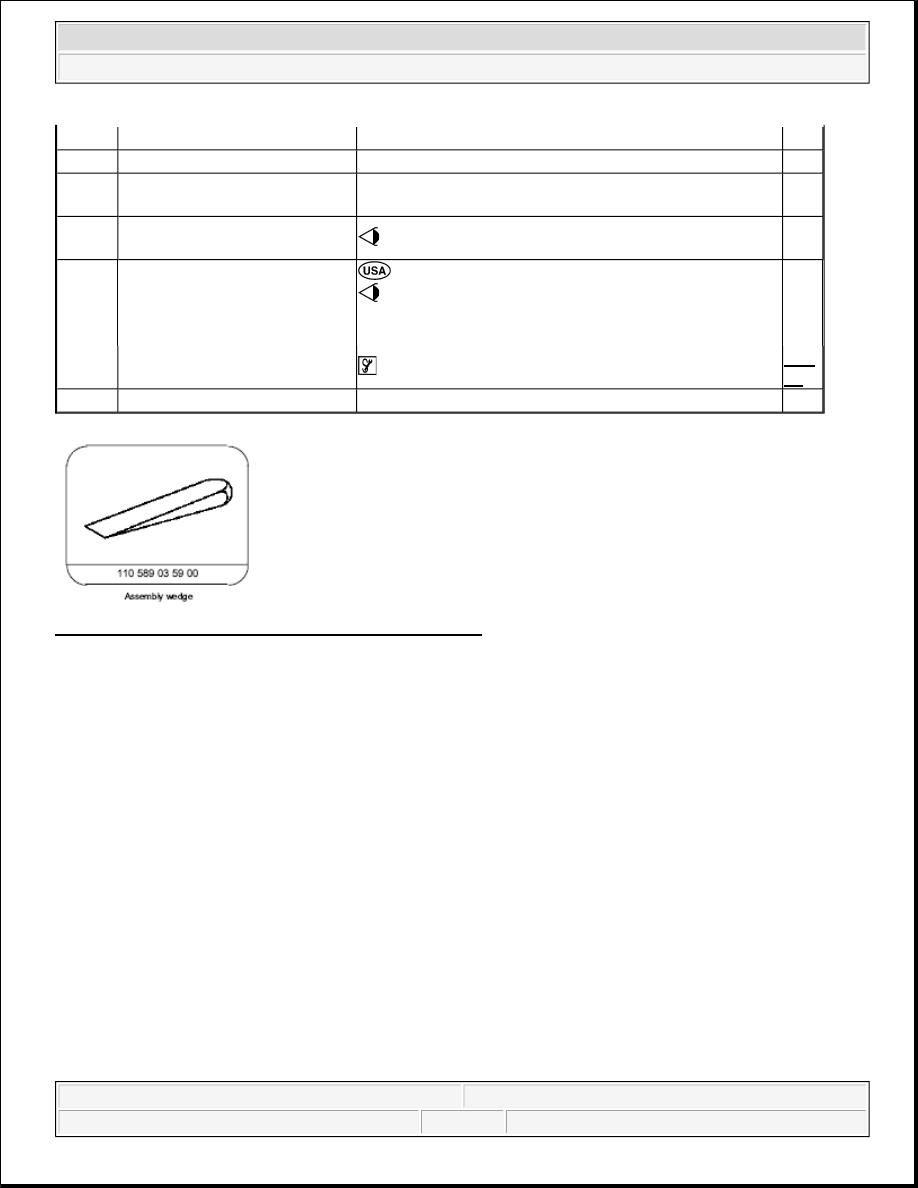

Fig. 63: Identifying Assembly Wedge (110 589 03 59 00)

REMOVE/INSTALL DOOR SILL MOLDING - AR68.30-P-4100GI

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

Door sill molding in cargo space

2

molding (1)





3

Remove cap (4) on B-pillar





4

Unscrew screws (3) from B-
pillar





5.1

Remove rear pin from door sill
molding (1)

 Up to 08/99.



6

Pull out the door sill molding
(1) on the C-pillar paneling
forwards

 Danger of breaking!

 Installation: Use an assembly wedge to lift up the C-

pillar paneling and door seal until the door sill molding
can be inserted without any problems.







 Assembly wedge

Fig.
57

7

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



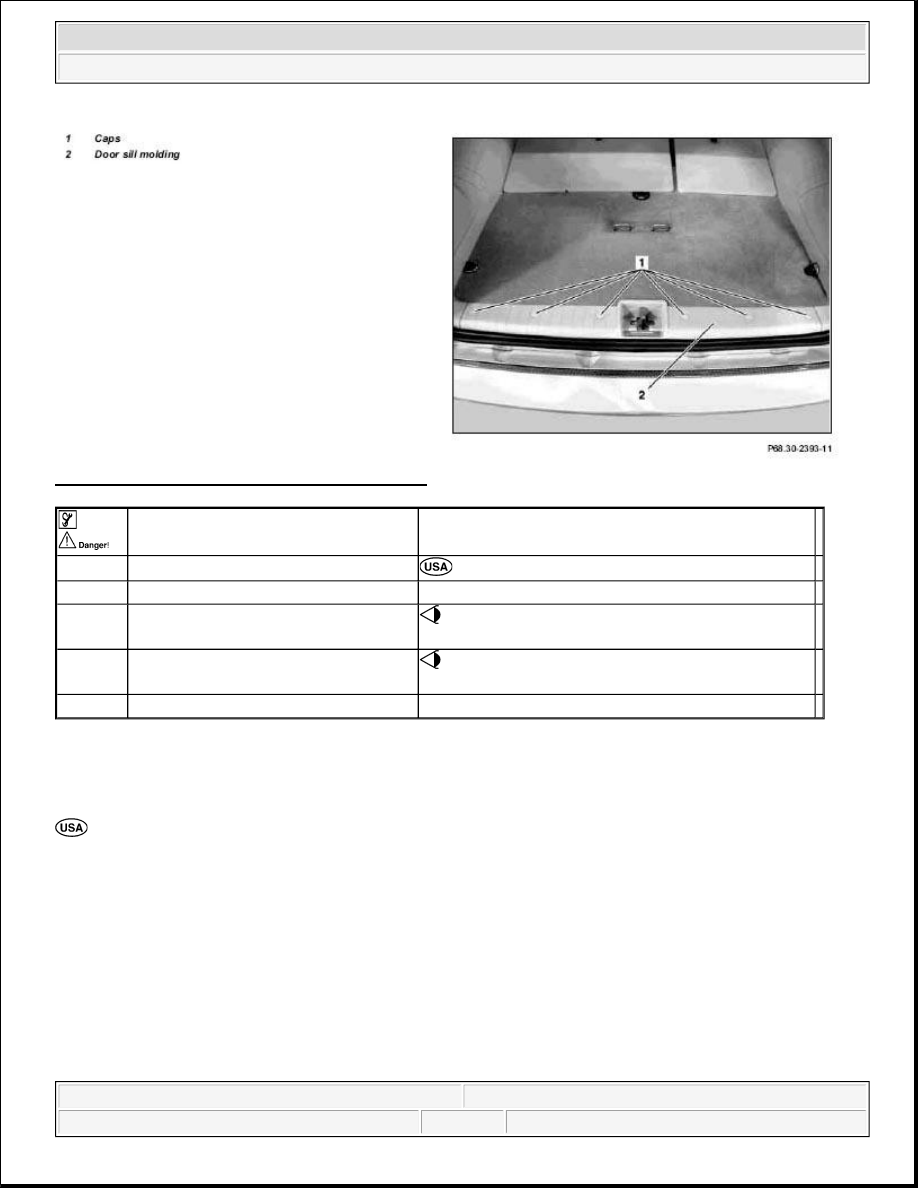

Fig. 64: Identifying Caps And Door Sill Molding

PREPARE HEADLINER FOR INSTALLING HANDLES - AR68.30-P-4300-01GH

Models 163.113/136/154/172 up to 31.8.01

 When aligning the template, ensure that the arrow is pointing in direction of travel and the correct template

is used for each side.

1. Align template at cutouts provided.

2. Mark cutouts for grab handles.

3. Cut out cutouts for grab handles.





Remove/install





1

Remove cover caps (1)

 Do not scratch door sill molding.



2

Remove screws below caps





3

Remove door sill molding (2)

 Installation: Ensure that sealing rubber is

positioned correctly.



4.1

Disconnect connector from electronic
compass

 Only as of 01.09.00 and with code (245), trip

computer.



5

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



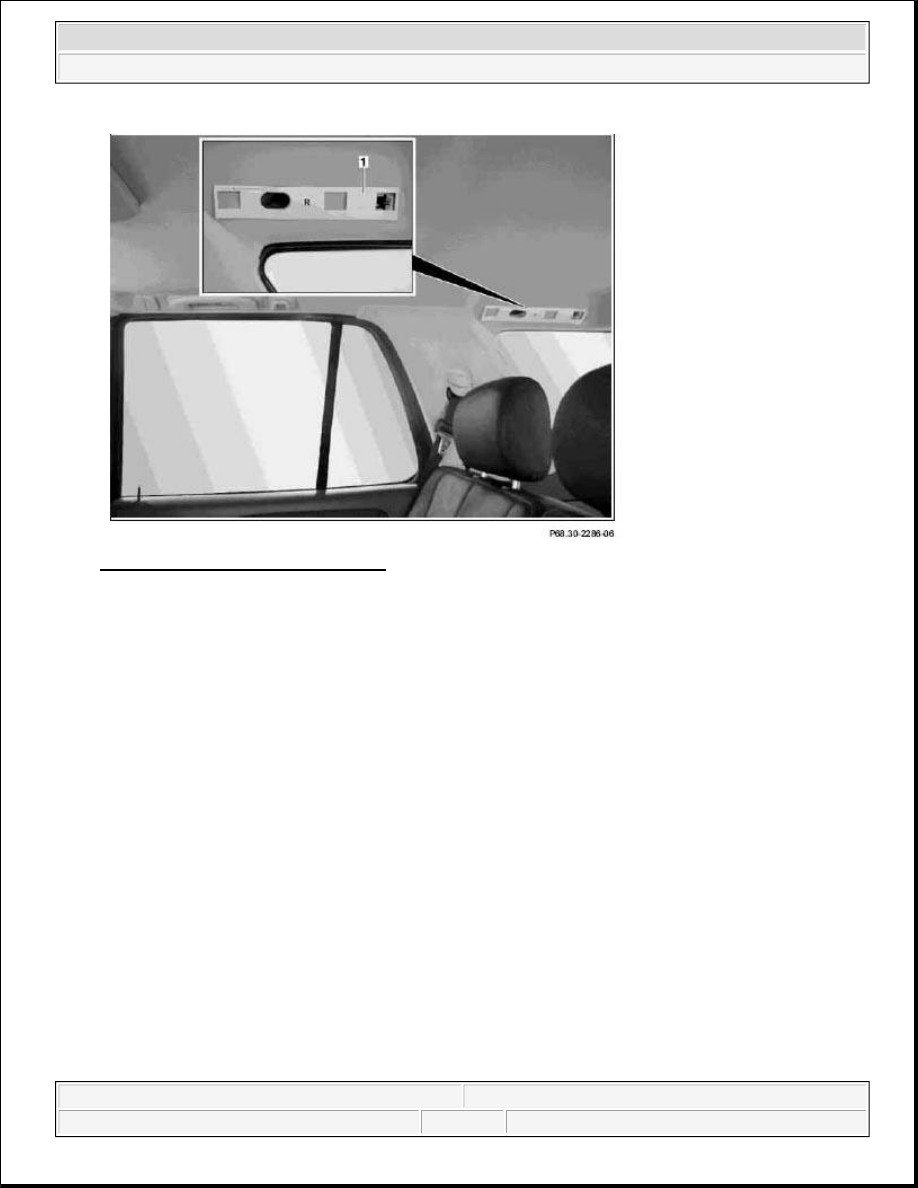

Fig. 65: Identifying Handle Template

REMOVE AND INSTALL HEADLINER - AR68.30-P-4300GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



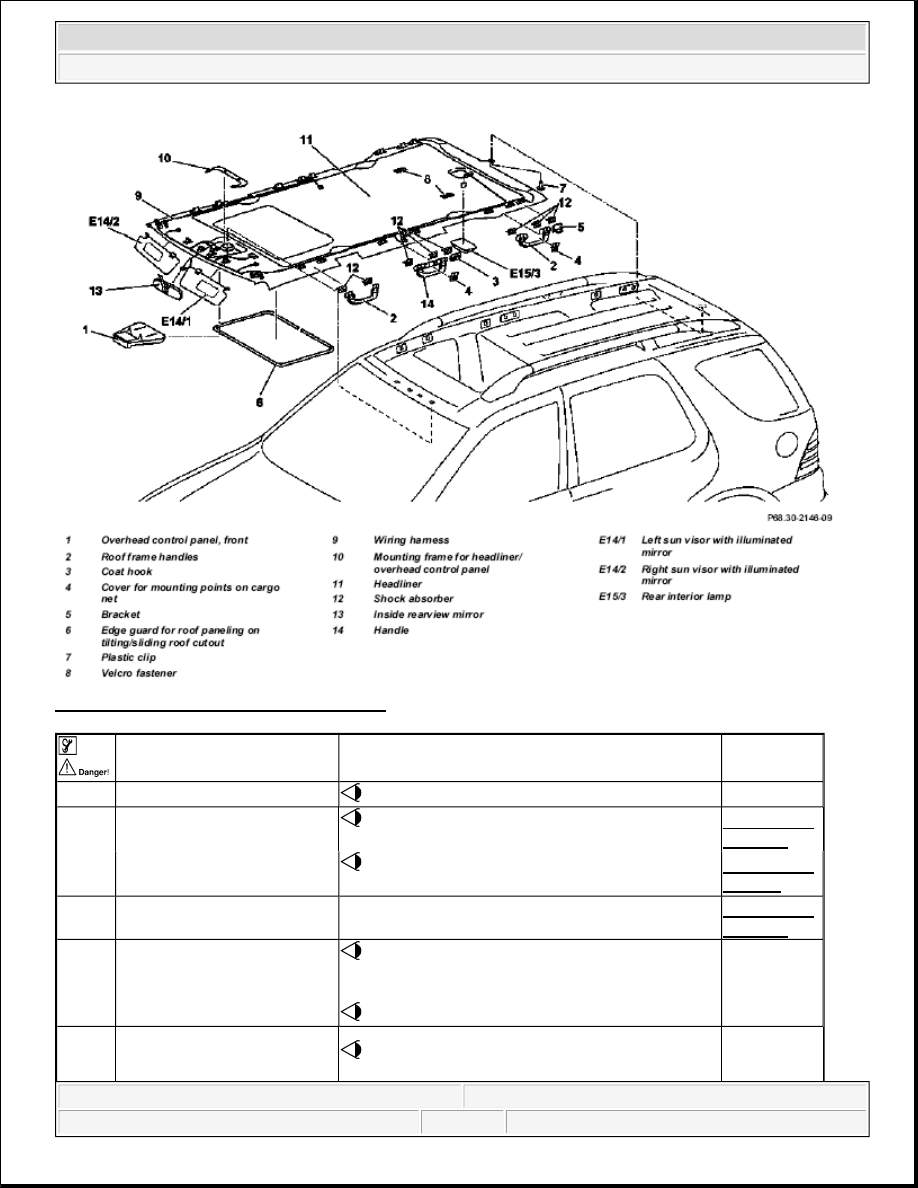

Fig. 66: Identifying Headliner Components





Remove/install





1

Remove headrest

 See owner's manual



2

Remove inside rearview
mirror (13)

 To vehicle identification number A145272,

X708318.

AR68.40-P-
0001GH





 As of vehicle identification number A145273,

X708319.

AR68.40-P-
0001GI

3

Remove front overhead
control panel (1)



AR82.20-P-
1100GH


4

Remove front roof frame
handles (2)

 Up to 31.08.01: Open covers for handles, press

clip for handle down on each side, simultaneously
press handle upward and pull out.

 As of 01.09.01: Open cover and unscrew screws.



 Up to 31.08.01: With integral rear dome lamp.

Open covers for handles, press clip for handle down



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me
