Mercedes-Benz ML320. Service manual - part 735





Fig. 50: Identifying Assembly Wedge (115 589 03 59 00)

REMOVE/INSTALL ARMREST LID ON CENTER CONSOLE - AR68.20-P-2370GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

Illustrated on model 163 up to 31.08.01

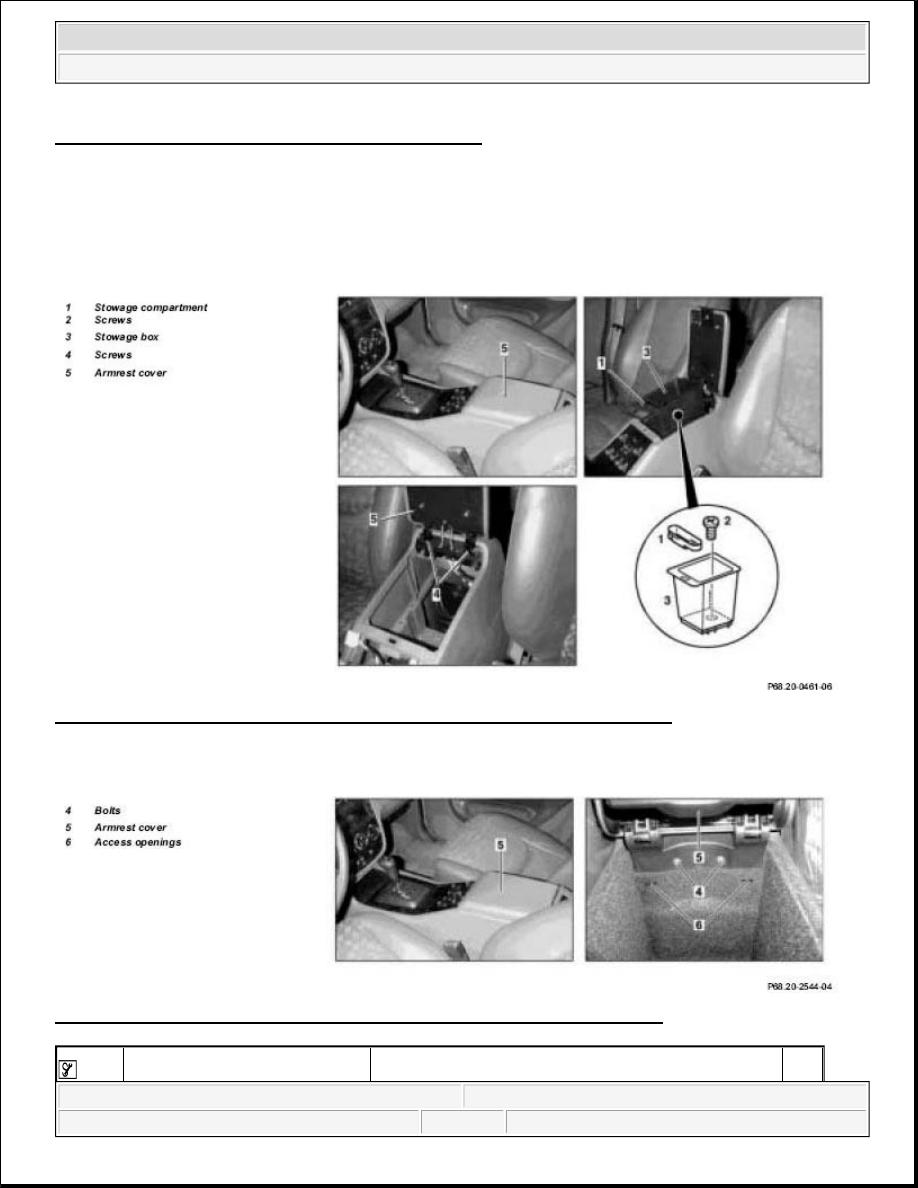

Fig. 51: Identifying Armrest Lid On Center Console - Model 163 Up To 31.08.01

Illustrated on model 163 as of 01.09.01

Fig. 52: Identifying Armrest Lid On Center Console -Model 163 As Of 01.09.01



Removing, installing







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



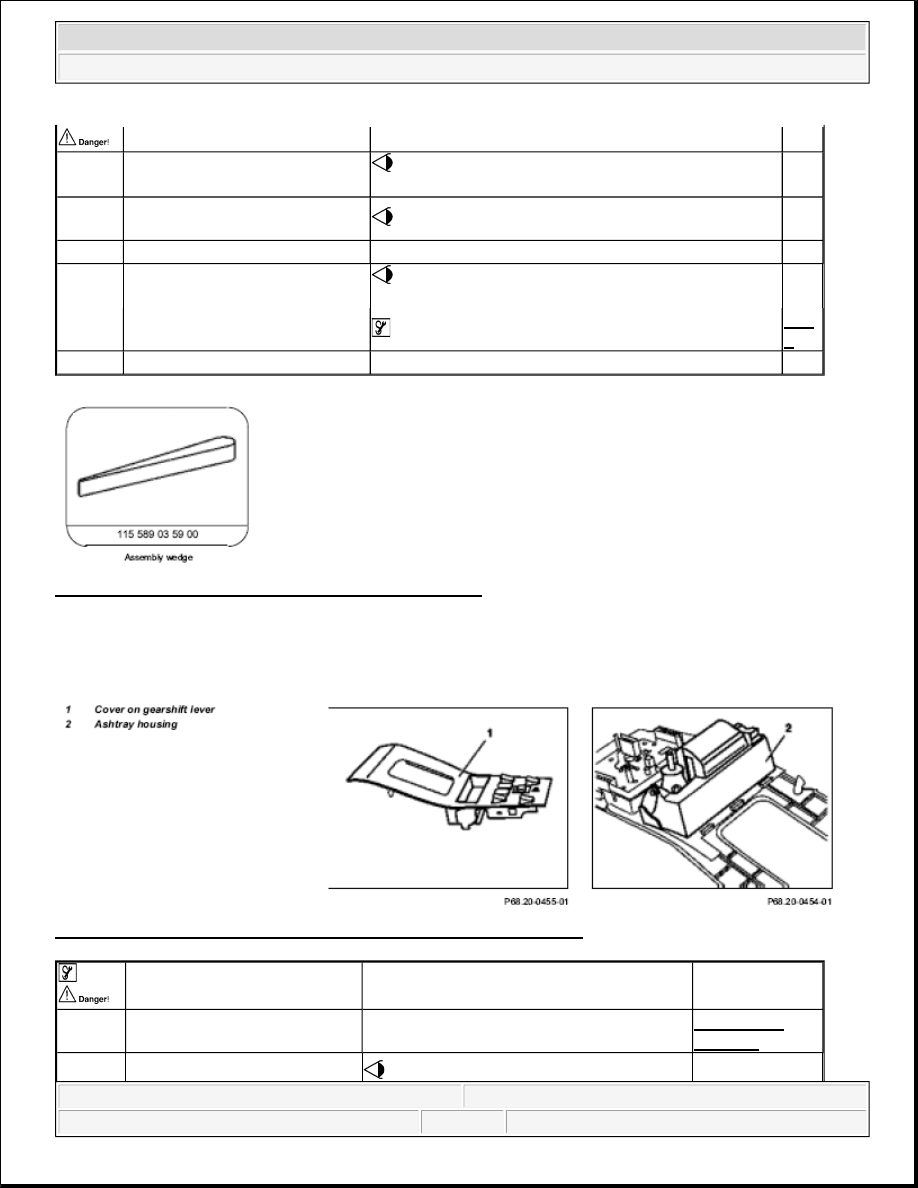

Fig. 53: Identifying Assembly Wedge (115 589 03 59 00)

REMOVING AND INSTALLING ASHTRAY HOUSING FROM FRONT CENTER CONSOLE - AR68.20-P-2400GH

MODEL 163.113 /136 /154 /172 /174 up to 31.8.01

Fig. 54: Identifying Cover On Gearshift Lever And Ashtray Housing



1.1

Remove storage compartment (1)

 Up to 31.08.01: Unclip stowage compartment (1)

from stowage box (3)



2.1

Unscrew screws (2) and remove
stowage box (3)

 up to 31.08.01



3

Unscrew screws (4).





4

Remove armrest lid (5)

 As of 01.09.01: Insert long wedge into access

openings (6) and loosen retaining lugs.







 Long wedge

Fig.
6

5

Install in the reverse order









Remove/install





1

Remove cover on gearshift
lever (1)



AR68.20-P-
2310GH

Remove ashtray housing (2)

 Installation: Slide ashtray housing into



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



REMOVE/INSTALL ASHTRAY HOUSING IN FRONT CENTER CONSOLE - AR68.20-P-2400GI

MODEL 163.113 /154 /174 #A as of 289565, 163.113 #X as of 754620, 163.128 /157 /175

Fig. 55: Identifying Ashtray Housing In Front Center Console

REMOVING AND INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING - AR68.20-P-4810GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

2

toward rear

mount and catch.



3

Install in the reverse order









Remove/install





1

Remove center console (1)



AR68.20-P-
2000GH

2

Lay center console down on
suitable subsurface

 Do not damage center console



3

Disconnect plug (2)





4

Remove bolts (3)





5

Remove front ashtray (4)

 Installation: Ensure that ashtray is seated

correctly in center console.



6

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



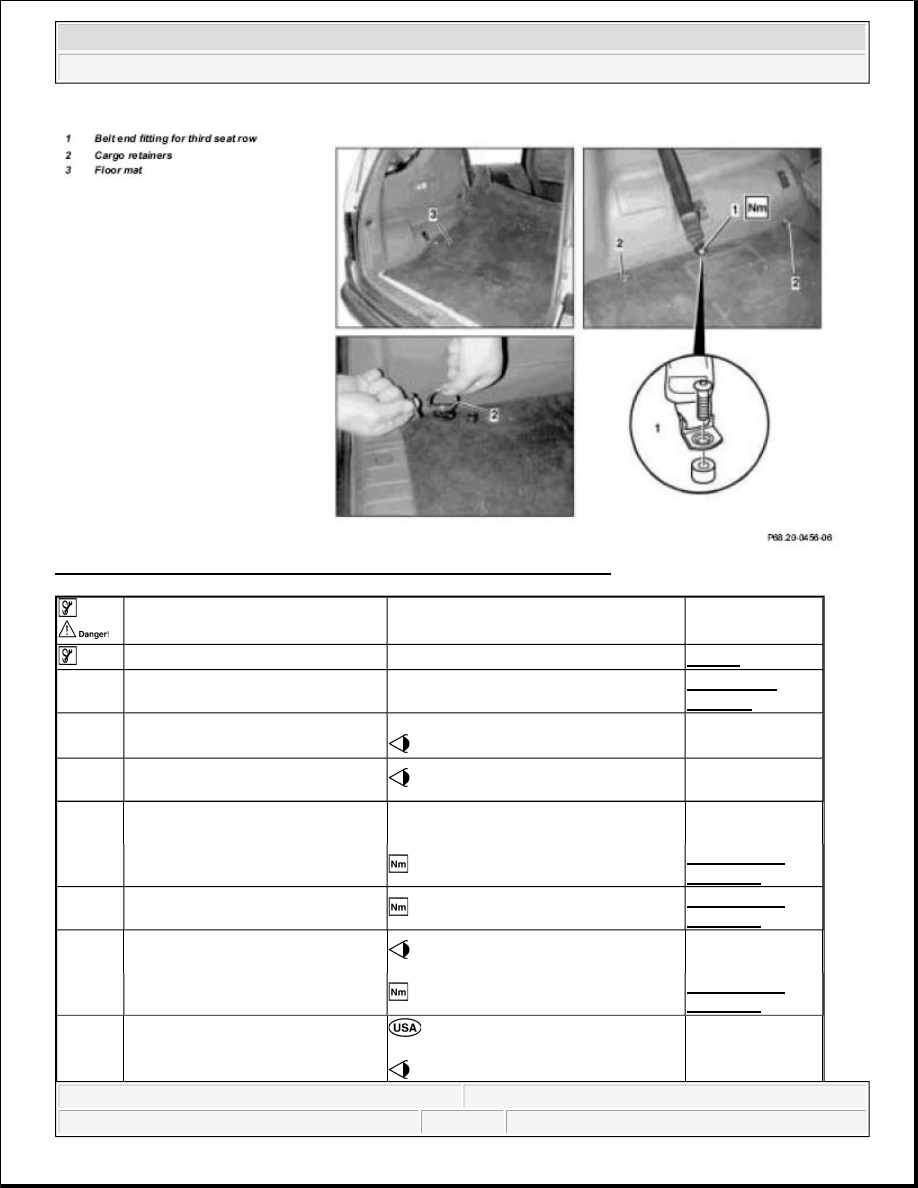

Fig. 56: Identifying Luggage Compartment Floor Covering Components





Remove/install







Torx bit set



Fig. 24

1.1

Remove inner spare wheel together
with cover

Only model 163.174.

AR68.30-P-
4610GH

2.1

Fold third seat row upward

Only with 3rd seat row, code 847.

 See owner's manual



3

Remove load compartment floor
flaps

 See owner's manual



4.1

Remove seat belt end fitting for
third seat row (1)

Only with 3rd seat row, code 847.









*BA91.40-P-
1001-01D

5

Unscrew screws for load retainer
(2)



*BA68.50-P-
1001-02A

6.1

Remove mount for child seat
retainer

 If installed









*BA91.20-P-
1001-01A

7

Remove cover for rear edge of load
compartment

 Do not scratch cover when

removing caps.

 Installation: Properly install seal on





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me
