Mercedes-Benz ML320. Service manual - part 734





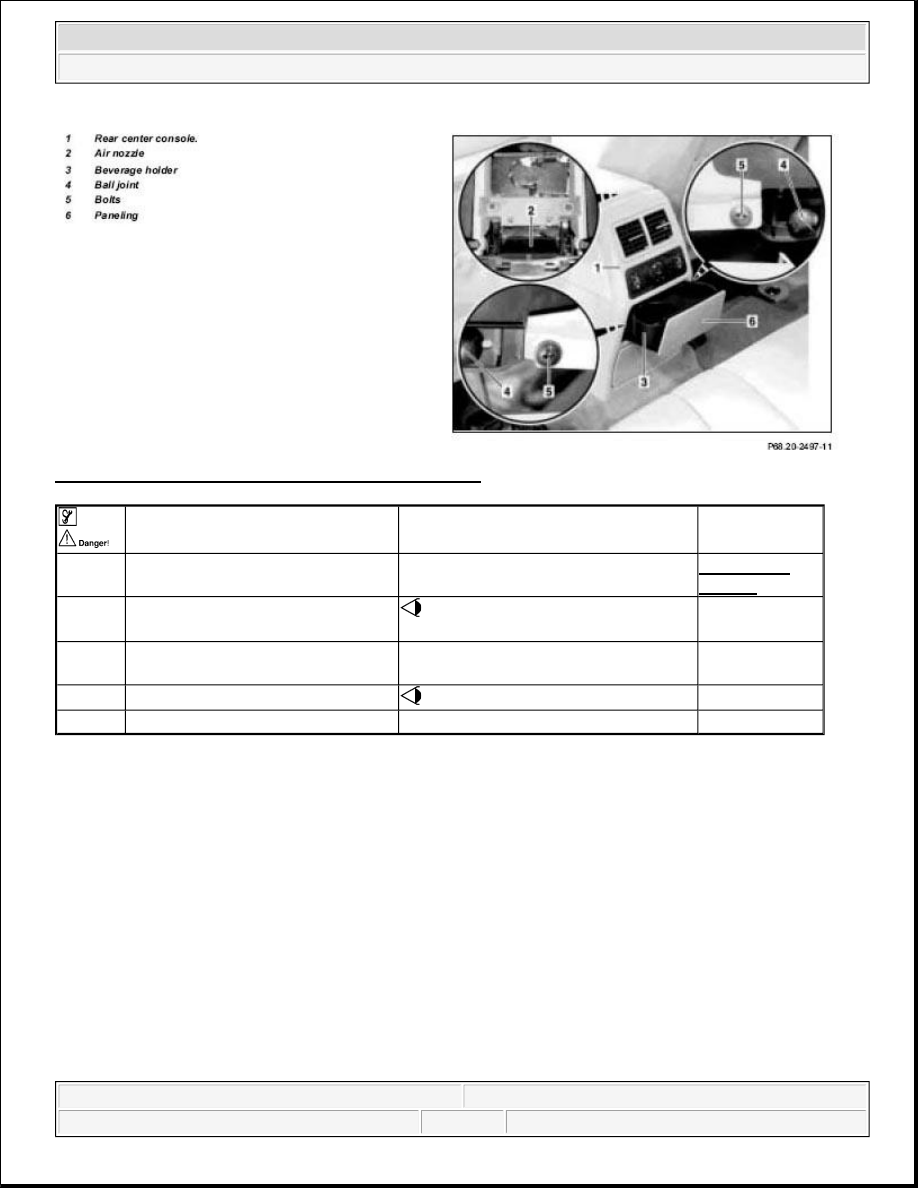

Fig. 45: Identifying Rear Beverage Holder Components

REMOVE/INSTALL REAR ASHTRAY - AR68.20-P-2230GH

MODEL 163.113 /154 /174 #A as of 289565,163.113 #X as of 754620,163.128 /157 /175





Remove/install





1

Remove rear center console (1)



AR68.20-P-
2020GI

2

Separate air nozzle (2) from
beverage holder (3)

 Loosen ball joint (4) from bottom of

beverage holder.



3

Unscrew bolts (5) from sides of
beverage holder





4

Remove beverage holder (3)

 Press onto paneling (6).



5

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



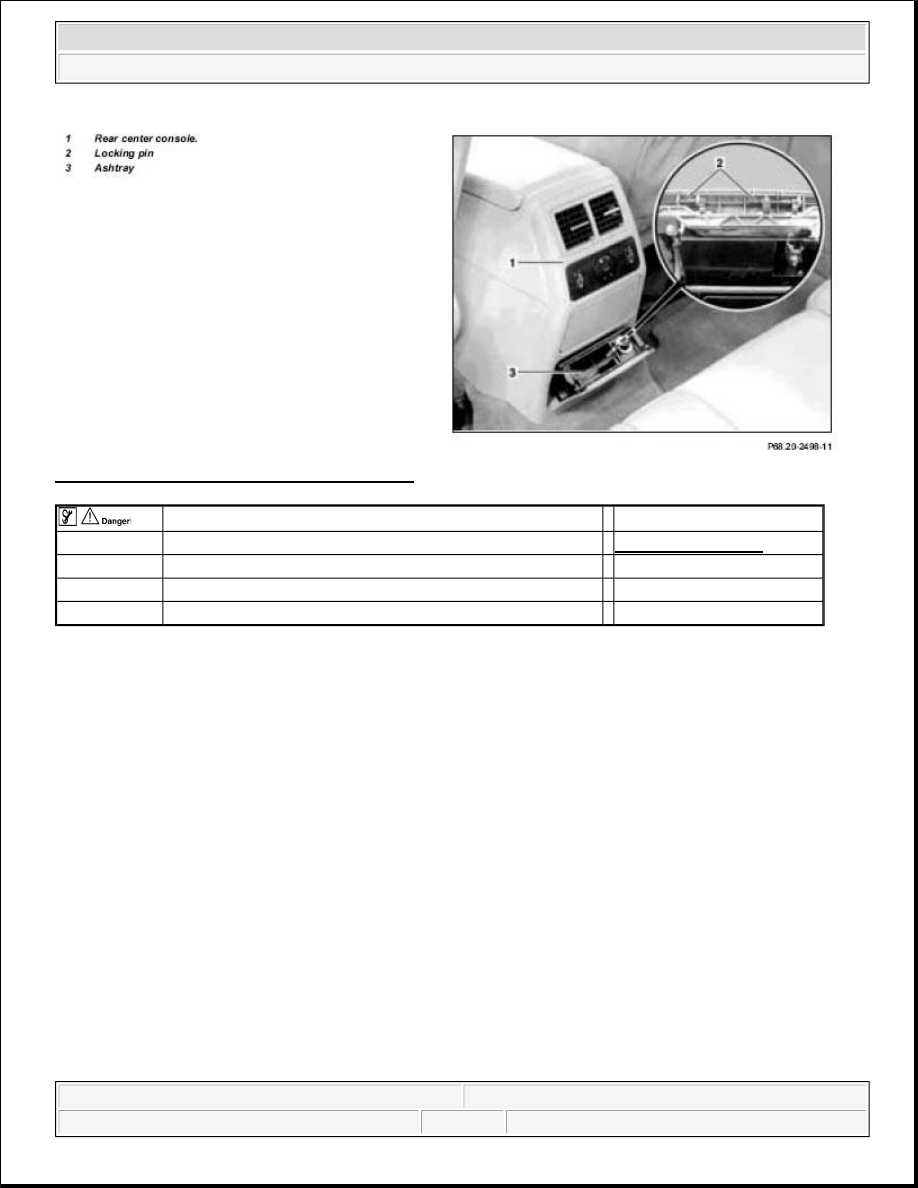

Fig. 46: Identifying Rear Ashtray Components

REMOVING AND INSTALLING COVER AT GEARSHIFT LEVER - AR68.20-P-2310GH

MODEL 163.113 /136 /154 /172 /174 up to 31.8.01





Remove/install



1

Remove rear center console (1)

  AR68.20-P-2020GI

2

Remove locking pin (2) from ashtray hinge



3

Remove ashtray (3)



4

Install in the reverse order





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



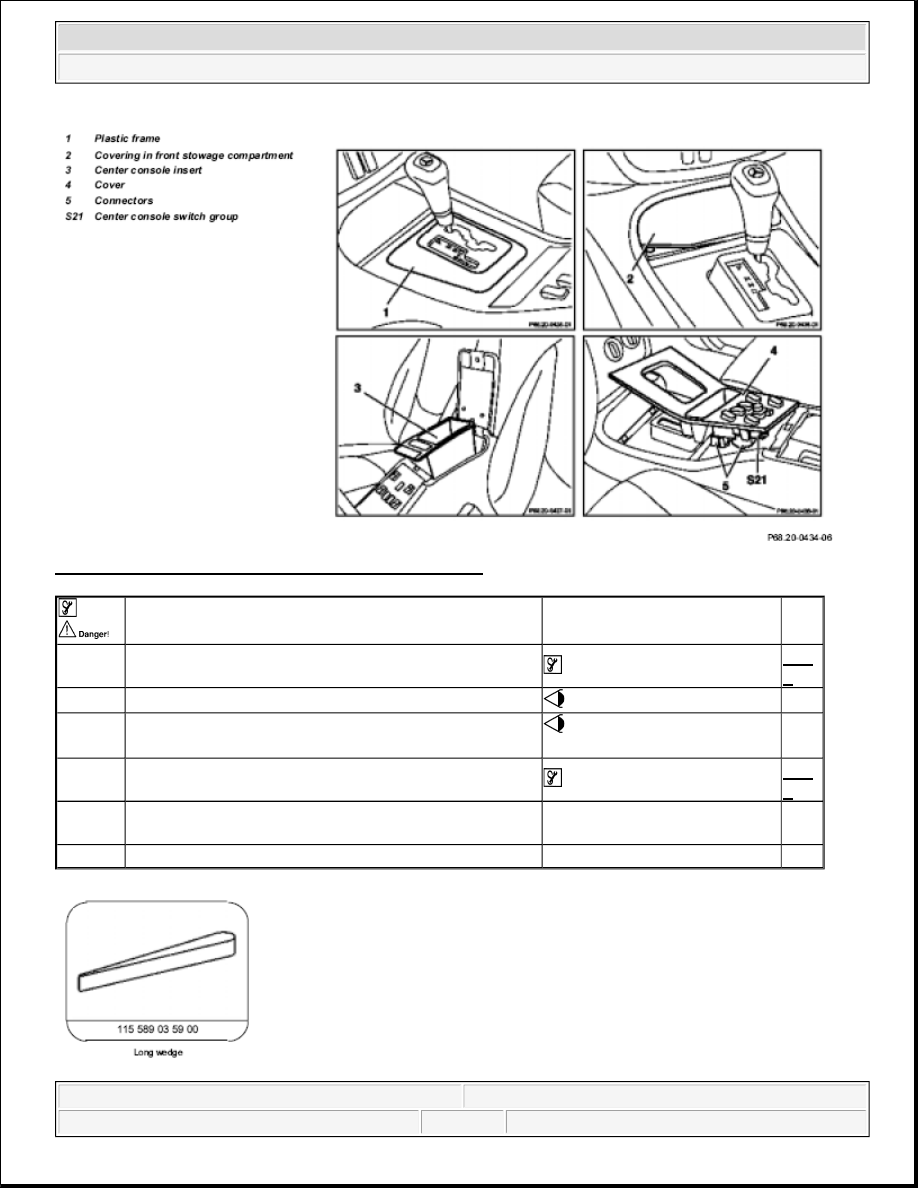

Fig. 47: Identifying Gearshift Lever Cover Components





Remove/install





1

Remove plastic frame (1) upward



Fig.
6

2

Remove covering in stowage compartment (2)

 Fastened with pin.



3

Remove center console insert (3)

 Remove screws (2 each)

from insert floor



4

Press cover (4) out of catch in center console at rear and
sides with long wedge



Fig.
6

5

Disconnect connectors (5) from center console switch
group (S21)





6

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



Fig. 48: Identifying Long Wedge (115 589 03 59 00)

REMOVE/INSTALL COVER ON GEARSHIFT LEVER - AR68.20-P-2310GI

MODEL 163.113 /154 /174 #A as of 289565,163.113 #X as of 754620,163.128 /157 /175

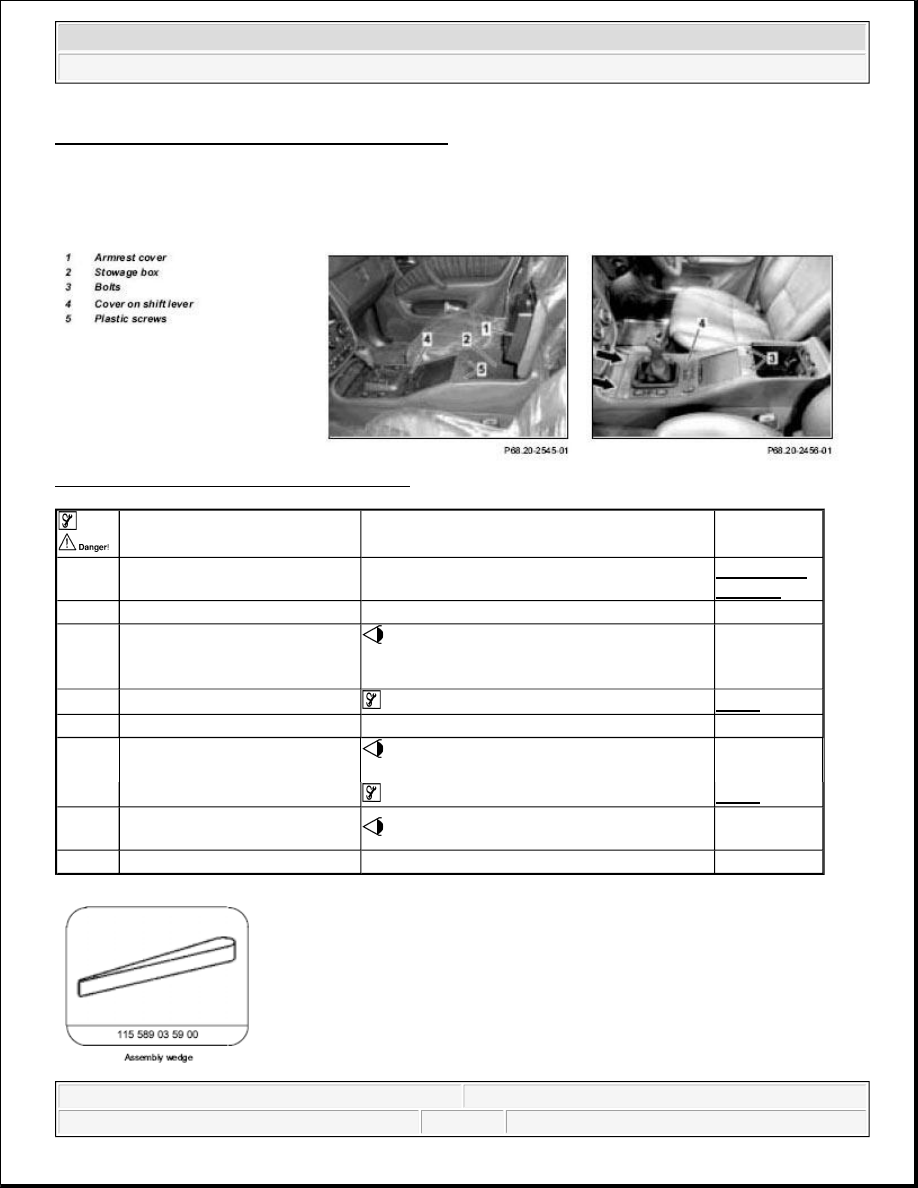

Fig. 49: Identifying Cover On Gearshift Lever





Remove/install





1

Remove armrest lid (1)



AR68.20-P-
2370GH

2

Remove plastic screws (5)





3

Remove stowage box (2)

 Press the pin in the center of the rivet

downwards for about 4 mm; then remove the
rivet from above.



4

Remove selector lever paneling

 Long wedge

Fig. 6

5

Unscrew bolts (3)





6

Remove cover (4) from above

 Carefully prize open at front (arrows) and at

the sides.







 Long wedge

Fig. 6

7

Detach connector from lower
control panel control module

 3 connector.



8

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me
