Mercedes-Benz ML320. Service manual - part 733





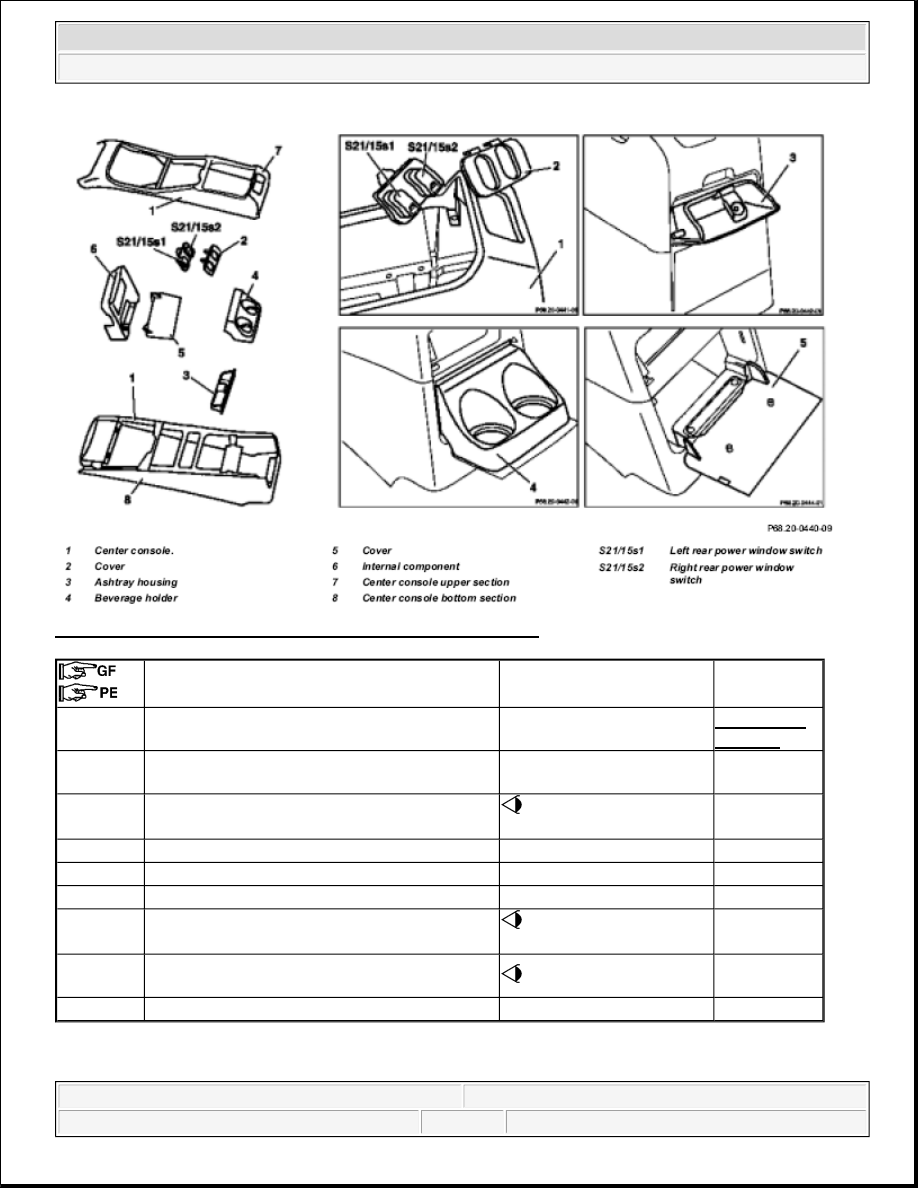

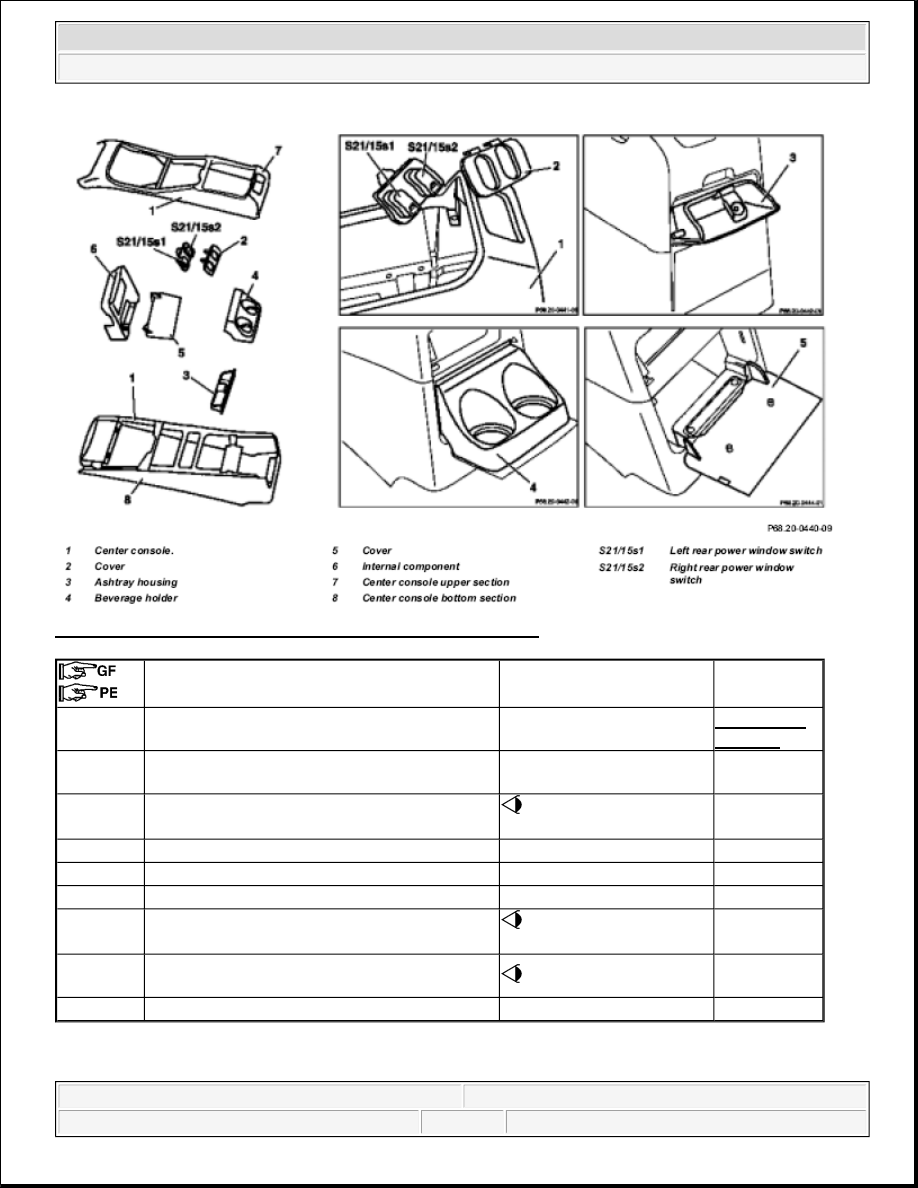

Fig. 41: Identifying Center Console Components Up To 31.8.01

DISASSEMBLE/ASSEMBLE CENTER CONSOLE - AR68.20-P-2150GI





Disassemble/assemble





1

Remove center console



AR68.20-P-
2000GH

2

Lay center console (1) down on suitable
subsurface with opening pointing downward





3

Remove rear power window switches
(S21/15s1) and (S21/15s2)

 Remove switch to inside

and cover (2) to outside



4

Remove rear ashtray housing (3)





5

Unclip cup holder (4) from cover (5)





6

Remove cover (5) for cup holder





7

Remove inner section (6)

 Installation: Install inner

section at top.



8

Separate center console on top section (7) and
bottom section (8)

 6 screws



9

Assemble in reverse sequence







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



MODEL 163.113 /154 /174 #A as of 289565,163.113 #X as of 754620,163.128 /157 /175

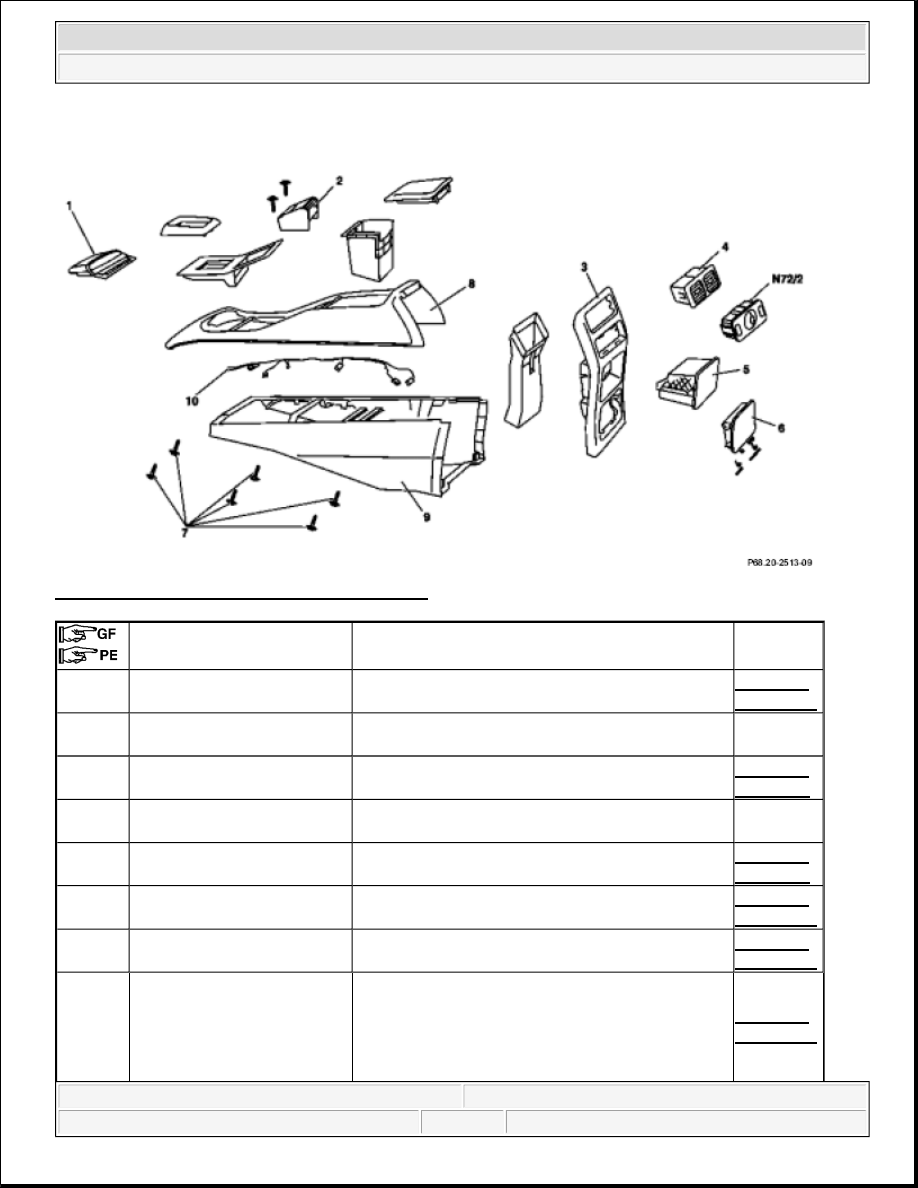

Fig. 42: Identifying Center Console Components





Disassemble/assemble





1

Remove center console



AR68.20-
P-2000GH

2

Lay center console down on
suitable subsurface





3

Remove front ashtray (1)



AR68.20-
P-2400GI

4

Remove storage compartment
(2)





5

Remove rear center console
(3)



AR68.20-
P-2020GI

6

Remove rear air nozzle (4)



AR83.10-
P-4800GH


7

Remove RCP console module
(N72/2)



AR68.20-
P-2210GH

8.1

Remove rear beverage holder
(5)

Model 163.154 #A as of VIN 145273 up to VIN
289564, model 163.172 #A as of VIN 145273,
model 163.113 /174 #A up to VIN 289564, model
163.136 /154 /172 #X as of VIN 708319, model
163.113 #X up to VIN 754619

AR68.20-
P-2220GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



REMOVE/INSTALL REAR CENTER CONSOLE SWITCH MODULE - AR68.20-P-2210GH

MODEL 163.113 /154 /174 #A as of 289565,163.113 #X as of 754620,163.128 /157 /175

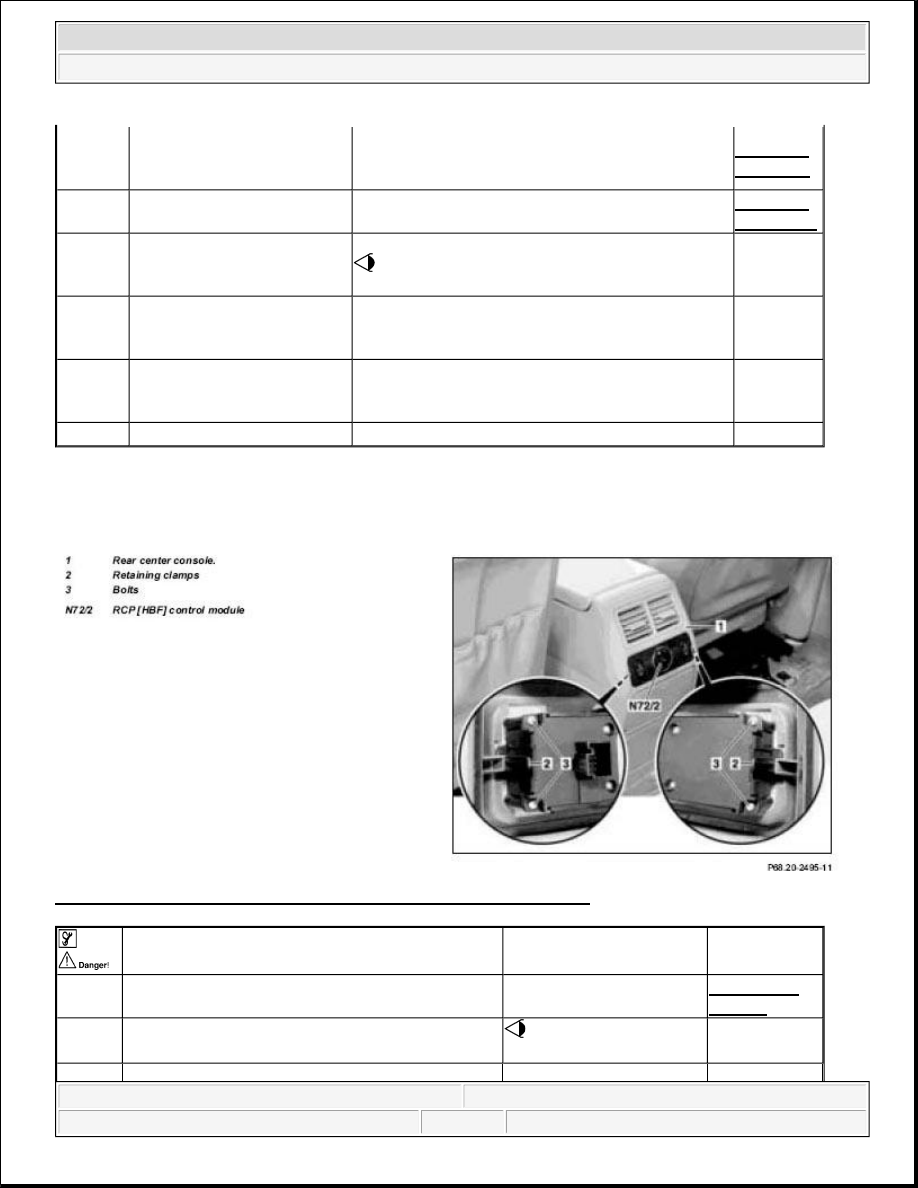

Fig. 43: Identifying Rear Center Console Switch Module Components





Model 163.113 /154 /174 #A as of VIN 289565,
model 163.113 #X as of VIN 754620 model
163.128 /157 /175

AR68.20-
P-2220GI

9

Remove rear ashtray (6)



AR68.20-
P-2230GH

10

Remove bolts (7) for center
console from top and bottom
section

 6 bolts.



11

Remove top section (8) and
bottom section (9) from
center console





12

Remove interior wiring
harness (10) from center
console





13

Assemble in reverse order









Remove/install





1

Remove rear center console (1)



AR68.20-P-
2020GI

2

Remove retaining clamps RCP control module
(N72/2) from rear center console (1)

 Press retaining clamps

(2) toward inside.





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



REMOVE/INSTALL REAR BEVERAGE HOLDER - AR68.20-P-2220GH

MODEL 163.154 #A as of 145273 up to 289564,163.172 #A as of 145273,163.113 /174 #A up to
289564,163.136 /154 /172 #X as of 708319,163.113 #X up to 754619


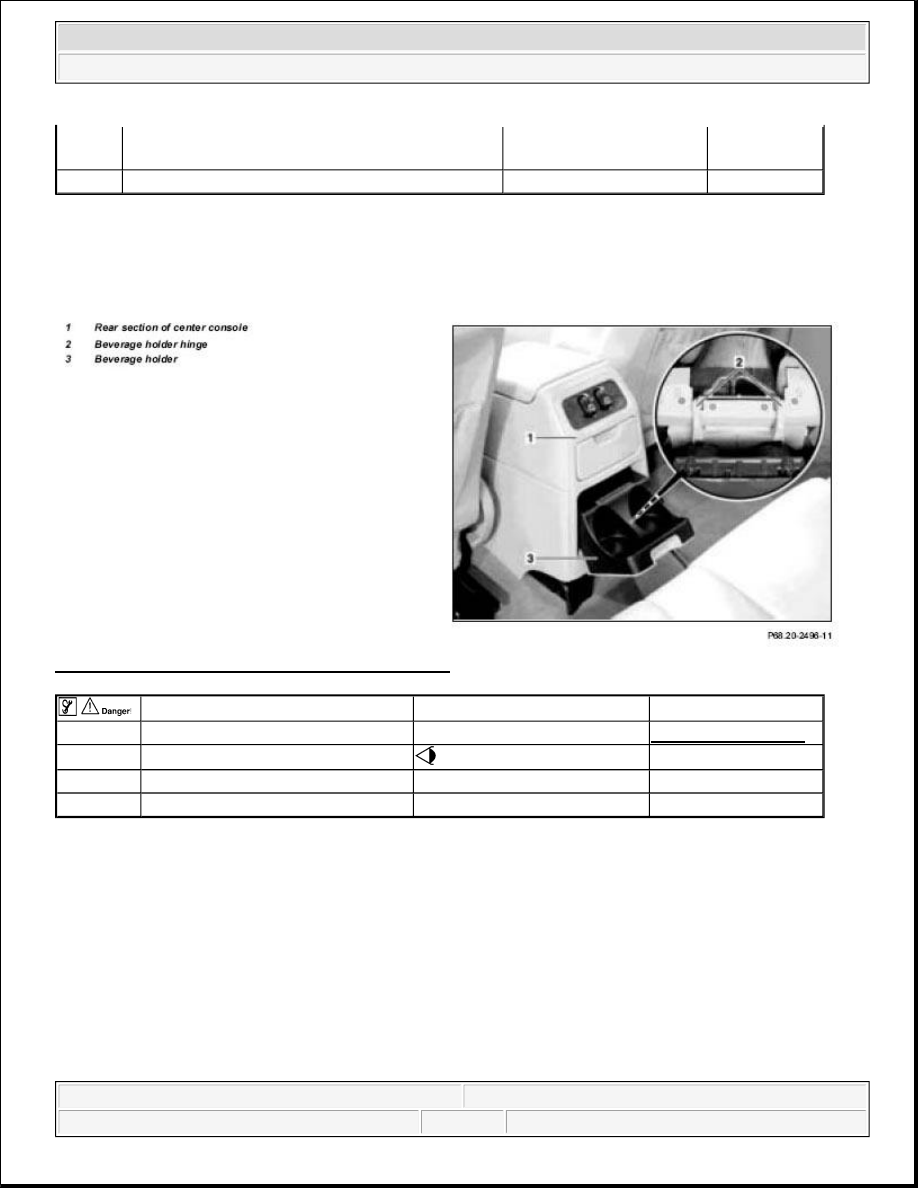

Fig. 44: Identifying Rear Beverage Holder & Hinge

REMOVE/INSTALL REAR BEVERAGE HOLDER - AR68.20-P-2220GI

MODEL 163.113 /154 /174 #A as of 289565,163.113 #X as of 754620,163.128 /157 /175

3

Unscrew bolts (3) on RCP control module (N72/2)
from cover





4

Install in the reverse order







  Remove/install





1

Remove rear center console (1)



AR68.20-P-2020GH

2

Loosen beverage holder hinge (2)

 Press hinge toward inside



3

Remove beverage holder (3)





4

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me
