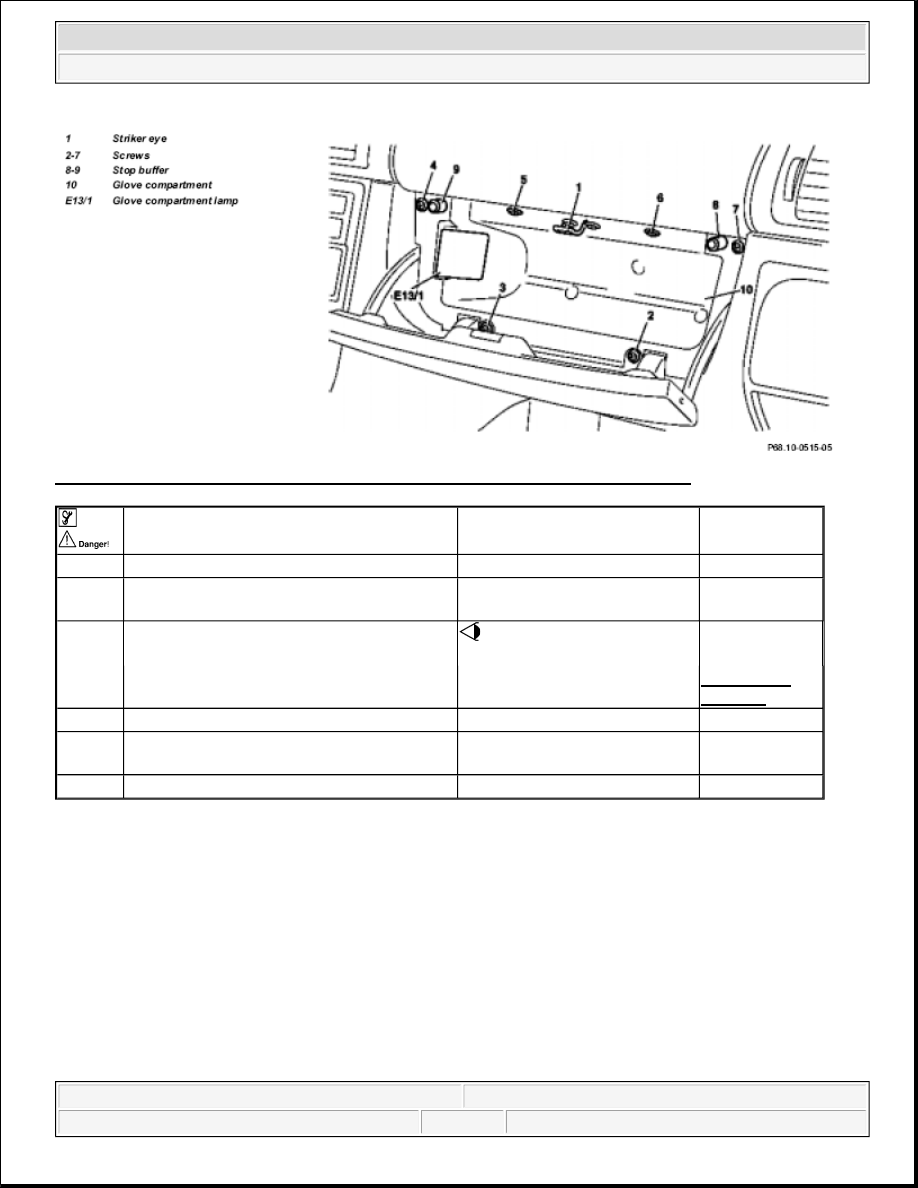

Fig. 22: Identifying Glove Compartment Screws, Lamp, Stop Buffer & Striker Eye

REMOVE/INSTALL GLOVE COMPARTMENT - AR68.10-P-1400GI

MODEL 163.136 /154 /172 #A as of 145273,163.136 /154 /172 #X as of 708319,163.113 /128 /157 /174 /175





Remove/Install





1

Open glove compartment lid





2

Unclip glove compartment lamp (E13/1) and
disconnect connector





3

Remove striker eye (1)

 Installation: Check

adjustment. Refer to: ?







Adjust glove compartment lid.

AR68.10-P-
1300GH

4

Unscrew screws (2-7)





5

Pry glove compartment (10) out of arrest at
bottom and pull out





6

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



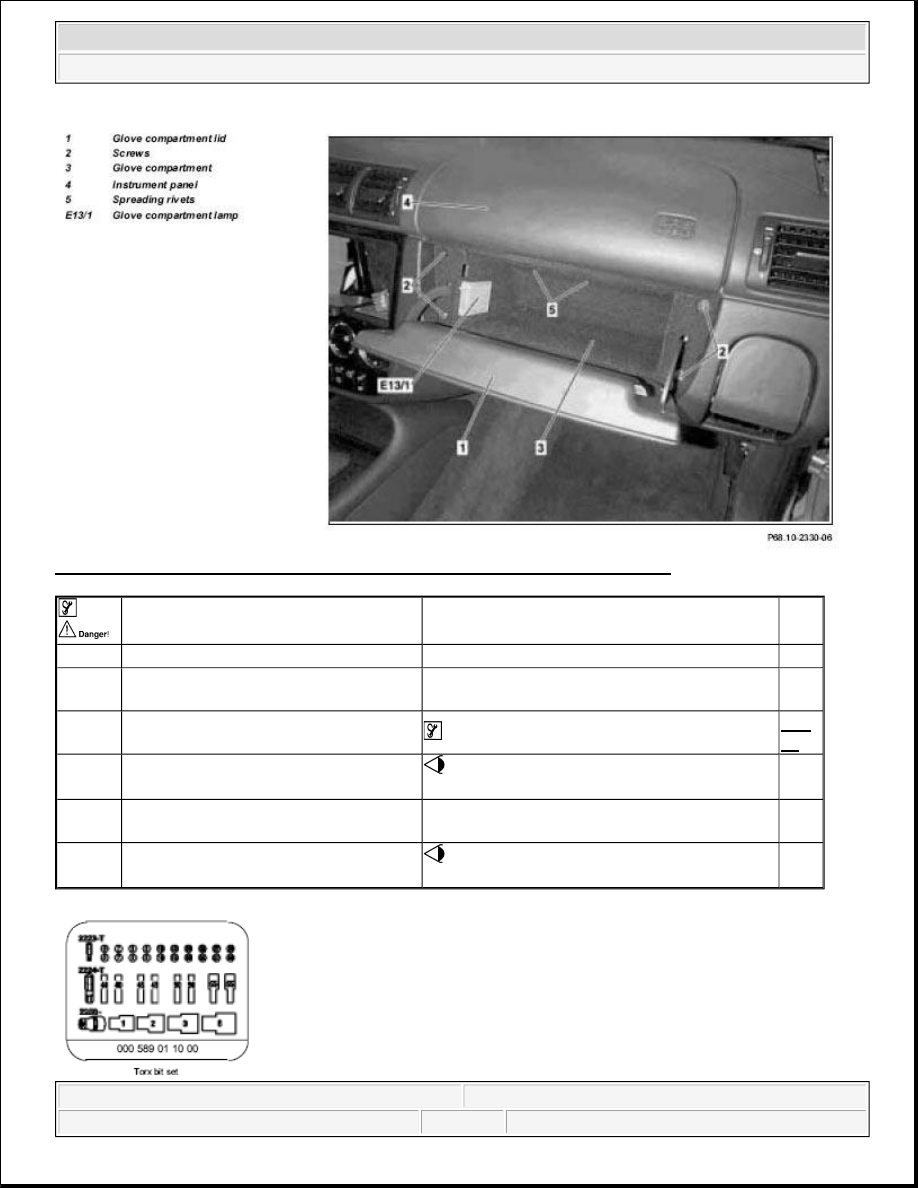

Fig. 23: Identifying Glove Compartment Lid, Screws, Spreading Rivets & Lamp





Remove/Install





1

Open glove compartment lid (1)





2

Unclip glove compartment lamp (E13/1)
and disconnect connector





3

Unscrew bolt (2)

 Torx bit set

Fig.
24

4

Remove upper spreading rivets (5) from
glove compartment (3)

 Press pressure pin approx. 4 mm upward and

remove spreading rivet downward.



5

Pull glove compartment (3) out of
instrument panel (4)





6

Install in the reverse order

 Align upper edge of glove compartment lid

(1) in relation to instrument panel (4).





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



Fig. 24: Identifying Torx Bit Set (000 589 01 10 00)

REMOVING AND INSTALLING COVER BELOW INSTRUMENT PANEL (LEFT) - AR68.10-P-1500GH

MODELS 163.113 /128 /136 /154 /157 /172 /174 /175

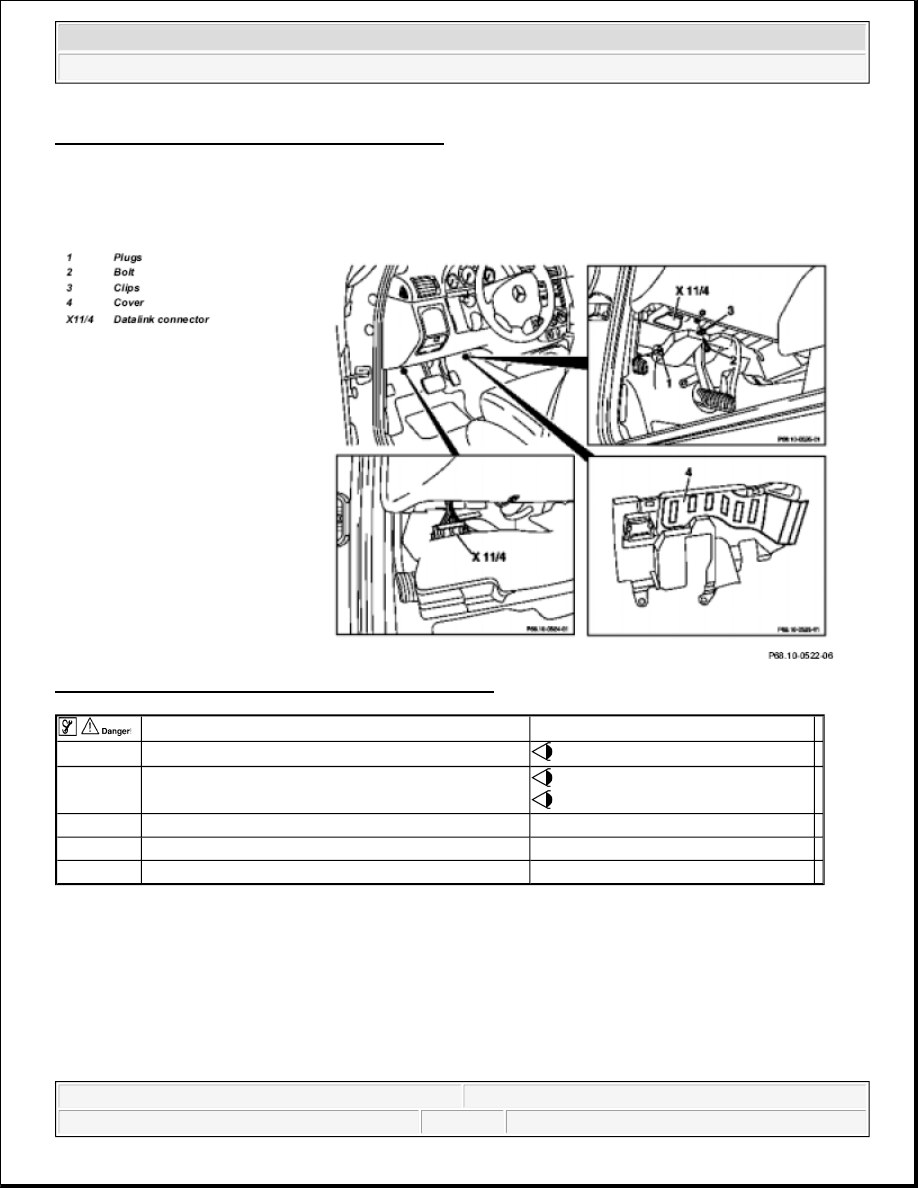

Fig. 25: Identifying Cover Below Instrument Panel (Left)

REMOVE/INSTALL COVER BELOW INSTRUMENT PANEL (RIGHT) - AR68.10-P-1520GH

MODEL 163.136 /154 /172 #A up to 145272,163.136 /154 /172 #X up to 708318



  Remove/install





1

Remove plug (1)

 2 each.



2

Unscrew screw (2)

 2 each.
 Installation: Observe clips (3).



3

Unlock and remove data link connector (X11/4)





4

Take off cover (4)





5

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



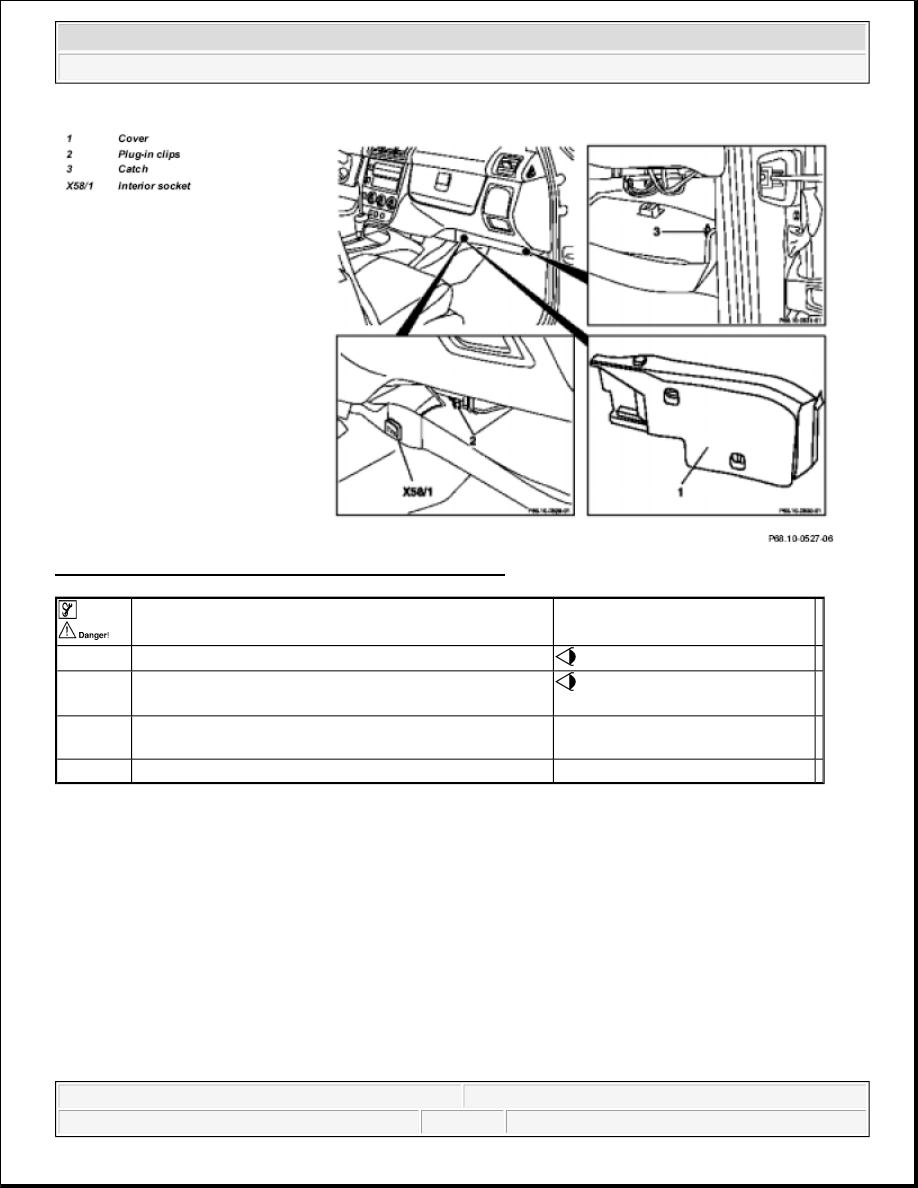

Fig. 26: Identifying Cover Below Instrument Panel (Right)

REMOVE/INSTALL COVER BELOW INSTRUMENT PANEL (RIGHT) - AR68.10-P-1520GI

MODEL 163.136 /154 /172 #A as of 145273,163.136 /154 /172 #X as of 708319,163.113 /128 /157 /174 /175





Remove/Install





1

Unhook catch (3) on blower motor

 Risk of breakage!



2

Unclip cover (1)

 Cover is fastened with 2 clips

(2).



3

Disconnect electrical connector from interior socket
(X58/1)





4

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me
