Mercedes-Benz ML320. Service manual - part 728





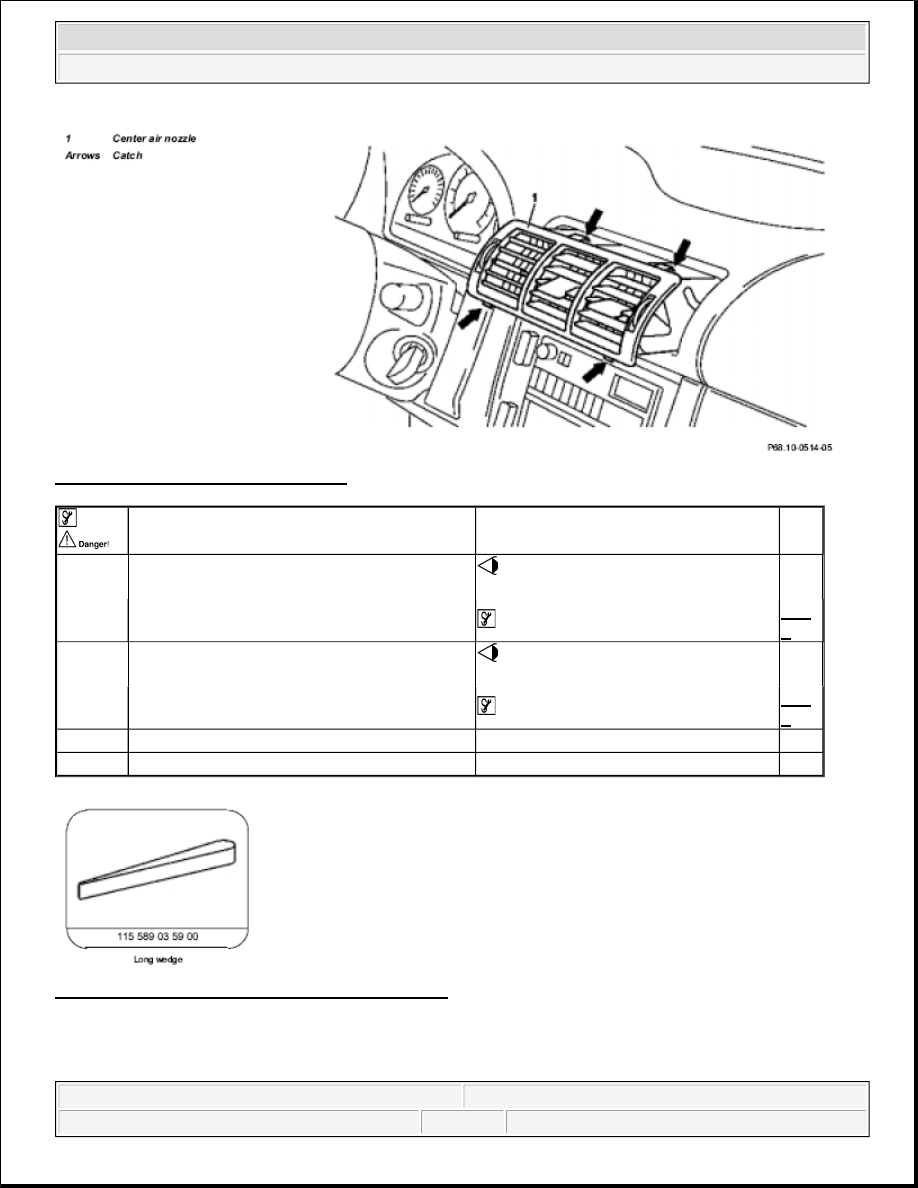

Fig. 17: Identifying Center Air Nozzle

Fig. 18: Identifying Long Wedge (115 589 03 59 00)

REMOVING AND INSTALLING GLOVE COMPARTMENT LID - AR68.10-P-1200GH

MODEL 163.136 /154 /172 up to 31.8.99





Remove/install





1

Pry center air nozzle (1) at bottom out of catch
(arrows)

 Installation: air nozzle should catch

audibly.







 Long wedge

Fig.
6

2

Pry center air nozzle (1) at top out of catch
(arrows)

 Installation: air nozzle should catch

audibly.







 Long wedge

Fig.
6

3

Pull center air nozzle (1) out of air duct





4

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



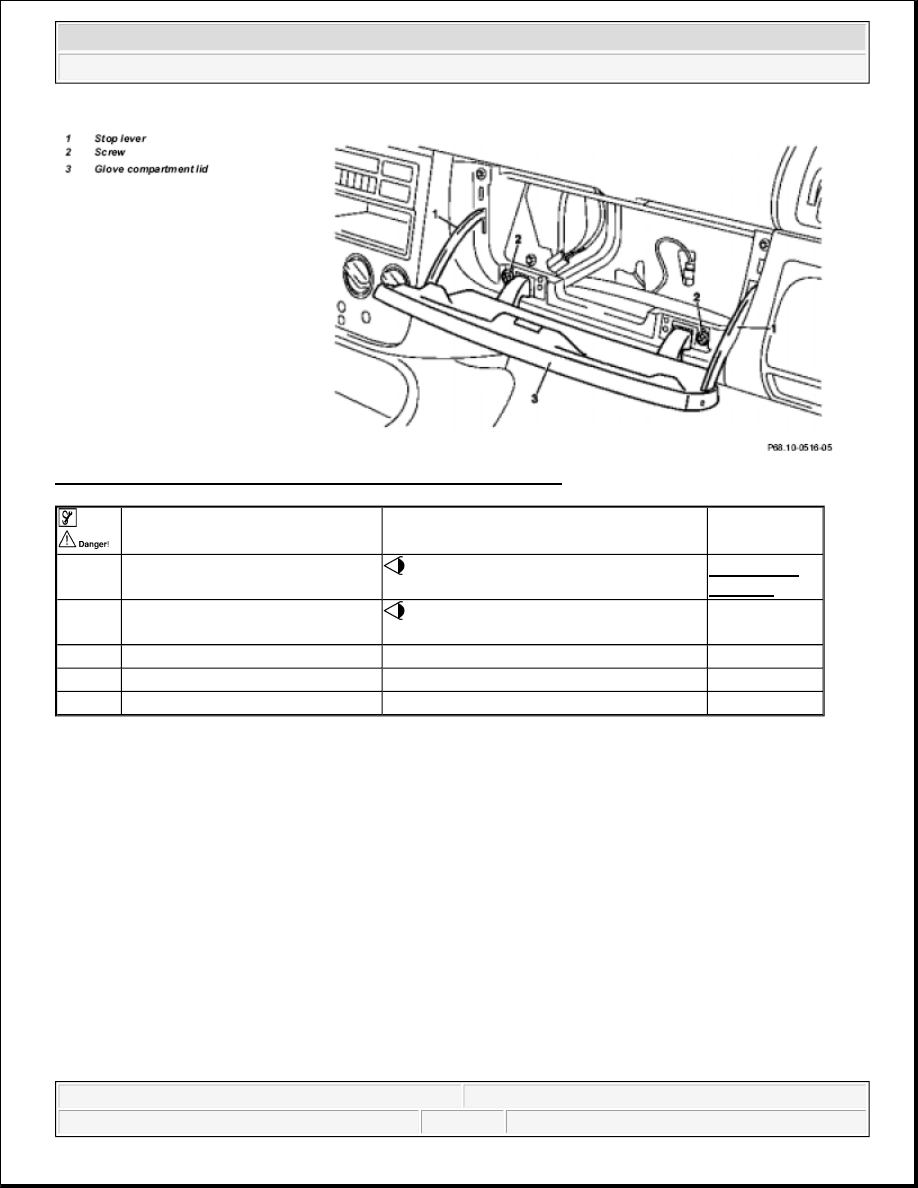

Fig. 19: Identifying Glove Compartment Lid, Screw & Stop Lever

DISASSEMBLING AND ASSEMBLING GLOVE COMPARTMENT LID - AR68.10-P-1220GH

MODEL 163.136 /154 /172 up to 31.8.99





Removal, installation





1

Remove glove compartment

 Installation: Adjust glove compartment

lid and check for proper function

AR68.10-P-
1400GH

2

Unhook stop lever (1) on left and
right on instrument panel

 Slightly lift glove compartment lid (3)

and unhook stop lever (1).



3

Unscrew screws (2) on hinge





4

Remove glove compartment lid (3)



5

Reinstall in opposite order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



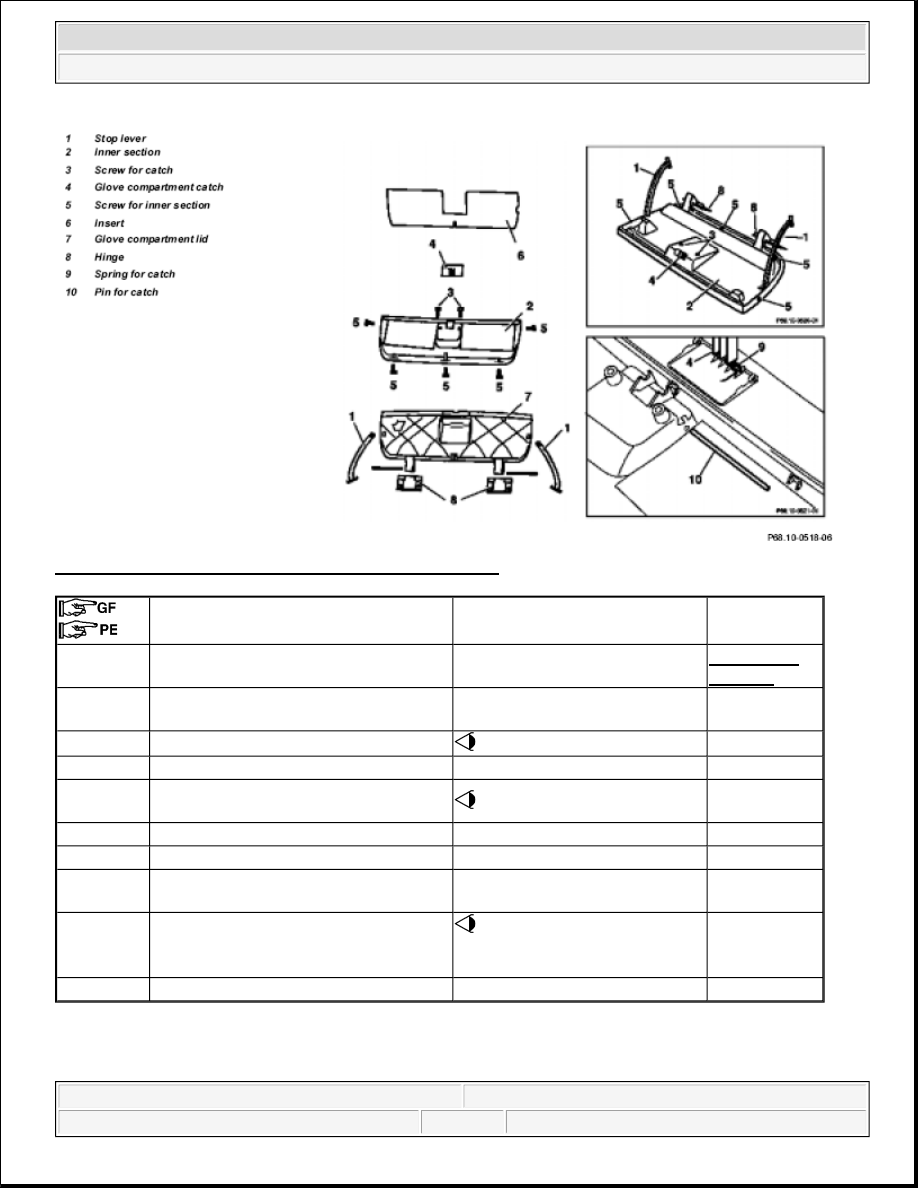

Fig. 20: Identifying Glove Compartment Lid Components

ADJUST GLOVE COMPARTMENT LID - AR68.10-P-1300GH

MODEL 163.136 /154 /172 #A up to 145272





Disassembly, assembly





1

Remove glove compartment lid



AR68.10-P-
1200GH

2

Unclip stop lever (1) from inner section
(2)





3

Remove hinges (8) on inner section (2)

 Remove hinge pins



4

Unscrew screws (3) from lock (4)





5

Unscrew screws (5) from glove
compartment inner section (2)

 5 each.



6

Remove inner section (2)





7

Remove insert (6) from inner section (2)



8

Unhook glove compartment catch (4)
and spring (9)





9

Remove glove compartment catch (4)
from glove compartment lid (7)

 Drive out pin (10).

Installation: Observe installation
position for spring (9).



10

Install in opposite order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



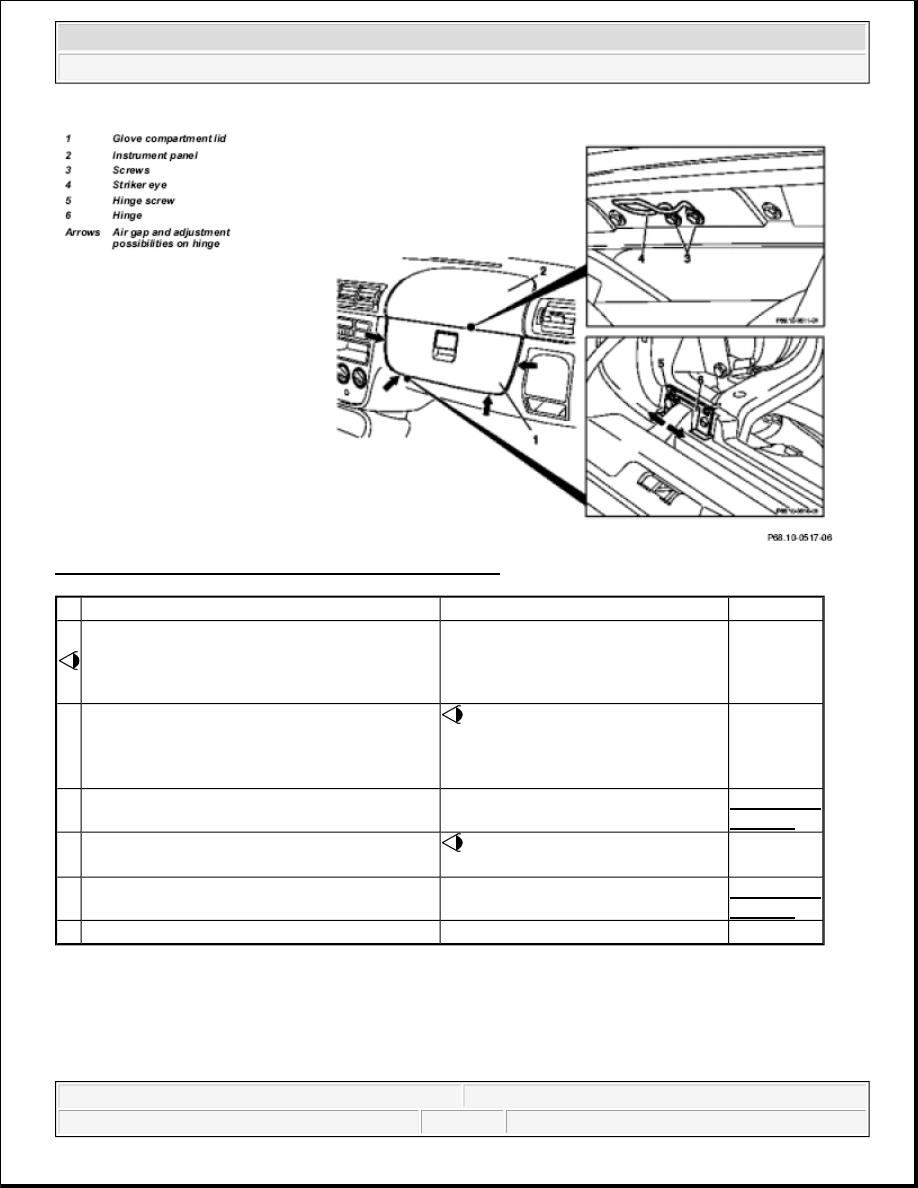

Fig. 21: Identifying Glove Compartment Lid Adjustments

REMOVE/INSTALL GLOVE COMPARTMENT - AR68.10-P-1400GH

MODEL 163.136 /154 /172 #A up to 145272



Adjusting







During entire operation pay attention to uniform
transition, gap and adjustment possibilities on
hinge (arrows) between glove compartment lid
(1) and instrument panel (2).





1 Loosen screws (3) on striker eye (4)

 Installation: Adjust transition at

top of striker eye (4). Glove
compartment lid (1) should make slight
contact to stop buffers.



2 Remove glove compartment



AR68.10-P-
1400GH

3 Adjust gap

For this purpose loosen hinge screw

(5) from hinge (6).



4 Install glove compartment



AR68.10-P-
1400GH

5 Check for easy motion and proper function







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me
