Mercedes-Benz ML320. Service manual - part 727





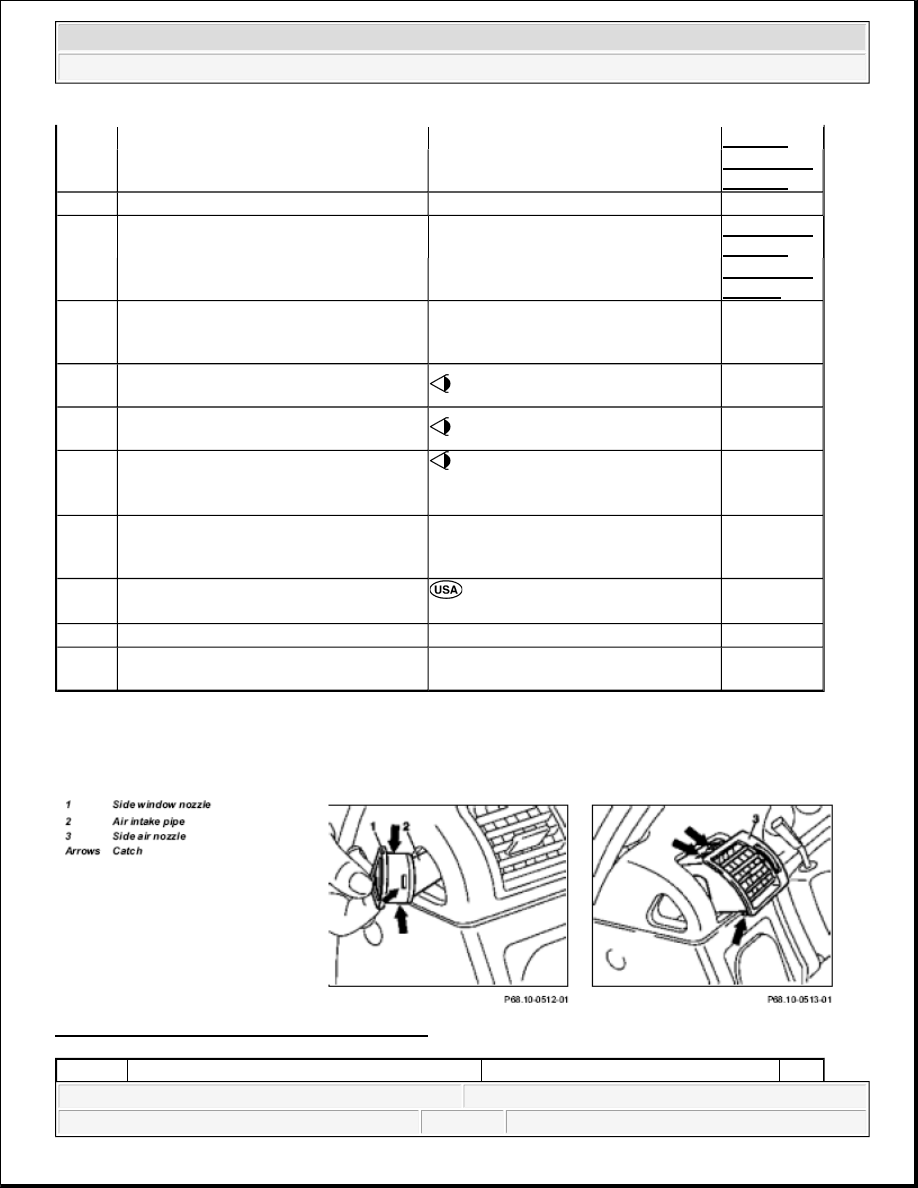

REMOVING AND INSTALLING SIDE AIR NOZZLE - AR68.10-P-1100GH

MODELS 163.113 /128 /136 /154 /157 /172 /174 /175

Fig. 14: Identifying Side Air Nozzle Components

8

ventilation (10)

Up to 31.08.01.

1835GH





As of 01.09.01

AR83.40-P-
6500GH


9

Unscrew screws (8, 9)





10

Remover glove compartment (12)

Up to 31.08.99.

AR68.10-P-
1400GH





As of 01.09.99.

AR68.10-P-
1400GI

11

Unscrew screws in the right footwell (6)
on the lower part of the instrument panel
(4)





12.1

Unclip entrance lamps (17) and
disconnect electrical connectors

 As of 09/99.



13.1

Remove paneling (15) and unscrew
screws (16)

 As of 09/99.



14

Unclip lower part of instrument panel (4)
at the four expanding clips (A) on the
instrument panel (1)

 Installation: Ensure that guide lugs

(B) are properly seated in the mounts
on the instrument panel.



15

Unhook the Bowden cable of the parking
brake (14) at the release handle of the
parking brake (13)





16

Remove bottom section of instrument
panel (4)

 Do not damage instrument panel

when removing and installing.



17

Install in the reverse order





18

Read diagnostic trouble code memory and
erase







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



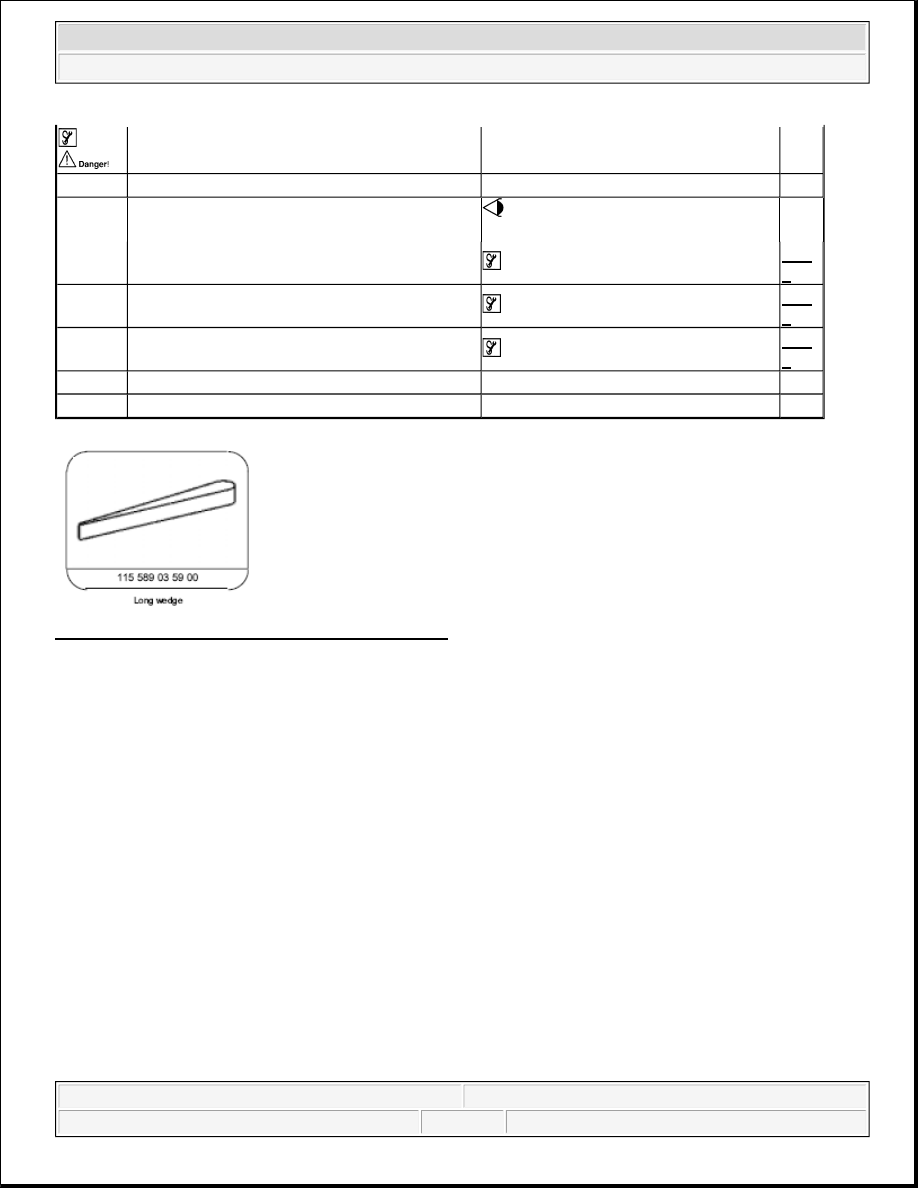

Fig. 15: Identifying Long Wedge (115 589 03 59 00)

REMOVE/INSTALL INSTRUMENT PANEL CARRIER - AR68.10-P-1111GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175





Remove/install





1

Pry out side widow nozzle (1)





2

Remove side window nozzle (1) and intake pipe
(2)

 Remove intake pipe (2) from side air

nozzle (3).







 Long wedge

Fig.
6

3

Pry side air nozzle (3) downwards out of the
catch (arrows)

 Long wedge

Fig.
6

4

Pry side air nozzle (3) upwards out of the catch
(arrows)

 Long wedge

Fig.
6

5

Pull side air nozzle (3) out of the air duct





6

Install in the reverse order







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



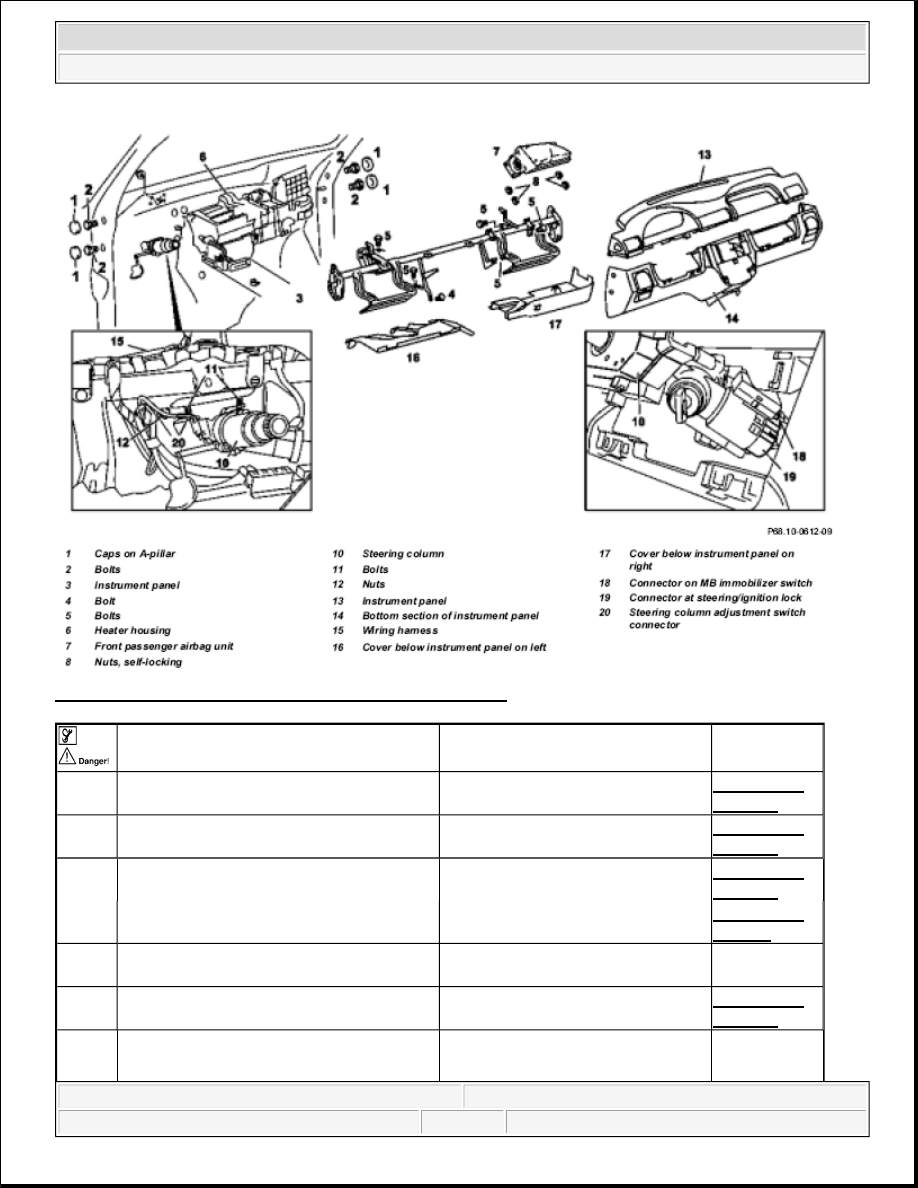

Fig. 16: Identifying Instrument Panel Carrier Components





Remove/install





1

Remove instrument panel (13) and the
lower part of instrument panel (14)



AR68.10-P-
1000GH

2

Remove passenger airbag (7)



AR91.60-P-
0680GH


3

Remove cover below instrument panel on
right (17)

Up to chassis number A145272,
X708318.

AR68.10-P-
1520GH





As of chassis number A145273,
X708319.

AR68.10-P-
1520GI

4

Unscrew screws (5) from instrument panel
carrier (3) on heater housing (6)





5

Remove cover below instrument panel on
left (16)



AR68.10-P-
1500GH

6

Remove insulating mat between steering
column (10) and carrier for instrument







2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



 Jacket tube

REMOVING AND INSTALLING CENTER AIR NOZZLE - AR68.10-P-1150GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175

panel (3)

7

Unscrew screws (11) for steering column
(10) from instrument panel carrier (3)



*BA46.10-P-
1006-03C

8

Remove nuts (12) for steering column (10)
from instrument panel carrier (3)



*BA46.10-P-
1007-03C

9

Unscrew screws (4) for instrument panel
carrier (3) from middle tunnel





10

Disconnect connector from steering column
height adjustment switch (20)





11

Disconnect connector from MB
immobilizer switching unit (18)





12

Disconnect connector from steering/ignition
switch (19)





13

Disconnect wiring harness (15) from
instrument panel carrier

 Installation: Ensure that wiring

harness is routed correctly on
instrument panel carrier.



14

Remove wiper system



AR82.30-P-
6400GH


15

Unscrew nuts for instrument panel carrier
(3) on firewall

 Installation: Install new self-

locking nuts.



16

Remove caps on A-pillar (1)





17

Unscrew screws (2) for instrument panel
carrier (3) from A-pillar





18

Remove instrument panel carrier (3) and
take out of passenger compartment to side
through passenger door

Be careful not to damage center

console when removing and
installing.



19

Install in the reverse order





Number

Designation

MODEL Series
163

BA46.10-P-1006-
03C

Screw for jacket tube on upper instrument panel carrier

Nm 20

BA46.10-P-1007-
03C

Jacket tube collar nut on instrument panel carrier at
bottom

Nm 18



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me
