Mercedes-Benz ML320. Service manual - part 722





1998-2005 ACCESSORIES & BODY, CAB

Interior Equipment - 163 Chassis

GENERAL INFORMATION

GENERAL NOTES: PASSENGER CARS: INTERIOR EQUIPMENT - AH68.00-Z-9999AZ

MODEL all

NOTES AND LIST OF COMPATIBLE GARAGE DOOR DRIVES FOR GARAGE DOOR OPENER - AH68.05-P-0001-01A

All models with code 231 Garage door opener or with code YF9 Garage door opener

Compatibility, garage door drive to garage door opener

If the garage door drive is not compatible with the garage door opener, a universal receiver (Fix Kit receiver)
can be installed in the garage for modulating the radio signal.

 The corresponding compatibility list can be found on the Internet site

http://www.eurohomelink.com

in chapter "HomeLink compatibility".

Additional information on universal receivers is given at the Internet address above and can also be ordered
there.

BASIC KNOWLEDGE

GARAGE DOOR OPENER, FUNCTION - GF68.05-P-0001A

MODEL 129, 202 as of 1.6.98, 203, 208, 210 as of 1.6.98, 215, 220, 230 with CODE (231a) Garage door
opener


MODEL 163 as of 1.9.01, 170 as of 1.6.98



Notes on replacing trim strips in
vehicle interior

MODEL 240

AH68.00-P-
0002-01H



Notes and list of compatible garage
door drives for garage door opener

MODEL all with CODE (231) Garage door
opener with CODE (YF9) Garage door
opener

AH68.05-P-
0001-01A

 Notes on operating drawer

MODEL 203.0

AH68.30-P-
0001-01A



Notes on carrying out repair work in
the vehicle interior

MODEL 240

AH68.00-P-
0001-01H



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



me



Shown on model 230

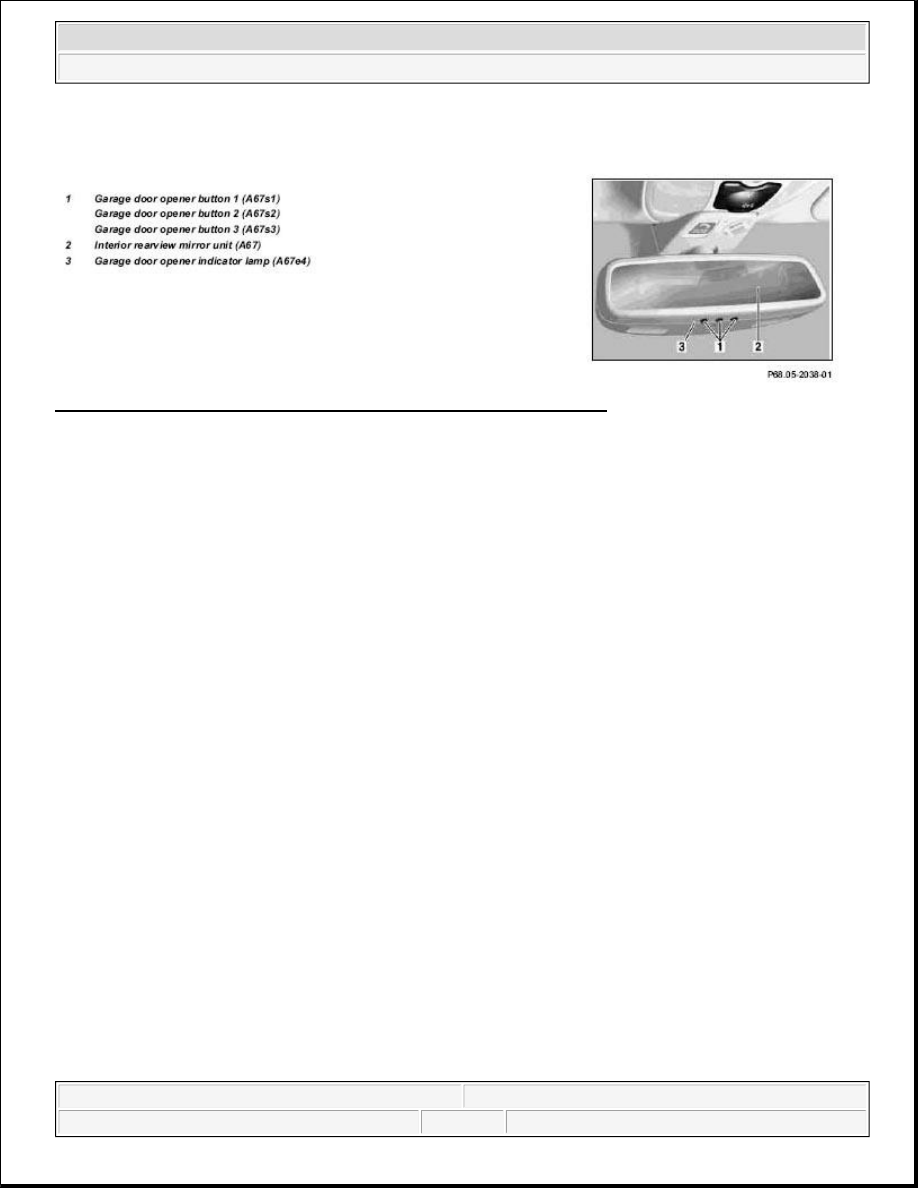

Fig. 1: Identifying Garage Door Opener Buttons - Shown On Model 230

Garage door opener, function

The garage door opener consists of an intelligent radio remote control with three transmitter buttons capable of
learning. Various receivers for opening and closing systems and doors can be activated with the three buttons,
garage door opener button 1 (A67s1), garage door opener button 2 (A67s2) or garage door opener button 3
(A67s3).

Program remote control

Function requirements:

Term. 15R or 15 ON

Press and hold down garage door opener button 1 (A67s1), garage door opener button 2 (A67s2) or
garage door opener button 3 (A67s3).

The garage door opener indicator lamp (A67e4) starts flashing (frequency 1 Hz).

Continue to actuate garage door opener button 1 (A67s1), garage door opener button 2 (A67s2) or garage
door opener button 3 (A67s3) and hold garage door remote control with transmit button pressed for t < 90
s.

After successful programming, the garage door opener indicator lamp (A67e4) flashes rapidly (f = 5.5
Hz) for approx. 10 s.

Release the two transmit buttons and program additional transmitters as required.

Time switch-off

To protect the vehicle battery, the transmitter unit switches off the learn-in mode when programming is not
accomplished within approx. 100 s.

Transmitter mode



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



If garage door opener button 1 (A67s1), garage door opener button 2 (A67s2) or garage door opener button 3
(A67s3) is actuated, the signal learned for this memory location is transmitted activating the associated garage
door drive.

 The garage door opener (signal has a range of at least 15 m.

Erasing

Circuit 15 R or circuit 15 ON.

Simultaneously press garage door opener button 1 (A67s1) and garage door opener button 3 (A67s3) and
hold down for approx. 20 s. The garage door opener indicator lamp (A67e4) starts to flash.

After the LED starts to flash, release garage door opener button 1 (A67s1) and garage door opener button
3 (A67s3) within 10 s while garage door opener indicator lamp (A67e4) is flashing. The existing data of
the memory locations is erased.

The memory can be deleted by actuating garage door opener button 1 (A67s1) and garage door opener button 3
(A67s3) for longer than 20 s. The LED flashes rapidly for approx. 10 s indicating that all memory locations
have been successfully deleted.

CONTENTS, FUNCTION DESCRIPTION OF GARAGE DOOR OPENER - GF68.05-P-0999A

MODEL 129, 163, 170, 202 as of 1.6.98, 203, 208, 210 as of 1.6.98, 215, 220, 230 with CODE (231a)
Garage door opener


GARAGE DOOR OPENER TRANSMITTER, LOCATION/PURPOSE - GF68.05-P-1100A

MODEL 129 as of 1.6.98,163 as of 1.9.01,170, 202 as of 1.6.98,203,208, 210 as of 1.6.98,215, 220, 230 with
CODE (231a) Garage door opener


 Notes and list of compatible garage door drives for garage door opener   AH68.05-P-0001-01A



Garage door opener transmitter, location/ purpose

  GF68.05-P-1100A

  Garage door opener, function

  GF68.05-P-0001A



Survey of system components, garage door opener,
location/purpose/design/function



GF68.05-P-
9999RZ



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



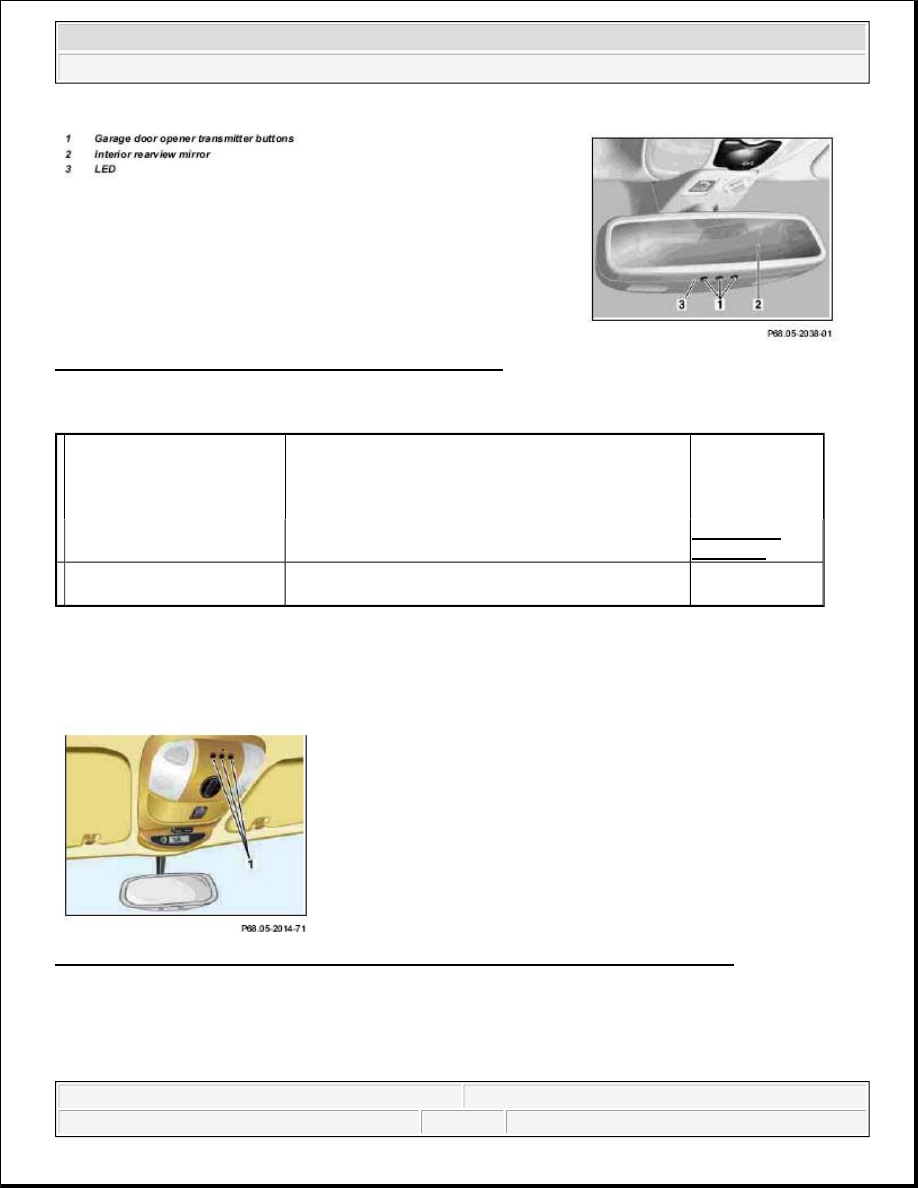

Fig. 2: Identifying Garage Door Opener Transmitter Keys

Illustrated on model 230

GARAGE DOOR OPENER TRANSMITTER, LOCATION - GF68.05-P-1100-01C

The transmitter keys (1) as well as the transmitter for opening the garage door are located in the mounting shaft
between the interior lamps.

Fig. 3: Identifying Garage Door Opener Transmitter Buttons - Illustrated On Model 230

SURVEY, SYSTEM COMPONENTS, GARAGE DOOR OPENER, LOCATION/ PURPOSE/DESIGN/FUNCTION - GF68.05-P-
9999RZ

MODEL 129, 163, 170, 202 as of 1.6.98,203,208, 210 as of 1.6.98,215, 220, 230 with CODE (231a) Garage
door opener




Garage door opener
transmitter, location

Models 129, 202, 203, 208, 210, 220, 230

GF68.05-P-1100-
01A



Model 170

GF68.05-P-1100-
01B



Model 163

GF68.05-P-
1100-01C



Garage door opener
transmitter, purpose

Up to 3 different garage door drives can be activated
with the garage door opener.
