Mercedes-Benz ML320. Service manual - part 720





17

Unscrew screws (2) for instrument panel
carrier (3) from A-pillar

18

Remove instrument panel carrier (3) and take
out of passenger compartment to side
through passenger door



Be careful not to damage center console

when removing and installing.

19

Install in the reverse order



Jacket tube

Number

Designation

MODEL
Series 163

BA46.10-P-1006-03C

Screw for jacket tube on upper instrument
panel carrier

Nm

20

BA46.10-P-1007-03C

Jacket tube collar nut on instrument panel
carrier at bottom

Nm

18

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

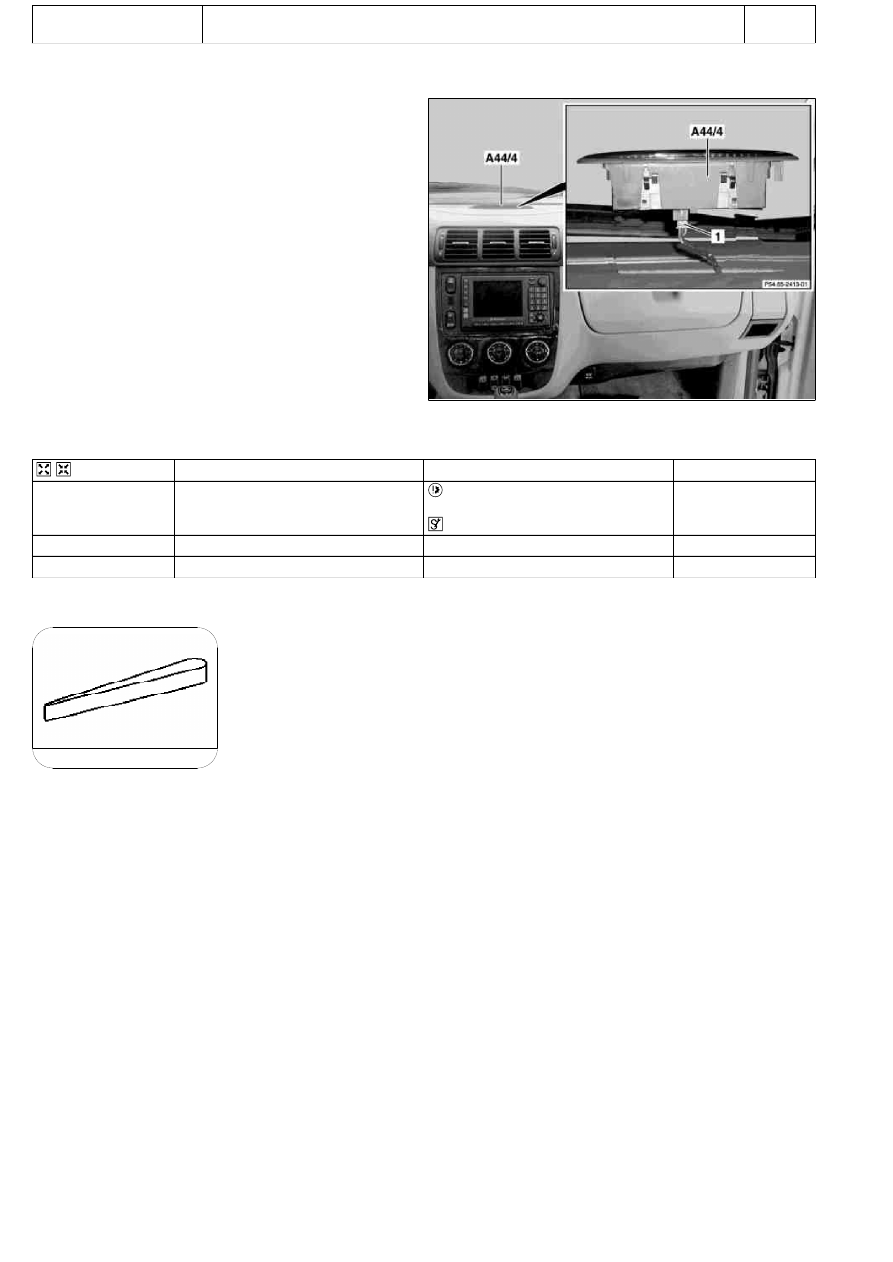

AR54.65-P-0003GH

Removing and installing Parktronic system (PTS) warning display in instrument
panel

23.4.01

MODEL

163.113 /128 /154 /157 /174 /175 with CODE (220a) Parktronic System (PTS)

P54.65-2414-11

1

Connector

A44/4

PTS warning display, center of instrument panel



Remove/install

1

Remove PTS warning display (center of
dashboard)A44/4) above the instrument panel.



Ensure that the instrument panel is not

damaged.

 Long wedge

*115589035900

2

Disconnect connector (1).

3

Install in the reverse order

Long wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

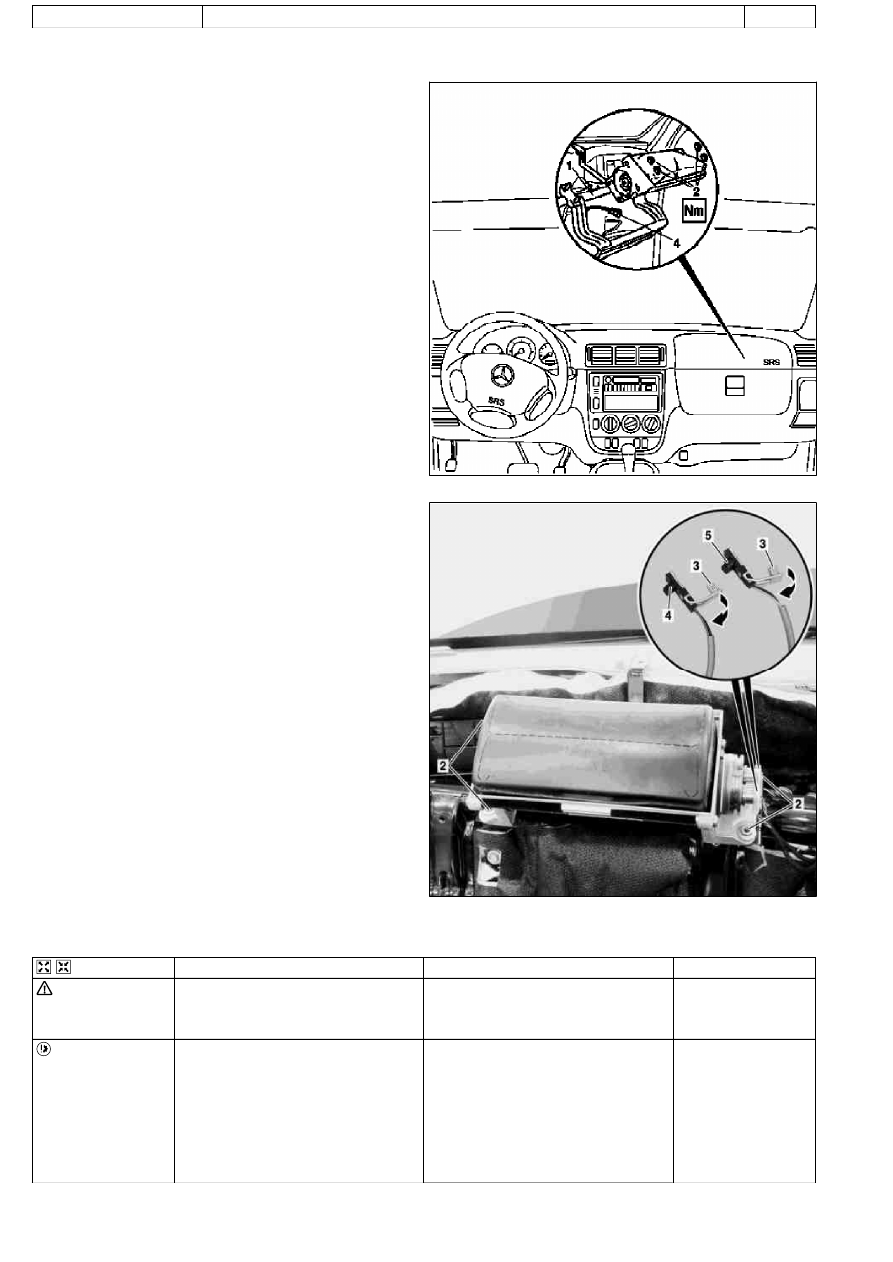

AR91.60-P-0680GH

Remove/install passenger airbag unit

27.2.01

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

P91.60-2371-12

up to 31.08.01

1

Instrument panel

2

Self-locking nuts

4

Connector

P91.60-2337-12

as of 01.09.01

2

Self-locking nuts

3

Lock

4

Connector

5

Connector



Remove/Install



Danger!

Risk of injury. Injuries may result when
performing testing or repair work on airbag or
emergency tensioning retractor units.

Store airbag unit with deployment face up, do
not subject to temperatures above
100 °C. When working on these units,
disconnect the power supply.

AS91.00-Z-0001-01A



Instructions for performing repair, body work
and welding on vehicles with airbags and
ETR units

Models 129 as of 1.7.93, 163, 168, 170, 202
as of 1.7.93, 208, 210, 414, 638, 690.6, 901,
902, 903, 904, 905

Model 461 with engine 602.983

Model 463 up to 30.11.00

ModelS WD141, WD241, WD341, WD641,
WD741, XD141, XD241, XD341, XD441,
XD541, XD641, XD741, YD141, YD241,
YD341, YD441, YD541, YD641, YD741

AH91.00-P-0002-01B

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1



Legal regulations on handling and storing
airbags and emergency tensioning retractors

Models 124, 129, 140, 163, 168, 170, 202,
203, 208, 209, 210, 211.004/ 006/ 016/ 061/
065/ 070, 215, 220, 230, 314, 316, 318, 414,
461, 463, 638, 668, 670, 690.6, 901, 902,
903, 904, 905, 950, 952, 953, 954, 970, 972,
974, 975, 976

Model WD141, WD241, WD341,  WD641,
WD741, XD141, XD241, XD341, XD441,
XD541, XD641, XD741, YD141, YD241,
YD341, YD441, YD541, YD641, YD741

AH91.00-P-0004-01A

o



Notes on disposing of airbag and emergency
tensioning retractor units

All models

OS91.00-P-0001-01A

1

Disconnect ground cable of battery



To prevent unintended contact, insulate

the ground lead cable lug.

AR54.10-P-0003A

2

Remove instrument panel

AR68.10-P-1000GH

3.1

Open lock (3) on both plugs (4, 5)

 As of 01.09.01.

4

Detach plugs (4, 5) from squib



Up to 31.8.01, only one plug (4) is present.



Installation: Plug/s must audibly latch.

As of 01.09.01: Close lock (3) on plugs after
latching.

5

Slacken self-locking nuts (2) from the front
passenger airbag



*BA91.60-P-1003-01A

6

Remove front passenger airbag

7.1

Render airbag units unusable



Only if airbag unit is replaced.

AR91.60-P-0611A

8

Install in the reverse order

9

Carry out diagnosis

a



Airbag (AB) electrical system test



up to 30.11.99.

AD91.60-P-6000GH



As of 1.12.99: Perform diagnosis with

STAR DIAGNOSIS.

 Airbag

Number

Designation

Model
163

BA91.60-P-1003-01A

Nut of front passenger airbag unit to
instrument panel mounting

Nm

8

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2
