Mercedes-Benz ML320. Service manual - part 718





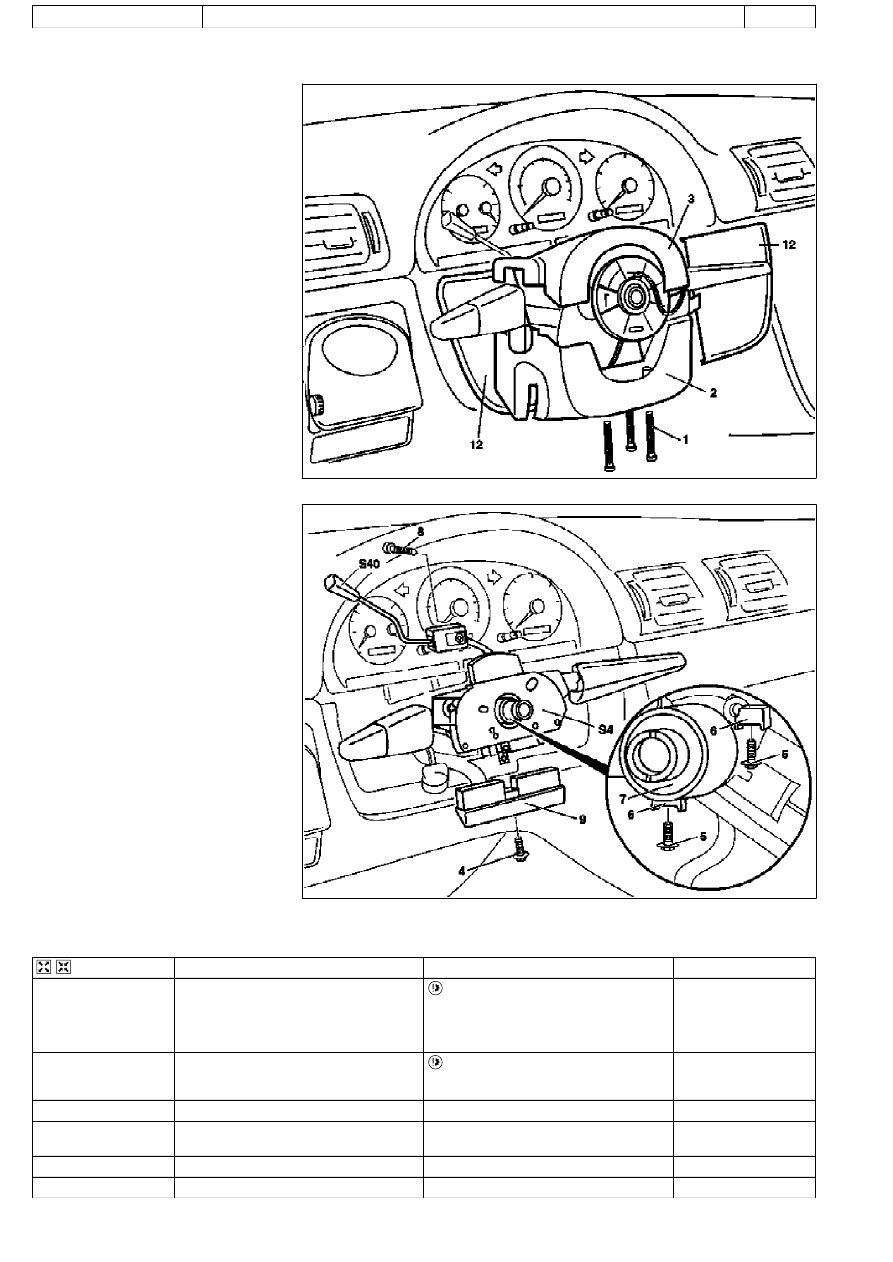

AR54.25-P-2800GH

Removing and installing combination switch

21.1.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

P54.25-0325-06

1

Bolt

2

Lower steering column cover

3

Upper steering column cover

12

Cover

P54.25-0333-06

4

Bolt

5

Bolt

6

Retaining web

7

Steering shaft

8

Bolt

9

Connector

S4

Combination switch

S40 CC switch



Remove/install

1

Disconnect ground cable of battery



To protect against unwanted contact

between the disconnected ground line and
the ground (right major assemblies
compartment, common ground W16/4,
insulate cable lug of ground line.

AR54.10-P-0003A

2

Remove steering wheel

 Caution when handling airbag

unitImproper handling can lead to damage to
the airbag unit.

AR46.10-P-0100GH

3

Remove clock spring contact

AR46.10-P-0200GH

4

Unscrew screws (1) and remove lower
steering column molding (2)

5

Remove upper steering column molding (3)

6

Remove covers (12) on left and right

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

7.1

Disconnect electrical connectors at the covers
12)

 Only with left/right folding outside mirror,

code 500 and headlamp cleaning system,
code 600.

8

Unscrew screw (4) and disconnect connector
(9)

9

Unscrew screw (8) and remove cruise control
switch (S40)

10

Unscrew screws (5)

11

Pull combination switch (S4) off the retaining
webs (6) and remove

12

Install in the reverse order

13

Perform function check

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2

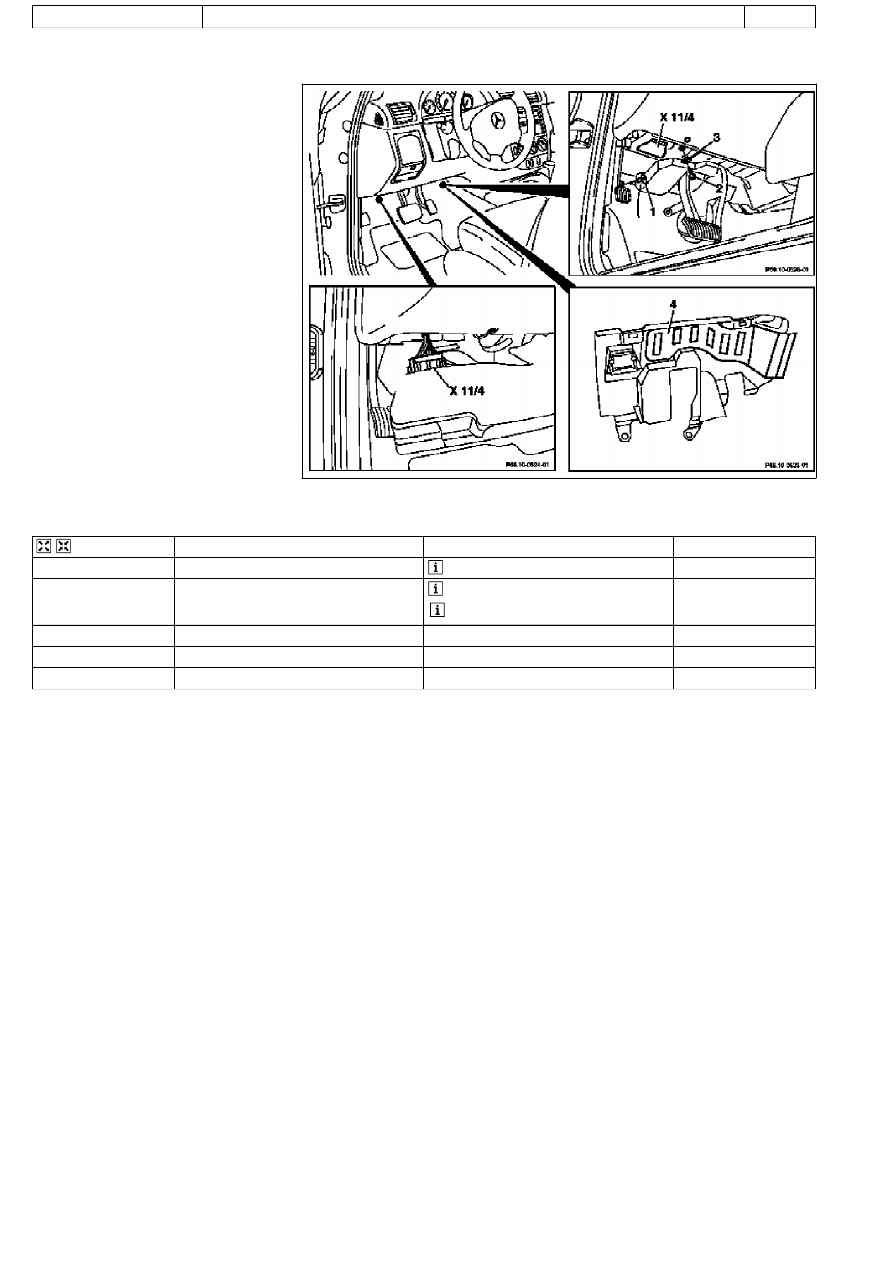

AR68.10-P-1500GH

Removing and installing cover below instrument panel (left)

4.2.97

MODELS  163.113 /128 /136 /154 /157 /172 /174 /175

P68.10-0522-06

1

Plugs

2

Bolt

3

Clips

4

Cover

X11/4

Datalink connector



Remove/install

1

Remove plug (1)

 2 each.

2

Unscrew screw (2)

 2 each.



Installation: Observe clips (3).

3

Unlock and remove data link connector (X11/4)

4

Take off cover (4)

5

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

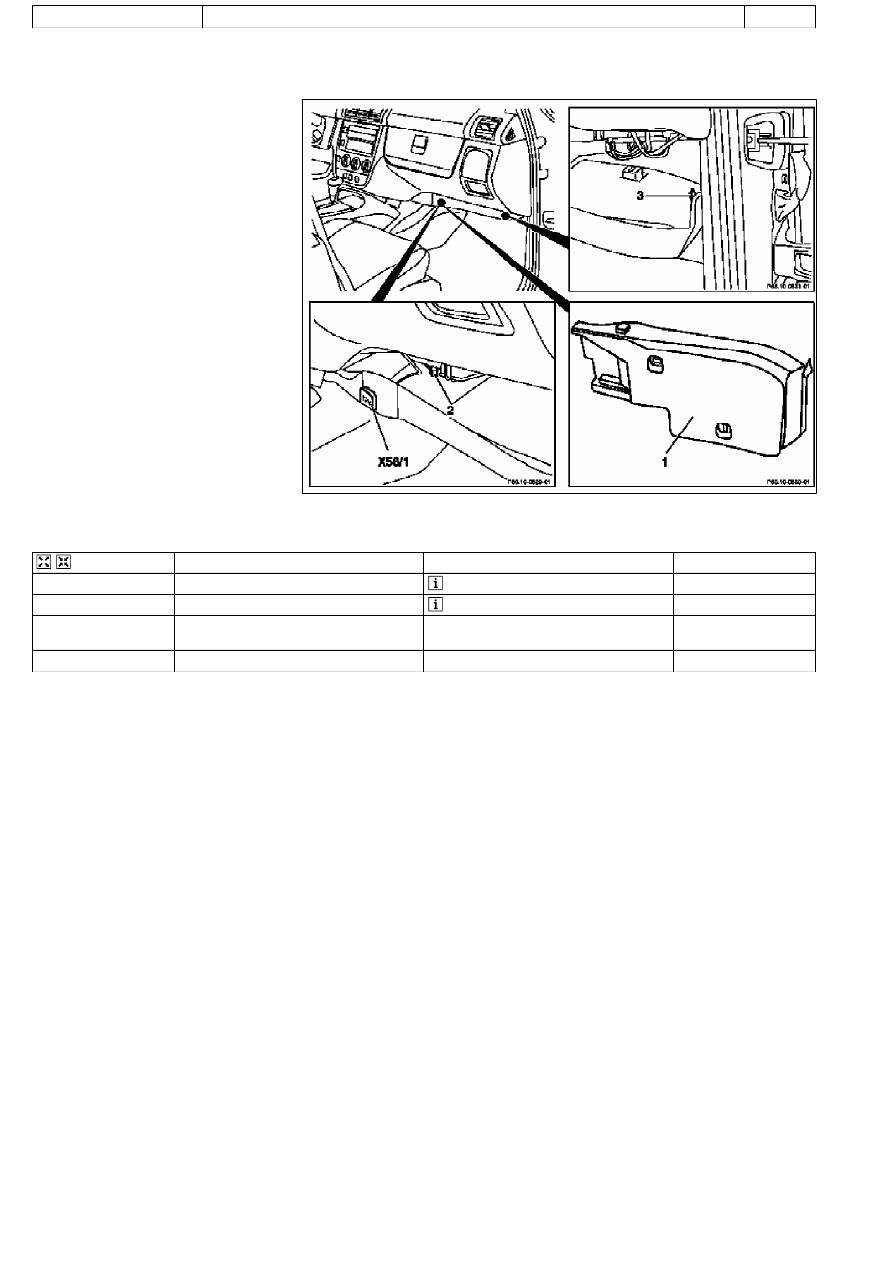

AR68.10-P-1520GH

Remove/install cover below instrument panel (right)

4.2.97

MODEL

163.136 /154 /172 #A up to 145272,

163.136 /154 /172 #X up to 708318

P68.10-0527-06

1

Cover

2

Plug-in clips

3

Catch

X58/1

Interior socket



Remove/Install

1

Unhook catch (3) on blower motor

 Risk of breakage!

2

Unclip cover (1)

 Cover is fastened with 2 clips (2).

3

Disconnect electrical connector from interior
socket (X58/1)

4

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
