Mercedes-Benz ML320. Service manual - part 719





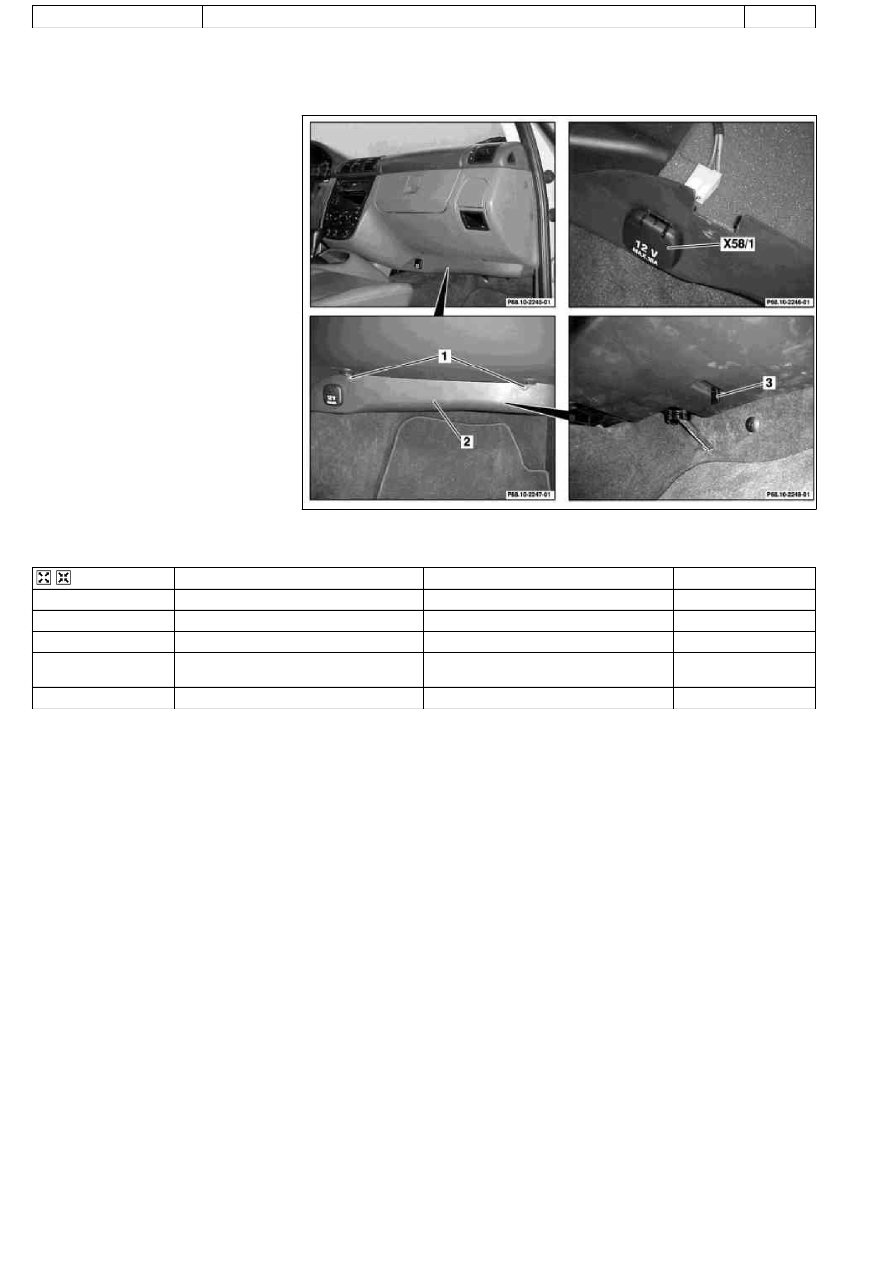

AR68.10-P-1520GI

Remove/install cover below instrument panel (right)

2.6.99

MODEL

163.136 /154 /172 #A as of 145273,

163.136 /154 /172 #X as of 708319,
163.113 /128 /157 /174 /175

P68.10-2249-06

1

Torx bolts

2

Cover

3

Locking lever

X58/1

Interior socket



Remove/Install

1

Unscrew Torx screws (1) form cover (2)

2

Fold locking lever (3) downward

3

Pull cover (2) downward and lay down

4

Disconnect electrical connector from interior
socket (X58/1)

5

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

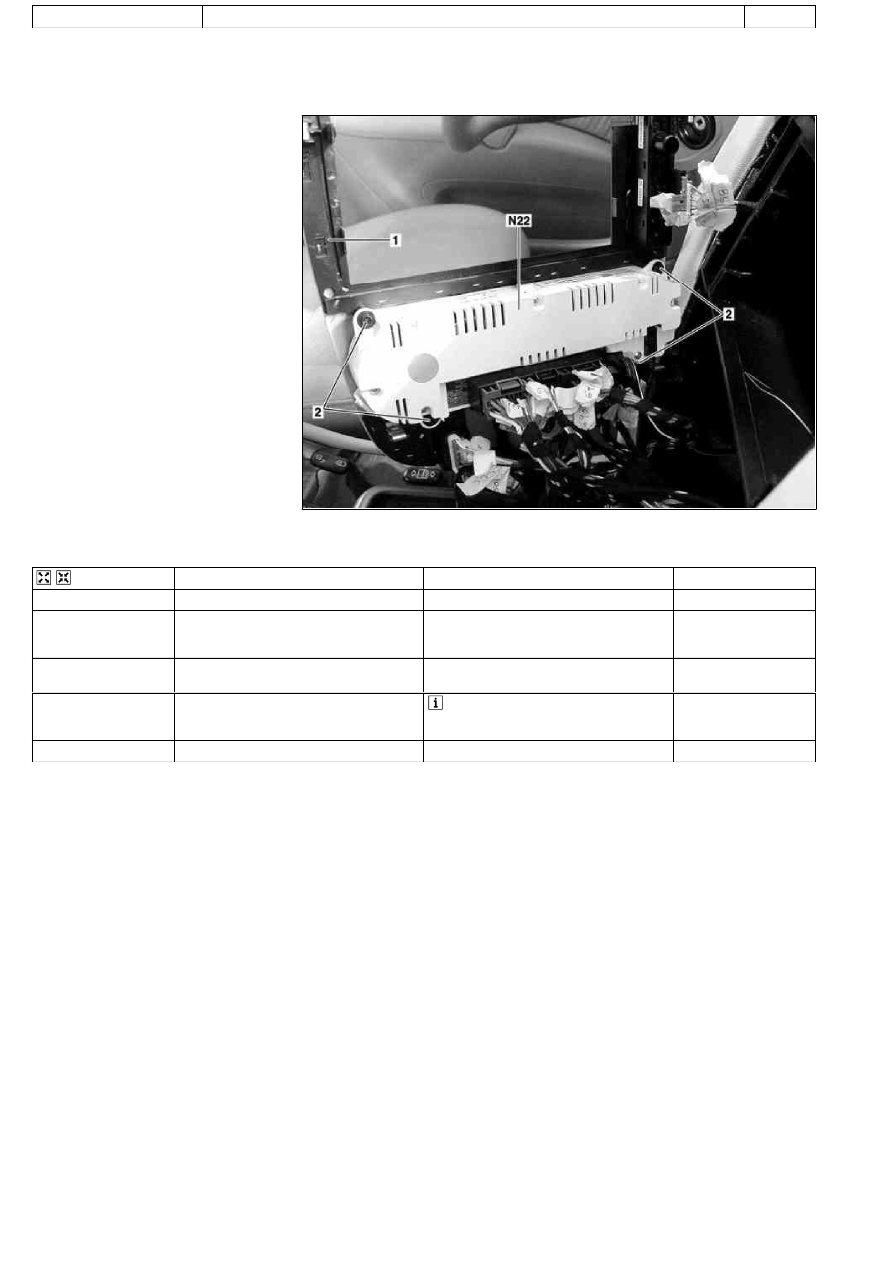

AR83.40-P-6500GH

Remove/install switch unit/automatic air conditioning control module

7.3.01

MODEL

163.113 /154 /174 #A as of 289565,

163.113 #X as of 754620,
163.128 /157 /175

P83.40-2329-06

1

Instrument panel center section

2

Bolts

N22

AAC pushbutton control module



Remove/install

1

Remove center section of instrument panel

AR68.10-P-1030GH

2

Remove switch unit of AAC control and
operating module (N22) from center part of
instrument panel (1)

3

Unscrew screws (2) from AAC control and
operating module (N22)

4

Disconnect AAC control and operating
module (N22) from center section of
instrument panel

 Loosen retaining clamps at the top and

bottom.

5

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

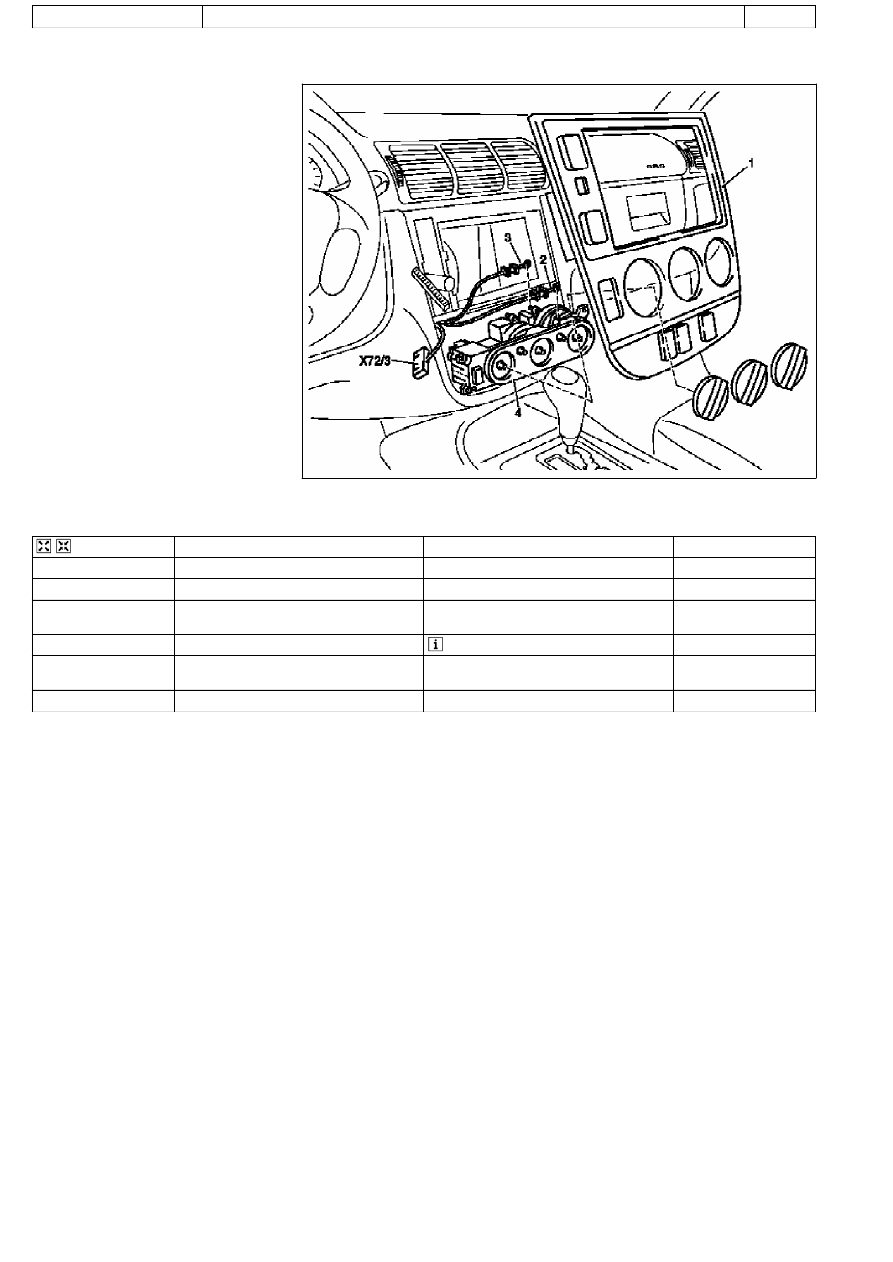

AR83.20-P-1835GH

Remove, install switch unit for heater/ventilation

30.4.97

MODELS  163.113/136/154/172/174 up to 31.8.01 with CODE (580) air conditioning or Tempmatic for USA

P83.20-0262-06

1

Center part of instrument panel

2

Defroster cable

3

Footwell ventilation cable

4

Pushbutton control module

X72/3

Connector



Remove/install

1

Remove radio

AR82.60-P-7502EA

2

Remove center part of instrument panel (1)

AR68.10-P-1030GH

3

Unscrew bolts at heater/AC controls (4) and
remove controls

4

Detach cable (2, 3)

 Unclip cables at heater/AC controls.

5

Disconnect connector (X72/3) at heater/AC
controls (4)

6

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

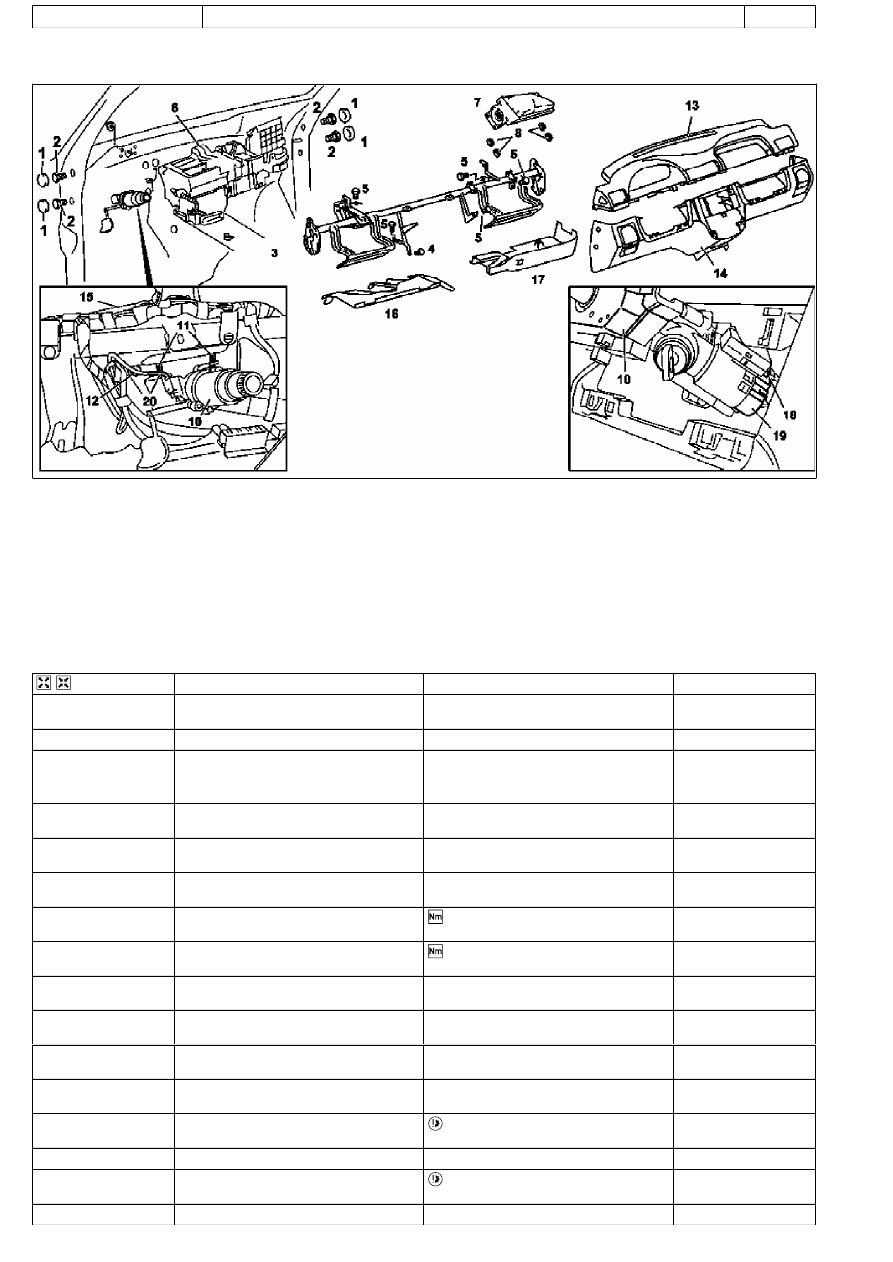

AR68.10-P-1111GH

Remove/install instrument panel carrier

17.3.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

P68.10-0612-09

1

Caps on A-pillar

2

Bolts

3

Instrument panel

4

Bolt

5

Bolts

6

Heater housing

7

Front passenger airbag unit

8

Nuts, self-locking

17

Cover below instrument panel on right

18

Connector on MB immobilizer switch

19

Connector at steering/ignition lock

20

Steering column adjustment switch
connector

10

Steering column

11

Bolts

12

Nuts

13

Instrument panel

14

Bottom section of instrument panel

15

Wiring harness

16

Cover below instrument panel on left



Remove/install

1

Remove instrument panel (13) and the lower
part of instrument panel (14)

AR68.10-P-1000GH

2

Remove passenger airbag (7)

AR91.60-P-0680GH

3

Remove cover below instrument panel on
right (17)

Up to chassis number A145272, X708318.

AR68.10-P-1520GH

As of chassis number A145273, X708319.

AR68.10-P-1520GI

4

Unscrew screws (5) from instrument panel
carrier (3) on heater housing (6)

5

Remove cover below instrument panel on left
(16)

AR68.10-P-1500GH

6

Remove insulating mat between steering
column (10) and carrier for instrument panel (3)

7

Unscrew screws (11) for steering column (10)
from instrument panel carrier (3)



*BA46.10-P-1006-03C

8

Remove nuts (12) for steering column (10)
from instrument panel carrier (3)



*BA46.10-P-1007-03C

9

Unscrew screws (4) for instrument panel
carrier (3) from middle tunnel

10

Disconnect connector from steering column
height adjustment switch (20)

11

Disconnect connector from MB immobilizer
switching unit (18)

12

Disconnect connector from steering/ignition
switch (19)

13

Disconnect wiring harness (15) from
instrument panel carrier

 Installation: Ensure that wiring harness

is routed correctly on instrument panel carrier.

14

Remove wiper system

AR82.30-P-6400GH

15

Unscrew nuts for instrument panel carrier (3)
on firewall



Installation: Install new self-locking nuts.

16

Remove caps on A-pillar (1)

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
