AUTOMATIC DIMMING INSIDE REARVIEW MIRROR, FUNCTION - GF68.49-P-0003GH

MODEL 163 as of 1.9.99 with CODE (249b) Automatic dimming inside rearview and outside rearview
mirror (driver)


Function requirements

No overvoltage or undervoltage

Term. 15R or 15 ON

Reverse gear not engaged

Interior lighting not switched on

Function

The glass of the inside rearview mirror (A67) can be electro-chromatically dimmed. The mirror glass between
the reflector and the glass cover contains a layer of electrolyte gel. The light transmission ratio of this gel
changes when a voltage is applied to it.

The light hitting the surface of the mirror is more or less reflected due to the variable of the actuation voltage.

The actuation voltage is controlled by the electronic circuitry in the inside rearview mirror. This is
accomplished depending on the ambient light and the light hitting the mirror.

The two input parameters are detected by the mirror dimming to rear sensor (A67h2) in the mirror housing
(rear) and by the mirror dimming forward sensor (A67h1) in the mirror glass of the inside rearview mirror
(A67).

 The inside rearview mirror unit (A67) also acts as the master for the outside mirror dimming function

(driver's side).

CONTENTS - FUNCTION DESCRIPTION, AUTOMATIC DIMMING INSIDE REARVIEW MIRROR - GF68.49-P-0999GH

MODEL 163 as of 1.9.99 with CODE (249a) Automatic dimming inside rearview mirror

TROUBLE DIAGNOSIS

FRONT ASHTRAY DOES NOT OPEN SOFTLY OR IS STUCK - AF68.20-P-6000A

  Garage door opener transmitter, location/ purpose

  GF68.05-P-1100A

  Contents, function description of garage door opener

  GF68.05-P-0999A

  Automatically dimming driver-side outside mirror, function

  GF88.79-P-2003GH

  Function description, automatic dimming inside rearview mirror

  GF68.49-P-0003GH

  Automatic dimming outside rearview mirror on driver's side, function

  GF88.79-P-2003GH



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



MODEL 163.113 /128 /154 /157 /174 /175 #A as of 289560 up to 480543,163.113 /128 #X as of 754620 up to
777100


Operation no. of operation texts or standard texts and flat rates

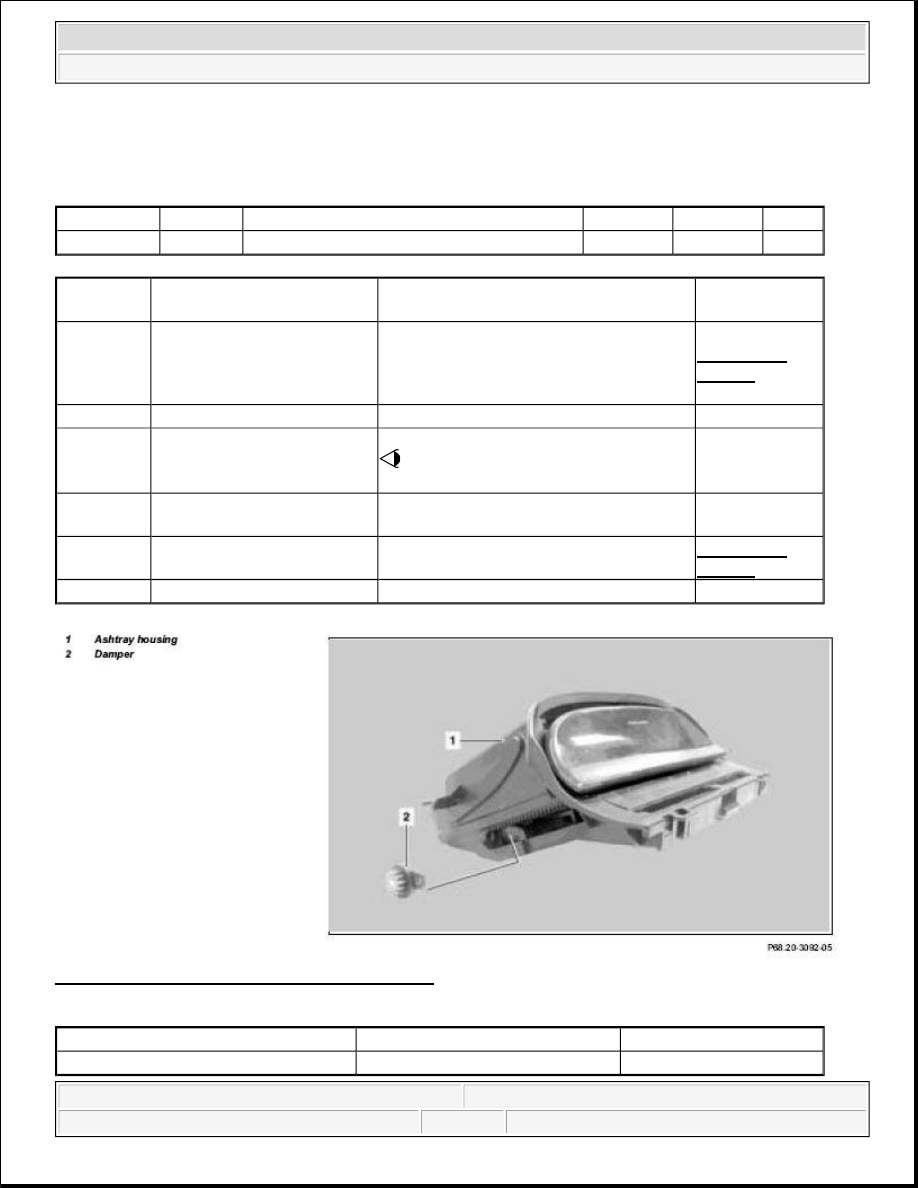

Fig. 4: Identifying Ashtray Housing And Damper

Parts ordering notes

Category

Op. no.

Operation text

Time

Acc. no.

Code

P

024513

Replace Damper for front ashtray

010 WU

-

-

Damage
code

Cause

Remedy



81 031 H2

Foreign matter stuck in
ashtray housing.
Damper is missing or is
damaged.

1 Remove front ashtray housing (1).

AR68.20-P-
2400GI





2 Remove foreign matter.







3 Check operation (open and close ashtray)

 If ashtray does not open softly or opens

jerkily. ?







4 Remove/install/replace damper on
ashtray (2).







5 Install ashtray housing (1).

AR68.20-P-
2400GI





6 Perform a function test



Part no.

Designation

Quantity

163 680 03 26

Damper

1



2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



ASHTRAY HOUSING CANNOT BE OPENED - AF68.20-P-6003A

MODEL 163.113 /154 /174 #A as of 289565, 163.128 /157 /175

Operation no. of the operation texts or standard texts and flat rates

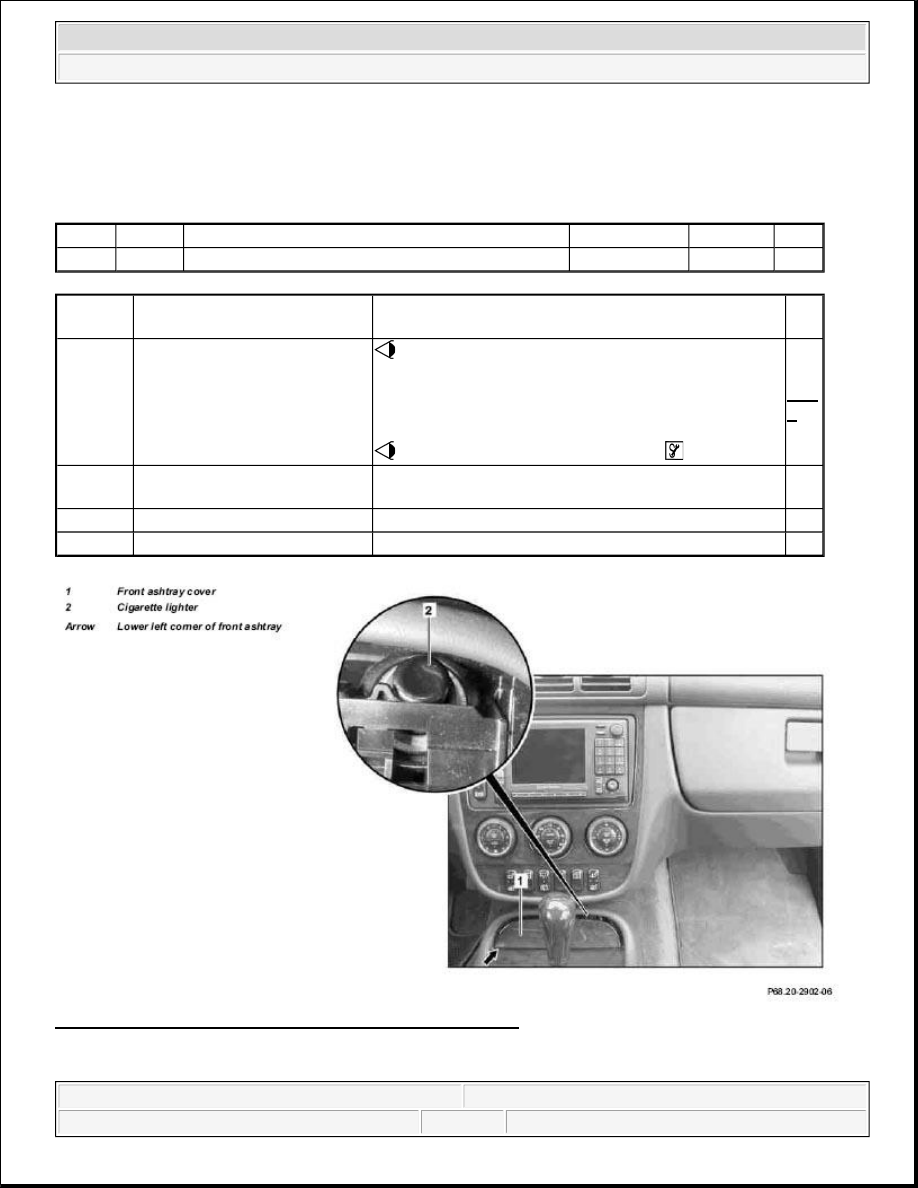

Fig. 5: Identifying Front Ashtray Cover & Cigarette Lighter

Range Op. no. Operation text

Flat rate

Acc. no.

Code

P

023919 Correct installation position of cigarette lighter

001 WU/0.1 h

82 331 ** ---

Damage
code

Cause

Remedy





Cigarette lighter not fully
seated, causing ashtray housing
to jam when closed.

 It is NOT necessary to replace the complete ashtray

housing.
1 Using a long wedge, slide under edge of ashtray cover
and pry up and out to remove. Support cover to prevent
breaking tabs from abrupt release.

 Start from lower left corner (arrow).



Fig.
6





2 Push inward on head of cigarette lighter until lighter
snaps into proper position.







3 Reinstall front ashtray cover.







4 Verify proper operation.





2001 Mercedes-Benz ML320

1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis



me



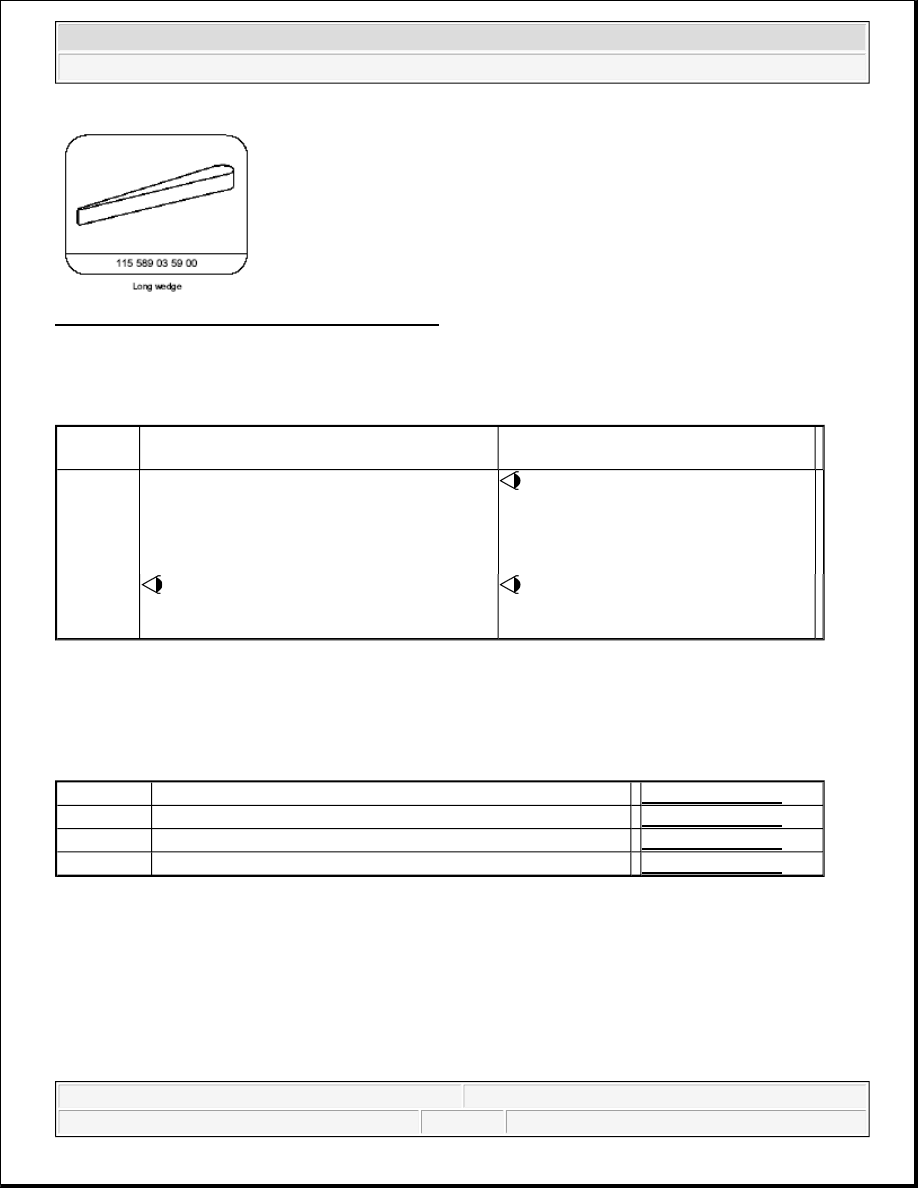

Fig. 6: Identifying Long Wedge (115 589 03 59 00)

ILLUMINATED MIRROR, OCCASIONAL MALFUNCTION - AF68.60-P-2001A

MODEL 163.154 /172 #A as of 145273,163.154 /172 #X as of 708319,163.113 /128 /157 /174 /175

SELF-DIAGNOSTIC SYSTEM

GARAGE DOOR OPENER DIAGNOSIS, CONTENTS - AD68.05-P-1000AZ

MODEL 129, 163, 170, 202, 208, 210 as of 1.6.98,215, 220 with CODE (231a) Garage door opener

GARAGE DOOR OPENER, DIAGNOSIS TOOLS - AD68.05-P-2000-01A

Damage
code

Cause

Remedy



81 002

As soon as the sun visor is removed from the
holder, the illuminated mirror looses contact.

 To use the illuminated mirror the sun

visor must remain arrested in the holder
The illuminated mirror does not function
as long as the sun visor is outside the
holder.





 This malfunction is frequently incorrectly

diagnosed as a defective lead or sun visor
contact fault.

 The sun visor and illuminated mirror

function properly and should NOT be
replaced.



22.1 [] 11

Garage door opener diagnosis, previous knowledge

  AD68.05-P-2000A

22.1 [] 12

Garage door opener diagnosis, function check

  AD68.05-P-3000A

22.1 [] 13

Garage door opener diagnosis, troubleshooting

  AD68.05-P-5000A

22.1 [] 21

Garage door opener, testing electrical system

  AD68.05-P-6000A
