Mercedes-Benz ML320. Service manual - part 683





  Auto button, location/purpose/function

Rear ventilation operating module

2147GI
GF83.40-P-
2147GJ

  AC OFF button, location/purpose/function



GF83.40-P-
2107GI



Residual heat button,
location/purpose/function



GF83.40-P-
2148GI



Rear compartment air distribution button,
location/purpose/function



GF83.40-P-
2173GI



All-activity module,
location/purpose/function



GF54.21-P-
4110GH




Air conditioner housing, location/purpose/
design/function



GF83.40-P-
2105GI

  Auxiliary fan, location/purpose/function

Engine 111.977, 112.942, 112.970
with code 580 up to 31.08.01
Engine 112.942, 112.970 with code
580a as of 01.09.01

GF83.40-P-
2162GH



Engine and AC electric suction fan with
integrated control, location/purpose/function

Engine 113.942 with code 580a up to
31.08.01 Engine 113.981, 113.965,
612.963, 628.963, with code 580a as of
01.09.01

GF83.40-P-
2172GI

  Condenser, location/purpose/function



GF83.40-P-
2152GC

  Evaporator location/purpose/design/function

GF83.40-P-
2121GC

  Fluid reservoir, location/purpose/function



GF83.40-P-
2153GI



Expansion valve, location/purpose/design/
function



GF83.40-P-
2123GC



Refrigerant pressure and temperature sensor,
location/purpose/function



GF83.40-P-
2171GI



Refrigerant compressor, location/purpose/
design/function



GF83.55-P-
2100P

  Control valve, location/purpose/function



GF83.55-P-
2102P

  Belt pulley, location/purpose/design/function

GF83.55-P-
2103P



Pressure relief valve,
location/purpose/function



GF83.55-P-
2104P



In-car temperature sensor location/purpose/
function



GF83.57-P-
2115GI



Ice-up protection temperature sensor,
location/ purpose/function



GF83.57-P-
2113GH

  Blending air flap actuator, location/purpose/

GF83.57-P-



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



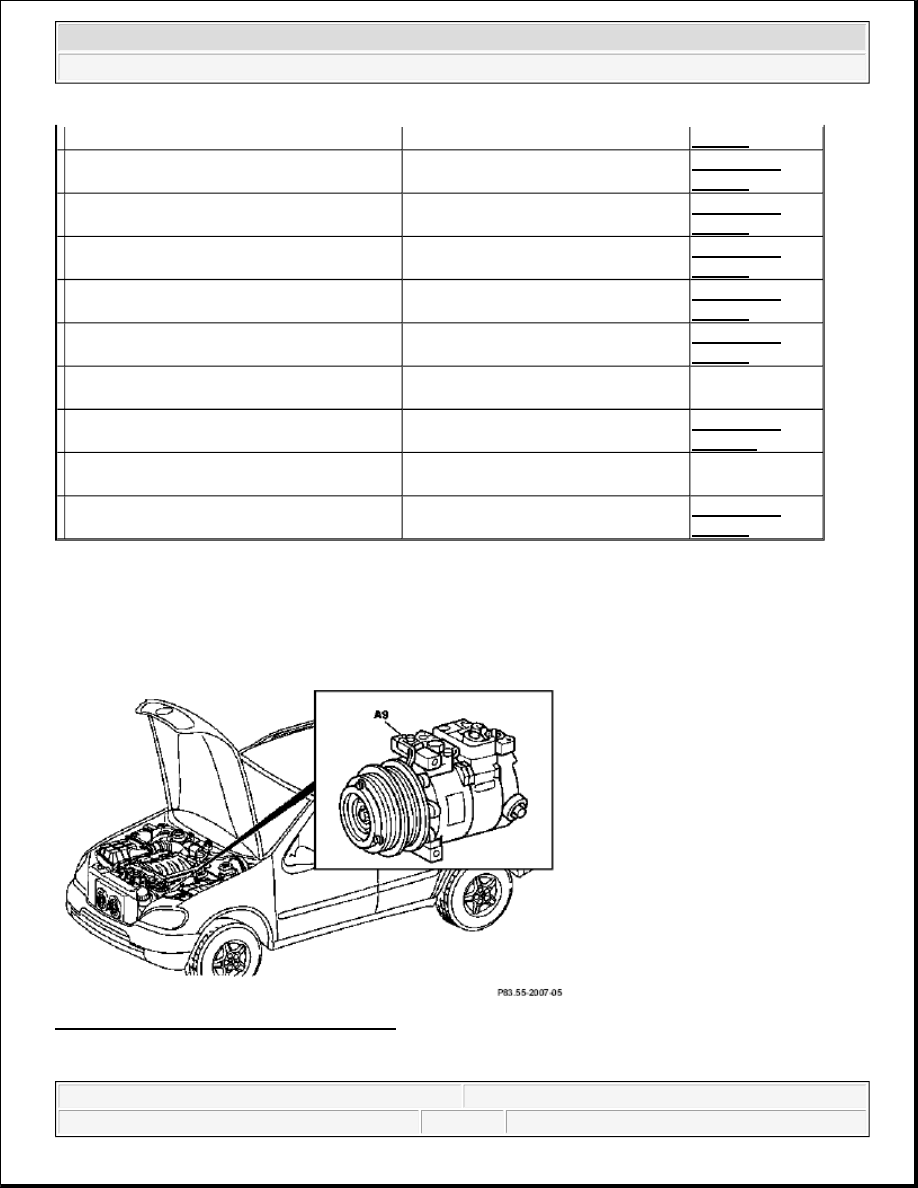

REFRIGERANT COMPRESSOR, LOCATION - GF83.55-P-2100-01GH

Illustrated up to 31.08.01

The refrigerant compressor (A9) is flanged to the engine at front left

Fig. 98: Identifying Refrigerant Compressor

REFRIGERANT COMPRESSOR, FUNCTION - GF83.55-P-2100-02A

function

2112GI



Ambient air temperature sensor, location/
purpose/function



GF83.57-P-
2119GI



Outlet air temperature sensor, center nozzle,
location/purpose/function



GF83.57-P-
2116GI



Outlet air temperature sensor, front footwell,
location/purpose/function



GF83.57-P-
2117GI



Outlet air temperature sensor rear, location/
purpose/function



GF83.57-P-
2118GI

  Sun sensor, location/purpose/function



GF83.57-P-
2111GI



Electric heater booster, location/purpose/
design/function

Engine 612.963

GF83.70-P-
4054GH



Extended activity module, location/purpose/
design



GF54.21-P-
4107GK




CDI control module,
location/purpose/function



GF07.16-P-
3102IA



Table of contents, automatic air conditioning
(AAC) function description



GF83.40-P-
0999GI



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



Refrigerant compressor 7SB16C

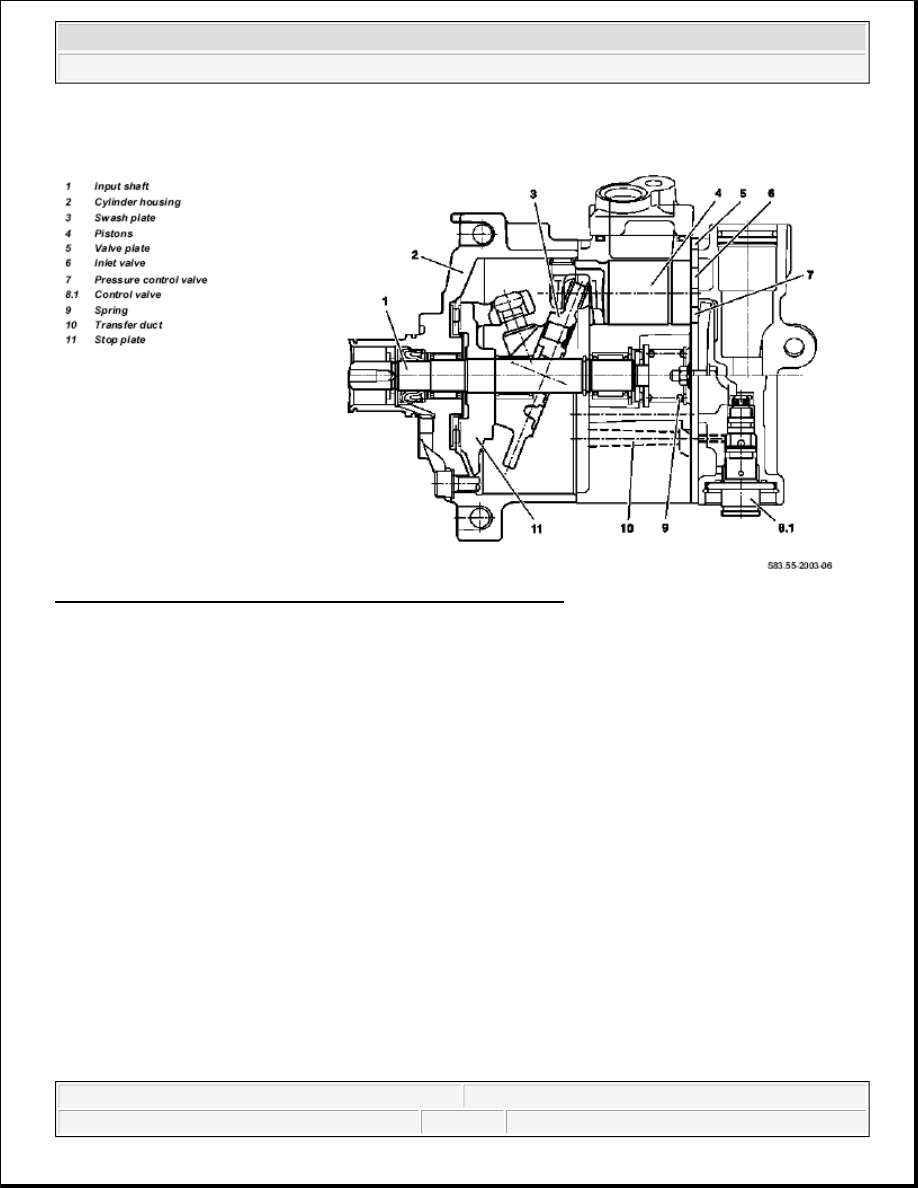

Fig. 99: Identifying Refrigerant Compressor 7SB16C Components

Function

After the electromagnetic clutch (A9k1) has produced the frictional connection between the automotive engine
and the refrigerant compressor, the drive shaft (1) drives the swash plate (3). The rotation of the inclined swash
plate (3) causes the pistons (4) to move in strokes. During the intake stroke, refrigerant vapor is sucked in via
the inlet valve (6).

If the piston (4) moves in the counter direction, it delivers the refrigerant vapor via the pressure control valve
(7), with the vapor being compressed and heating up, into the refrigerant line to the capacitor. With refrigerant
compressor, model 7SB16C, the refrigerant vapor acts on the control valve (8.1) in the refrigerant compressor
for volume control.

Volume control in model 7SB16C

With a low engine speed, the efficiency of an air conditioning system is severely reduced by the low number of
working strokes of the refrigerant compressor and the reduced cooling of the refrigerant in the capacitor. In this
situation there is an increase in the thermal load. The refrigerant compressor is therefore designed so that it has
a sufficient delivery rate even at low rotational speeds.

With an increase in the engine speed and the vehicle speed, the thermal load drops and the delivery rate of the
refrigerant compressor increases. To prevent the refrigerant compressor now from consuming unnecessary
engine power and nevertheless to maintain the refrigeration cycle, the refrigerant compressor reduces its power



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



from a maximum of 100 % to a minimum of 5 %.

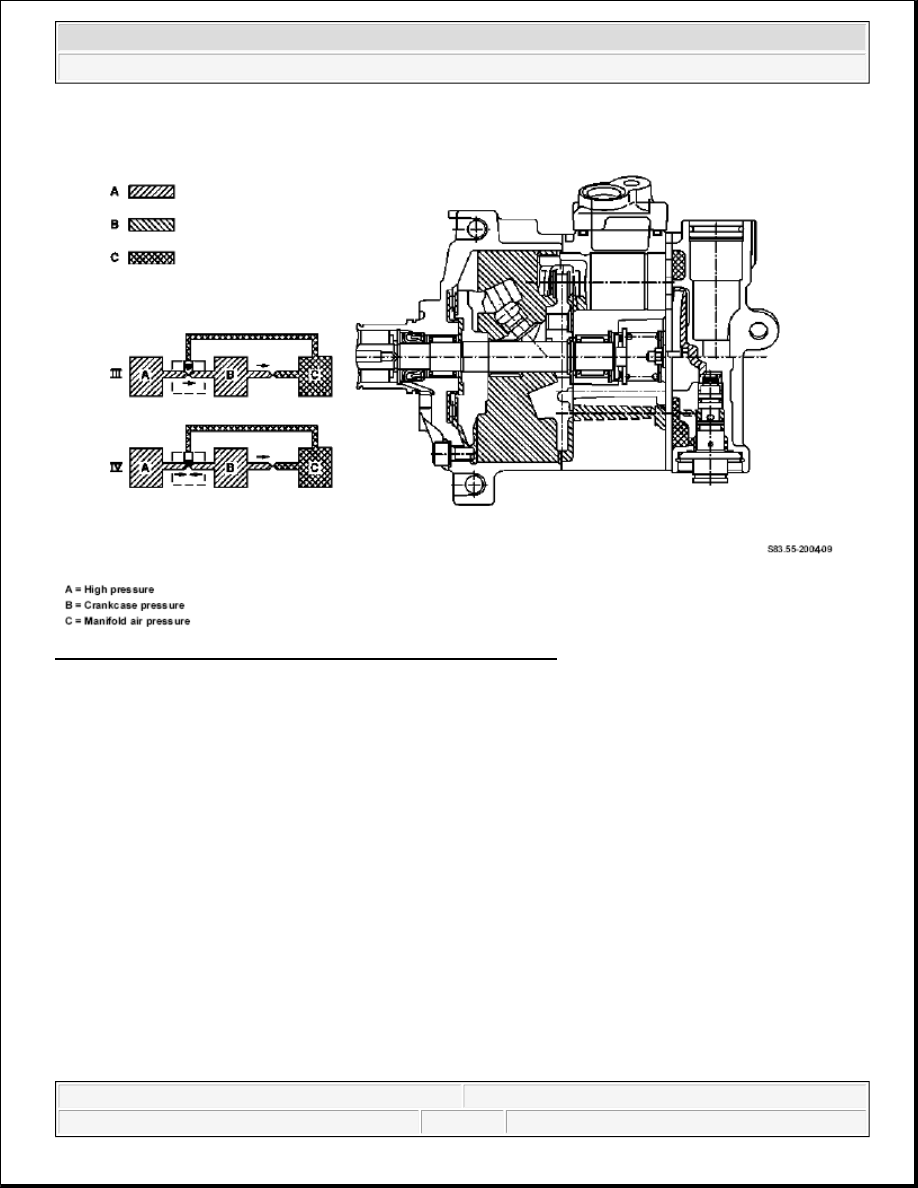

Fig. 100: Identifying Refrigerant Compressor, Function - (1 Of 2)

Function

100% power (I)

The conditions for full power are either a constantly low rotational speed or a high thermal load or both. The
high manifold air pressure C causes the control valve to close. This prevents steam from flowing between the
rear opening and the crankcase. There is always some flow through the transfer duct between the crankcase and
the inlet opening. Therefore, in the crankcase there is almost the same pressure B as on the inlet side C . As a
result, the swash plate is moved into the position for maximum volume. The angle between the swash plate and
the vertical is at its greatest. This results in a large stroke.

Power from 100% to 5% output ( II)

If the influencing conditions change in that the thermal load drops or the engine speed increases, the pressure on
the inlet side C drops and allows the control valve to open.

Then compressed refrigerant now flows from the rear opening to the crankcase. The pressure in the crankcase B
increases therefore and causes the swash plate to reduce its angle, which leads to a reduction in power.



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me
