Mercedes-Benz ML320. Service manual - part 682





ENGINE AND AC ELECTRIC SUCTION FAN WITH INTEGRATED CONTROL, FUNCTION - GF83.40-P-2172-01GI

Function

Depending on the refrigerant pressure and/or on the coolant temperature the speed of the engine and AC electric
suction fan with integrated control (M4/7) is increased infinitely.

The engine and AC electric suction fan with integrated control (M4/7) receives the coolant temperature from the
coolant temperature sensor (B11/4) and the refrigerant pressure from the refrigerant pressure and temperature
sensor (B12/2).

This input information is compared by the engine and AC electric suction fan with integrated control (M4/7)
with the stored values and, if necessary, the speed of the engine and AC electric suction fan is increased to 100

The engine and AC electric suction fan with integrated control (M4/7) operates with AC switched on and in the
reheat mode for basic ventilation with a capacity of up to 20 %.

The basic ventilation can be switched off under the following conditions:

At an outside temperature of < or = 15°C.

The pressure-dependent fan speed remains the same.

At a driving speed of > 75 km/h.

The pressure-dependent fan speed remains the same.

An overrun time of 60 s can be set in order to ensure that the engine and AC electric suction fan with integrated
control (M4/7) will continue to operate even where the refrigerant compressor is temporarily switched off by
the icing protection.

The engine and AC electric suction fan with integrated control (M4/7) has a power rating of 850 W.

ELECTRIC SUCTION-TYPE FAN FOR ENGINE AND AC WITH INTEGRATED CONTROL, LOCATION/TASK/FUNCTION
- GF83.40-P-2172GI

MODEL 163 as of 1.9.01 with ENGINE 113.965 /981, 612.963, 628.963 with CODE (580a) Automatic air
conditioning


MODEL 163 as of 1.9.01 up to 31.8.02 with ENGINE 113.942 with CODE (580a) Automatic air
conditioning




and temperature sensor,
function



GF83.40-P-
2171-01GI



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



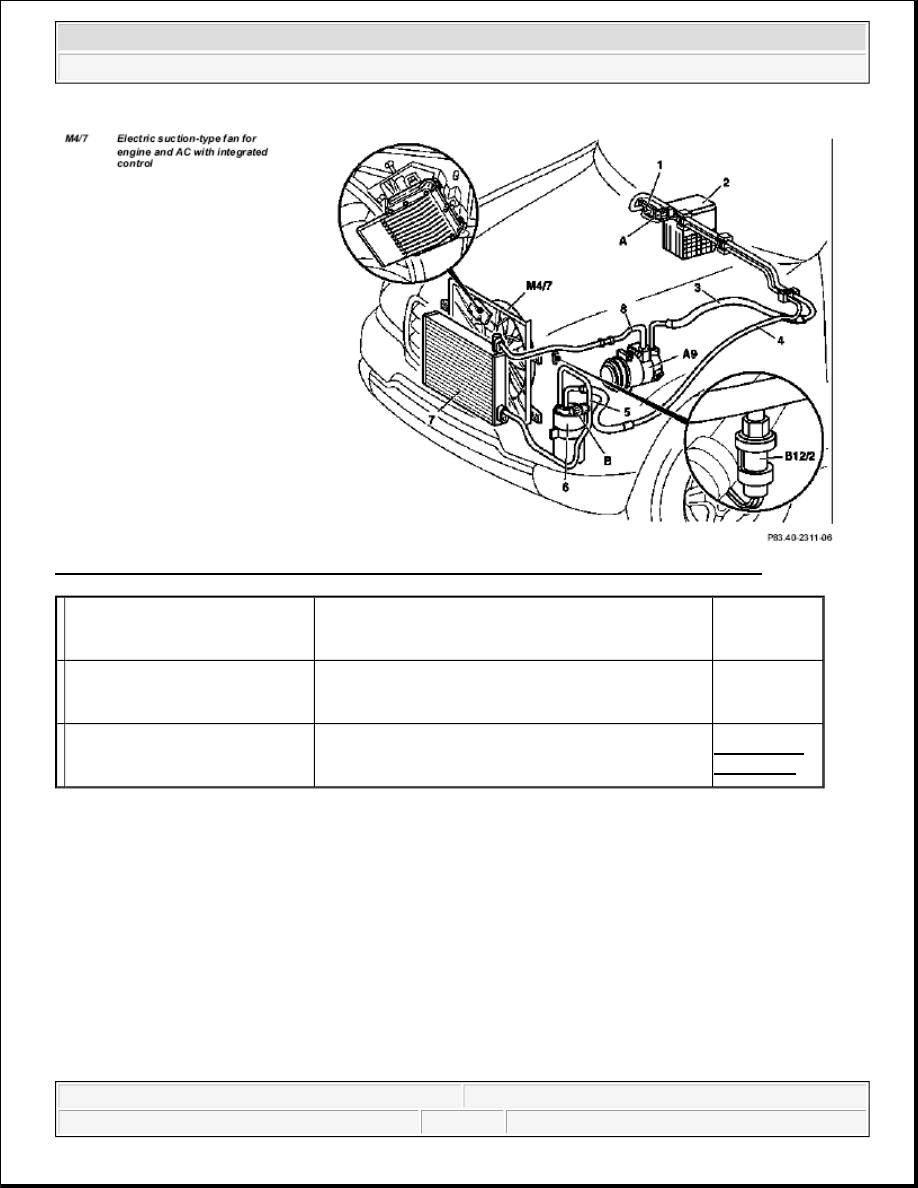

Fig. 96: Identifying Electric Suction-Type Fan For Engine And AC With Integrated Control

BUTTON FOR REAR AREA AIR DISTRIBUTION, LOCATION/TASK/FUNCTION - GF83.40-P-2173GI

MODEL 163 as of 01.09.01 with CODE (580a) Automatic air conditioning



Electric suction-type fan for
engine and AC with integrated
control, location







Electric suction-type fan for
engine and AC with integrated
control, task

The electric suction-type fan for engine and AC with
integrated control (M4/7) is used to cool down the
coolant and the refrigerant.





Electric suction-type fan for
engine and AC with integrated
control, function



GF83.40-P-
2172-01GI



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



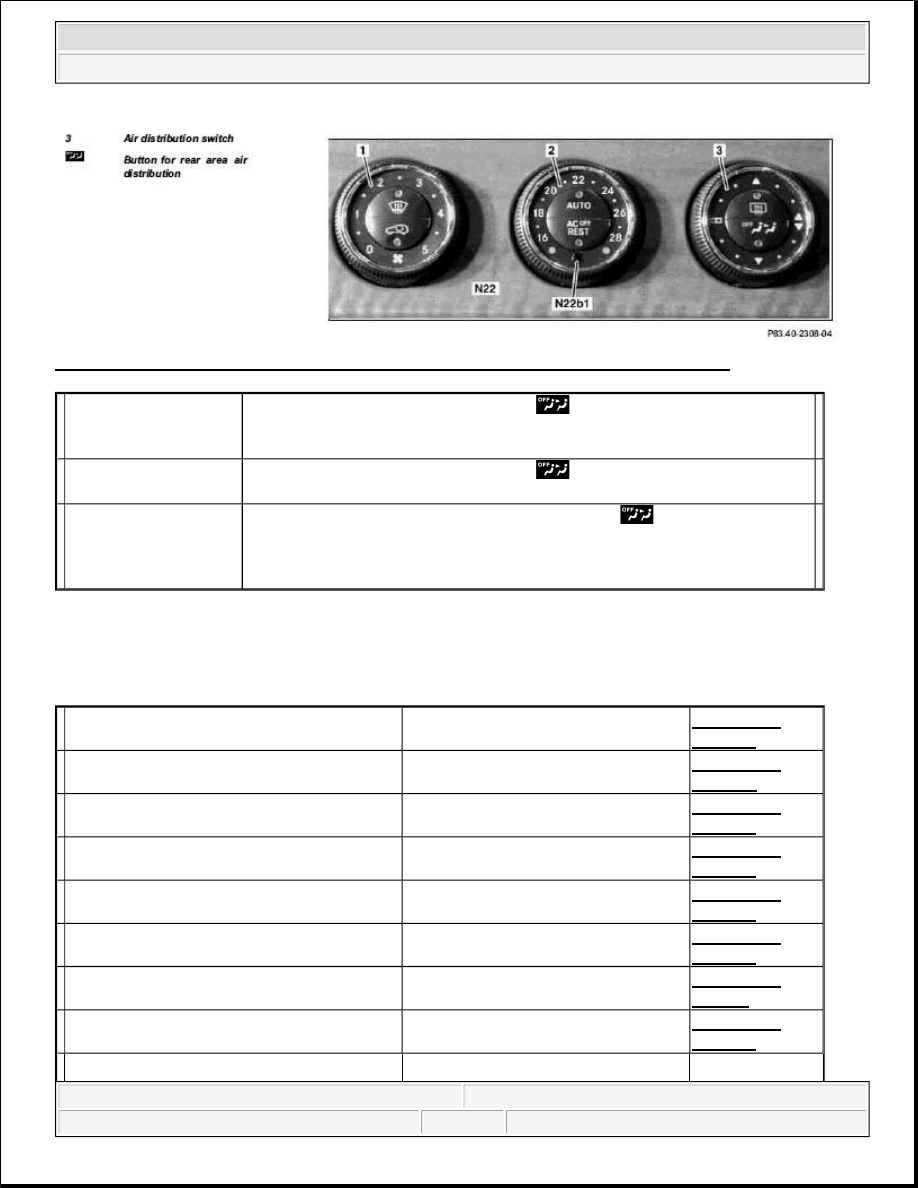

Fig. 97: Identifying Button For Rear Area Air Distribution And Air Distribution Switch

SURVEY OF AUTOMATIC AIR CONDITIONING SYSTEM COMPONENTS, LOCATION/PURPOSE/DESIGN/FUNCTION -
GF83.40-P-9990GI

MODEL 163 as of 1.9.01 with code (580a) Automatic air conditioning



Button for rear area air
distribution, location

The button for rear area air distribution (

 ) is located in the center in the

lower half of the air distribution switch (3) on the AAC push-button control
module (N22).





Button for rear area air
distribution, task

The button for rear area air distribution (

 ) blocks the rear blow-out ducts

for ventilation.





Button for rear area air
distribution, function

By pressing the button for rear area air distribution (

 ) the rear air

distribution flap actuator motor (M2/21) is actuated and thus the air supply to
the air duct for rear area ventilation is closed.
Function feedback takes place by means of a red LED.



  Air inlet, location/function



GF83.10-P-
2138GC

  Air ducts, location/purpose/design



GF83.10-P-
2139GH

  Rear vent, location/purpose/function



GF83.10-P-
2143GC

  Defroster vent, location/purpose/function



GF83.10-P-
2144GC

  Center nozzle, location/purpose/function



GF83.10-P-
2149GC

  Lateral nozzle, location/purpose/function



GF83.10-P-
2150GC

  Rear nozzle, location/purpose/design/function

GF83.10-P-
2151GI



Front footwell air outlet, location/purpose/
function



GF83.10-P-
2145GC

Rear footwell air outlet, location/purpose/

GF83.10-P-



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



  function



2146GI



Blower motor,
location/purpose/design/function



GF83.10-P-
2170GI

  Blower regulator, location/purpose/function



GF83.10-P-
2141GI



Rear blower motor, location/purpose/design/
function



GF83.10-P-
2168GI



Rear electronic blower regulator, location/
purpose/function



GF83.10-P-
2176GI

  Combination filter, location/purpose/function

GF83.10-P-
2128GI



Defroster vent flap actuator motor, location/
purpose/function



GF83.10-P-
2175GI



Footwell flap actuator,
location/purpose/function



GF83.10-P-
2132GI



Actuator motor, center nozzle flap, location/
purpose/function



GF83.10-P-
2172GI



Actuator motor, rear shut-off flap, location/
purpose/function



GF83.10-P-
2171GI



Actuator motor, rear air distribution flap,
location/purpose/function



GF83.10-P-
2173GI



Heating system heat exchanger, location/
purpose/function



GF83.20-P-
2108GC



Heating water circulation pump, location/
purpose/function



GF83.20-P-
2109GI



Fresh air/recirculation flap, location/purpose/
function



GF83.20-P-
2111GC



Fresh air/recirculation flap actuator, location/
purpose/function



GF83.30-P-
2116GC



Blower switch,
location/purpose/design/function



GF83.25-P-
2100GI

  Blower button, location/purpose/function

Rear ventilation operating module

GF83.40-P-
2144GI



Air distribution switch,
location/purpose/design/ function



GF83.25-P-
2101GI



Air distribution button,
location/purpose/function

Rear ventilation operating module

GF83.40-P-
2159GI



Temperature selector wheel, location/purpose/
design/function



GF83.25-P-
2102GI

  Defroster button, location/purpose/function



GF83.40-P-
2139GI



Recirculating air push-button,
location/purpose/ function



GF83.40-P-
2145GI

GF83.40-P-



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me
