the injected air is dehumidified, Reheat mode

blend air flaps controlled

footwell nozzles closed

DEFROSTER BUTTON, LOCATION / TASK / FUNCTION - GF83.40-P-2139GI

MODEL 163 as of 01.09.01 with CODE (580a) Automatic air conditioning

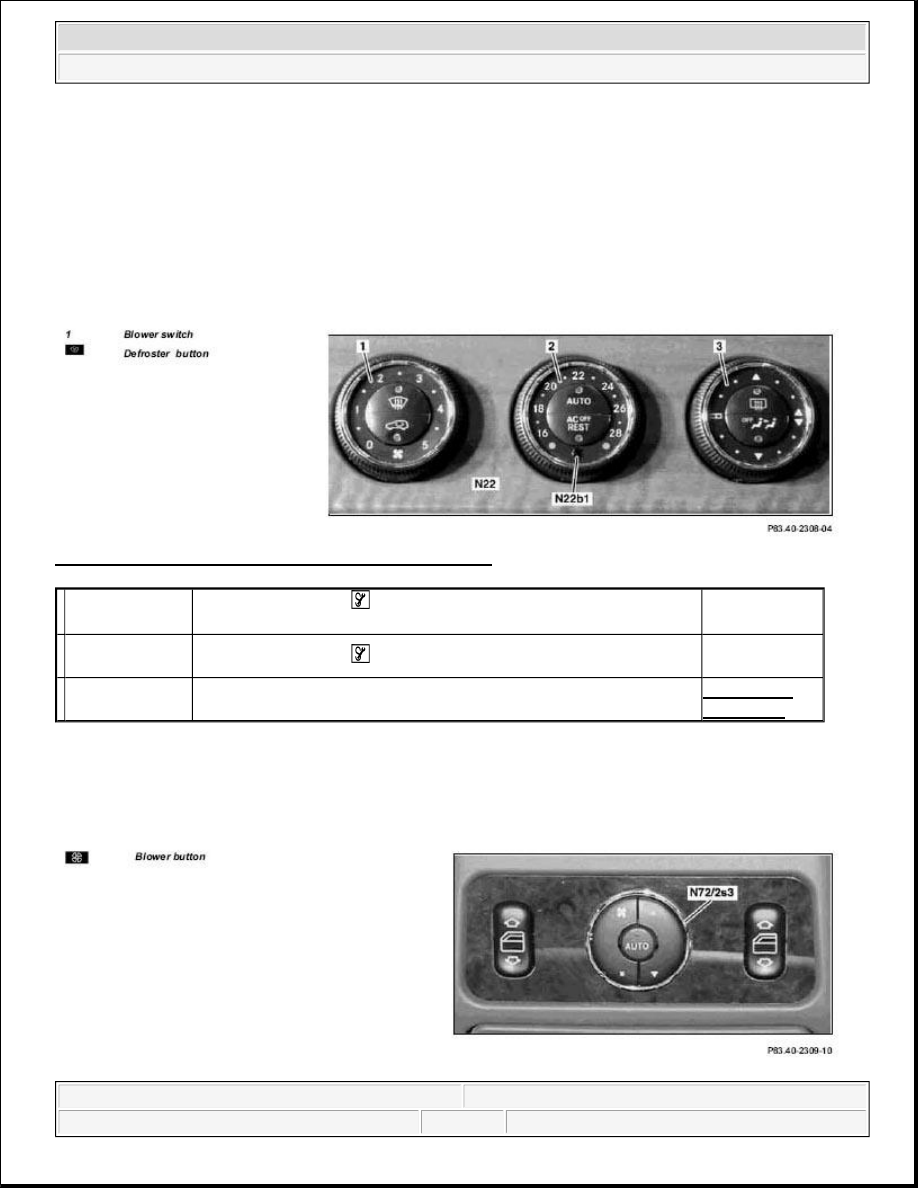

Fig. 87: Identifying Blower Switch And Defroster Button

BLOWER BUTTON POSITION/TASK/FUNCTION - GF83.40-P-2144GI

MODEL 163 as of 01.09 01 with CODE (580a) Automatic air conditioning in the rear ventilation control
panel




Defroster button,
location

The defroster button (

 ) is located in the center in the upper half of

the blower switch (1) on the AAC push-button control module (N22).





Defroster button,
purpose

The defroster button (

 ) starts the defroster function.





Defroster button,
function



GF83.40-P-
2139-02GI



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



Fig. 88: Identifying Blower Button

RECIRCULATING AIR PUSH-BUTTON, LOCATION/TASK/FUNCTION - GF83.40-P-2145GI

MODEL 163 as of 01.09.01 with CODE (580a) Automatic air conditioning

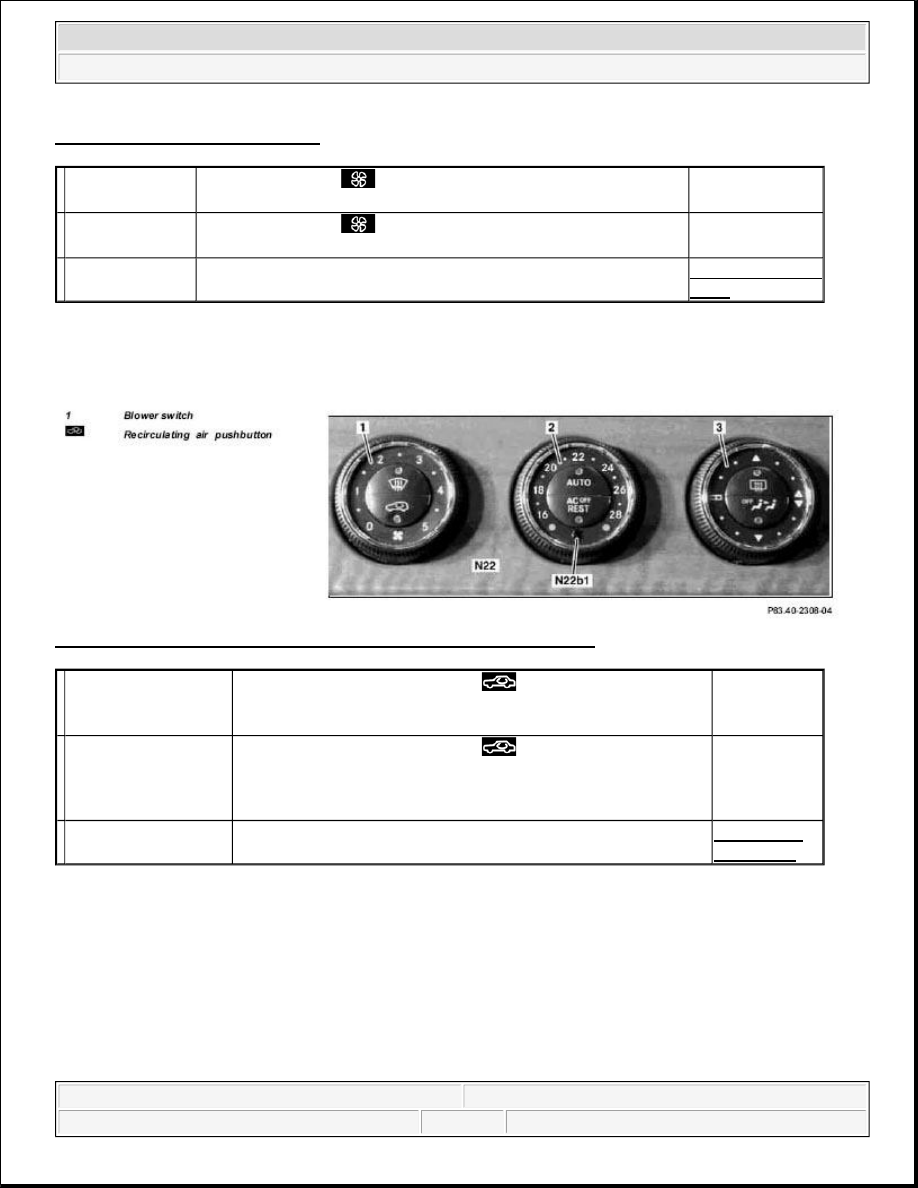

Fig. 89: Identifying Recirculating Air Push-button And Blower Switch

AUTO BUTTON, LOCATION / TASK / FUNCTION - GF83.40-P-2147GI

MODEL 163 as of 01.09.01 with CODE (580a) Automatic air conditioning



Blower button,
location

The blower button (

 ) is located in the center in the rear

ventilation control panel.





Blower button,
task

The blower button (

 ) is used to cut in the blower motor for

fresh air and recirculating air operation.





Blower button,
function



GF83.40-P-2100-
01GI



Recirculating air
push-button, position

The recirculating air push-button (

 ) is located in the center

in the lower half of the blower switch (1) on the AAC push-
button control module (N22).





Recirculating air
push-button, task

The recirculating air push-button (

 ) is used to operate the

fresh air/recirculated air flap to permit air to be directed out of the
vehicle interior.
Function feedback takes place by means of a red LED.





Recirculating air
push-button, function



GF83.40-P-
2102-01GI



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



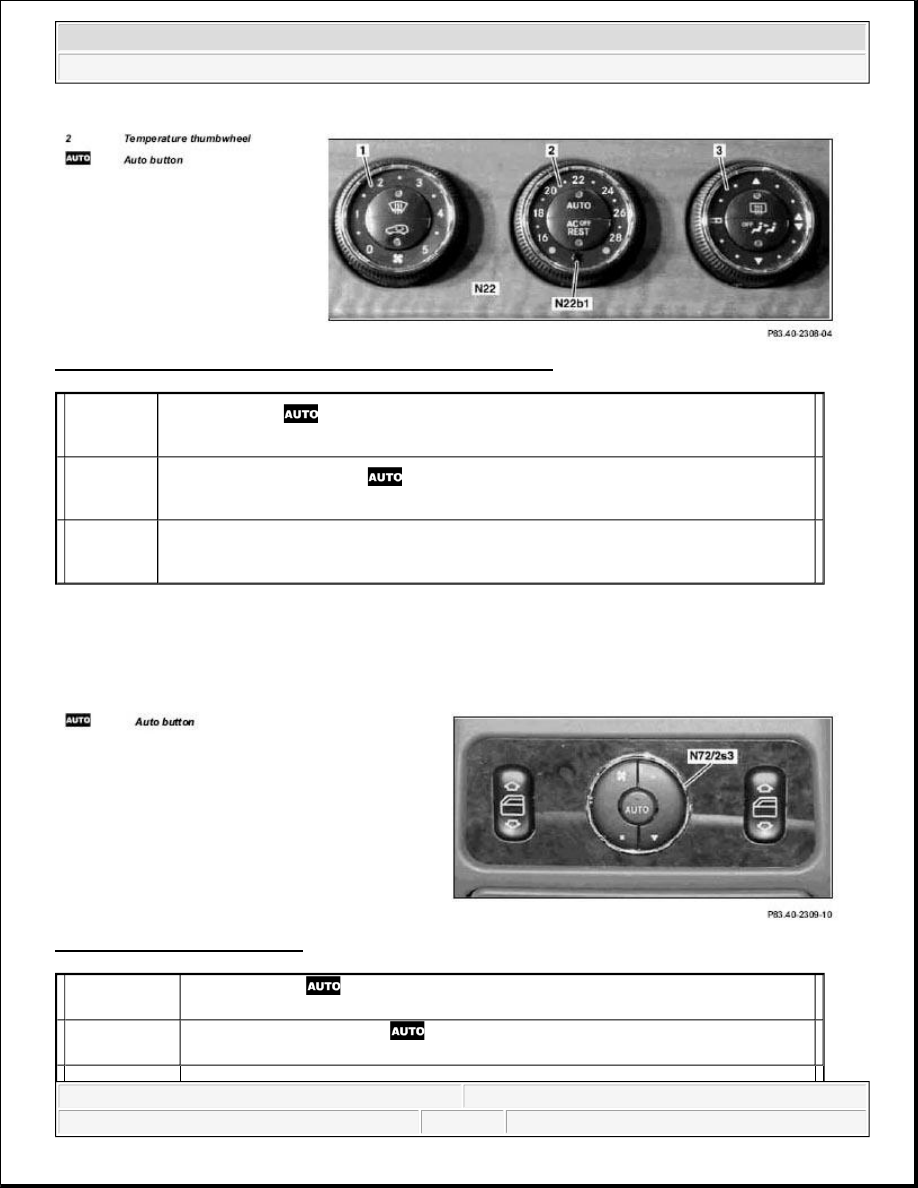

Fig. 90: Identifying Auto Button And Temperature Thumbwheel

AUTO BUTTON, LOCATION / TASK / FUNCTION - GF83.40-P-2147GJ

MODEL 163 as of 01.09.01 with CODE (580a) Automatic air conditioning in the rear ventilation control
panel


Fig. 91: Identifying Auto Button



Auto
button,
location

The auto button (

 ) is located in the center in the upper half of the temperature

selector wheel (2) on the AAC push-button control module (N22).





Auto
button,
purpose

By pressing the auto button (

 ) automatic switching is activated. Function feedback

takes place by means of a red LED.





Auto
button,
function

In addition to regulating the temperature, the blower speed and the air distribution are also
regulated automatically in automatic mode. The blower speed is continuously controlled
depending on the temperature difference between the specified and actual values.





Auto button,
location

The auto button (

 ) is located in the center in the rear ventilation control panel

(N72/2s3).





Auto button,
purpose

By pressing the auto button (

 ) automatic switching is activated.

Function feedback takes place by means of a red LED.





2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



RESIDUAL HEAT BUTTON, LOCATION / TASK / FUNCTION - GF83.40-P-2148GI

MODEL 163 as of 01.09.01 with CODE (580a) Automatic air conditioning

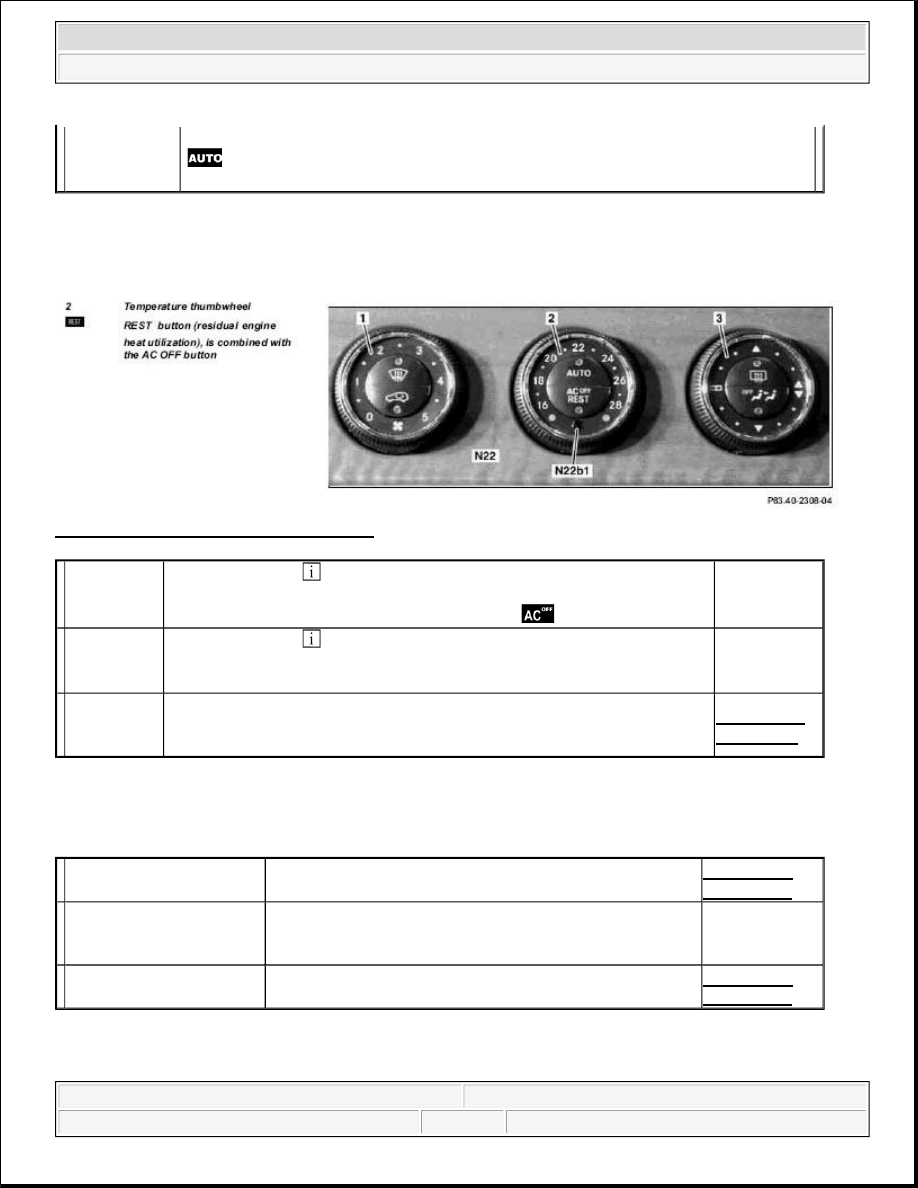

Fig. 92: Identifying Residual Heat Button

ELECTRIC FAN ENGINE/AIR CONDITIONING SYSTEM, LOCATION/PURPOSE/FUNCTION - GF83.40-P-2151GH

MODEL 163 up to 31.8.01 with ENGINE 113.942 /981, 612.963, 628.963

CONDENSER LOCATION/TASK/FUNCTION - GF83.40-P-2152GC



Auto button,
function

Pressing the Auto button
(

 ) enables the air quantity and the air distribution for the rear area to be controlled

automatically by the AAC push-button control module (N22).





REST
button,
location

The REST button (

 ) is located in the center in the lower half of the

temperature selector wheel (2) on the AAC push-button control module
(N22) and is combined with the AC OFF button (

 ).





REST
button,
purpose

The REST button (

 ) is used to switch the residual engine heat utilization

system on and off.
Function feedback takes place by means of a red LED.





REST
button,
function



GF83.40-P-
2109-01GI



Electric fan, engine/air
conditioning



GF83.40-P-
2118-02GH



Electric fan, engine/air
conditioning, purpose

The electric suction fan engine and AC with integrated
control (M4/7) serves to cool down the coolant and the
refrigerant.





Engine/air conditioning
electric fan, function



GF83.40-P-
2118-01GH
