Mercedes-Benz ML320. Service manual - part 602





PERFORMING BASIC PROGRAMMING - AR00.19-P-0200GH

MODEL 163



Remove contacts from 2.5
solder contact coupling
round plug contact



AR00.19-P-0120-17A



Remove contacts from
laminated contact system
plug



AR00.19-P-0120-20A



Remove contacts from
laminated contact system
coupling



AR00.19-P-0120-19A



Remove contacts from
Micro Timer 3 coupling



AR00.19-P-0120-06A



Remove contacts from
Siemens ELO plug



AR00.19-P-0120-24A



Remove contacts from
Siemens ELO coupling



AR00.19-P-0120-23A



Remove contacts from
Multi-Contact-Point-
coupling



AR00.19-P-0120-09A



Remove contacts from
mini laminated contact
coupling



AR00.19-P-0120-26A



Remove contacts from
mini laminated contact
plug



AR00.19-P-0120-27A



Remove contacts from
YAZAKI 1.5 system
coupling

461 as of 1.4.94

AR00.19-P-0120-28A



Adjusting





1

Set time on instrument
cluster

 See Operating

Instructions



2

Set clock of stationary
heater

 See Operating

Instructions



3

Normalize side power
windows

 See Operating

Instructions



4

Activate steering angle
sensor

 Electronic stability

program (ESP) Code
(472a) as of 1.9.98.

 Refer also to operating

instructions.

AR46.10-P-0300-01A



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



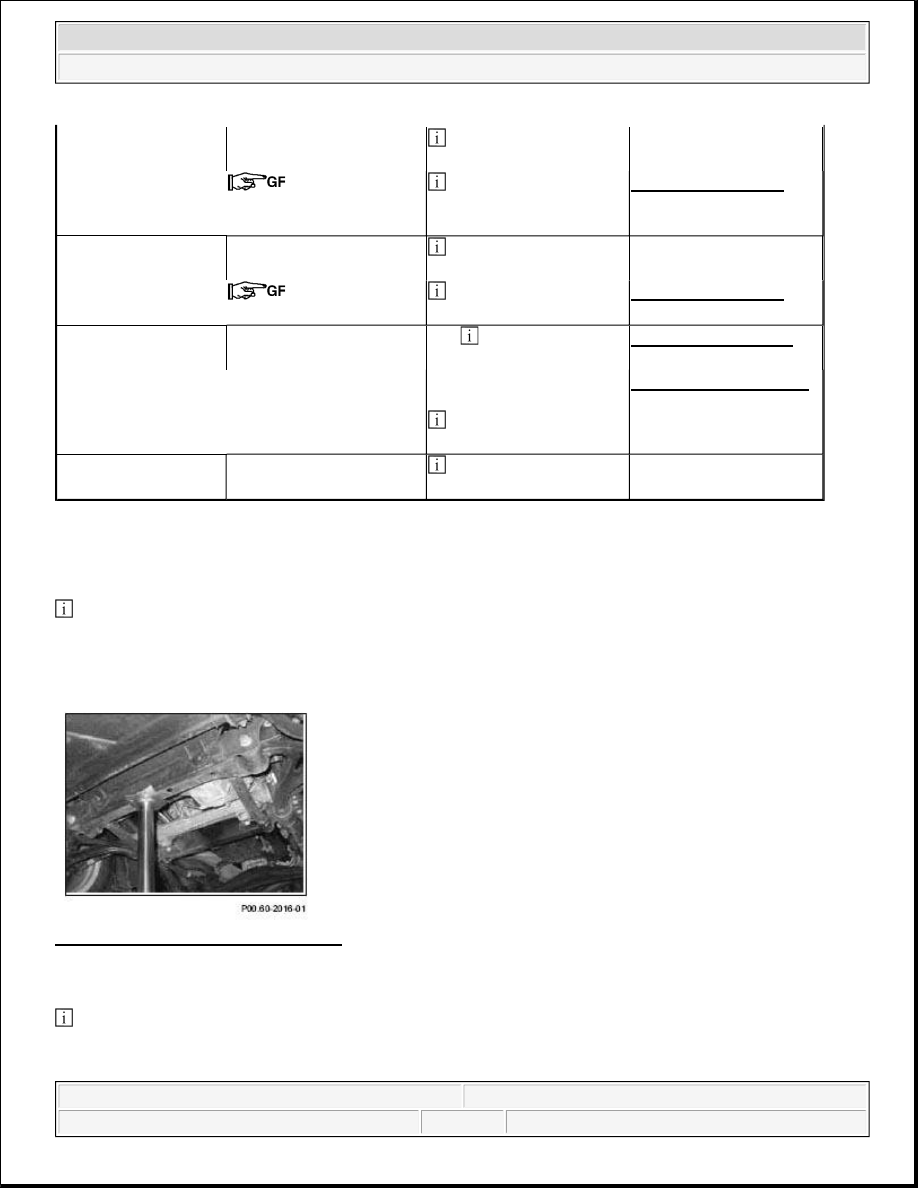

LIFTING VEHICLE WITH PIT LIFT OR WORKSHOP JACK - AR00.60-P-1000-01GH

Lifting at front



Place inspection pit lift or garage jack at the front cross bridge for the front-axle carrier The garage jack can use
the side jacking points.

Fig. 638: Identifying Lifting At Front

Lifting at rear



Place inspection pit lift or garage jack at the rear cross bridge for the rear-axle carrier The garage jack can use

5

Synchronize sliding/pop-
up roof

 Refer also to operating

instructions.







 Glass electric

sliding/tilting roof, code
(414a).

GF77.20-P-3002GH

6

Standardize lamella sliding
roof

 Refer also to operating

instructions.







 Lamella sliding roof,

code (417a).

GF77.20-P-3006GH

7

Code radio

MB

 Refer also to

operating instructions.

AR82.60-P-7502-01B





Hi-Line, Premium with
Bose.

 Refer also to operating

instructions.

AR82.60-P-7502-01GH

8

Calibrate compass

 See Operating

Instructions





2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



the side jacking points.

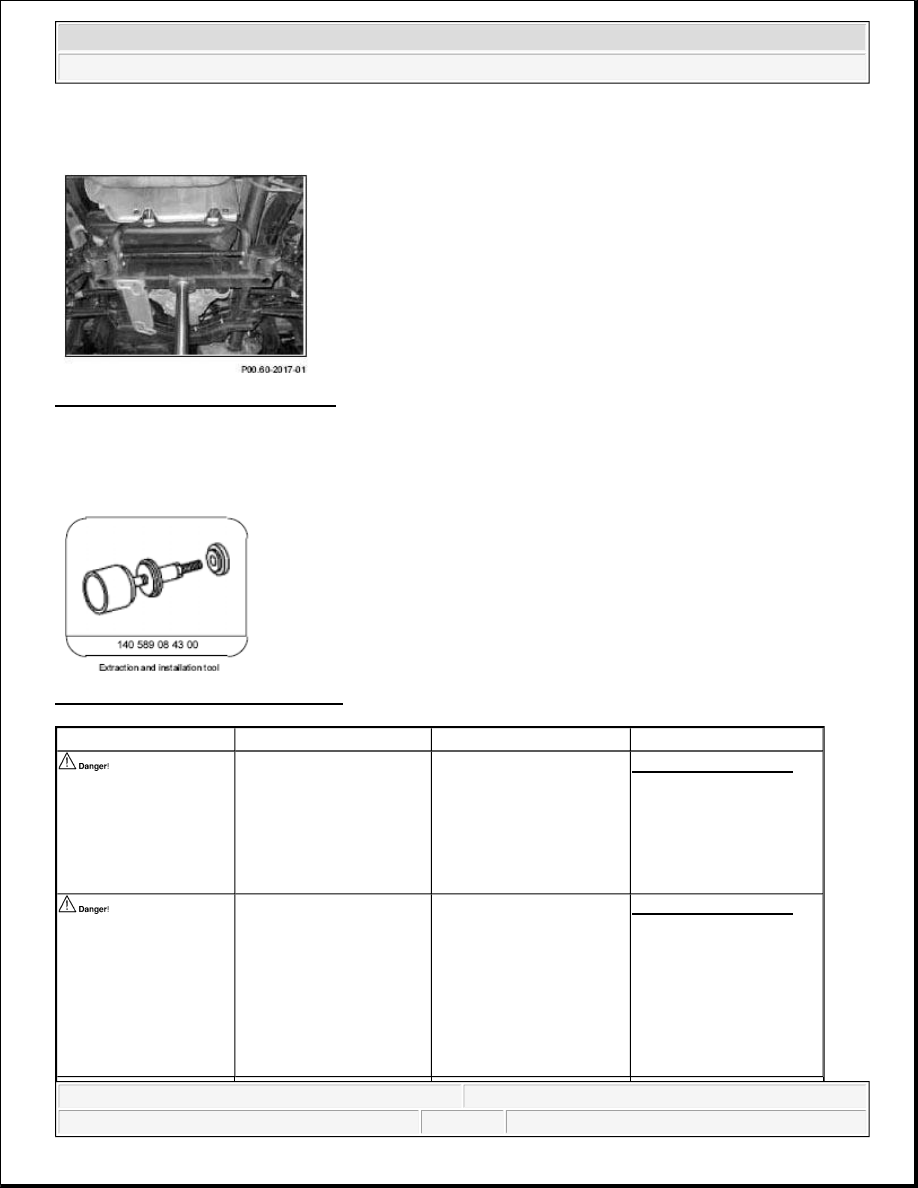

Fig. 639: Identifying Lifting At Rear

RAISING, JACKING UP VEHICLE - AR00.60-P-1000GH

MODEL 163

Fig. 640: Raising, Jacking Up Vehicle

Fig. item, etc.

Work instructions







Lethal injuries are
possible if vehicle slips
off of lifting platform

Align vehicle between the
four lifting platform pillars
and position the four
support plates at the hoist
mounting points specified
by the vehicle
manufacturer.

AS00.00-Z-0010-01A



Danger of accident
through self-acting
movement of the vehicle
when jacked up Risk of
injury through intrusion
into engine compartment
or driveline where rotating
parts pose a serious
hazard.

Make sure that the jack
stands are securely
positioned. Authorized
person should occupy
driver's seat. Wear closed
and close-fitting work
clothes. Do not grasp hot
or rotating parts.

AS00.00-Z-0008-01A



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Workshop equipment

MAINTENANCE

PREFACE - AP00.20-P-0000-01C

These "Service Documents" contain all the maintenance operations for the basic and national versions of the
following models:

Model 170, 129, 140, 202 as of 1.6.97

Model 210 as of 1.3.97

Models 163, 168, 203, 208, 209, 215, 220, 230

Type 414

This maintenance manual became necessary with the introduction of the Active Service System (ASSYST). It
contains all maintenance operations for vehicles with the Active Service System (ASSYST) and is divided into
the two volumes 4 and 4.1.

The system for demand-related complete vehicle maintenance is described in the Introduction into Service
manual "Active Service System (ASSYST)".



If the support plates are
not properly mounted
(012) at the vehicle's
designated jacking points
(1, 2) damage may occur
to the side sill covers (3).







The vehicle should be
secured against tipping or
falling off the platform
when removing any units.







Lifting vehicle with
inspection pit lift or
garage jack

Inspection pit lift.

AR00.60-P-1000-01GH
*WE58.40-Z-1002-05A

1

Forward jacking points





2

Rear jacking points





3

Side sill covers





011

Lifting platform



*WE58.40-Z-1001-05A

012

Support plates

All four support plates
must be extended to an
equal distance (Dimension
X).



WE58.40-Z-1001-05A

Two-post lifting platform

WE58.40-Z-1002-05A

Pit lift



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me
