Mercedes-Benz ML320. Service manual - part 600





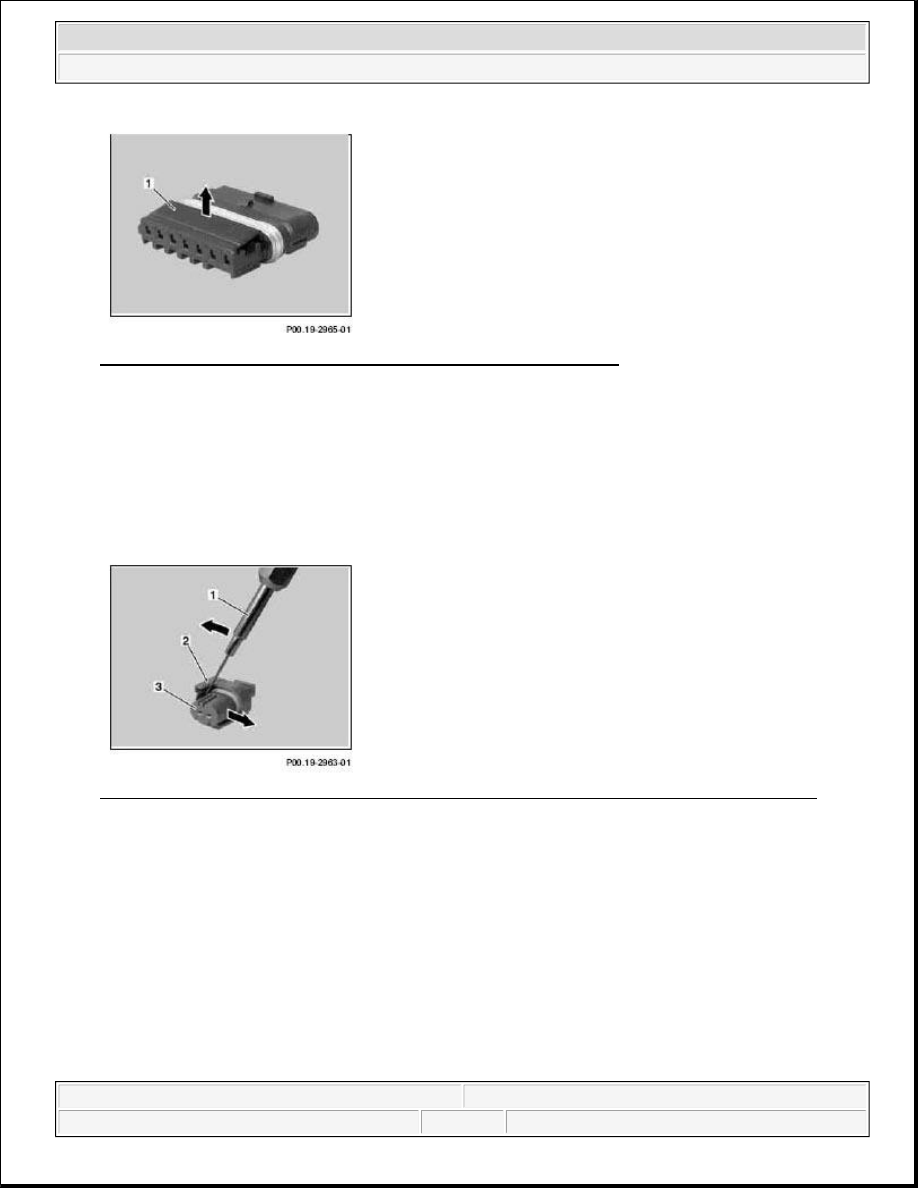

Fig. 626: Prying Up Lock Tabs - Shown On A 7-Pin MLK Coupling

Secondary release on version with retaining cap (MLK)

1. Insert a suitable tool (1) between the retaining cap (3) and the clutch housing (2).

2. Slide the retaining cap (3) against the detent resistance from the clutch housing (2) in direction

shown by arrow.

Shown on a 2-pin MLK coupling

Fig. 627: Identifying Retaining Cap And Clutch Housing - Shown On A 2-Pin MLK Coupling

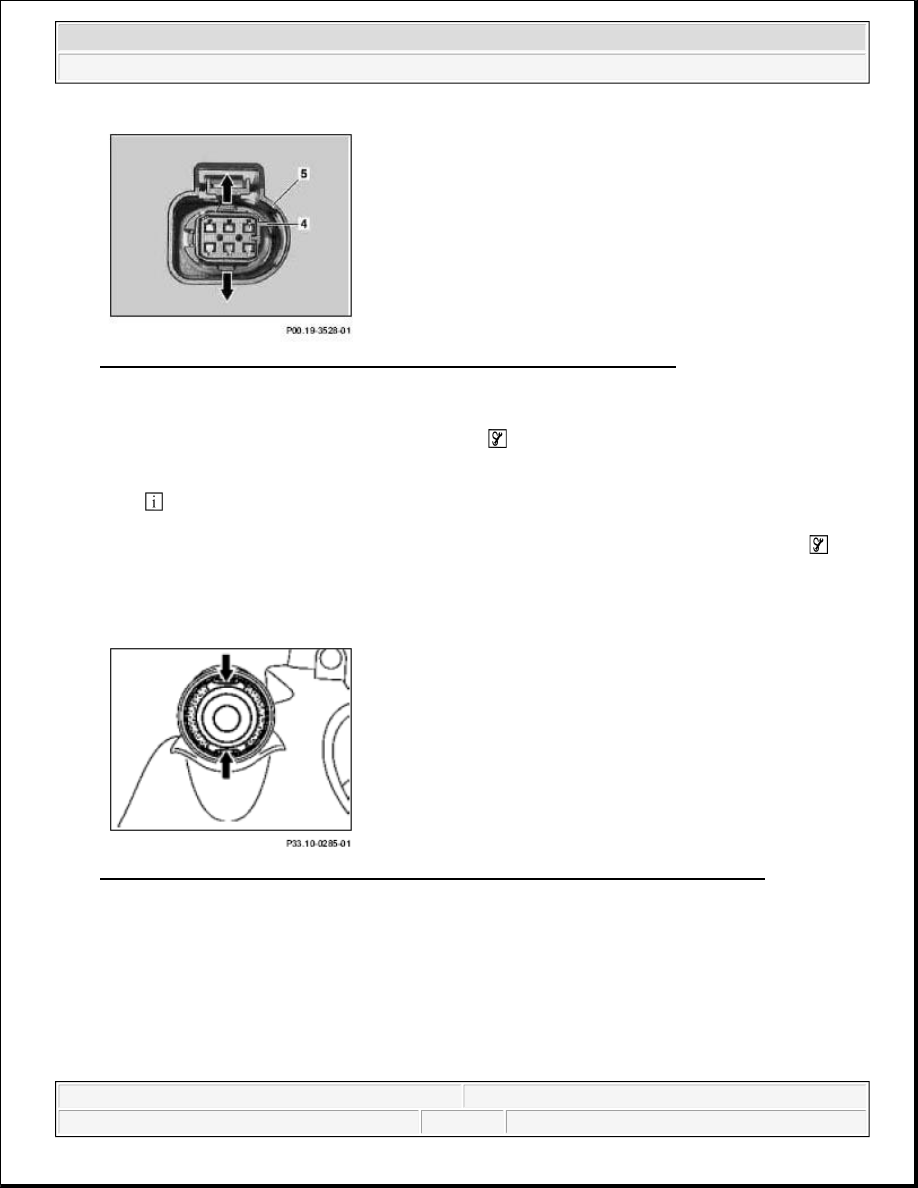

Secondary release on version with locking cap (MLK)

1. Move the tabs on the locking cap (4) in direction of arrow.

2. Remove locking cap (4) from coupling (5).

Shown on a 6-pin MLK coupling



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 628: Locking Cap From Coupling - Shown On A 6-Pin MLK Coupling

Unpin female contacts from coupling (MLK)

1. Insert release tool with MLK 1.2 sleeve ejector

 from the front into the opening of the contact

cavity of the connector housing (2) until it reaches the stop.

 This step presses the spring shackle on the female contact (1) down into position.

2. Press the female contact (1) with the ejector of the release tool with MLK 1.2 sleeve ejector



against the spring force of the tool out of the connector housing.

Shown on a 6-pin MLK coupling

Fig. 629: Female Contacts From Coupling (MLK) - Shown On A 6-Pin MLK Coupling

REMOVE CONTACTS FROM MINI SPADE-TYPE CONTACT PLUG - AR00.19-P-0120-27A



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 630: Identifying New Passenger Vehicle Wiring Harness Repair Kit (220 589 04 99 00)

Fig. 631: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig. 632: Identifying Wiring Harness Repair Kit (220 589 02 99 00)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 633: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Fig. 634: Identifying MQS Blade (220 589 01 99 60)

Secondary release on version with retainer housing (MLK)

1. Using a suitable tool (1), pry the clutch housing (3) from the main housing (2) in direction shown by

arrow.



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me
