2. Now gently pull the female contact, together with the blade holder, with clamping pliers

 and blade for

RK 2.5 solder contact

 to remove them from the back of the coupling.

Fig. 587: Contact From Coupling (RK 2, 5 Solder Contact)

REMOVE CONTACTS FROM 2.5 SOLDER CONTACT PLUG ROUND PLUG CONTACT - AR00.19-P-0120-18A



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 588: Identifying Wiring Harness Repair Kit, Supplement For Passenger Cars (220 589 04 99 00)

Fig. 589: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 590: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

Fig. 591: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



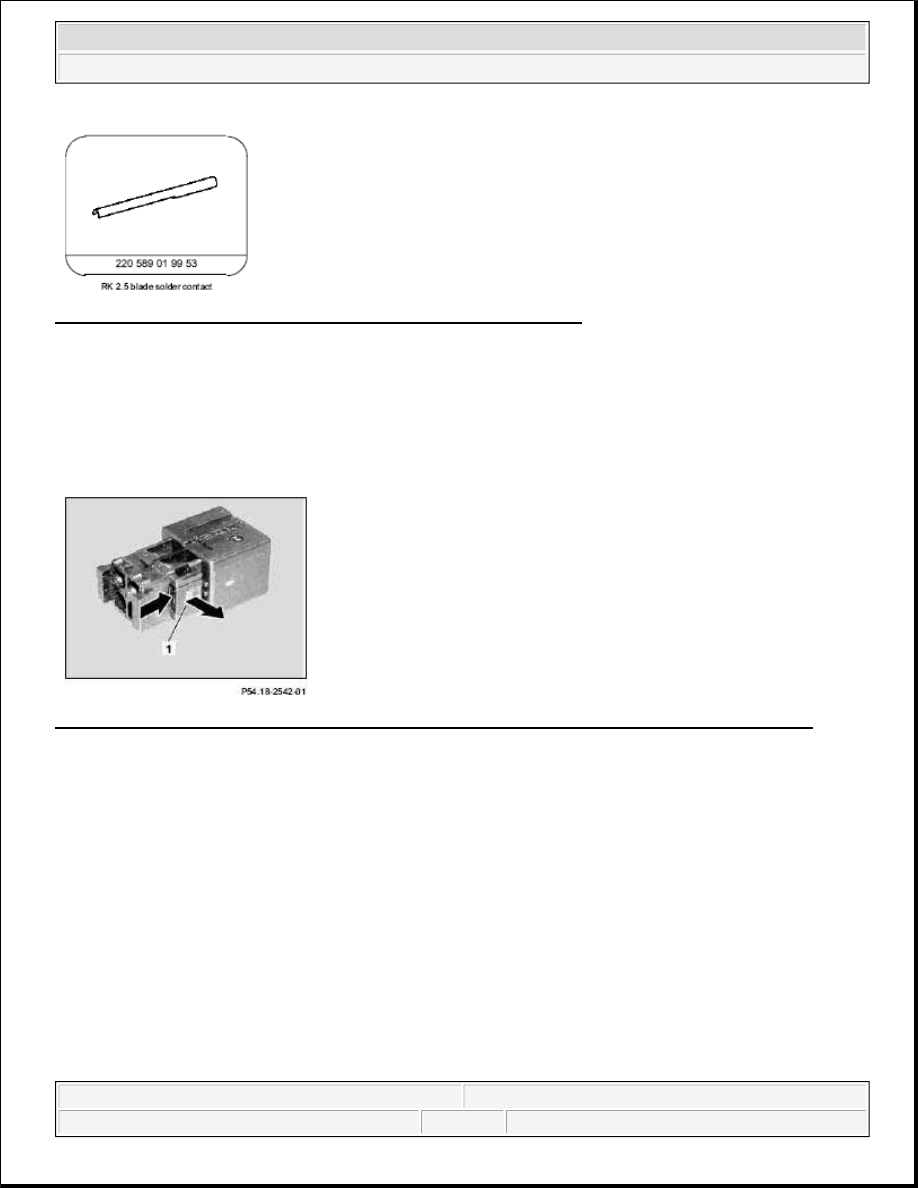

Fig. 592: Identifying RK 2.5 Blade Solder Contact (220 589 01 99 53)

Secondary release on version with slide valve (RK 2.5 solder contact)

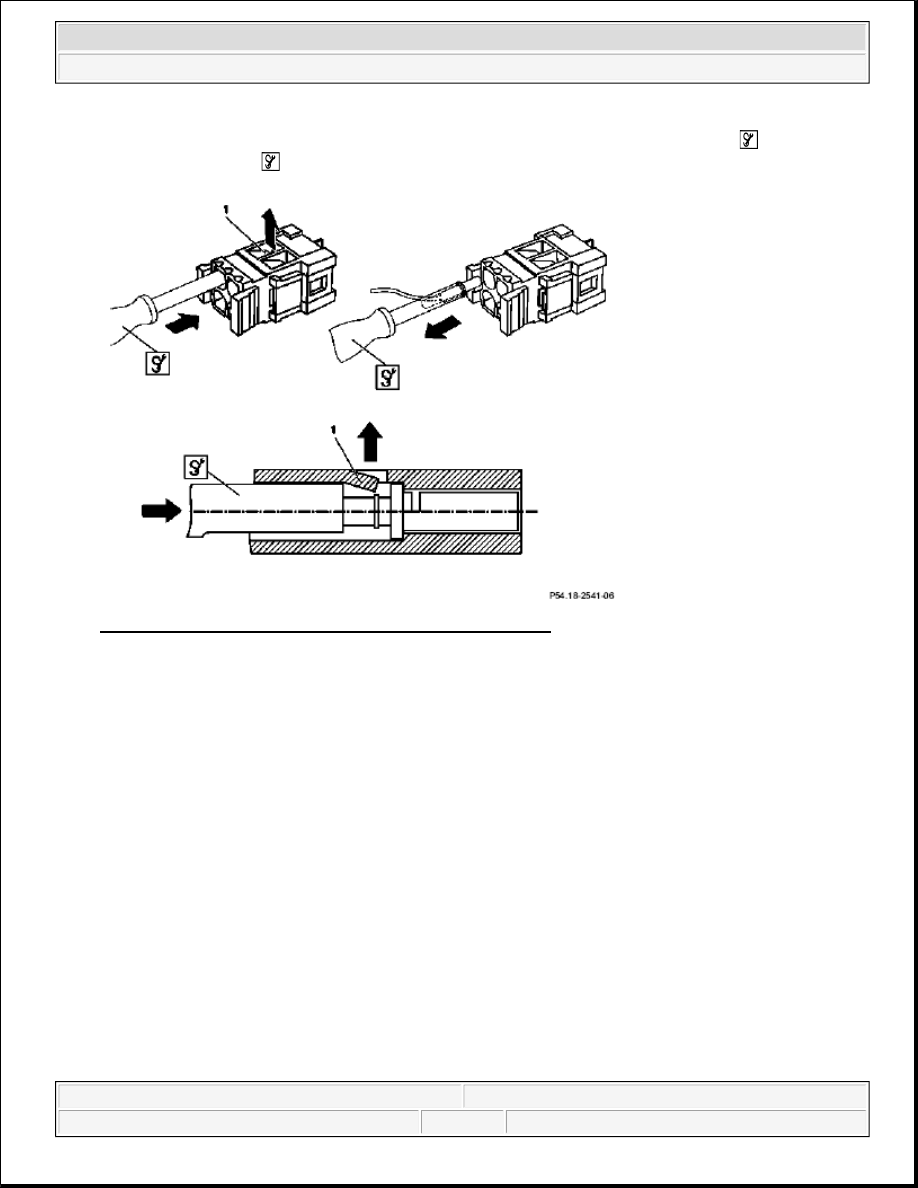

1. Insert a suitable tool under the slide valve cap (1) and press the slide valve out of the last detent in

direction shown by arrow.

Shown on a 4-pin RK 2.5 solder contact plug

Fig. 593: Pressing Slide Valve Out Of Last Detent - Shown On A 4-Pin RK 2.5 Solder Contact Plug

Secondary release on version with retaining clamp (RK 2.5 solder contact)

1. Using a suitable tool, pry up the side clips of the retaining clamp (1).

2. Open the retaining clamp (1).

Shown on a 2-pin RK 2.5 solder contact plug
