Mercedes-Benz ML320. Service manual - part 594





Fig. 579: Contact Pins From Plug (RK 2.5)

3. Gently pull the respective line to remove the contact pin (2) from the plug (1).

REMOVE CONTACTS FROM 2.5 SOLDER CONTACT COUPLING ROUND PLUG CONTACT - AR00.19-P-0120-17A

Fig. 580: Identifying Wiring Harness Repair Kit, Supplement For Passenger Cars (220 589 04 99 00)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 581: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig. 582: Identifying Wiring Harness Repair Kit (220 589 02 99 00)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 583: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)

Fig. 584: Identifying RK 2.5 Blade Solder Contact (220 589 01 99 53)

Secondary release on version with slide valve (RK 2.5 solder contact)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



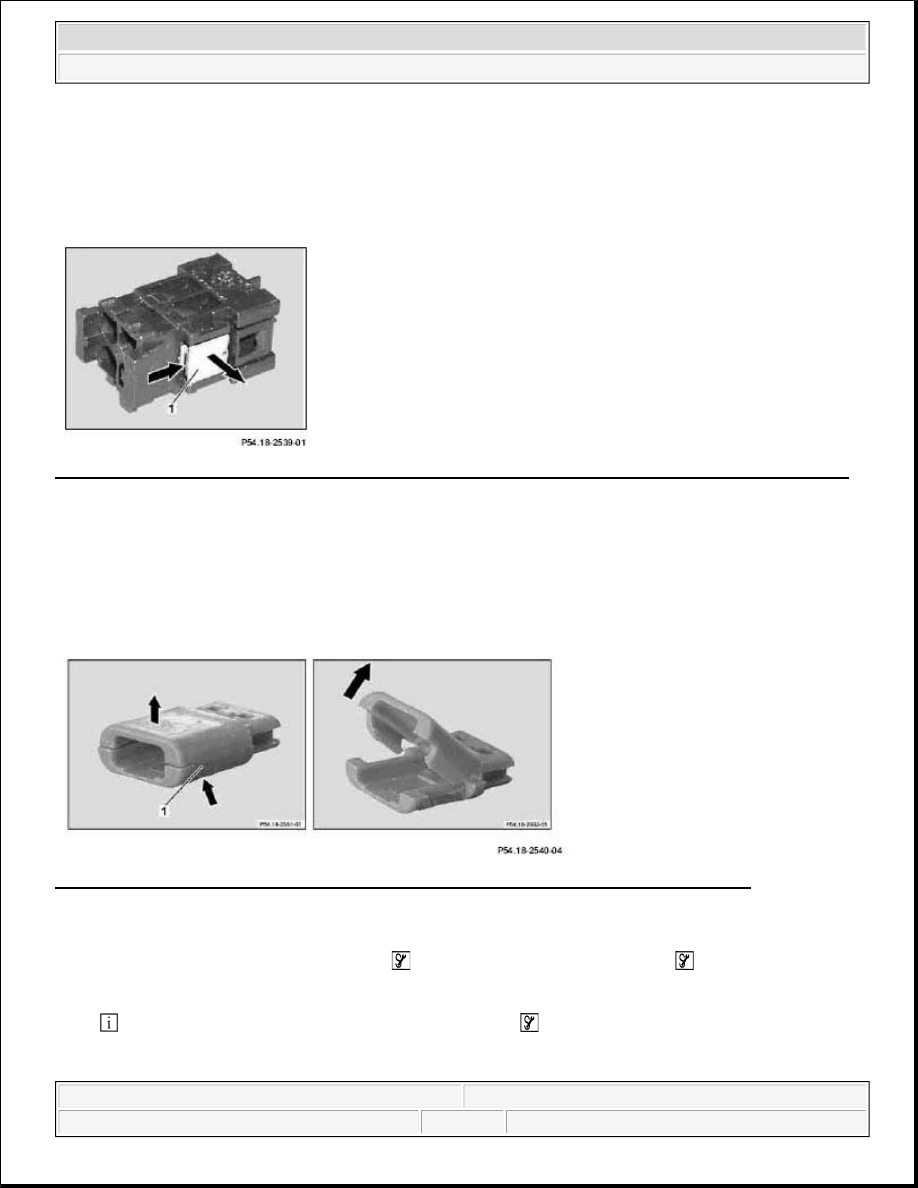

1. Insert a suitable tool under the slide valve cap (1).

2. Using a suitable tool, press the slide valve out of the last detent in direction shown by arrow.

Shown on a 4-pin RK 2.5 solder contact coupling

Fig. 585: Pressing Slide Valve Out Of Last Detent - Shown On A 4-Pin RK 2.5 Solder Contact Coupling

Secondary release on version with retaining clamp (RK 2.5 solder contact)

1. Using a suitable tool, pry up the side clips of the retaining clamp (1).

2. Open the retaining bracket (1) in direction shown by arrow.

Shown on a 2-pin RK 2.5 solder contact coupling

Fig. 586: Opening Retaining Bracket - Shown On A 2-Pin RK 2.5 Solder Contact Coupling

Unpin contact from coupling (RK 2, 5 solder contact)

1. Insert blade holder with clamping pliers

 and blade for RK 2.5 solder contact

 from the back side into

the cable duct of the coupling.

 Align the sleeve of the blade for RK 2.5 solder contact

 with the spring shackle (1) in the coupling.

This step presses the spring shackle (1) in the coupling into position.



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me
