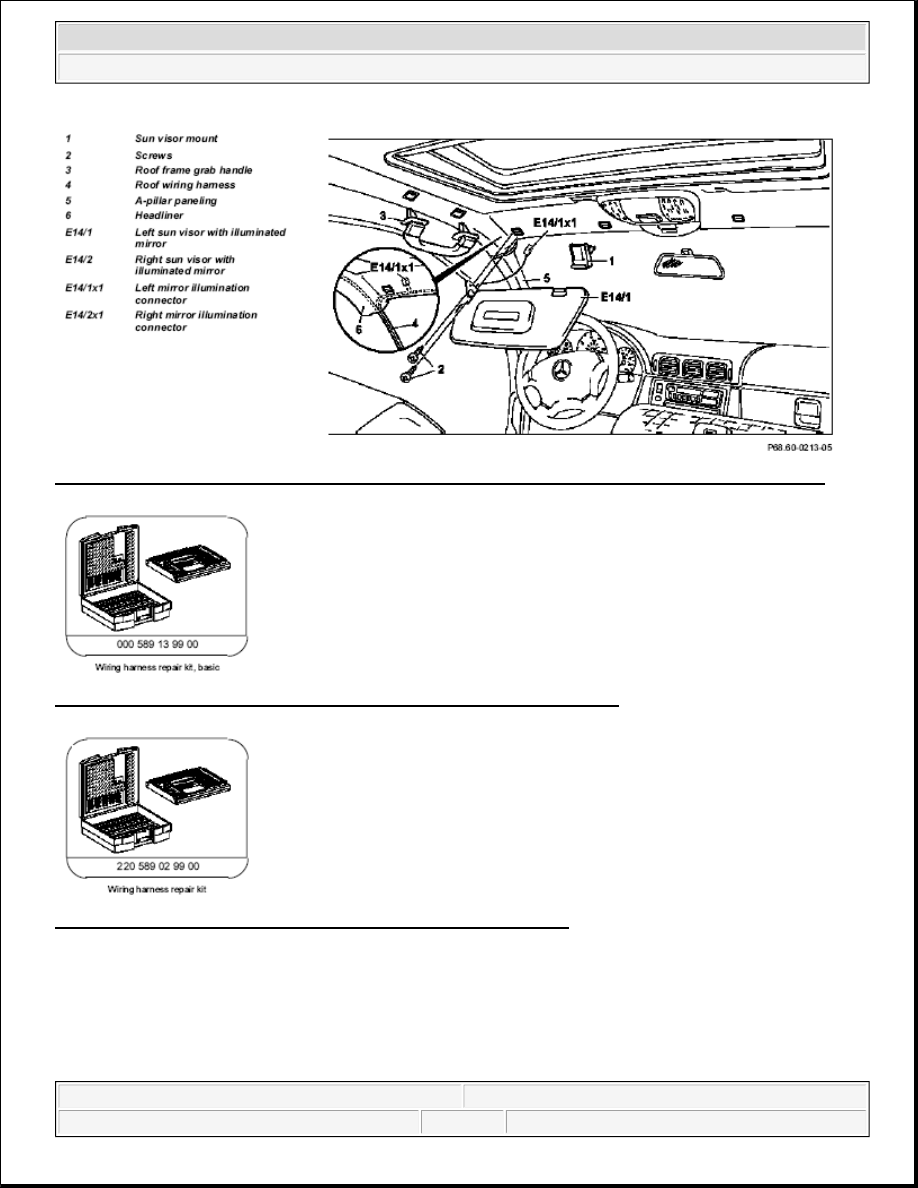

Fig. 562: Identifying Wiring Harness Repair Kit, Supplement For Passenger Cars (220 589 04 99 00)

Fig. 563: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig. 564: Identifying Wiring Harness Repair Kit (220 589 01 99 30)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me

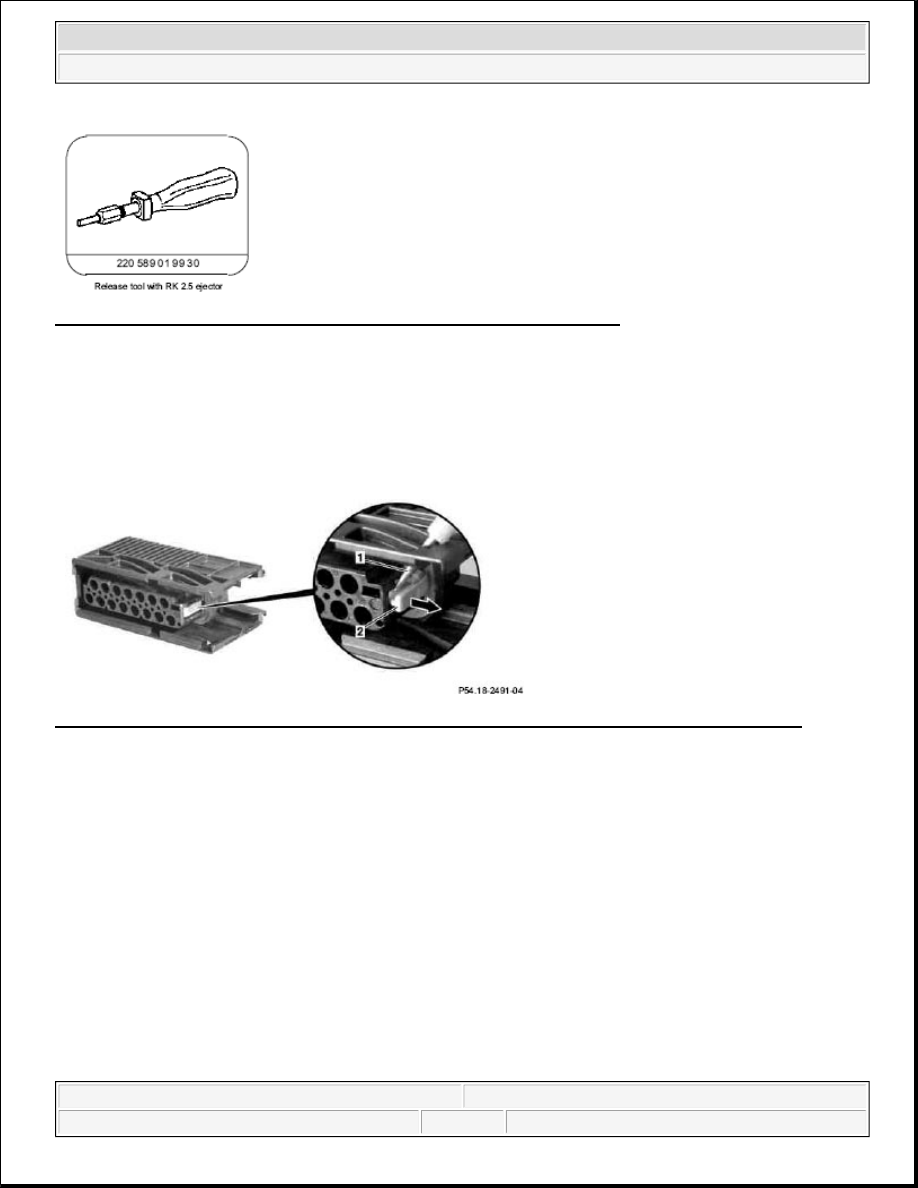

Fig. 565: Identifying Release Tool With RK 2.5 Ejector (220 589 01 99 30)

Secondary release on version with locking slide valve (RK 2.5)

1. Using a suitable tool (1), push the locking slide valve (2) out of the last detent in direction shown by

arrow.

Shown on a 15-pin RK 2.5 coupling

Fig. 566: Pushing Locking Slide Valve Out Of Last Detent - Shown On A 15-Pin RK 2.5 Coupling

Secondary release on version with slide valve (RK 2.5)

1. Using a suitable tool (1), push the slide valve (2) out of the last detent in direction shown by arrow.

Shown on a 1-pin RK 2.5 coupling



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 567: Pushing Slide Valve Out Of Last Detent - Shown On A 1-Pin RK 2.5 Coupling

Secondary release on version with lock tab (RK 2.5)

1. Using a suitable tool (1), open the lock tab (2) in direction shown by arrow.

Shown on a 2-pin RK 2.5 coupling

Fig. 568: Opening Lock Tab - Shown On A 2-Pin RK 2.5 Coupling

Secondary release on version with secondary contact retainer (RK 2.5)

1. Move contact fuse (1) into pre-locking position using a suitable tool.

Shown on a 12-pin RK 2.5 coupling



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 569: Moving Contact Fuse - Shown On A 12-Pin RK 2.5 Coupling

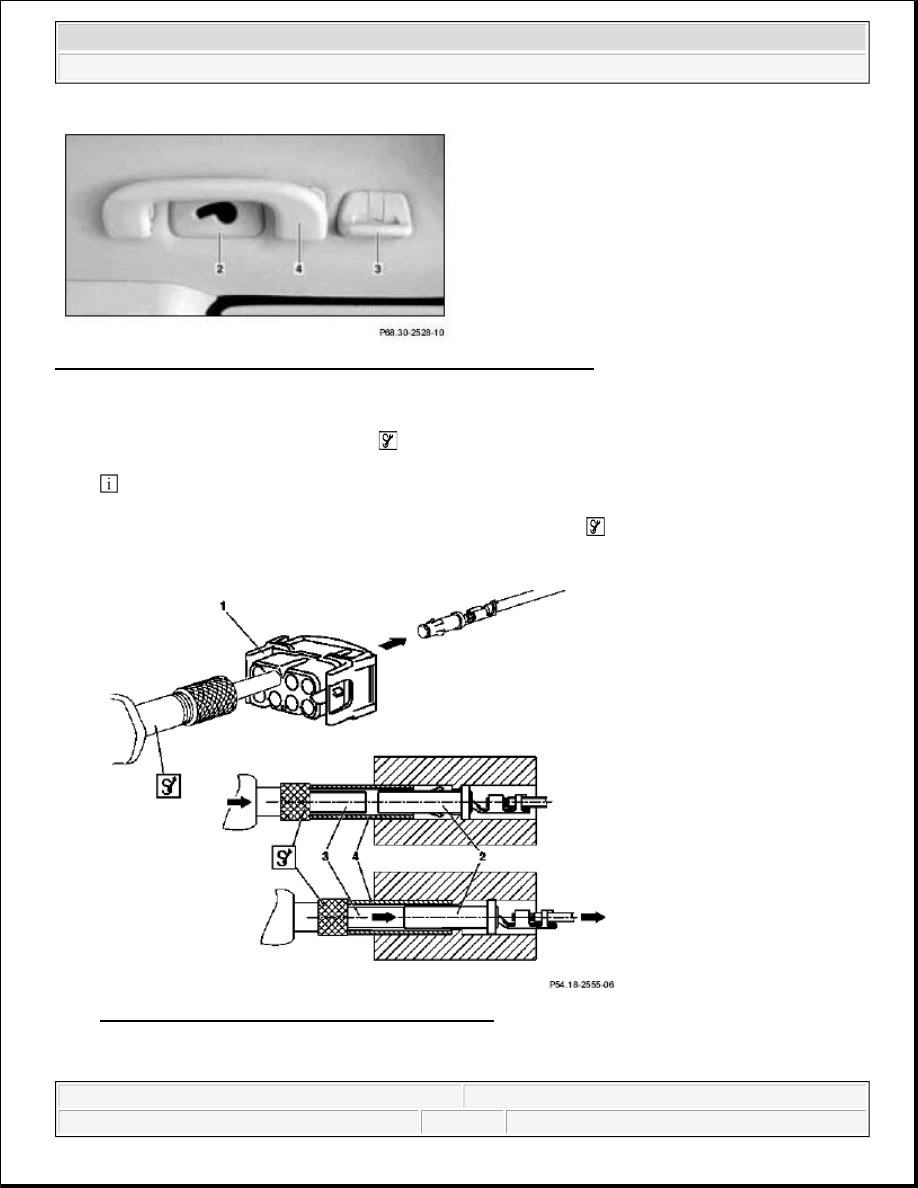

Unpin female contacts from coupling (RK 2.5)

1. Insert release tool with RK 2.5 ejector

 into the contact cavity of the coupling (1) from the front end.

 In this step, the sleeve (4) of the tool compresses the spring shackles on the female contact (2).

2. By means of the plunger (3) of the release tool with RK 2.5 ejector

 , press the contact pin (2) against

the spring force of the tool out of the housing seat.

Fig. 570: Female Contacts From Coupling (RK 2.5)

3. Gently pull the respective line to remove the female contact (2) from the coupling (1).
