Unpin female contacts from plug (LSK)

1. Insert blade holder with clamping pliers

 and LSK 8 blade

 from front end through the openings in

plug contact cavity (1).

 This step compresses the spring tabs (2) on the contact pin.

2. Now the pull line extending from contact-pin slightly to remove it from the back of the plug.

Fig. 554: Female Contact From Plug (LSK)

REMOVE CONTACTS FROM MAXI POWER TIMER COUPLING - AR00.19-P-0120-14A

Fig. 555: Identifying Wiring Harness Repair Kit, Supplement For Passenger Cars (220 589 04 99 00)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 556: Identifying Wiring Harness Repair Kit, Basic (000 589 13 99 00)

Fig. 557: Identifying Wiring Harness Repair Kit (220 589 02 99 00)

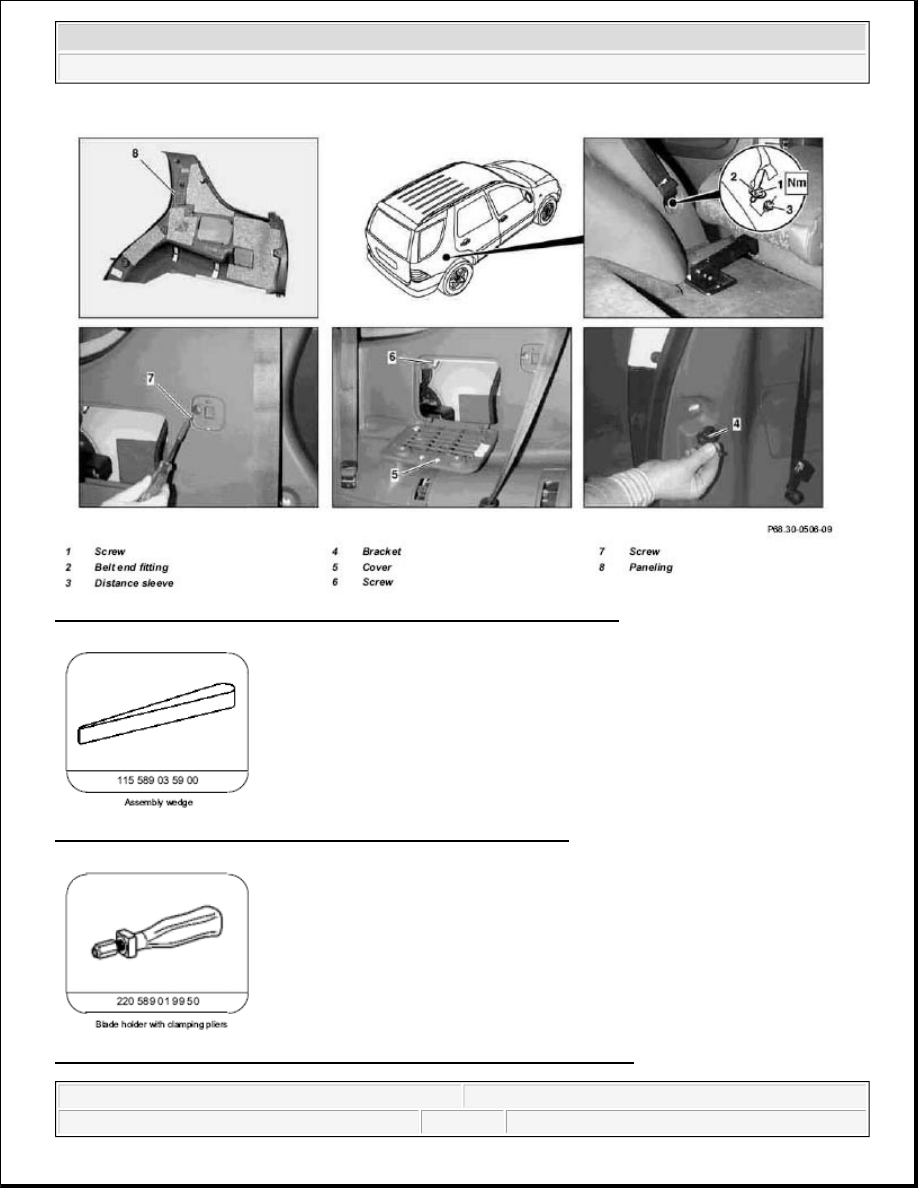

Fig. 558: Identifying Blade Holder With Clamping Pliers (220 589 01 99 50)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



Fig. 559: Identifying MPT Blade (220 589 01 99 51)

Secondary release on version with retaining cap (MPT)

1. Using a suitable tool, pry up the lock tabs on the retaining cap (1).

2. Pull the retaining cap from the clutch housing (2).

Shown on a 4-pin MPT and JPT coupling

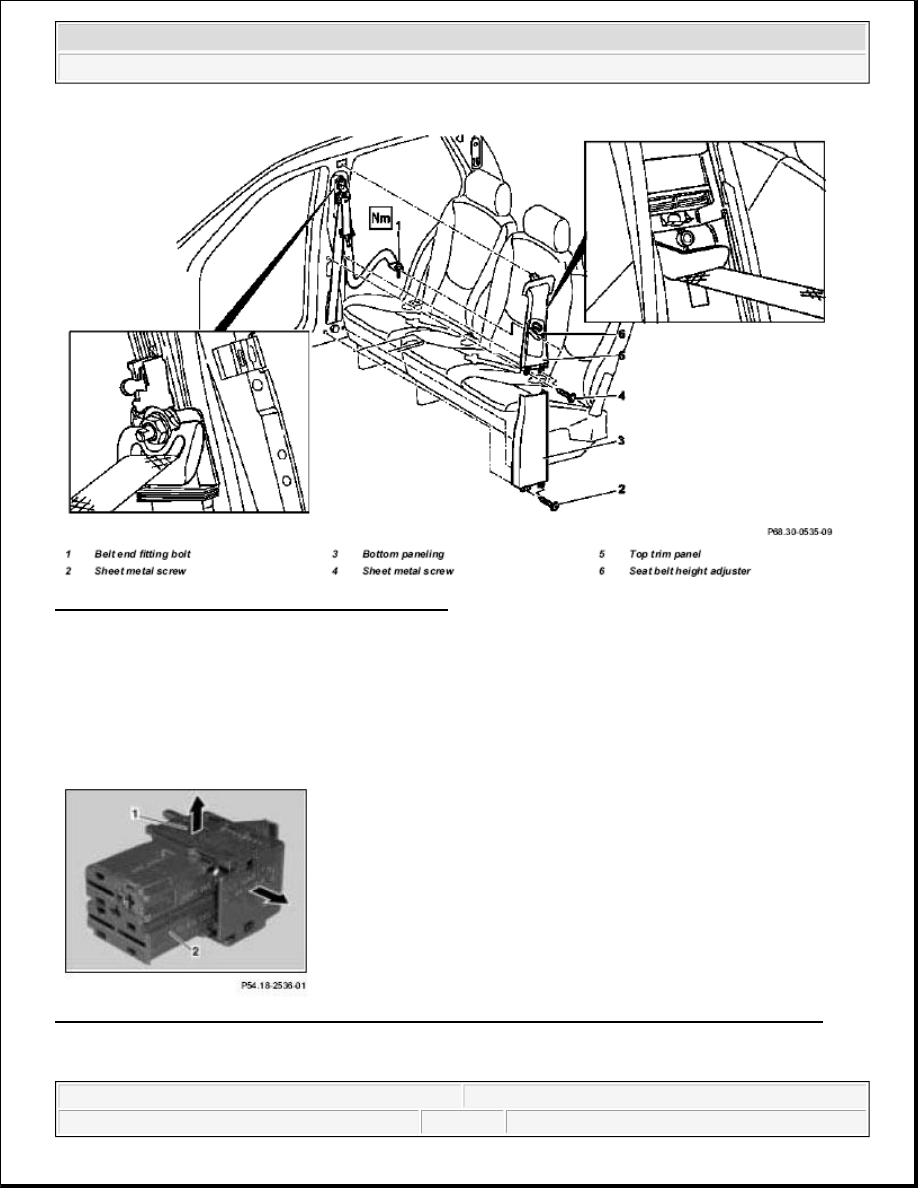

Fig. 560: Pulling Retaining Cap From Clutch Housing - Shown On A 4-Pin MPT And JPT Coupling

Unpin female contacts from coupling (MPT)



2004 Mercedes-Benz ML350

1998-2005 GENINFO Overall vehicle - 163 Chassis



me



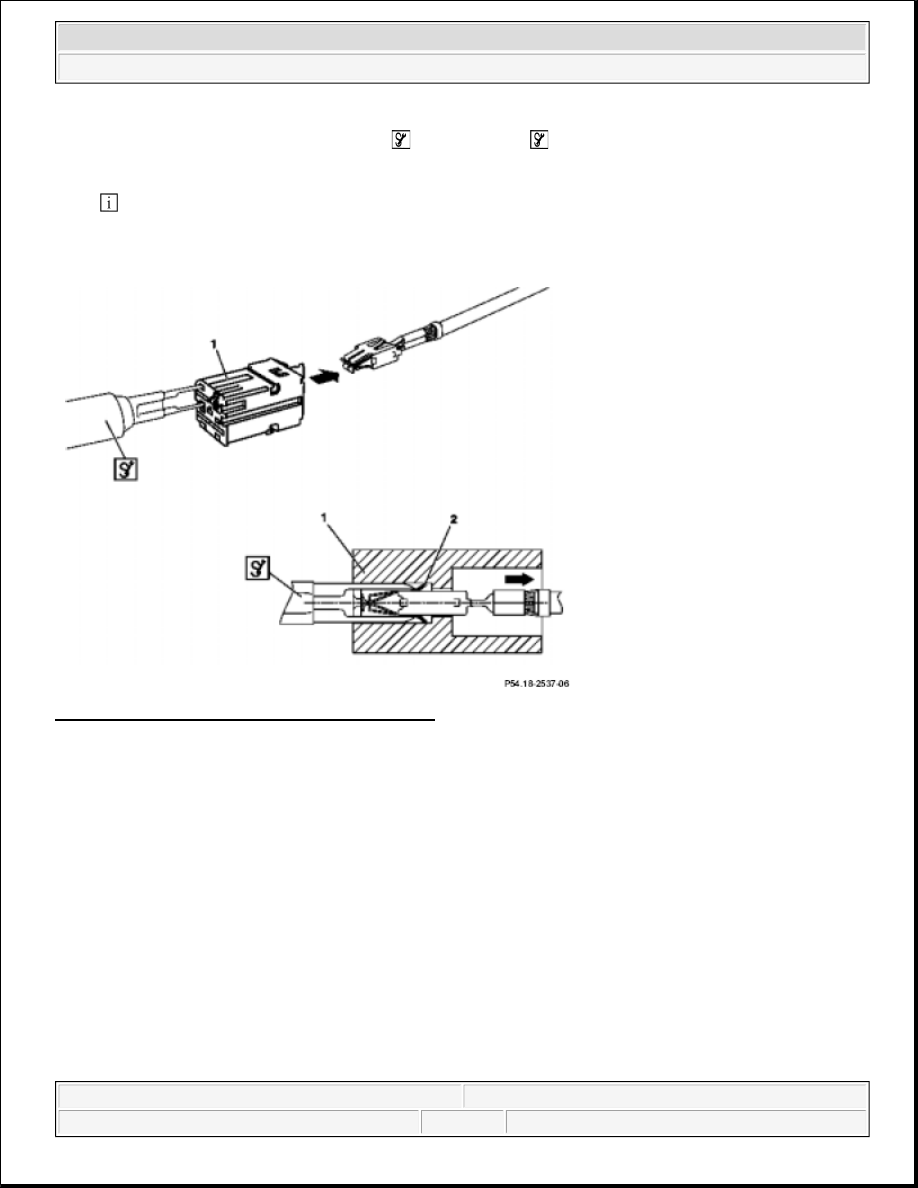

1. Insert blade holder with clamping pliers

 and MPT blade

 from front end through the openings in

coupling contact cavity (1).

 This step compresses the spring shackles (2) on the female contact.

2. A slight tug on the corresponding cable will remove the female contact (1) from the coupling.

Fig. 561: Female Contacts From Coupling (MPT)
