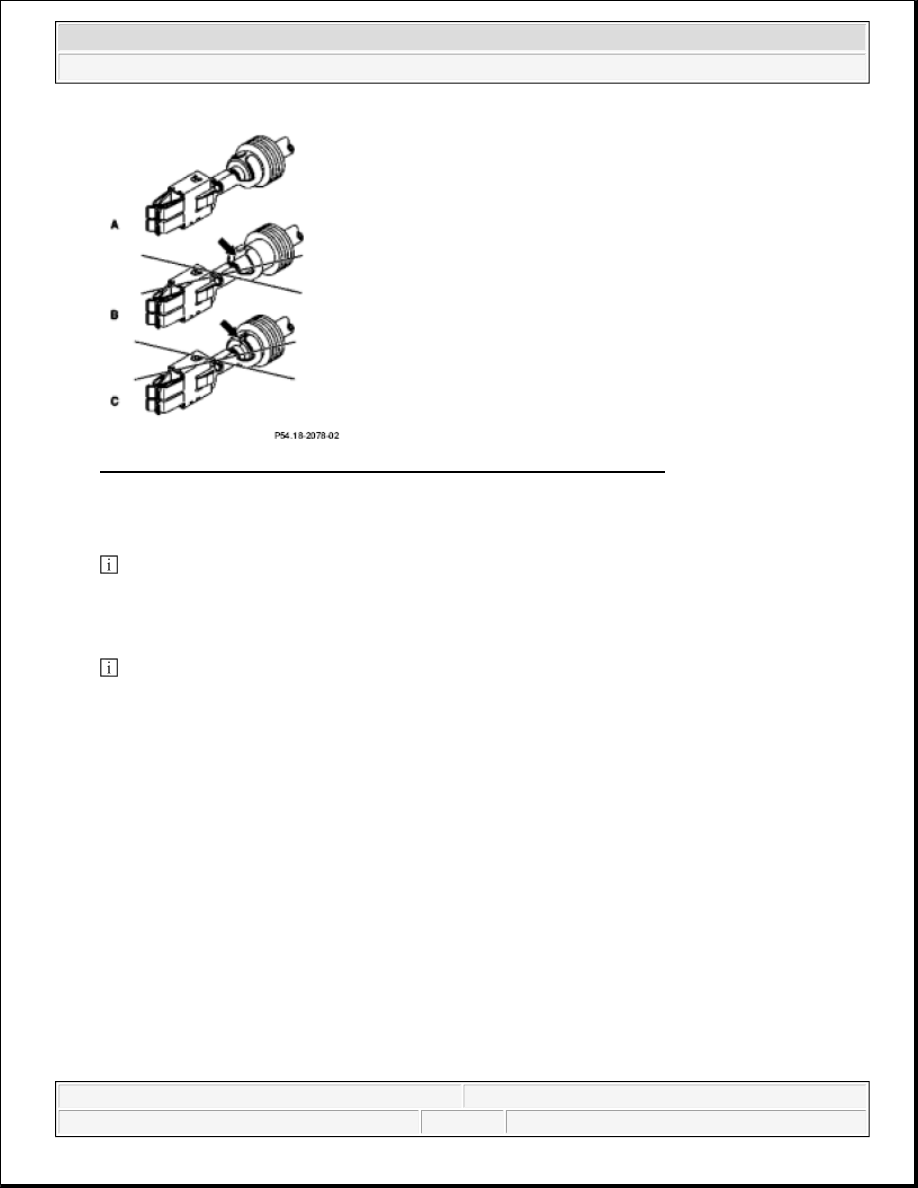

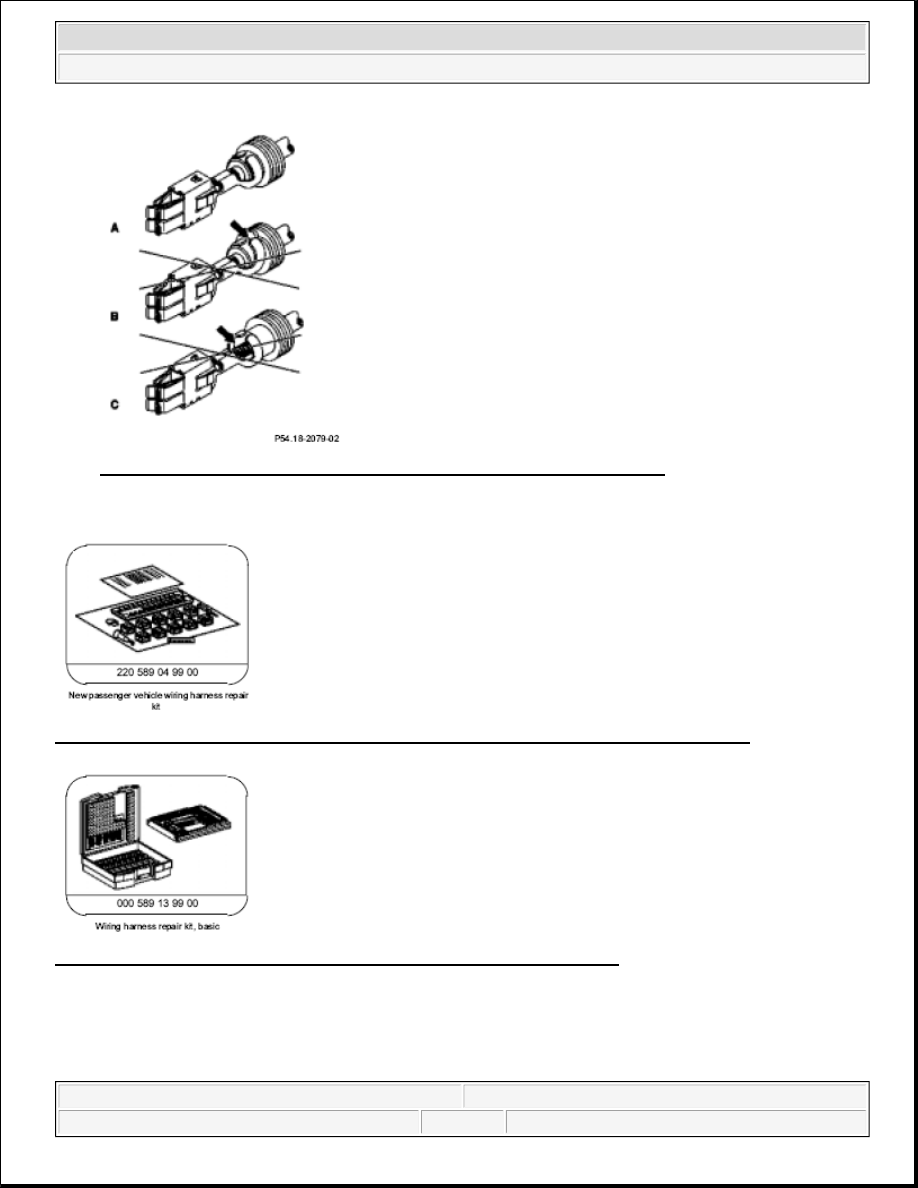

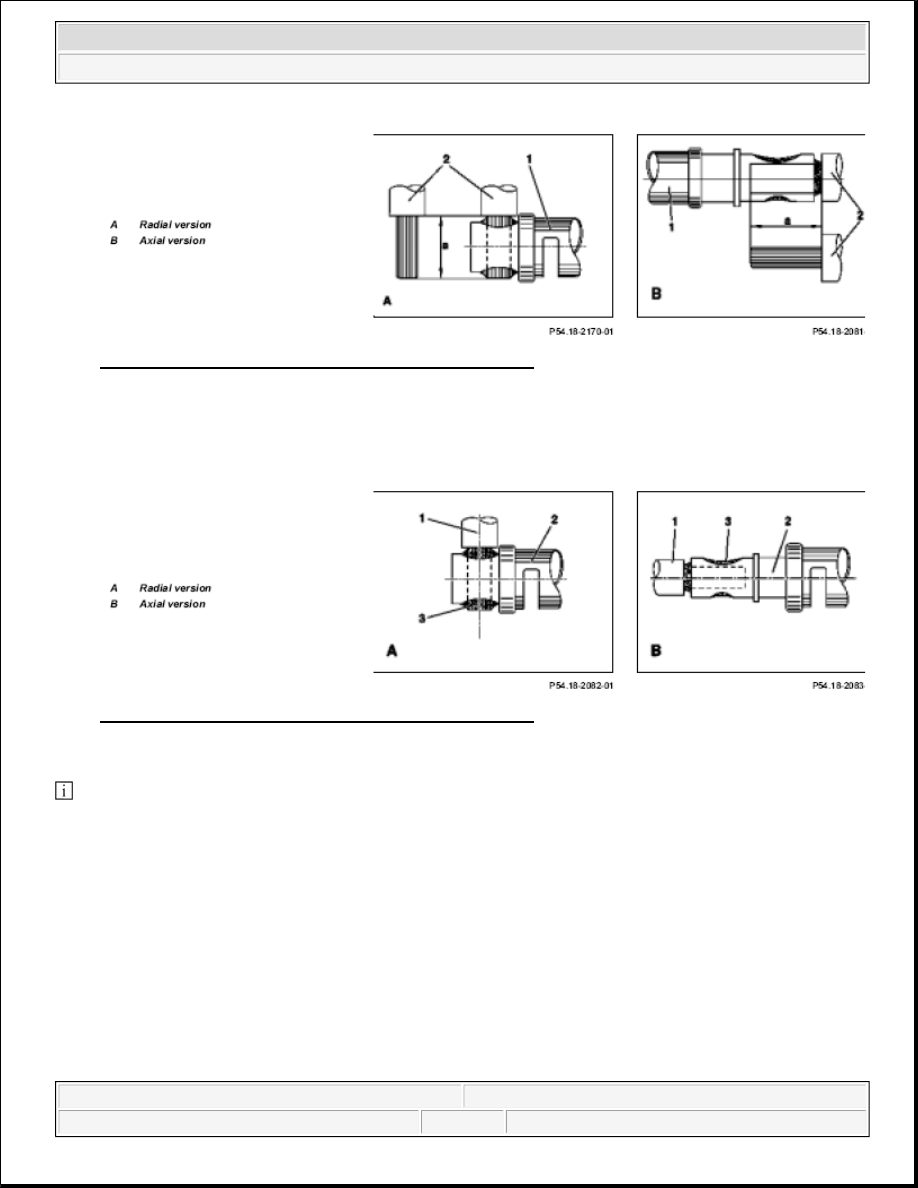

Fig. 380: Identifying Crimp Connections - Correct And Incorrect (1 Of 2) 14. Check crimped connection for correct length and distance of strands and insulation, as well as position and condition of seal. Correct crimped connection (A): Insulation and wires are of the correct length in the shackles. Correct distance between the single-strand Incorrect crimped connections (B, C): The single-strand insulation is damaged because the distance between seal and end of insulation is too Stripped strands are too long, single-strand insulation is therefore not crimped.
2004 Mercedes-Benz ML350 1998-2005 GENINFO Overall vehicle - 163 Chassis
