Mercedes-Benz ML320. Service manual - part 471

AR82.10-P-5103GI

Remove/install fog lamp

27.2.01

MODELS

163.113 /154 #A as of 289565,

163.113 /154 #X as of 754620,
163.128 /157 /175

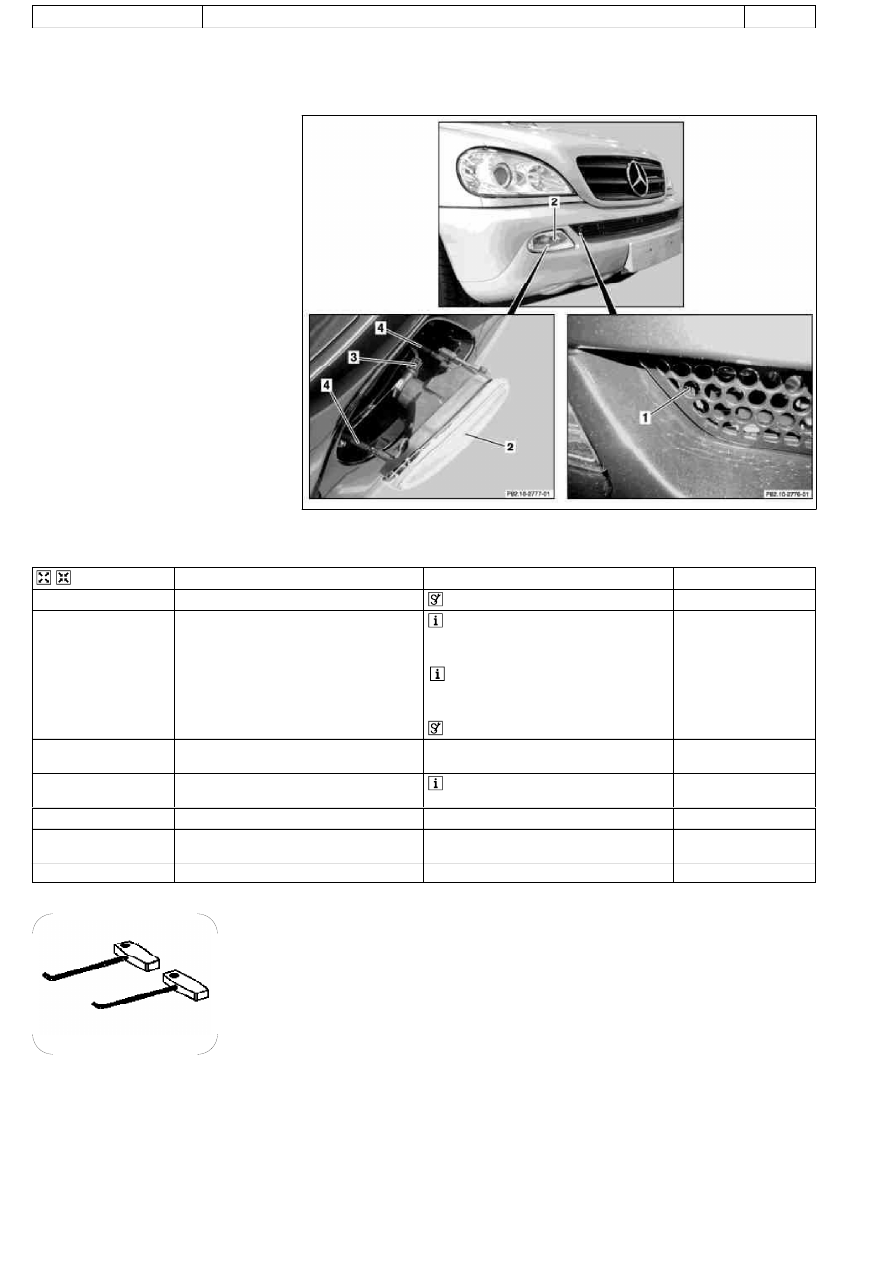

P82.10-2778-06

1

Lever

2

Fog lamp

3

Electrical connector

4

Grommets



Remove/install

1

Press lever (1) to release the fog lamp (2)

 Pulling hook

*140589023300

2

Disconnect fog lamp (2) from front bumper

 Exercise caution when pulling at the

edges of the fog lamp.



Installation: First notch in the fog lamp at

the edges. Ensure that the lever (1) securely
holds the fog lamp in place.

 Pulling hook

*140589023300

3

Disconnect electrical connector (3) from fog
lamp

4

Pull off grommets (4)



Installation: Ensure that the grommets

are installed loosely and without kinks.

5

Install in the reverse order

6

Check fog lamp adjustment and adjust if
necessary

e



Check and correct headlamp adjustment

AP82.10-P-8260GH

Pulling hooks

140 589 02 33 00

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR68.30-P-4010GH

Remove/install paneling in footwell

9.4.97

MODELS  163.113 /128 /136 /154 /157 /172 /174 /175

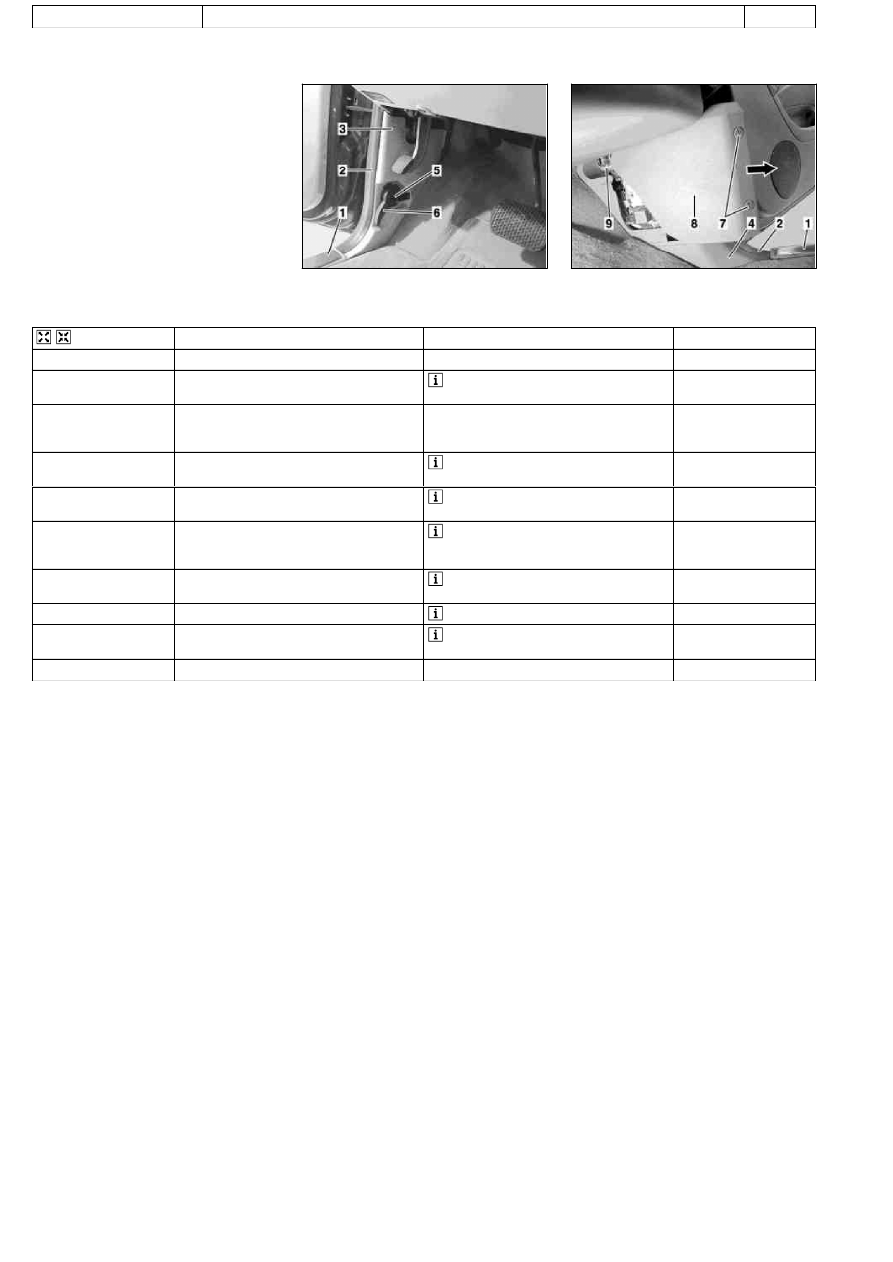

P68.30-2266-01

1

Door sill molding cover

2

Door seal

3

Driver-side paneling

4

Passenger side paneling

5

Bolt

6

Engine hood release lever

7

Arresting mechanism

8

Fuse and relay box cover

9

Nut

P68.30-2267-01



Remove/install

1

Remove front door sill molding cover (1)

2

Unscrew screws from door sill molding on
rocker panel

 Only two front screws.

3

Pull off door seal (2) in the area of driver's
side paneling (3) or front passenger's side
paneling (4)

4

Unscrew screw (5) for engine hood release
lever (6) on A-pillar

 Driver's side only.

5

Unhook engine hood cable and remove
engine hood release lever (6)

 Driver's side only.

6.1

Rotate locks (7) on the cover of the fuse and
relay box (8) 1/4 revolution counterclockwise
into the vertical position

 As of 09.99. Passenger side only.

7.1

Pull back cover of fuse and relay box (8)
(arrow) and remove

 As of 09.99. Passenger side only.

8.1

Unscrew nut (9)

 As of 09.99. Passenger side only.

9

Unclip driver's side paneling (3) and front
passenger's side paneling (4) and remove

 Lift door sill molding slightly to allow

removal.

10

Install in the reverse order

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AR68.30-P-4470GH

Remove/install rear roof frame paneling

24.2.97

MODEL

163.113 /128 /136 /154 /157 /172 /174 /175

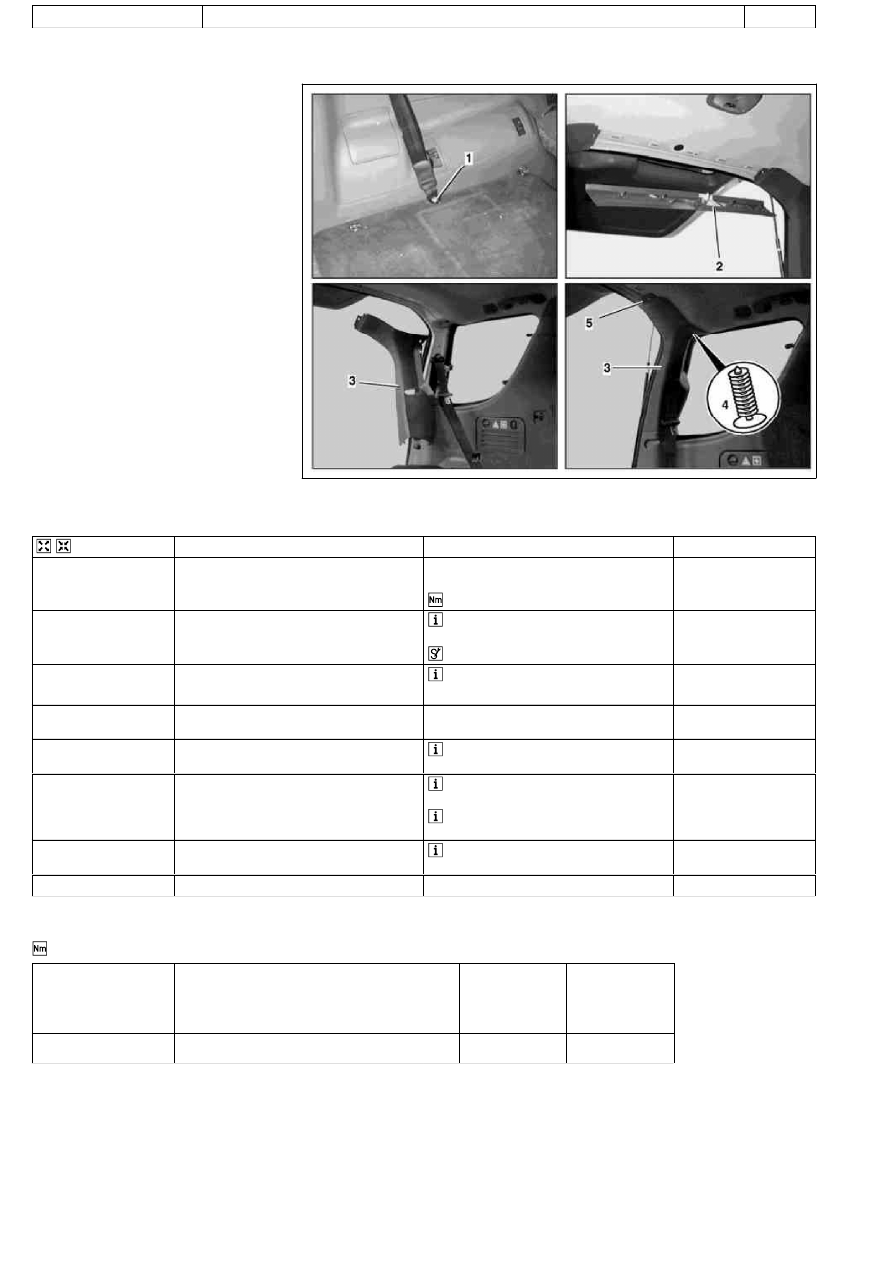

P68.30-0507-06

1

Belt end fitting in 3rd seat row

2

Center paneling of roof frame

3

Side paneling of roof frame

4

Expanding anchor

5

Screw



Remove, Install

1.1

Remove belt end fitting at bottom of 3rd seat
row (1)

Only with 3rd seat row, code 847.

*BA91.40-P-1001-01D

2

Unclip center roof frame covering (2)



Installation: Install paneling in door

rubber seal.

 Long wedge

*115589035900

3.1

Remove expanding anchor (4) from side roof
frame covering (3)

 up to 31.08.01

Installation: Replace expanding anchor.

3.2

Remove screw (5) from side roof frame
paneling (3)

4.1

Unclip side roof frame paneling in upper outer
corner

 As of 01.09.01

4.2

Remove side roof frame paneling (3) upward

 Only on 3rd seat row, code 847: remove

seatbelt and remove paneling



Installation: Install paneling in door

rubber seal.

5.1

Disconnect connector from loudspeaker

 As of 01.09.01 and with sound system,

code 810.

6

Install in the reverse order



Seat belts/belt tensioners

Number

Designation

Model 163 up to
08/99

Model 163 as of
09/99

BA91.40-P-1001-01D

Screw on belt end fitting

Nm

35

35

Copyright DaimlerChrysler AG  12.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

Assembly wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  12.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 2
