Mercedes-Benz ML320. Service manual - part 470





AR54.21-P-1200GH

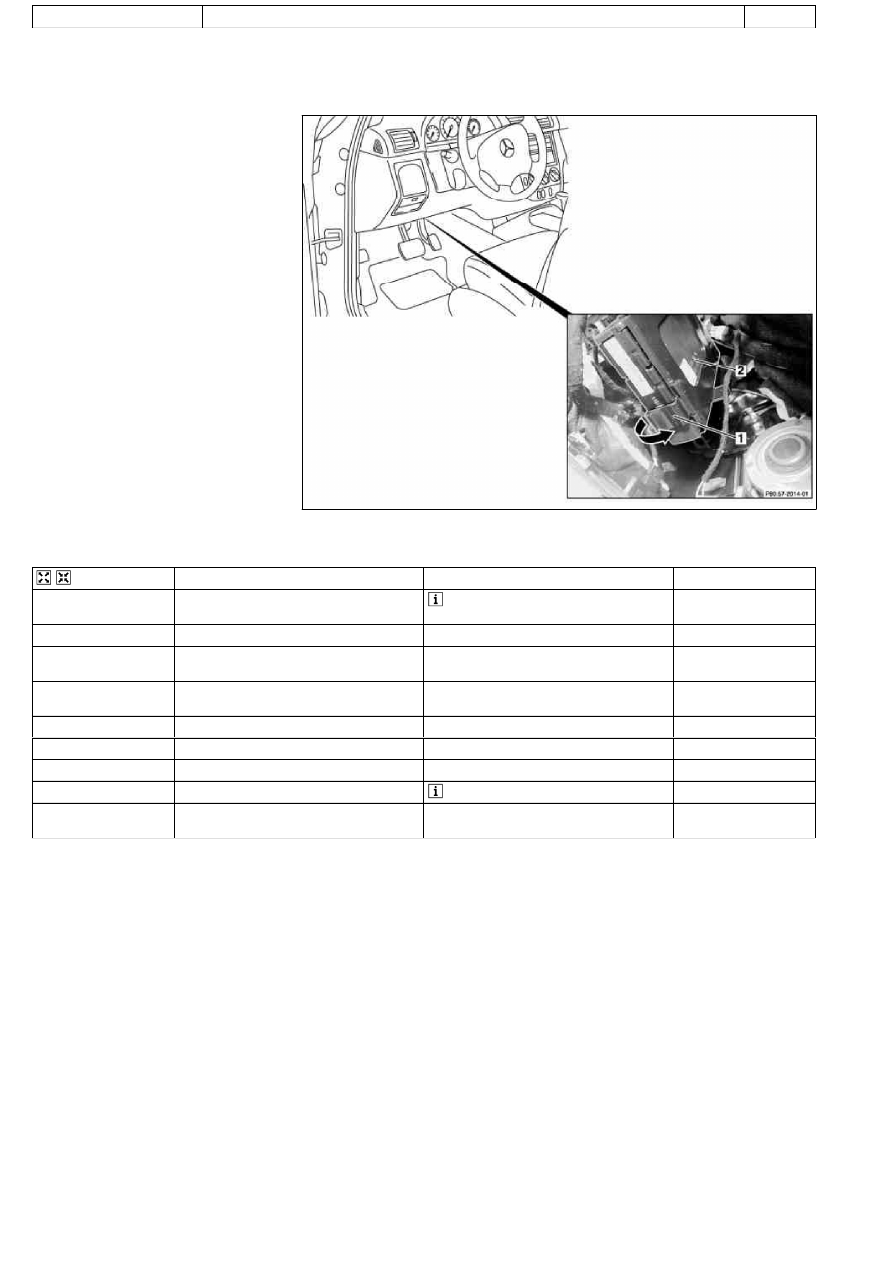

Remove/install Extended-Activity-Module (EAM)

11.7.00

MODEL

163.136 /154 /172 #A as of 145273,

163.136 /154 /172 #X as of 708319,
163.113 /128 /157 /174 /175

P54.21-2098-06

1

Lock

2

Extended-Activity-Module (EAM)



Remove/install

1.1

Read out coding of Extended-Activity-Module
(EAM)

 Only when replacing the EAM and if it can

still be read out using STAR DIAGNOSIS.

2

Remove cover under the instrument panel (left)

AR68.10-P-1500GH

3

Loosen the lock (1) which secures the EAM in
the bracket

4

Remove the Extended-Activity-Module (EAM)
(2) downwards out of the bracket

5

Disconnect connectors

6

Remove drive authorization module

AR54.21-P-1300GH

7

Install in the reverse order

8.1

Code the EAM

 Only when installing a new EAM.

AR54.21-P-1200-01GH

9

Turn ignition key into position 1 and wait for
40 seconds before first starting the engine.

Copyright DaimlerChrysler AG  05.06.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AP18.00-P-0101-02Z

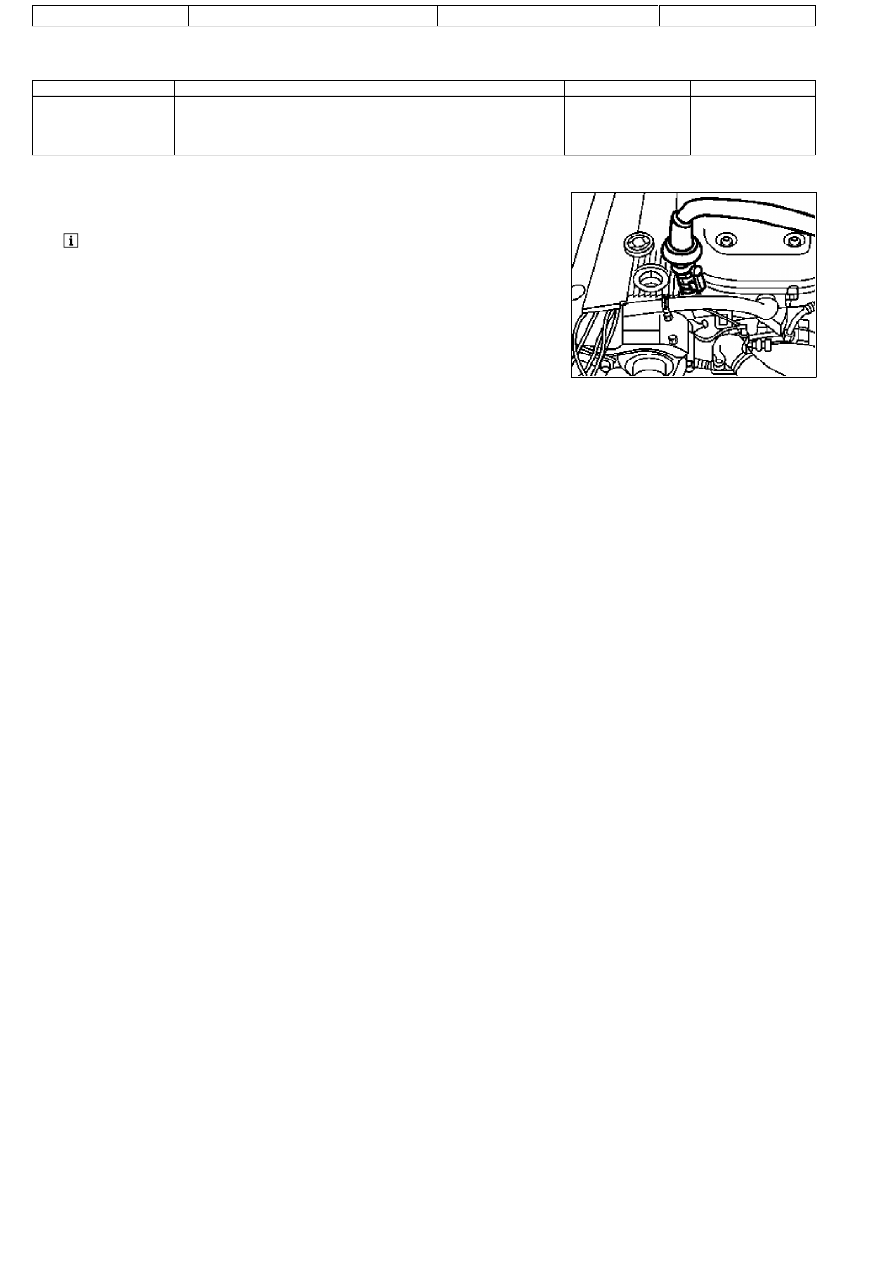

Extract engine oil

Commercially available tools (see Workshop Equipment Manual)

Number

Designation

Make (e. g.)

Order number

WH58.30-Z-1007-16A

Engine oil extractor

Deutsche Tecalemit

Am Metallwerk 11

33659 Bielefeld

1.386950.2

P18.00-0019-01

Shown on Engine 104

1

Extract engine oil through the dipstick guide tube.

 Perform only when engine is at normal operating temperature.

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

BT27.35-P-0002-01A

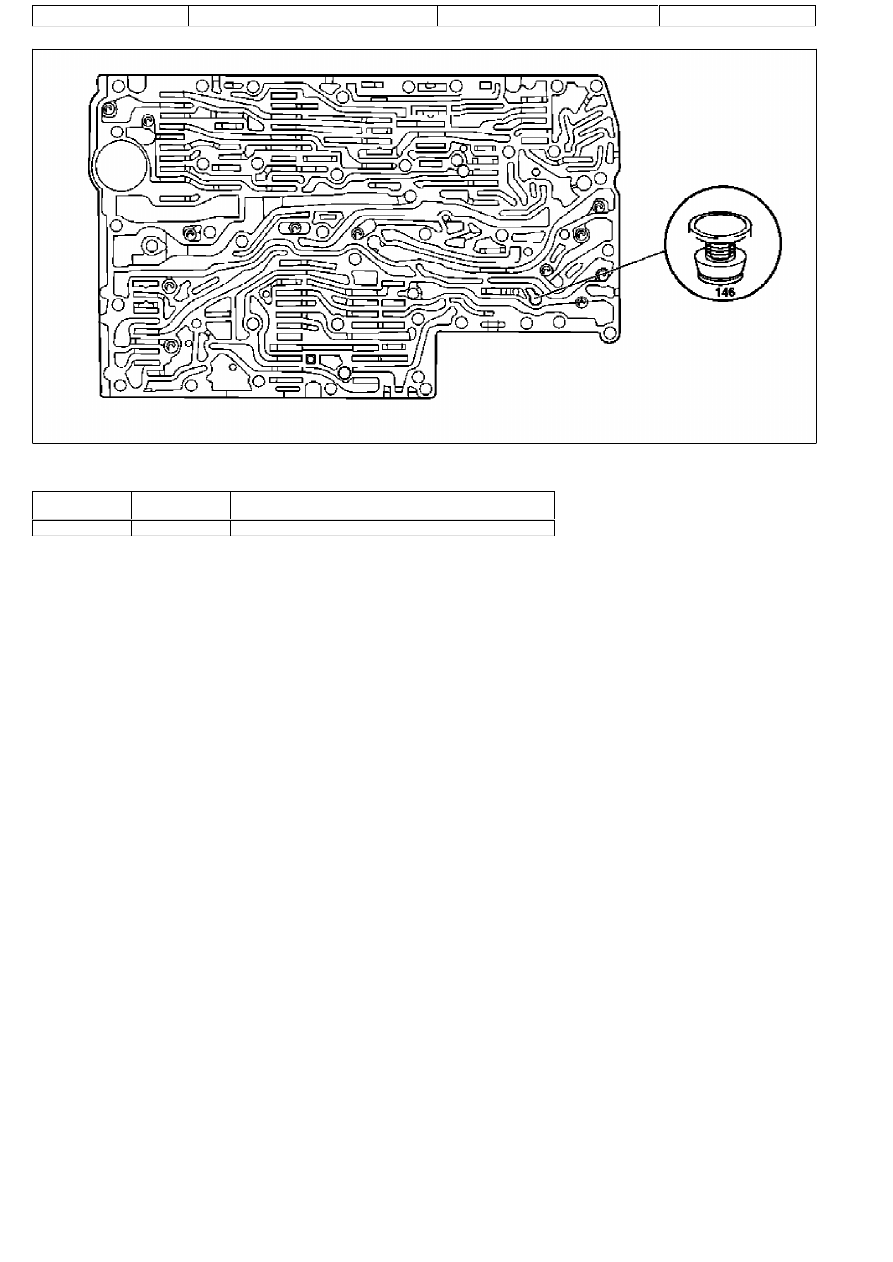

Installation of a pressure feed valve

P27.35-0212-09

Production breakpoint data/Modifications/New features

Transmission/

steering gear

Transmission ident.

end no. as of

Type of and reason for modification

722.6

0027083

A pressure feed valve (146) has been installed in the 2-3 shift group
to prevent harsh 3-2 downshifts and roll-out shifts.

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

AP82.10-P-8260-04A

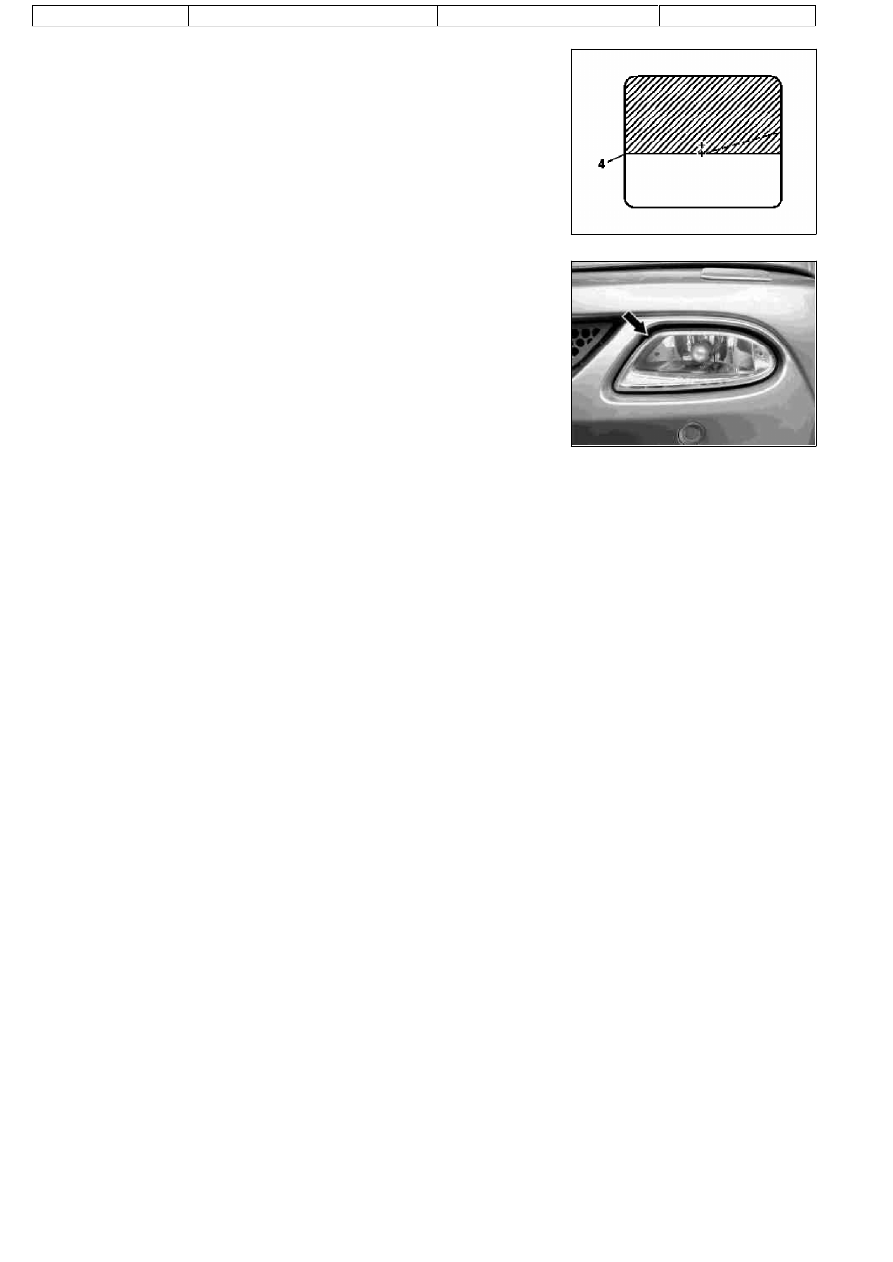

Set or inspect fog lamps

P82.10-0205-01

1

The light-dark boundary must be as horizontal as possible at the height of the appropriate
dividing line (4), correct if necessary.

2

For model 140 sedan as of approx. 03.94, 168 and 202: Check seat of bulb.

P82.10-3633-01

Model 163.113 /154 #A as of 289565,
163.113 #X as of 754620,
163.128 /154 /157 /175 except CODE (U49) Styling package

Arrow:

Position of adjusting screw

Copyright DaimlerChrysler AG  20.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1
