 Oil pan

intake manifold with a
plastic plate.

 Separate connector of

hot film MAF sensor
(HFM) and unscrew
resonance tube at cylinder
head cover.
Engine 112.942/970.

AR07.07-P-1454A

Engine 113.942/965.

AR07.07-P-1454MV

8

Put on engine support
bracket



AR33.10-P-0100-01BV

 Engine lifting device

for ML-class

*WE58.40-Z-1007-11A

9

Raise engine

 Ensure that the rear of

the engine does not touch
the body!
Do not overstretch coolant
lines and engine/
bodywork ground strap
(W11/5), detach engine/
bodywork ground strap
(W11/5) if required.



10

Unbolt bottom part of oil
pan (6)



*BA01.45-P-1002-01B

11

Remove oil pan bottom
section (6)

 Installation: Clean

sealing surfaces, apply
sealant to the sealing
surfaces with a bead of 2.0
mm (± 0.5 mm)! The
sealant must be applied
within 10 minutes! The
silicone bead must not be
spread!

*BR00.45-Z-1013-01A



Notes on application of
sealant to oil pan

Engine 112.

AH01.45-P-0001-01C

Engine 113.942/965.

AH01.45-P-0001-01E

12

Install in the reverse order





Engines
112.910/911/
912/913/914/
915/917/920/
921/922/923/
940/941/942/
943/944/945/
946/947/949/

Engines
113.940/941/
942/943/944/
945/946/960/
961/962/963/
965/967/968/



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



 Engine mounts, engine supports

 Engine lubrication

Number

Designation

951/954/955/
960/961/970/
972/973/976

969/980/981/
982/984/986/
992/995

BA01.45-P-
1002-01B

Self-tapping
screw of oil pan
to oil pan

Thread not
pretapped

Nm 14

14

Thread pre-
tapped

Nm 10

10

BA01.45-P-
1003-01B

Oil drain screw
to oil pan

M14

Nm 30

30

Number

Designation

Engine
112.942/970
113.942/965/981
in model
163.154/157/17
2/174/175

BA22.10-P-1001-01L

Bolt, front engine mounts
to front axle carrier

Nm 35

Number

Designation

Engine
112
except
112.916/953/975

Engines
113.940/941/
942/943/960/
961/962/969/
982

BF18.00-P-1001-
01H

Engine
oil

Filling capacity with oil filter Liters 8.0

8.0

Filling capacity without oil
filter

Liters 7.5

-

Specifications for Operating
Fluids

Sheet

BB00.40-P-0229-
01A


BB00.40-P-0229-
01A


Sheet

BB00.40-P-0229-
03A


BB00.40-P-0229-
03A


Sheet

BB00.40-P-0229-
05A


BB00.40-P-0229-
05A




2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



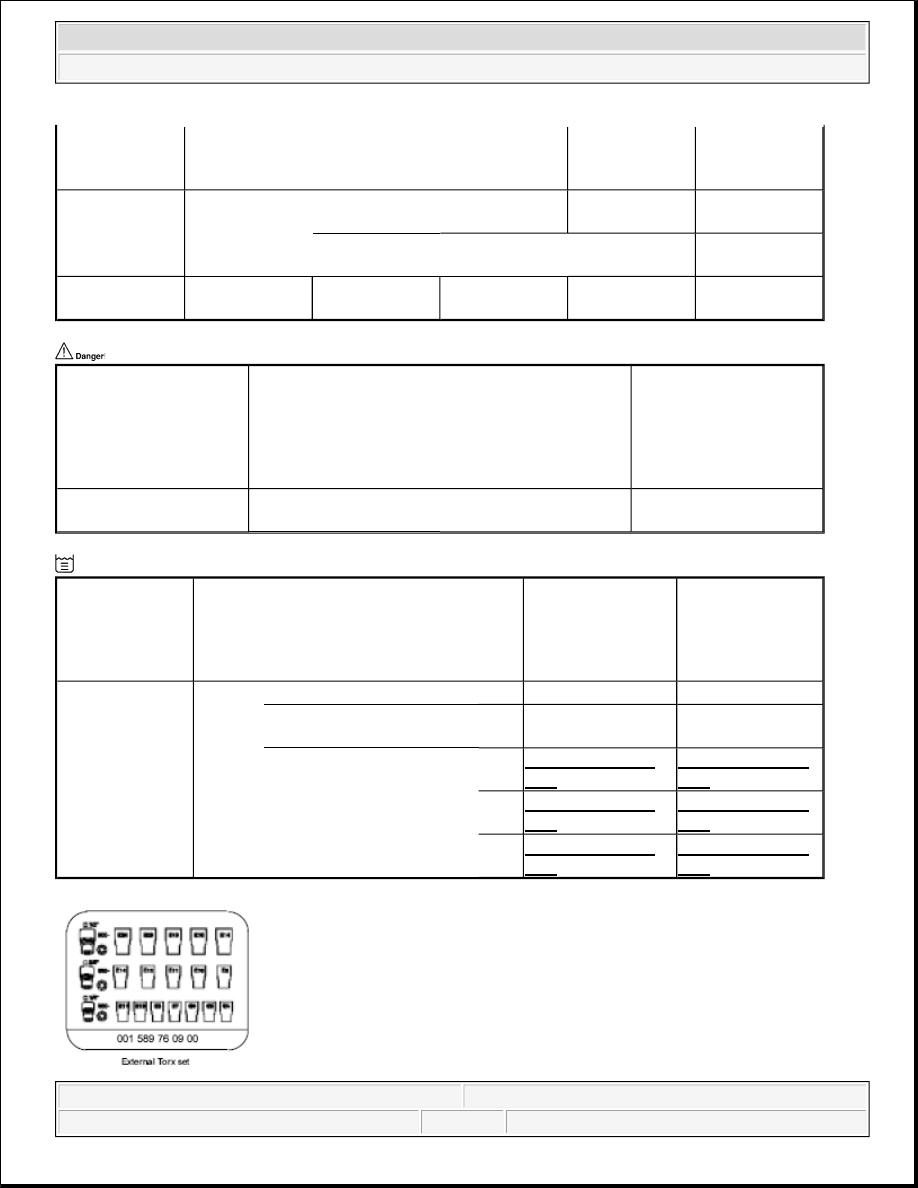

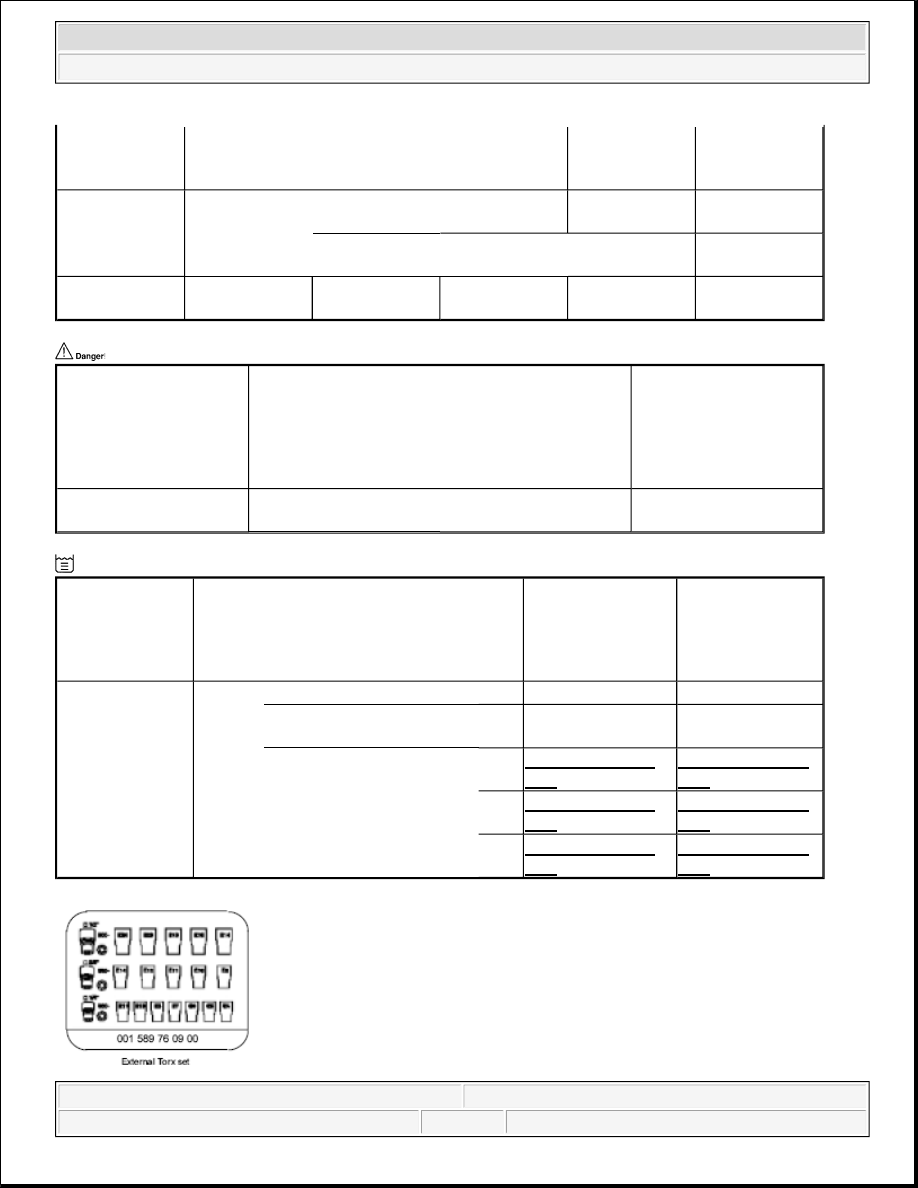

Fig. 109: Identifying External Torx Set (001 589 76 09 00)

Workshop equipment

Repair materials

REMOVE/INSTALL BOTTOM PART OF OIL PAN - AR01.45-P-7555VE

ENGINE 113.965 in MODEL 1

ENGINE 113.981 in MODEL 1

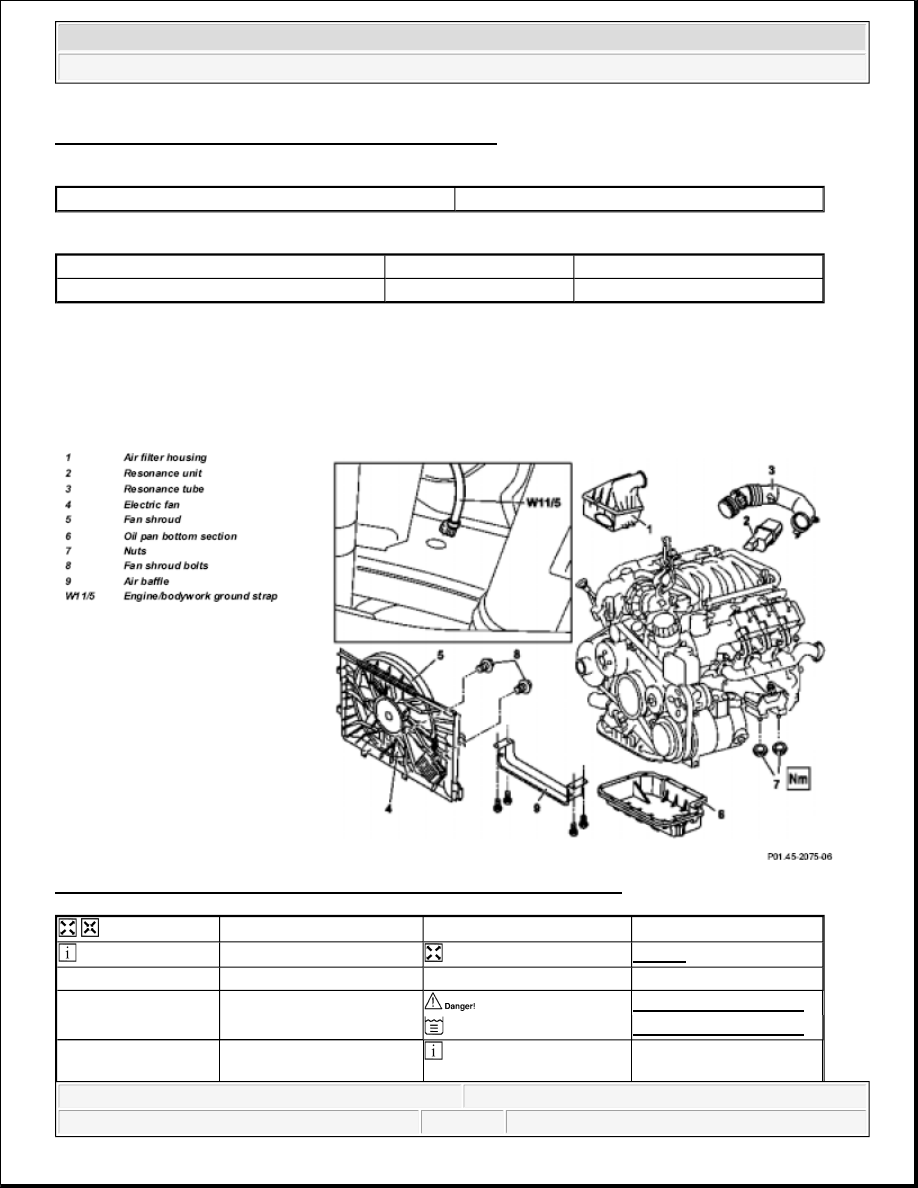

Fig. 110: Identifying Bottom Part Of Oil Pan Remove/Install Components

WE58.40-Z-1007-11A

Engine lifting fixture

Number

Designation

Order number

BR00.45-Z-1013-01A

Sealant

A 003 989 98 20





Remove/install









 External torx set

Fig. 49

1

Remove engine trim panel



2

Drain and collect engine oil



*BA01.45-P-1003-01B



*BF18.00-P-1001-01H

3

Unscrew nuts (7) at front
suspension carrier

 Before unscrewing the



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



 Oil pan

left engine mount, press oil
line of power steering from
bracket.



*BA22.10-P-1001-01L

4

Remove resonance tube (3)
with resonance unit (2)

 Do not damage the

plastic strap.

Separate plug connection

of hot film mass air flow
sensor (HFM) for this step
and unbolt resonance pipe
at cylinder head cover. The
resonance pipe is attached
to the rear of the intake
manifold with a plastic
bracket.

AR07.07-P-1454MV

5

Put on engine support
bracket



AR33.10-P-0100-01BV

 Engine lifting device for

ML-class

*WE58.40-Z-1007-11A

6

Raise engine

 Ensure that the rear of

the engine does not touch
the body! Do not
overstretch coolant lines
and engine/bodywork
ground strap (W11/5),
detach engine/bodywork
ground strap (W11/5) if
required.



7

Remove oil pan bottom
section (6)

 Installation: Clean

sealing surfaces, apply
sealant to the sealing
surfaces with a bead of 2.0
mm ± 0.5 mm! The sealant
must be applied within 10
minutes! The silicone bead
must not be spread!

*BR00.45-Z-1013-01A



Notes on application of
sealant to oil pan



AH01.45-P-0001-01E



*BA01.45-P-1002-01B

8

Install in the reverse order



Engines
113.940/941/
942/943/944/
945/946/960/
961/962/963/
