Mercedes-Benz ML320. Service manual - part 463





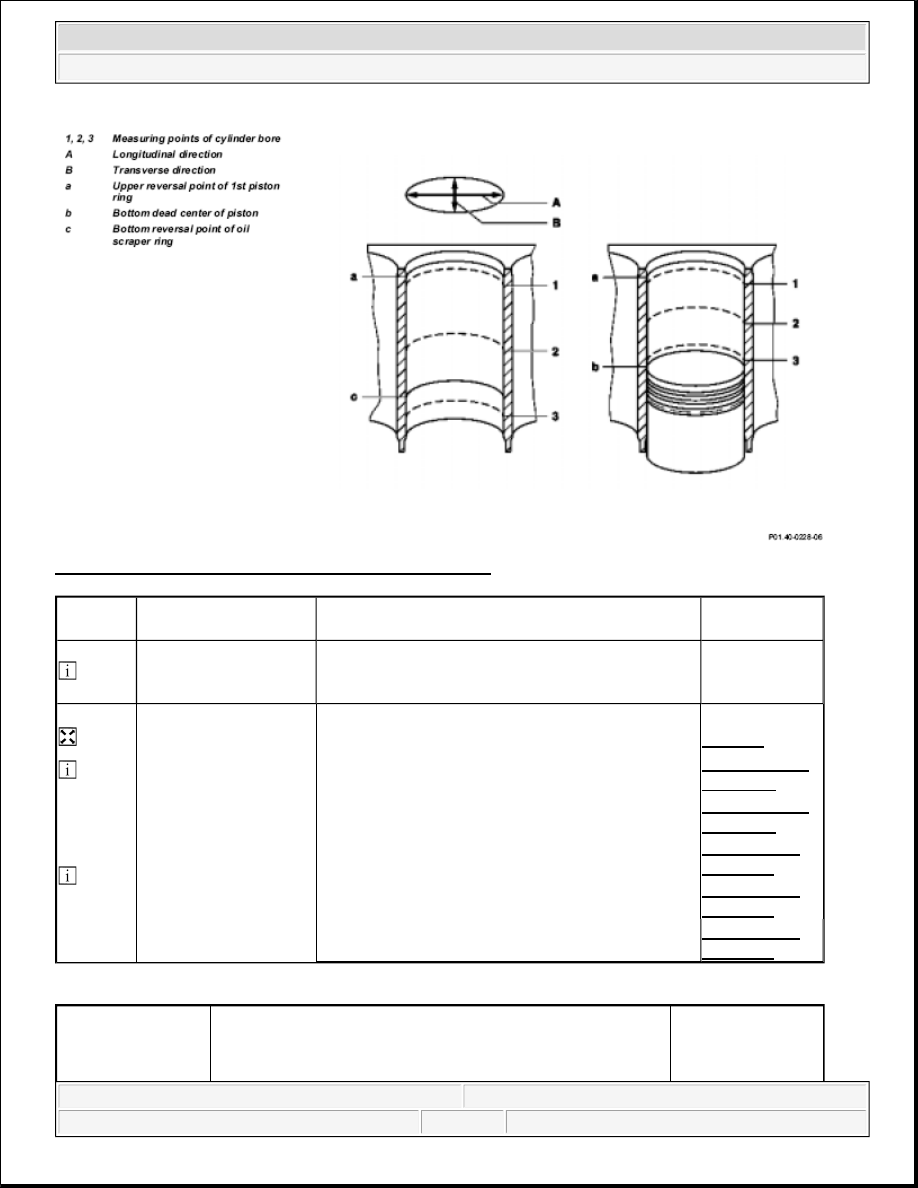

Fig. 101: Identifying Measuring Points Of Cylinder Bore

Check values for cylinder bore

Figure
item, etc.

Work instructions







Cylinder bore

Measure diameter of the cleaned cylinder bores with
an internal measuring instrument in the longitudinal
and transverse directions.



1,2,3

Cylinder bore diameter
at the measuring points

Measure





Fig. 102



*WH58.30-Z-
1001-12A



*WH58.30-Z-
1011-12A

Cylinder diameter code letter X

*BE01.40-P-
1001-01F

Cylinder diameter code letter

*BE01.40-P-
1001-01F

Repair size

*BE01.40-P-
1001-01F

Engines
113.960/961/
962/963/964/



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me



Check values for cylinder bore

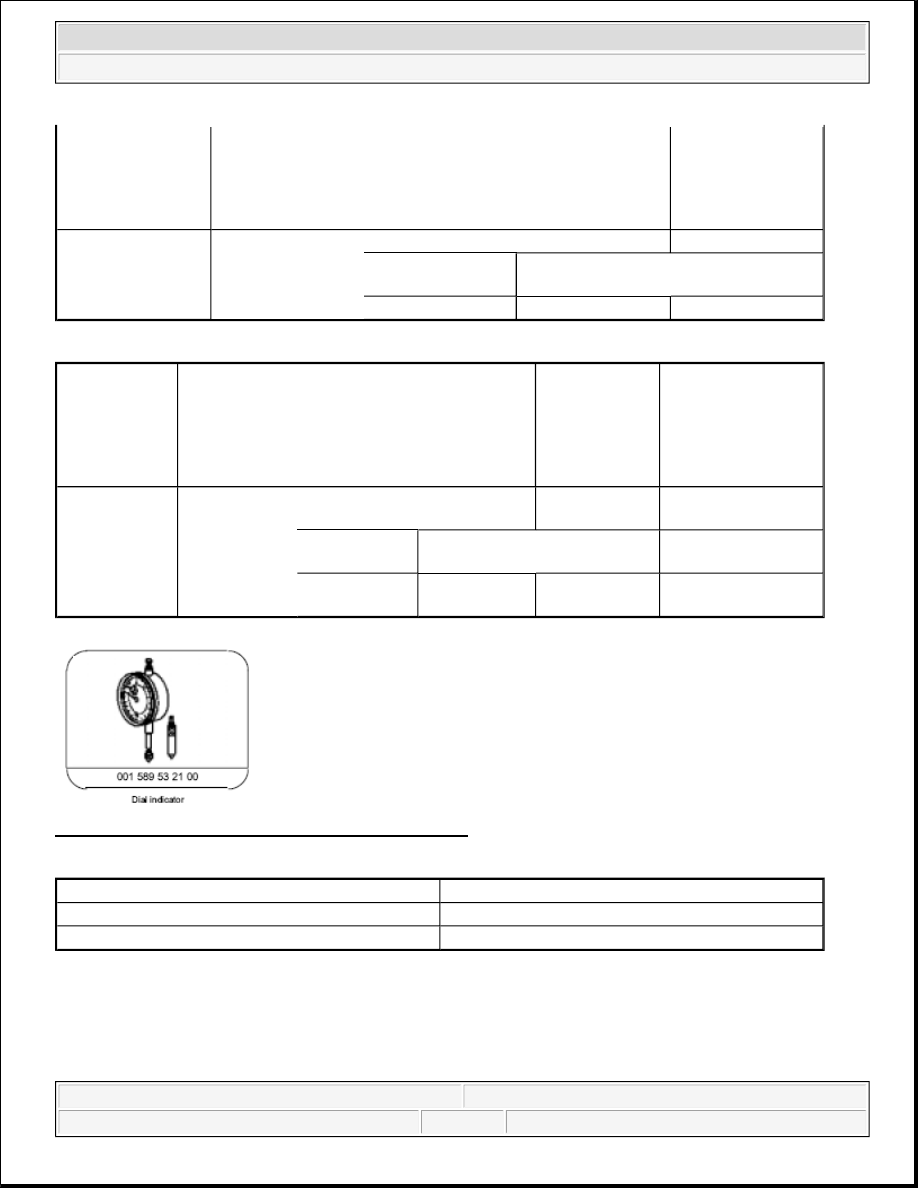

Fig. 102: Identifying Dial Indicator (001 589 53 21 00)

Commercially available tools

OIL PAN BOLT DIAGRAM - AR01.45-P-7500-06F

Upper part of oil pan shown on engine 112 with 4 MATIC

Number

Designation

965/967/968/
971/980/981/
982/984/987/
988/989/990/
991/992/993/ 995

BE01.40-P-1001-
01F

Cylinder dia.

Standard Marking X

mm 97.000 to 97.015

Auxiliary stage
Marking

mm 97.050 to 97.065

Repair size

mm 97.250 to 97.265

Number

Designation

Engine
112.910/ 911

Engines
112.913/920/921/922/
923/940/941/942/943/
944/945/949
113.940/941/942/943/
945

BE01.40-P-
1001-01F

Cylinder dia.

Standard
Marking X

mm 83.200...83.215 89.900...89.915

Auxiliary stage
Marking

mm 83.250...83.265 89.950 to 83.265

Repair size

mm 83.450 to

83.465

90.150...90.165

Number

Designation

WH58.30-Z-1001-12A

Quick calipers for internal measurements

WH58.30-Z-1011-12A

Internal measuring instrument



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me

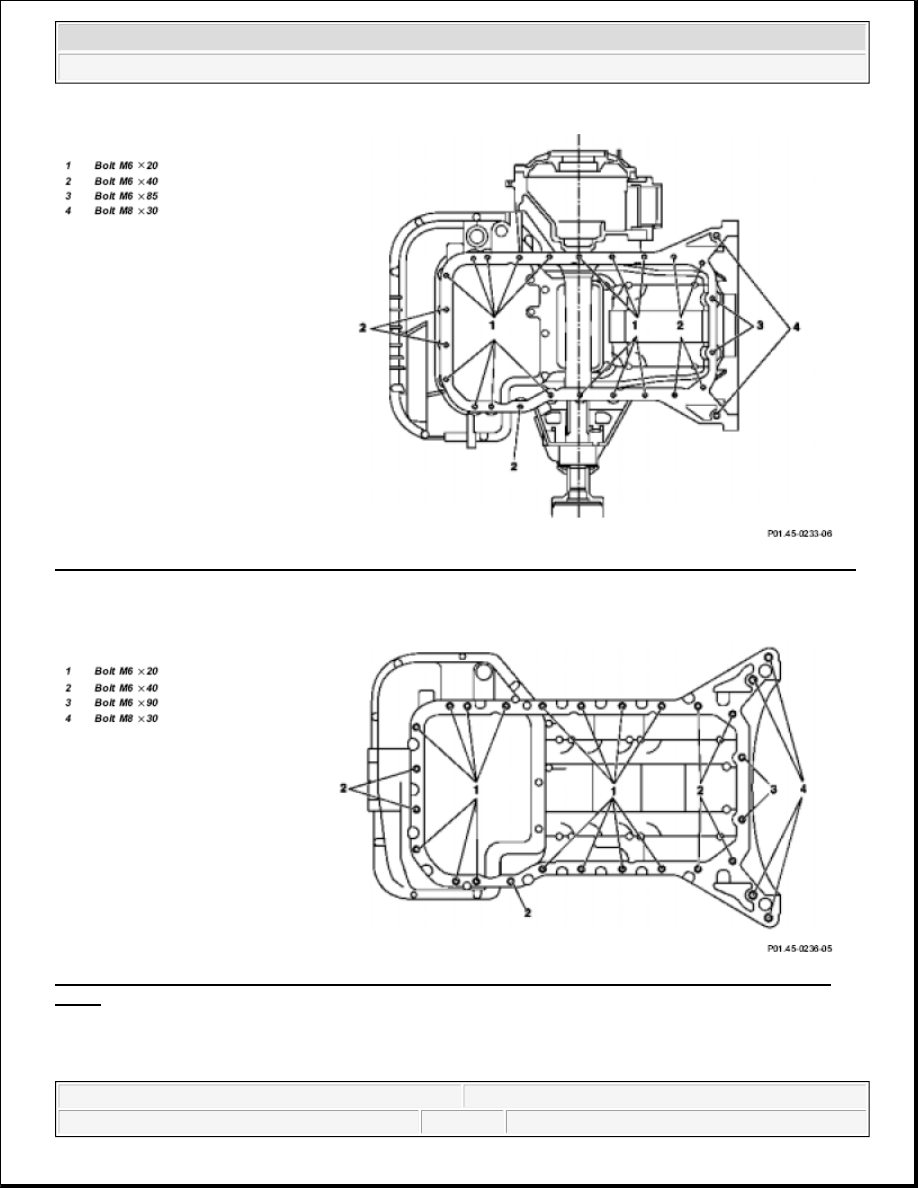

Fig. 103: Identifying Oil Pan Bolt Diagram - Upper Part Of Oil Pan Shown On Engine 112 With 4 Matic

Upper part of oil pan shown on engine 112 without 4 MATIC

Fig. 104: Identifying Oil Pan Bolt Diagram - Upper Part Of Oil Pan Shown On Engine 112 Without 4
Matic


Upper part of oil pan shown on engine 113



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me

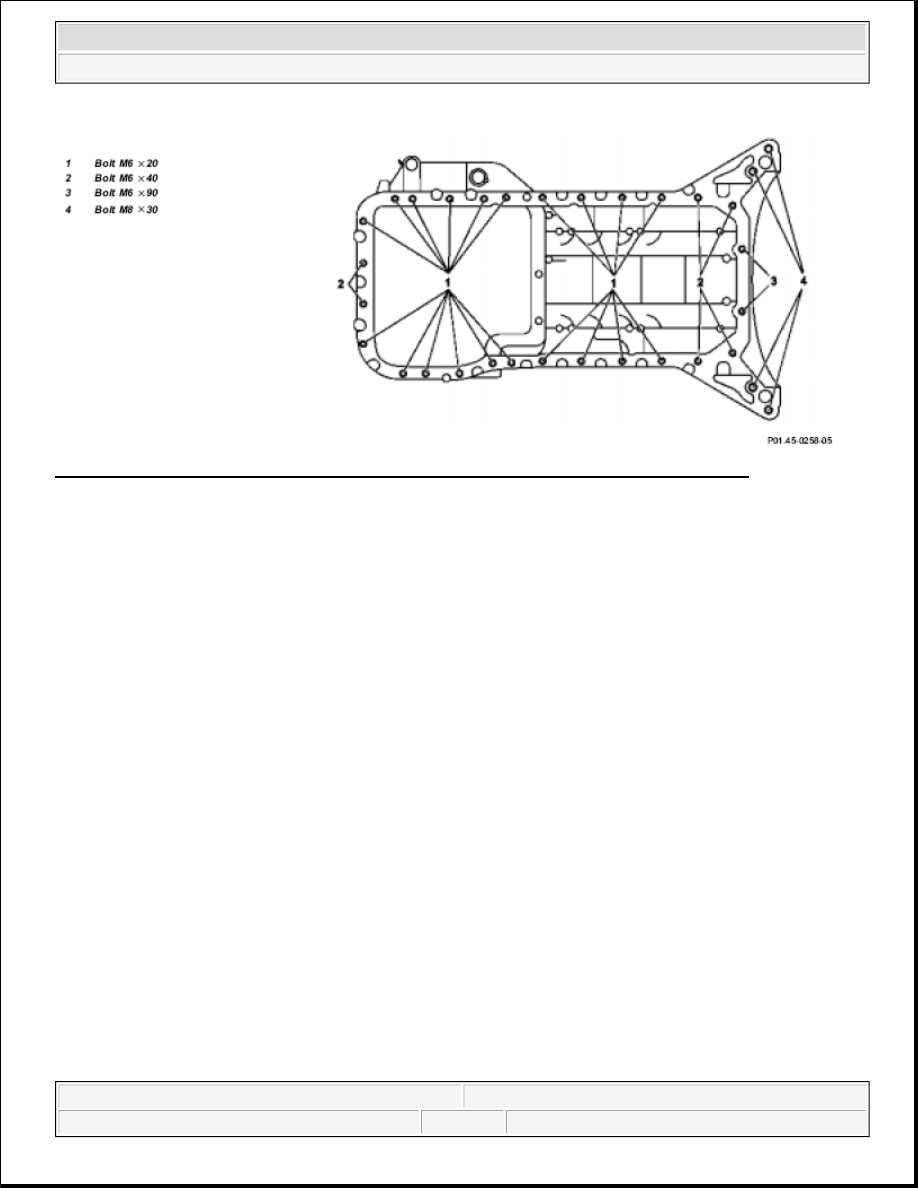

Fig. 105: Identifying Oil Pan Bolt Diagram - Upper Part Of Oil Pan Shown On Engine 113

REMOVE/INSTALL OIL PAN - AR01.45-P-7500FB

ENGINE 112.942 in MODEL 163.154

ENGINE 112.970 in MODEL 163.157

ENGINE 113.942 in MODEL 163.172

ENGINE 113.981 in MODEL 163.174

ENGINE 113.965 in MODEL 163.175

Shown on engine 112



2001 Mercedes-Benz ML320

1998-2005 ENGINE Complete engine - 163 Chassis



me
