Mercedes-Benz ML320. Service manual - part 382

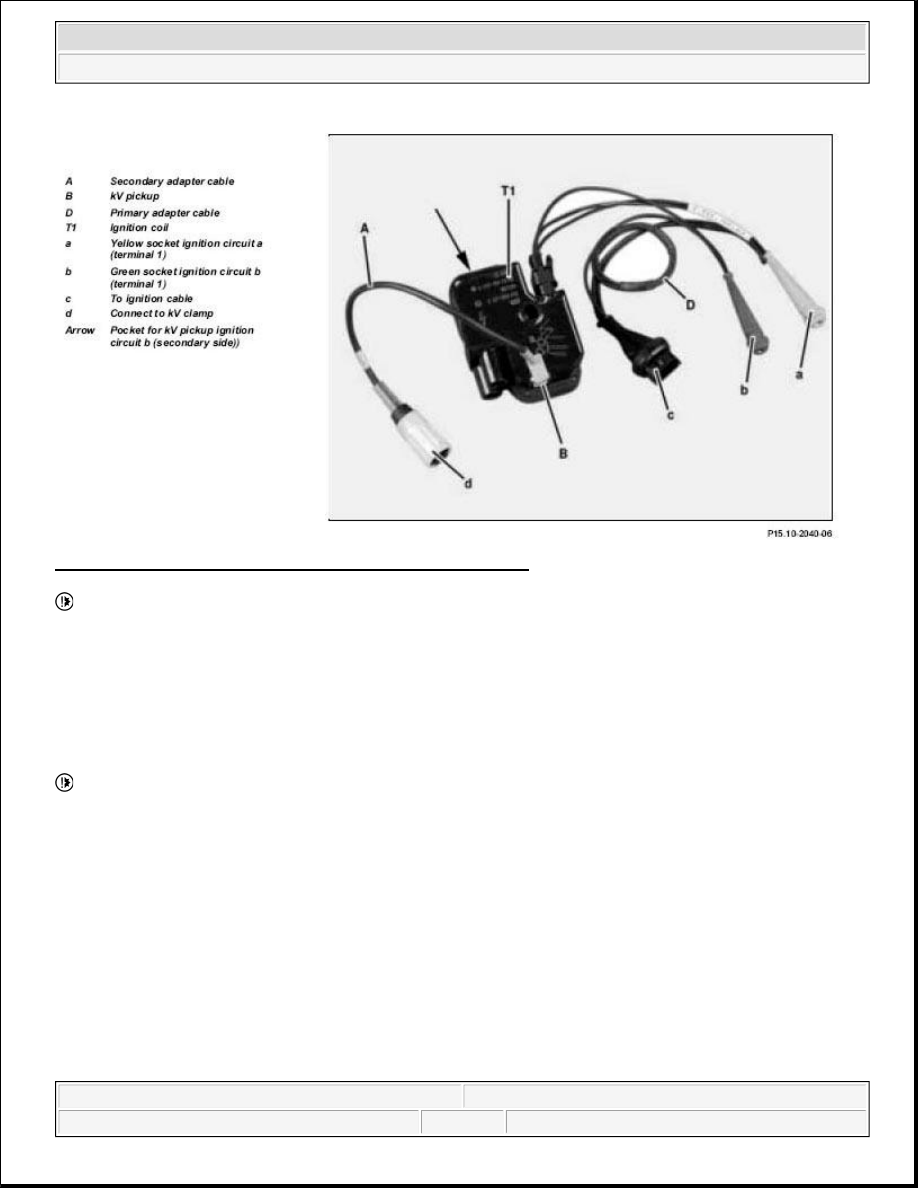

Fig. 1: Identifying Connection Cables Of Double Ignition Coil

 Diagnosis with engine tester:

Connect green connector (terminal 1) of engine tester alternatively to the yellow socket or green socket for
assessing an ignition circuit with the primary adapter cable.

Connect yellow connector (terminal 15) of engine tester to positive (tml. 30 /tml. 15).

GENERAL NOTES ON TESTING CONTACTLESS HIGH VOLTAGE DISTRIBUTION - AH15.10-P-1003-01W



If a complaint exists in the start or warming-up phase, do not condition engine to operating temperature but
proceed on a complaint-related basis.

Connections: set diagnostic tester to cylinder number 1 primary or secondary (if possible) and test through the
ignition circuits one after the other.

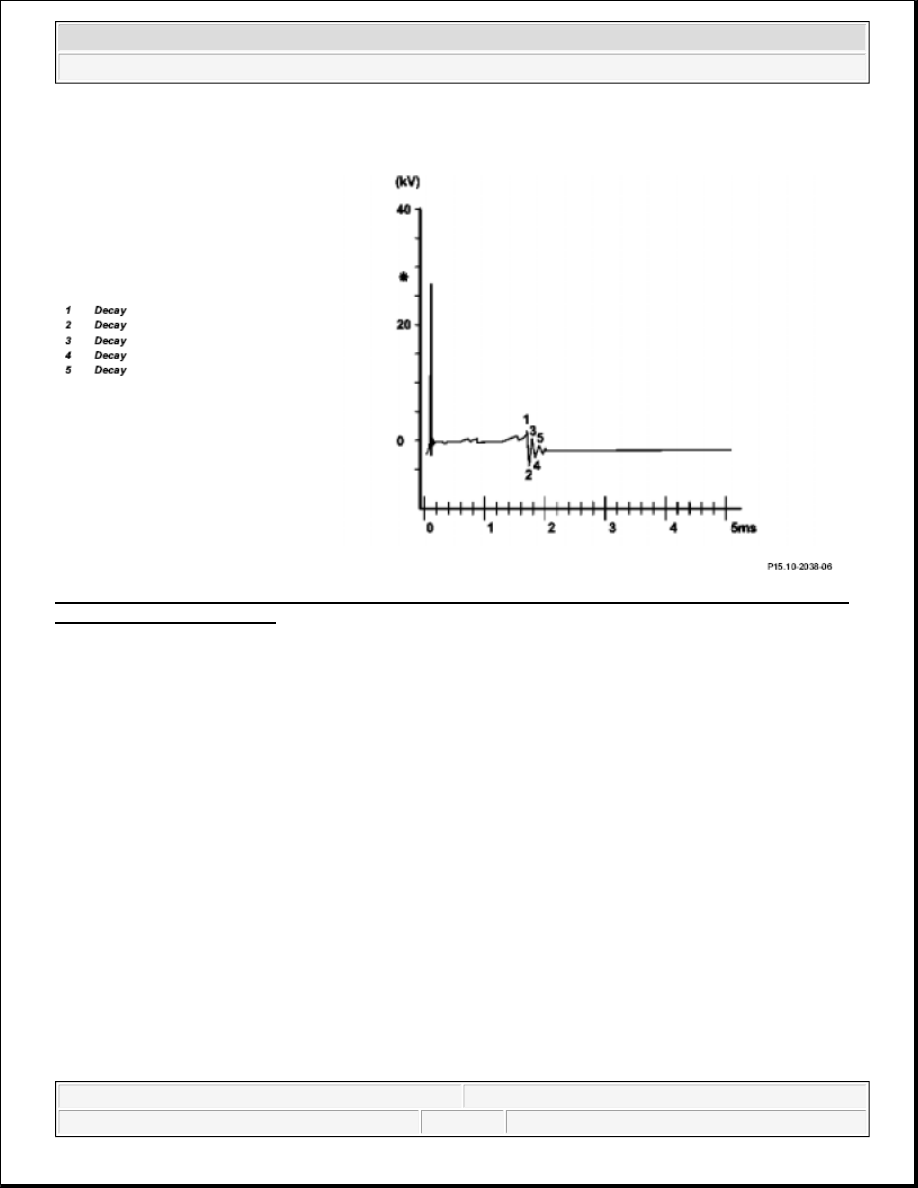

Diagnosis test oscilloscope / good image contactless high voltage distribution Secondary side (single
image) Engine idling

(shown on engine M119.981, cylinder 1 with Bosch ignition coil)

Measuring range: 40 kV



2001 Mercedes-Benz ML320

1998-2005 ENGINE Electrical System - Engine - 163 Chassis



me



Time range: 5 ms

Fig. 2: Diagnosis Test Oscilloscope / Good Image Contactless High Voltage Distribution Secondary Side
(Single Image) Engine Idling

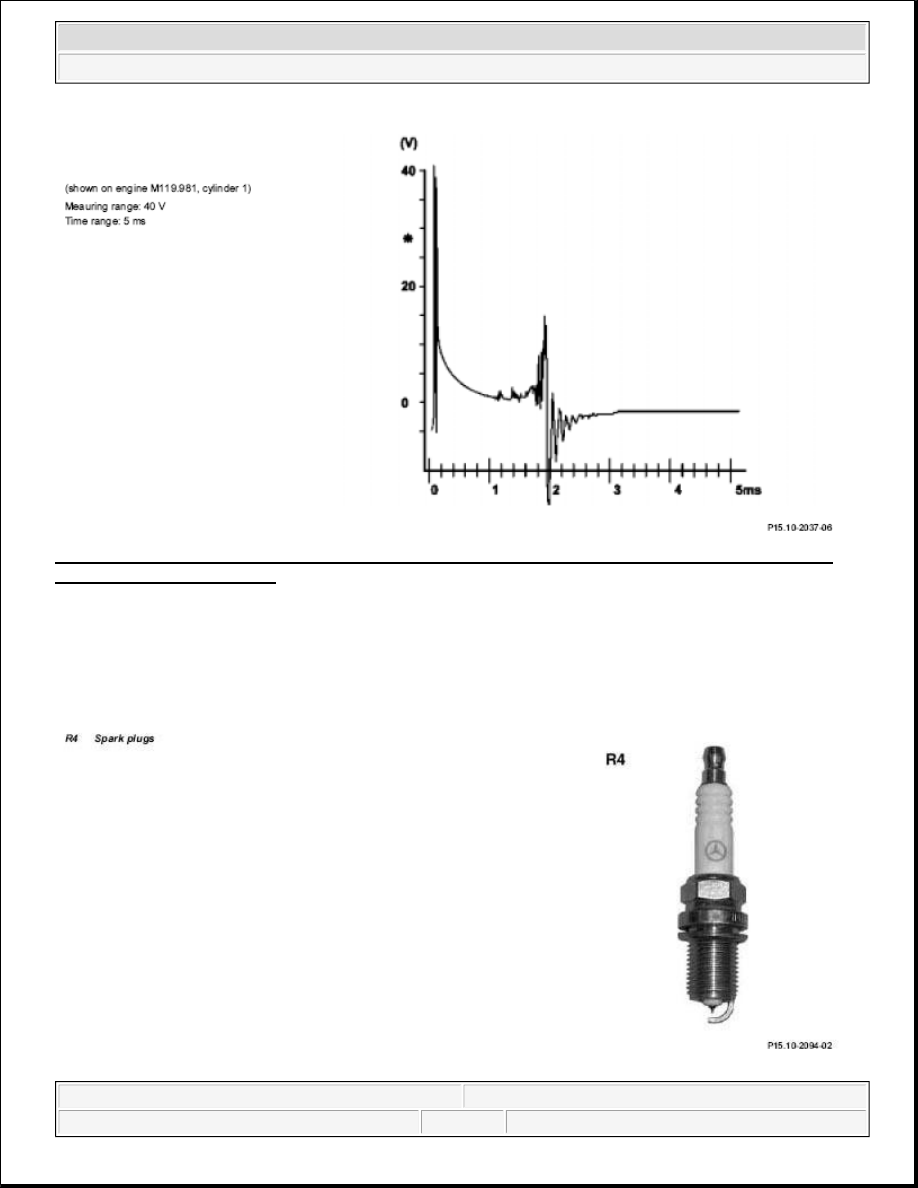

Diagnosis test oscilloscope / good image contactless high voltage distribution Primary side (single image)
Engine idling



2001 Mercedes-Benz ML320

1998-2005 ENGINE Electrical System - Engine - 163 Chassis



me



Fig. 3: Diagnosis Test Oscilloscope / Good Image Contactless High Voltage Distribution Primary Side
(Single Image) Engine Idling

BASIC KNOWLEDGE

SPARK PLUGS, LOCATION/TASK/DESIGN/FUNCTION - GF15.10-P-3101F

ENGINE 104, 111, 112, 113/, 119, 120, 137, 166 (except, 112.96, 113.98/99)

Fig. 4: Identifying Spark Plug



2001 Mercedes-Benz ML320

1998-2005 ENGINE Electrical System - Engine - 163 Chassis



me



IGNITION COILS, LOCATION - GF15.10-P-3102-01A

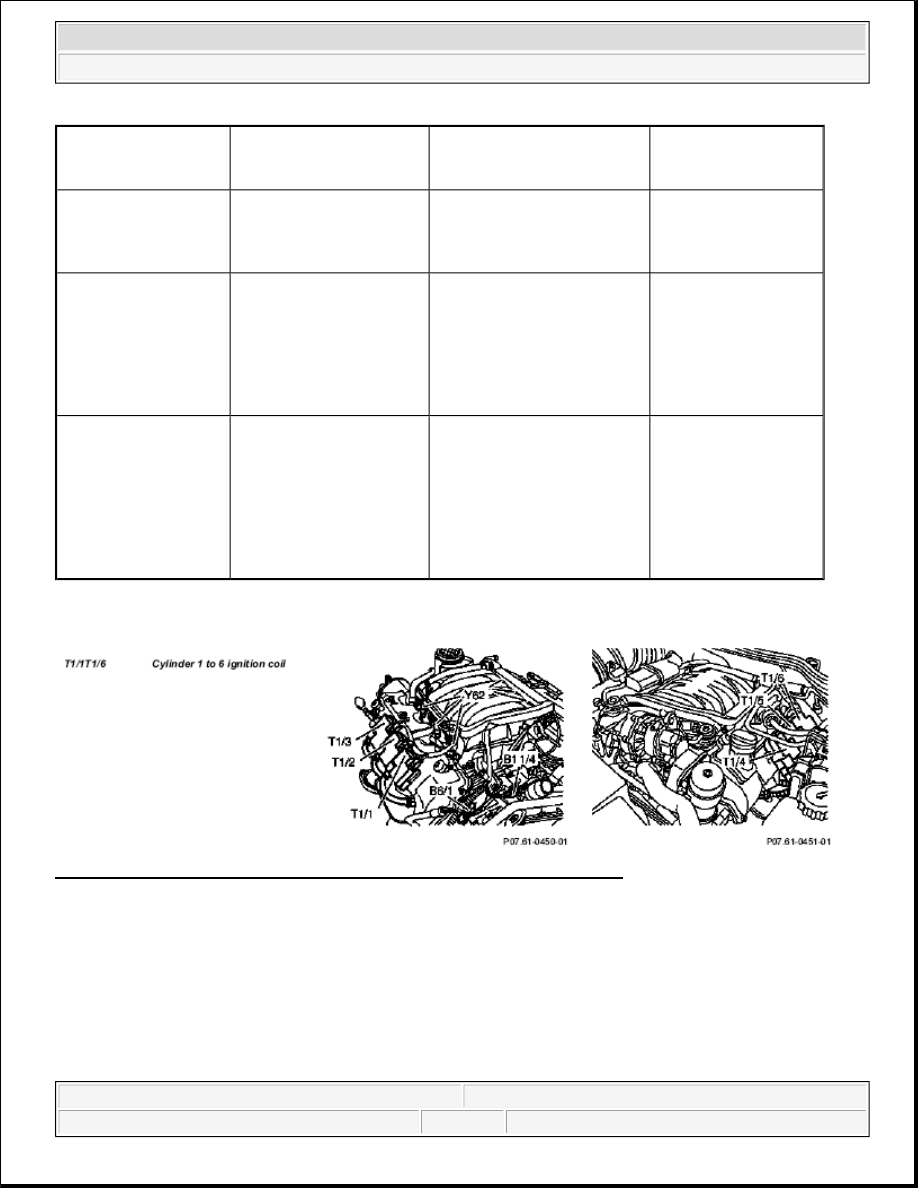

Fig. 5: Identifying Cylinder 1 To 6 Ignition Coil - Location On Engine 112



Spark plugs, location

One or two spark plugs are
located in the cylinder head
per cylinder.





Spark plugs, task

The spark plugs ignite the
suctioned and compressed
fuel-air mixture due to arcing
between the electrodes.





Spark plugs, design

In the manufacturer's specific
type symbols, all the spark
plug features are assigned (e.
g. heat rating, shape of
seating, thread, width across
flats, electrode material,
spark position).





Spark plugs, function

The ignition voltage travels to
the spark plugs from directly
connected ignition coils or
over the ignition lines from
the ignition coils causing
arcing in the air gap between
the center and ground
electrodes.
