X18.

Z52/11

In passenger harness, in breakout to dash connector

X18.

Z52/14

In passenger harness, in main harness breakout for

left side of vehicle.

Z52/15

In passenger harness, near breakout to radio & SRS

control module.

Z53/1

In passenger harness, in main harness breakout for

left side of vehicle.

Z53/2

In passenger harness, in main harness breakout for

left side of vehicle.

Z53/4

In passenger harness, near breakout to trailer

connector X52.

Z53/5

In passenger harness, in main harness breakout for

right side of vehicle.

Z53/6

In passenger harness, near breakout to trailer

connector X52.

Z53/7

In passenger harness, near breakout to dash

connector X18.

Z53/8

In passenger harness, in main harness breakout for

right side of vehicle.

Z53/9

In passenger harness, under center console in plastic

harness channel.

Z53/16

Under right front seat.

Z53/17

In passenger harness, in main harness breakout for

right side of vehicle.

Z53/18

In passenger harness, in E-box.

Z53/20

Under front of center console.

Z53/21

In passenger harness, near breakout to dash

connector X18.

Z53/23

In passenger harness, in breakout to ABS module.

Z53/24

In passenger harness, in breakout to ABS module.

Z54/1

In headliner harness, in breakout for right sun visor

connector.

Z54/2

In headliner harness, in breakout for right sun visor

connector.

Z54/3

In headliner harness, in breakout for rear dome

light.

Z54/7

In headliner harness, near breakout to left sun visor

connector.

Z54/8

In headliner harness, near breakout to left sun visor

connector.

Z54/9

In headliner harness, in breakout for W7.



2001 Mercedes-Benz ML320

2001 MERCEDES-BENZ ML320 & ML430



me



COMPONENT LOCATION GRAPHICS

Z54/10

In headliner harness, in breakout for W7.

Z55/1

In tailgate harness, near breakout to tailgate CL

actuating motor, rear wiper motor & license plate

lights.

Z56/1

Behind left headlight.

Z56/2

Behind left headlight.

Z56/4

Behind left headlight.

Z56/5

Behind left headlight.

Z56/6

Behind left headlight.

Z56/7

In breakout to fanfare horns.

Z57/1

Behind right headlight.

Z57/2

In E-box.

Z57/3

In right engine harness, near breakout to wiper

motor.

Z57/7

In E-box.

Z58/1

In trailer harness.

Z58/8

In trailer harness.

Z59/1

In door mounted spare tire harness.

Z59/2

In door mounted spare tire harness.

Z59/3

In left/right door harness.

Z59/4

In left/right rear door harness.

Z60/4

In foglight harness.

Z60/5

In foglight harness.

Z61

In dash harness, near breakout to parking brake

switch.

Z61/5

Under center console, near breakout for lower

control field control module connector C3.

Z61/6

Under center console, near breakout for lower

control field control module connector C3.

Z87/17

Behind radio.

Z87/18

Behind radio.

Z99/6

In motor harness, in E-box.

Z99/7

In motor harness, in E-box.

NOTE:

Figures may show multiple component locations. Refer to appropriate table for
proper figure references.



2001 Mercedes-Benz ML320

2001 MERCEDES-BENZ ML320 & ML430



me





2001 Mercedes-Benz ML320

2001 MERCEDES-BENZ ML320 & ML430



me

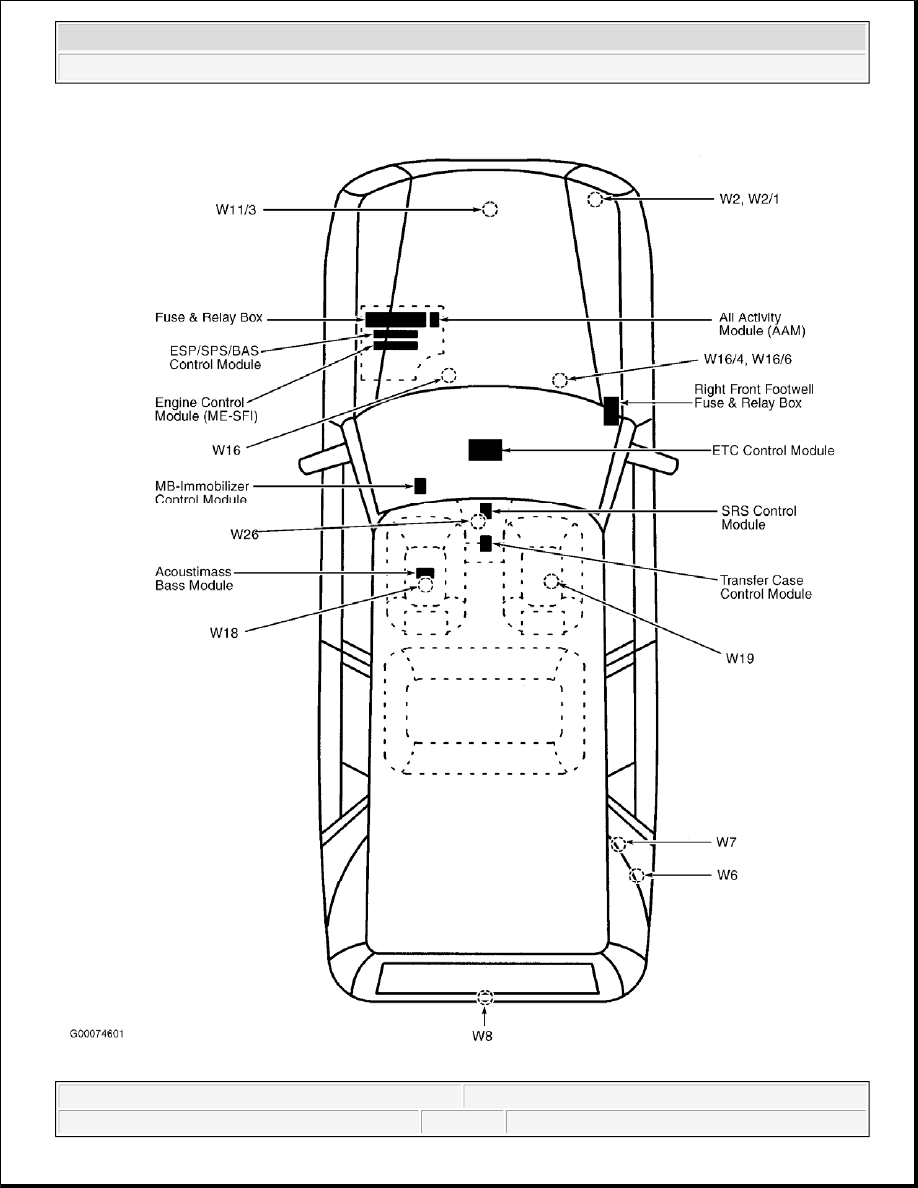

Fig. 1: Plan View Of Vehicle
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
